Product Details | LIGHTING FIXTURE

6210-00-548-0598 An item consisting of one or more lampholder(s) or other electrical connection, designed to provide general illumination. May include a shade, light window, switch and the like. Do not use if a more specific item name exists,such as LIGHT (as modified).

Part Alternates: M16377/8-331.1, M1637783311, MIL-F-16377/8, MILF163778, 301AA, 301-AA, 6210-00-548-0598, 00-548-0598, 6210005480598, 005480598

Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-548-0598

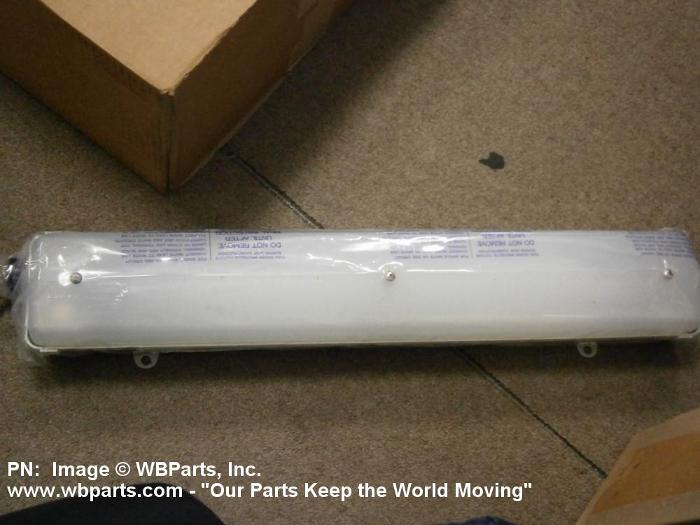

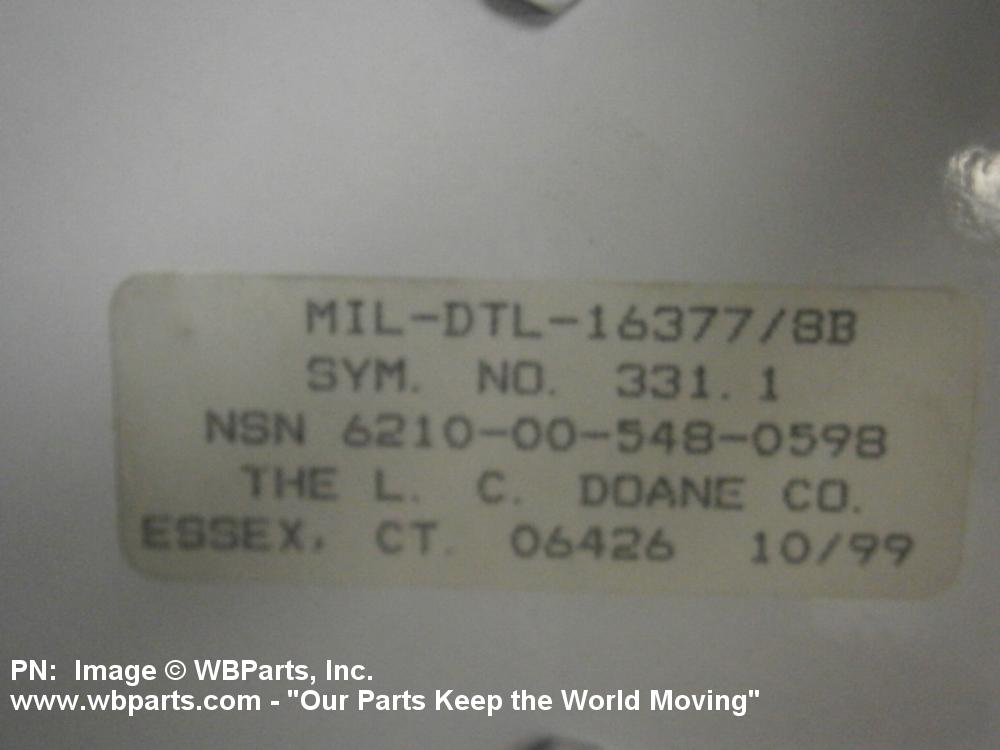

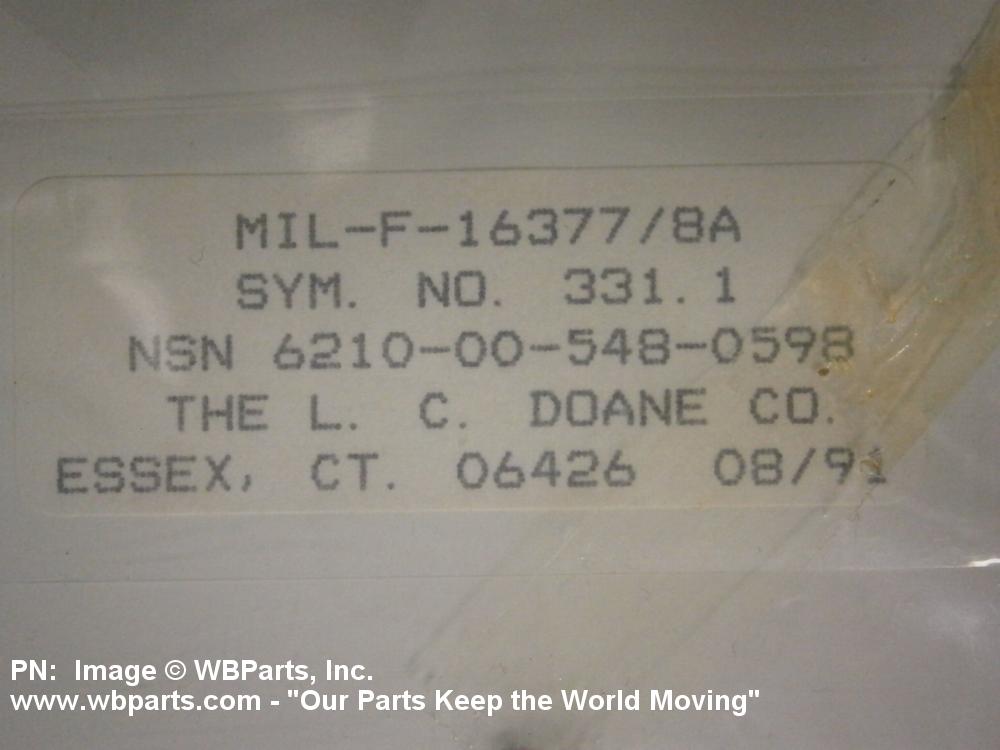

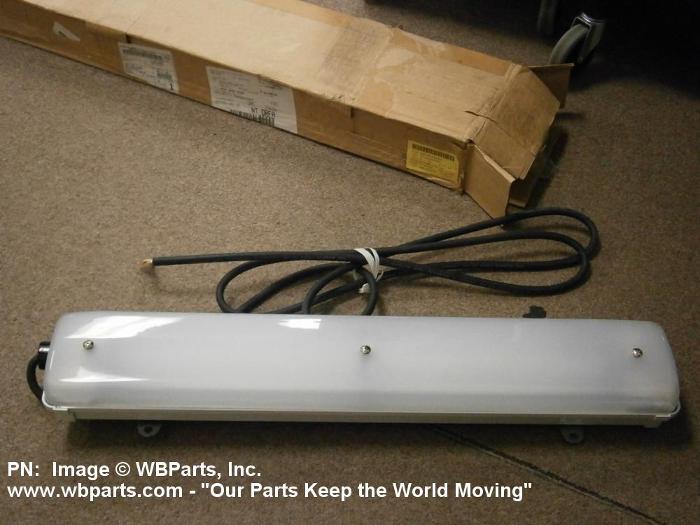

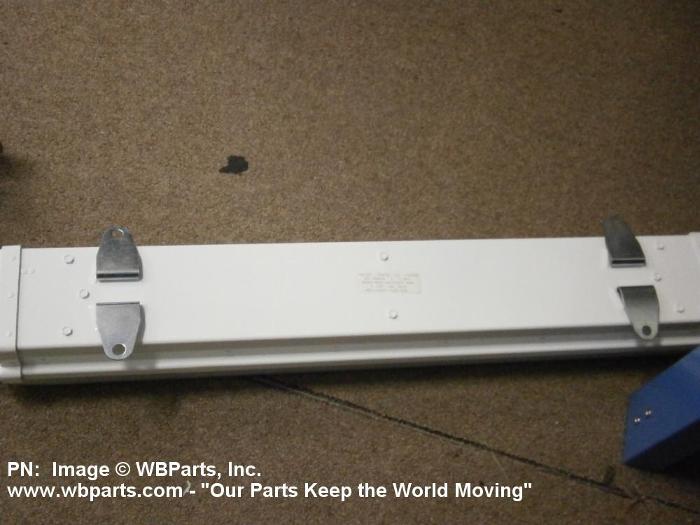

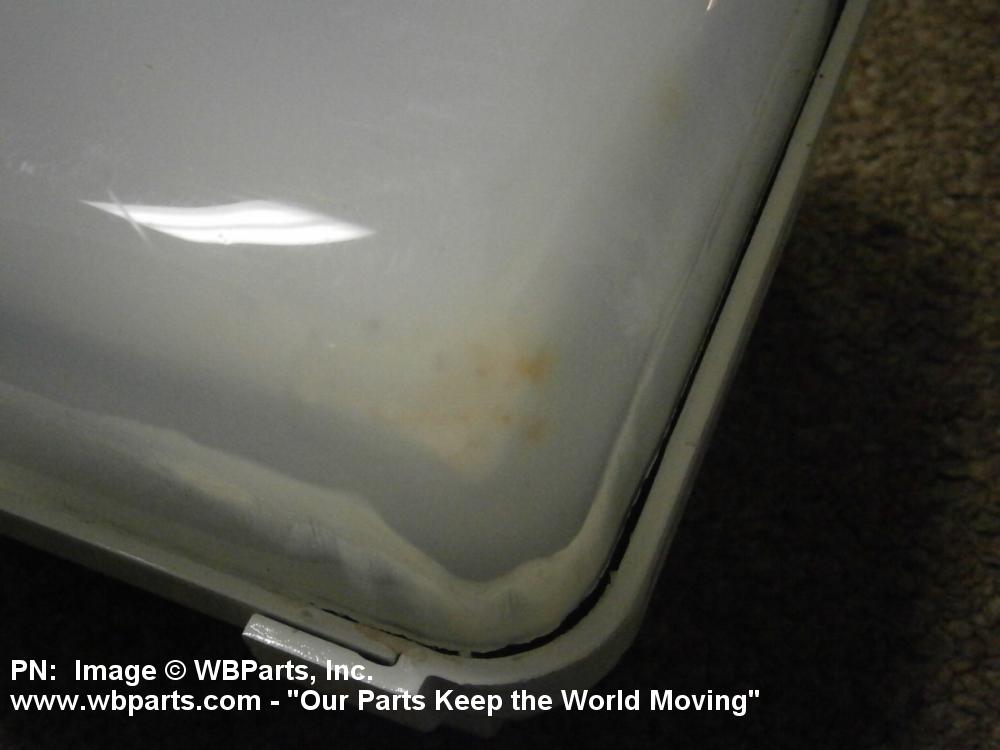

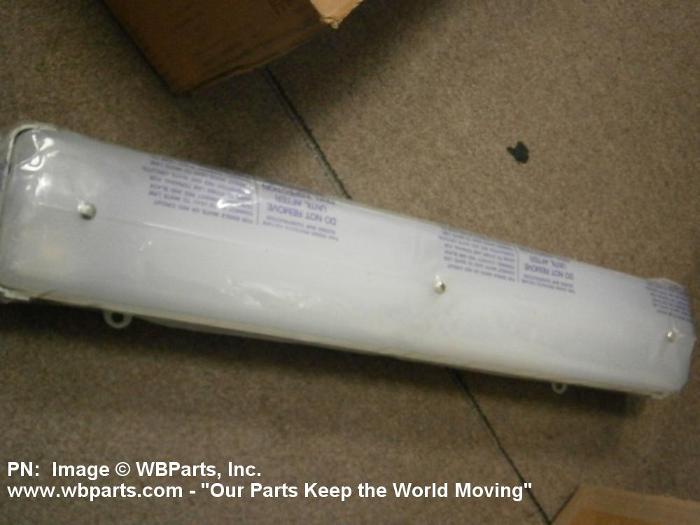

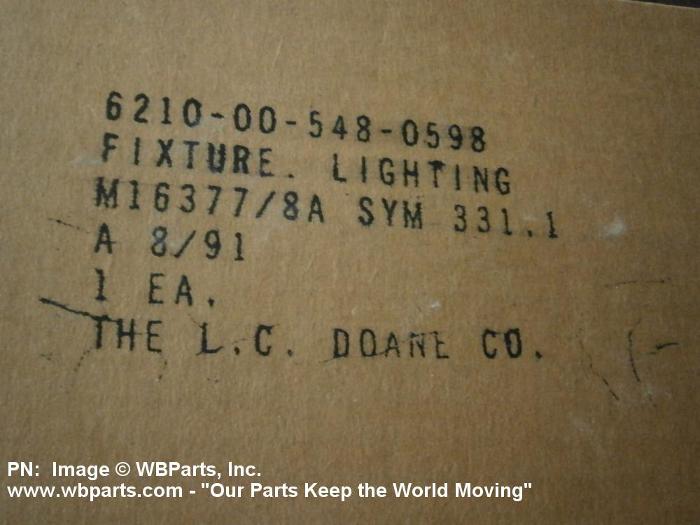

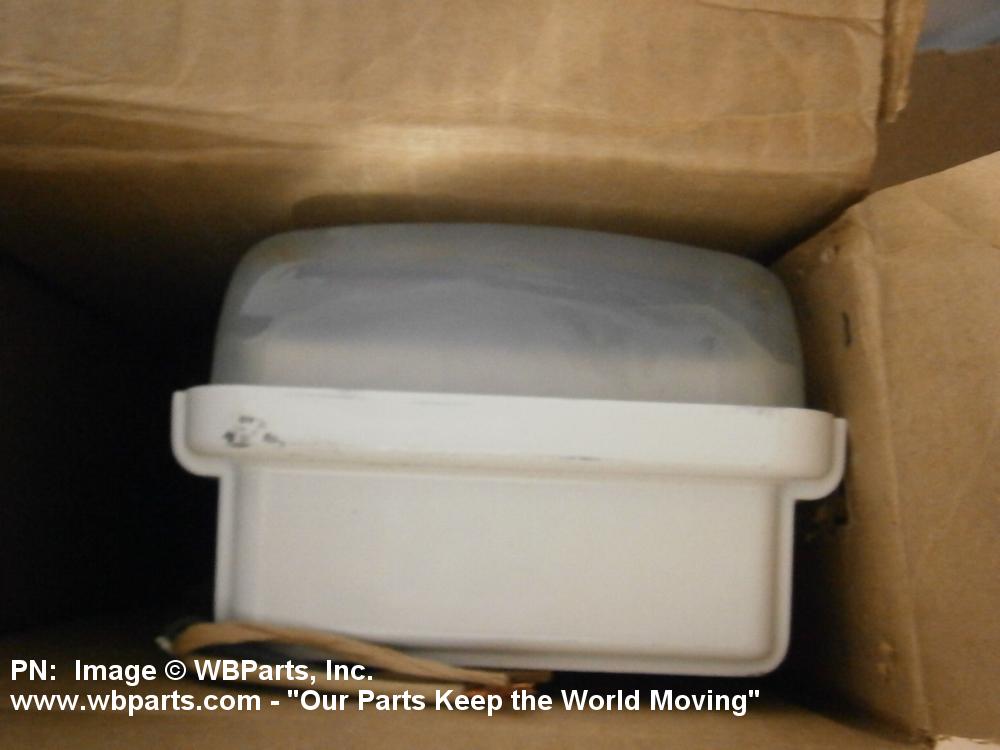

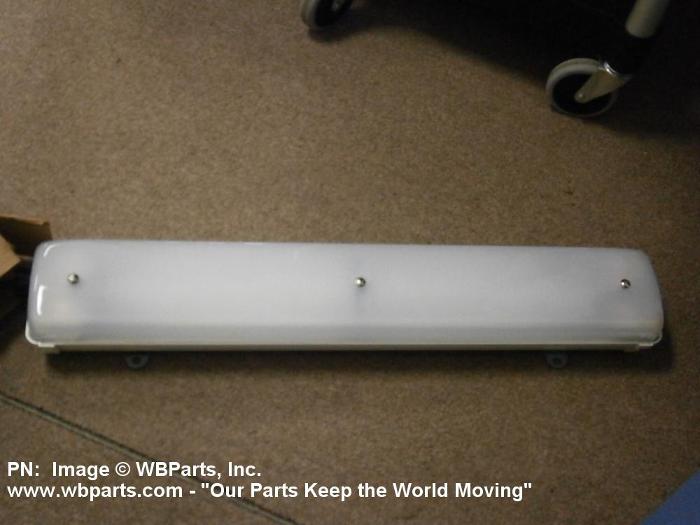

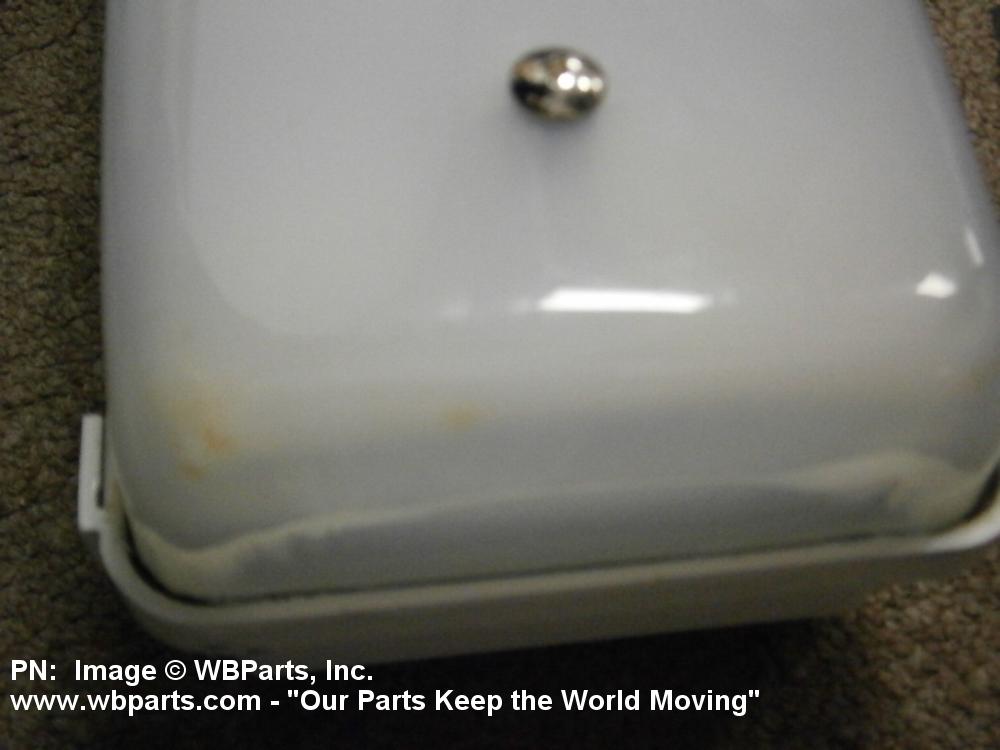

Drawings & Photos | NSN 6210-00-548-0598


Demand History | NSN 6210-00-548-0598

Part Number Request Date QTY Origin
6210-00-548-0598 2020-08-216 200 AU
6210-00-548-0598 2019-02-44 3 us
6210-00-548-0598 2018-08-213 1 US
6210-00-548-0598 2017-02-52 1 US
M1637783311 2016-11-308 1 us
6210-00-548-0598 2015-07-185 4 United States
6210-00-548-0598 2012-05-143 2 United States

Cross Reference | NSN 6210-00-548-0598

Part Number Cage Code Manufacturer
301-AA 85213 L.C.DOANE COMPANY,THE
M16377/8-331.1 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-16377/8 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6210-00-548-0598

Technical Data | NSN 6210-00-548-0598

Characteristic Specifications
SHAPE RECTANGULAR
OVERALL HEIGHT 3.812 INCHES MAXIMUM
OVERALL LENGTH 28.891 INCHES MINIMUM AND 28.953 INCHES MAXIMUM
OVERALL WIDTH 4.609 INCHES MINIMUM AND 4.656 INCHES MAXIMUM
VOLTAGE RATING IN VOLTS 120.0 AC NOMINAL
MATERIAL ANY ACCEPTABLE BODY PLASTIC ACRYLIC ILLUMINATION DIRECTING DEVICE
MATERIAL DOCUMENT AND CLASSIFICATION MIL-P-24191,TYPE WTLS-4,GRADE G MIL SPEC SINGLE MATERIAL RESPONSE ILLUMINATION DIRECTING DEVICE
SURFACE TREATMENT ANY ACCEPTABLE BODY
LAMP TYPE ACCOMMODATED AND QUANTITY 1 FLUORESCENT
LAMP BASE TYPE ACCOMMODATED MEDIUM BIPIN
MOUNTING METHOD UNTHREADED HOLE
TERMINAL TYPE AND QUANTITY 1 WIRE LEAD
WIRING PROVISION METHOD CABLE
WIRING PROVISION LENGTH 120.0 INCHES NOMINAL SINGLE PROVISION
ILLUMINATION DIRECTING DEVICE TYPE WINDOW
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION WATERTIGHT AND SHOCK AND VIBRATION RESISTANT
FURNISHED ITEMS AND QUANTITY 1 LAMP AND 2 TYPE I AND 1 TYPE IV LABELS
III UNPACKAGED UNIT WEIGHT 7.750 POUNDS
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-F-16377/8
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M16377/8-331.1

Restrictions/Controls & Freight Information | NSN 6210-00-548-0598

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 761 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6210-00-548-0598

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
