NSN 6210-00-548-0601 MS17194PC12131516, MS17194PC12-13-15-16, M16377/8-001
Product Details | LIGHTING FIXTURE WINDOW
6210-00-548-0601 An item of clear or diffusing material designed to be placed in front of, and which does not inclose, a light source. It is specifically designed to be used with a FIXTURE, LIGHTING. See also GLOBE, ELECTRIC LIGHT; FILTER, LIGHT (as modified) and LENS (as modified).
Part Alternates: MS17194PC12131516, MS17194PC12-13-15-16, M16377/8-001, M163778001, M16377-8-001, MILF163778, MILF16377-8, 6210-00-548-0601, 00-548-0601, 6210005480601, 005480601
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-548-0601 | 16148 ( WINDOW, LIGHTING FIXTURE ) |

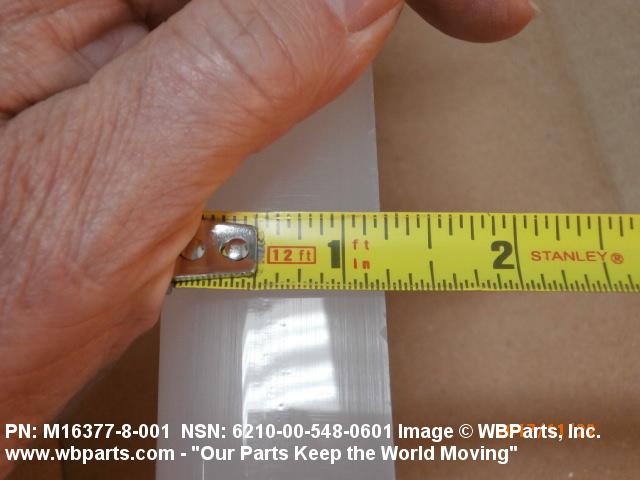

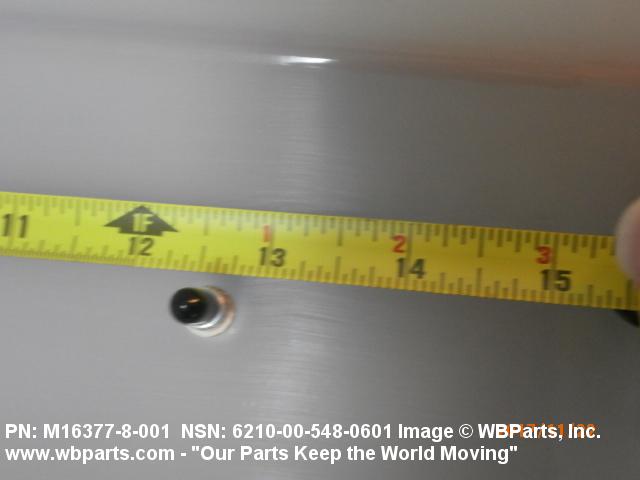

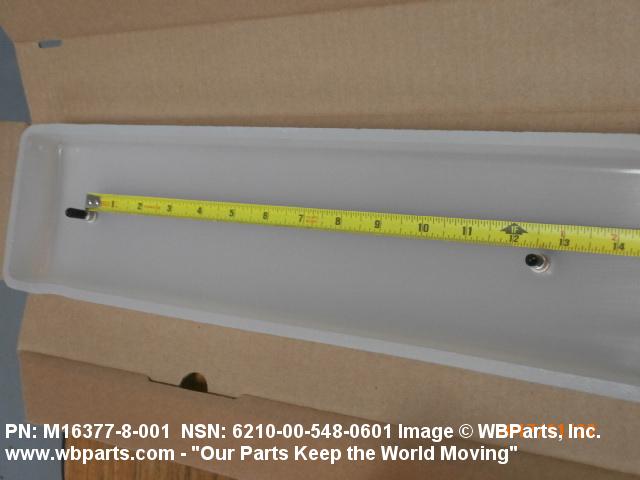

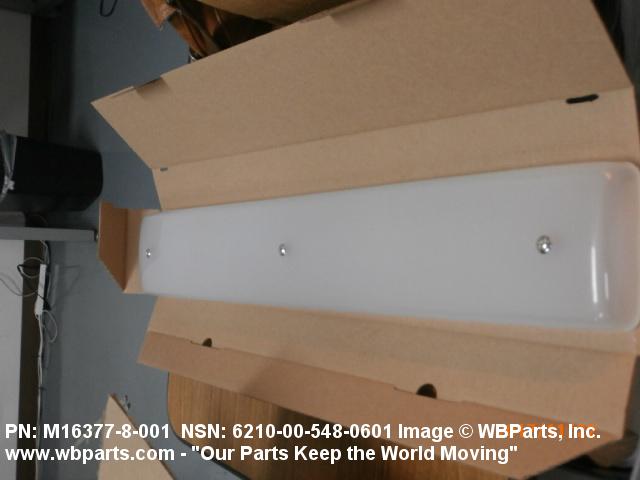

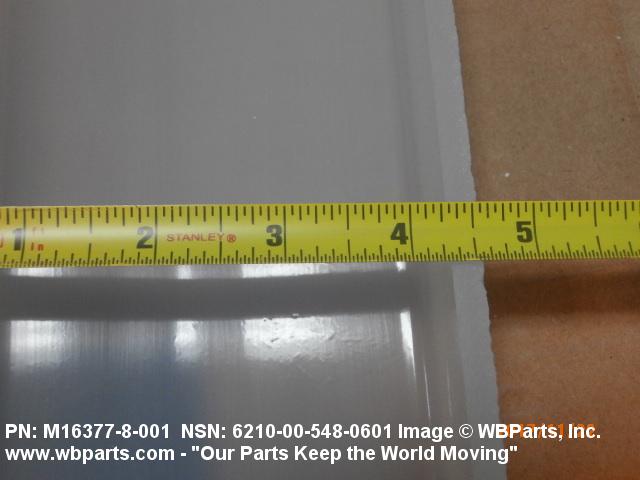

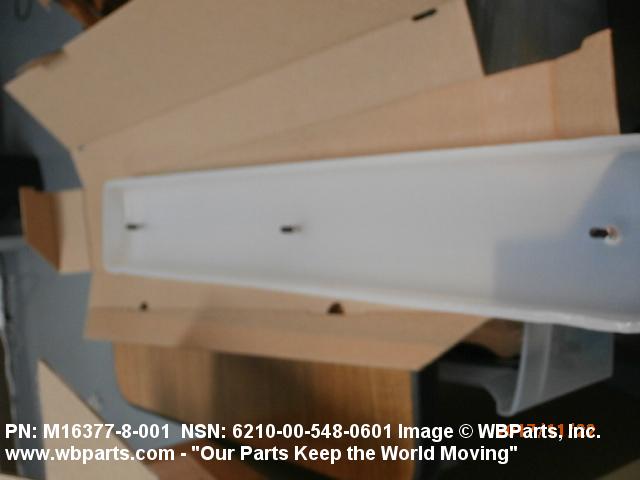

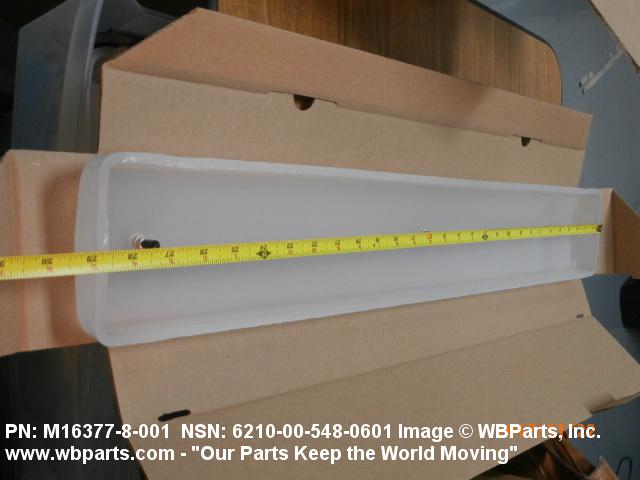

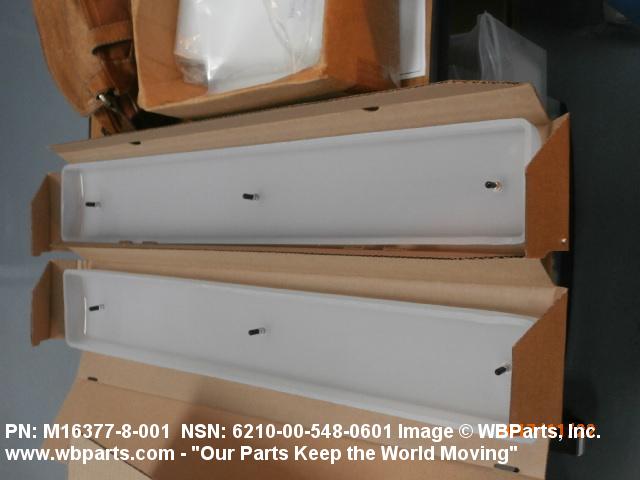

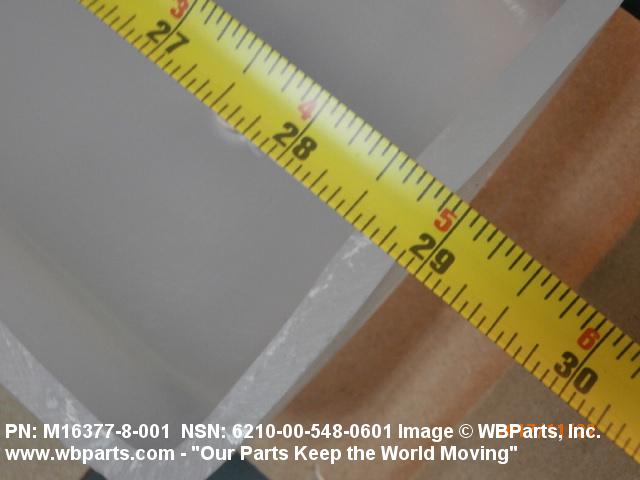

Drawings & Photos | NSN 6210-00-548-0601
Demand History | NSN 6210-00-548-0601
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-548-0601 | 2024-09-248 | 642 | DIBBS |
| 6210-00-548-0601 | 2020-09-269 | 1 | DIBBS-RFPs |
| M163778001 | 2019-03-65 | 1 | United States |
| 6210-00-548-0601 | 2017-08-216 | 5 | United States |
| 6210-00-548-0601 | 2015-09-252 | 1033 | DIBBS |
| 6210-00-548-0601 | 2015-08-243 | 1 | DIBBS-RFPs |
| 6210-00-548-0601 | 2015-06-181 | 475 | DIBBS |
| 6210-00-548-0601 | 2010-11-305 | 2783 | DIBBS |
| 6210-00-548-0601 | 2010-09-272 | 2203 | DIBBS |
| 6210-00-548-0601 | 2010-08-243 | 3735 | DIBBS |
| 6210-00-548-0601 | 2009-11-313 | 1732 | DIBBS |
| 6210-00-548-0601 | 2009-10-275 | 1706 | DIBBS |
| 6210-00-548-0601 | 2009-03-85 | 1871 | DIBBS |
| 6210-00-548-0601 | 2009-01-05 | 3989 | DIBBS |
| 6210-00-548-0601 | 2008-07-188 | 1000 | US |
Cross Reference | NSN 6210-00-548-0601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M16377-8-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16377/8-001 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MILF16377-8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17194PC12-13-15-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-548-0601
Related Products | NSN 6210-00-548-0601
Technical Data | NSN 6210-00-548-0601
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, MIL-P-24191, TYPE WTLS-4, GRADE G |
| COLOR | WHITE |
| OUTER SURFACE CONDITION | SMOOTH |
| INSIDE SURFACE CONDITION | SMOOTH |
| MATERIAL TRANSPARENCY | TRANSLUCENT |
| OVERALL LENGTH | 28.891 INCHES MINIMUM AND 28.953 INCHES MAXIMUM |
| OVERALL WIDTH | 4.609 INCHES MINIMUM AND 4.656 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.812 INCHES NOMINAL |
| MOUNTING METHOD | HOLES |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.191 INCHES NOMINAL |
| MOUNTING CONFIGURATION | 12.562 IN. C TO C |
| SPECIAL FEATURES | 3 LG SECURING SCREW ASSY INCL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF16377-8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16377-8-001 |
Restrictions/Controls & Freight Information | NSN 6210-00-548-0601
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-548-0601
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
