NSN 6210-01-592-2397 M16377/80-333.1T8, M16377803331T8, 303N
Product Details | LIGHTING FIXTURE
6210-01-592-2397 An item consisting of one or more lampholder(s) or other electrical connection, designed to provide general illumination. May include a shade, light window, switch and the like. Do not use if a more specific item name exists,such as LIGHT (as modified).
Part Alternates: M16377/80-333.1T8, M16377803331T8, 303N, 6210-01-592-2397, 01-592-2397, 6210015922397, 015922397
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 28 FEB 2011 | 01-592-2397 | 00513 ( FIXTURE, LIGHTING ) |

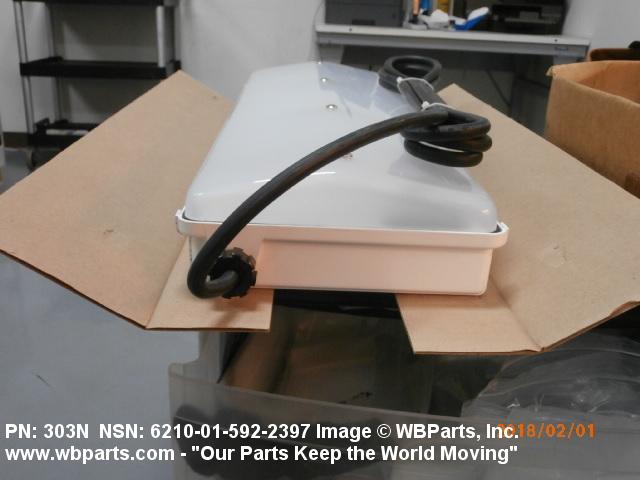

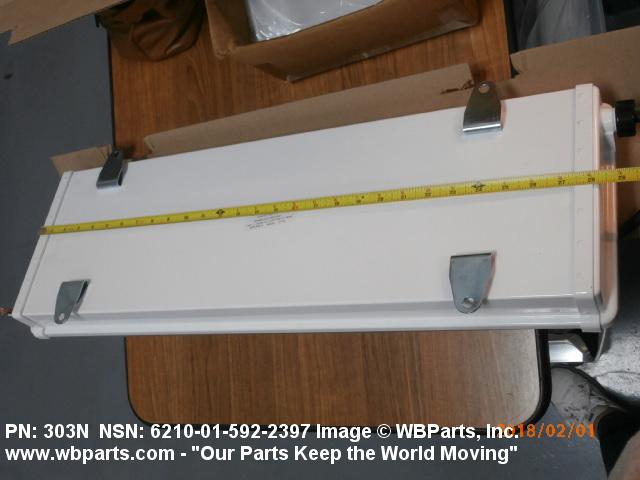

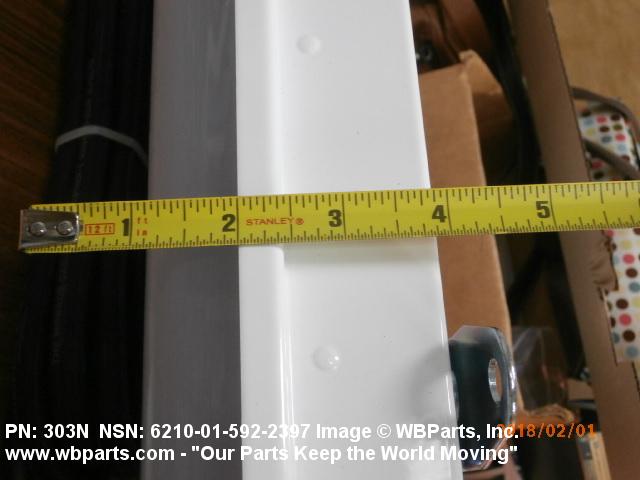

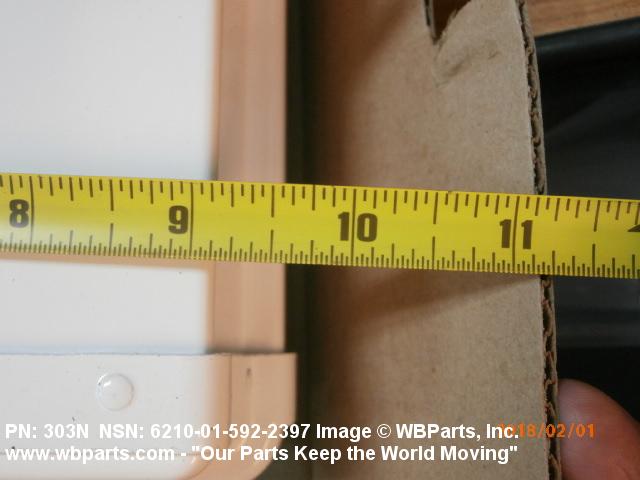

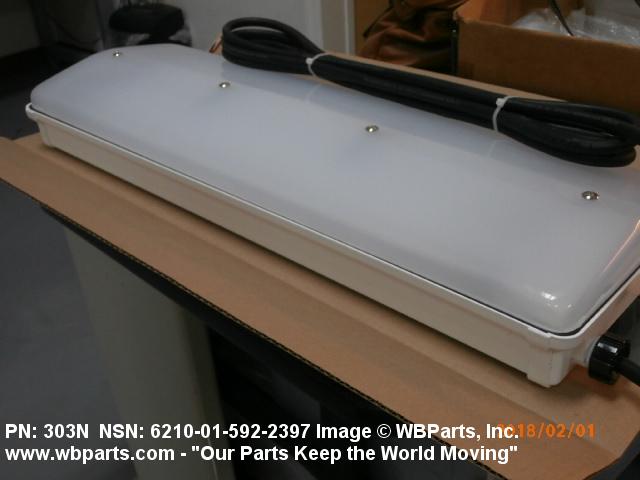

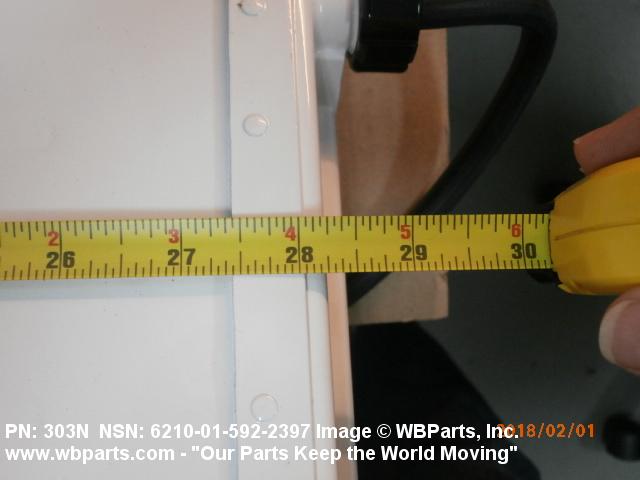

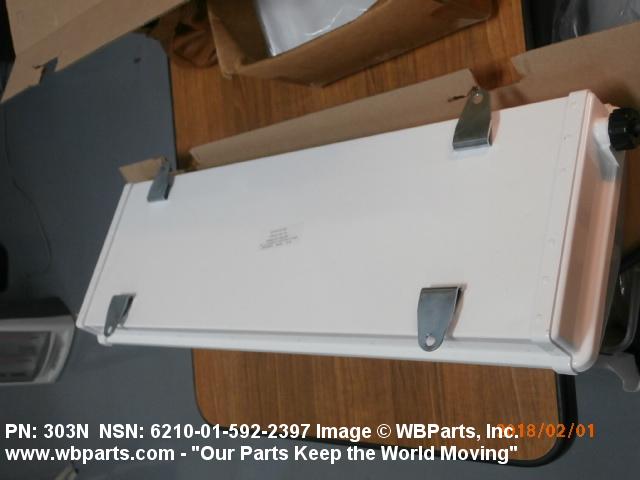

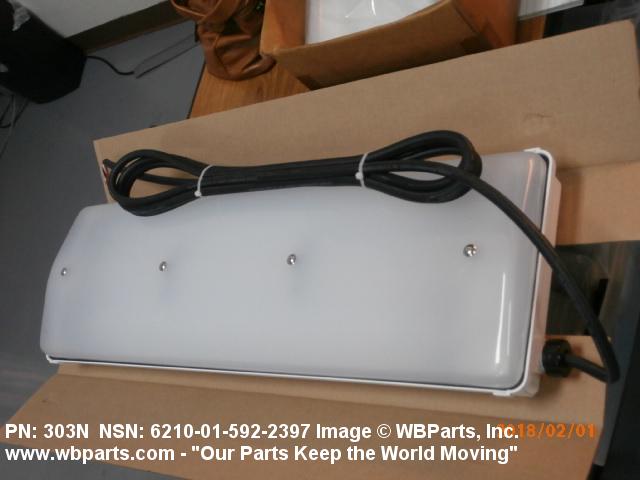

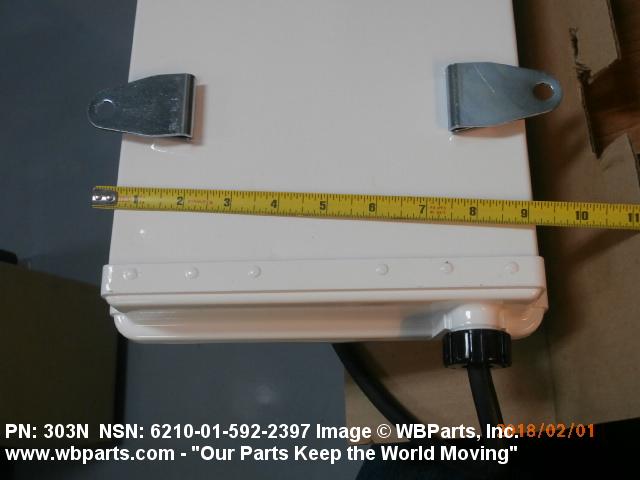

Drawings & Photos | NSN 6210-01-592-2397
Demand History | NSN 6210-01-592-2397
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-01-592-2397 | 2024-09-250 | 21 | US |
| 6210-01-592-2397 | 2023-10-297 | 31 | DIBBS |
| 6210-01-592-2397 | 2023-10-290 | 39 | DIBBS |
| 6210-01-592-2397 | 2020-07-197 | 15 | United States |
| 6210-01-592-2397 | 2019-12-345 | 27 | United States |
| 6210-01-592-2397 | 2018-01-31 | 8 | DIBBS |
| 6210-01-592-2397 | 2017-12-341 | 1 | DIBBS |
| 6210-01-592-2397 | 2017-11-317 | 1 | United States |
| 6210-01-592-2397 | 2017-11-317 | 1 | United States |
| 6210-01-592-2397 | 2015-04-113 | 1 | CA |
| 6210-01-592-2397 | 2014-09-251 | 62 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-01-592-2397
Related Products | NSN 6210-01-592-2397
Technical Data | NSN 6210-01-592-2397
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 4.250 INCHES MAXIMUM |
| LENS COLOR | WHITE |
| LAMP BASE TYPE ACCOMMODATED | MEDIUM BIPIN |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY)LIGHTING FIXTURE ASSEMBLY |
| MATERIAL | PLASTIC ACRYLIC ILLUMINATION DIRECTING DEVICE |
| OVERALL LENGTH | 29.125 INCHES MAXIMUM |
| OVERALL WIDTH | 9.750 INCHES MAXIMUM |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| SPECIAL FEATURES | FIXTURE, LIGHTING, T8 FLOURESCENT, GENERAL LIGHTING, 51 WATTS, 120 VOLTS, 60 HERTZ, WATERTIGHT, SURFACE MOUNT |
| VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| MATERIAL | ALUMINUM BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 3 FLUORESCENT |
| SURFACE TREATMENT | ENAMEL BAKED BODY |
| WIRING PROVISION METHOD | CABLE |
| ILLUMINATION DIRECTING DEVICE TYPE | WINDOW |
| SHAPE | RECTANGULAR |
Restrictions/Controls & Freight Information | NSN 6210-01-592-2397
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-592-2397
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
