NSN 6060-01-477-1610 8100YS , 8100-YS , 01-477-1610
Product Details | FIBER OPTIC PLUG CONNECTOR
6060-01-477-1610 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: 8100YS , 8100-YS , 6060-01-477-1610, 01-477-1610, 6060014771610, 014771610
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
60 | 01 AUG 2000 | 01-477-1610 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |
Demand History | NSN 6060-01-477-1610
Part Number | Request Date | QTY | Origin |
---|---|---|---|
8100YS | 2013-05-121 | 50 | US |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 6060-01-477-1610
Technical Data | NSN 6060-01-477-1610
Characteristic | Specifications |
---|---|

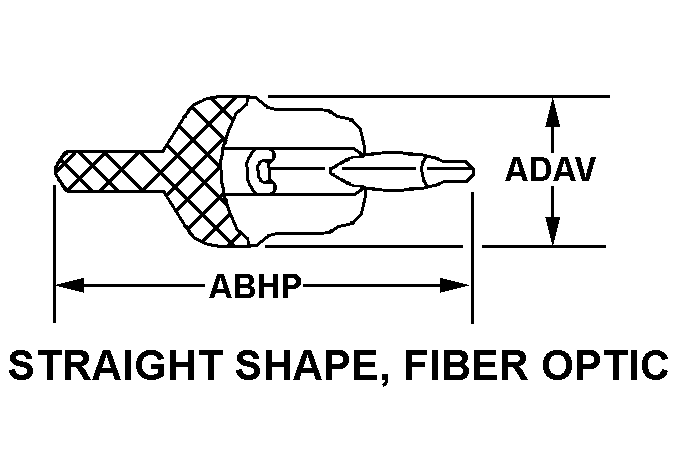

BODY STYLE | 70A STRAIGHT SHAPE, FIBER OPTIC |
OVERALL LENGTH | 2.750 INCHES NOMINAL |
OVERALL DIAMETER | 0.625 INCHES NOMINAL |
SHELL TYPE | SOLID |
SHELL MATERIAL | ZINC |
SHELL SURFACE TREATMENT | NICKEL |
MATING END QUANTITY | 1 |
OPTICAL FIBER DIAMETER ACCOMMODATED | 0.625 INCHES NOMINAL SINGLE MATING END SINGLE CONTACT GROUPING |
OPTICAL FIBER ATTACHMENT METHOD | CEMENT SINGLE MATING END SINGLE CONTACT GROUPING |
INSERTION LOSS IN DECIBELS | 0.20 SINGLE MATING END SINGLE CONTACT GROUPING |
FURNISHED ITEMS | FERRULE |
III PRECIOUS MATERIAL | SILVER |
III PRECIOUS MATERIAL AND LOCATION | COLLAR SILVER |
Restrictions/Controls & Freight Information | NSN 6060-01-477-1610
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | S | Item contains silver |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
