NSN 6060-01-517-1662 10335647 , 181-001-126, 01-517-1662
Product Details | FIBER OPTIC PLUG CONNECTOR
6060-01-517-1662 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: 10335647 , 181-001-126, 6060-01-517-1662, 01-517-1662, 6060015171662, 015171662, 181001126
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 30 JAN 2004 | 01-517-1662 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |

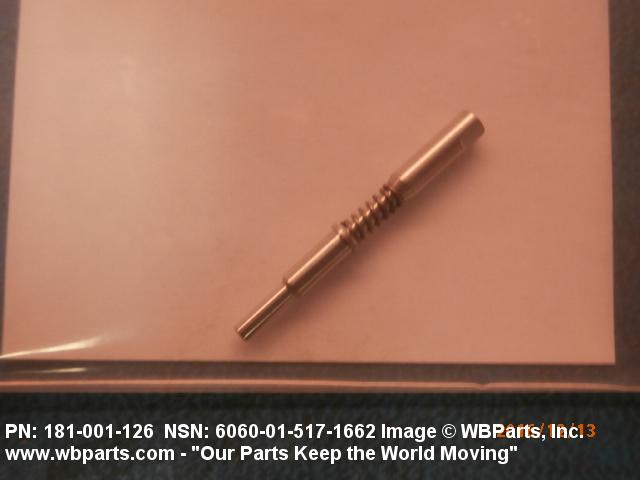

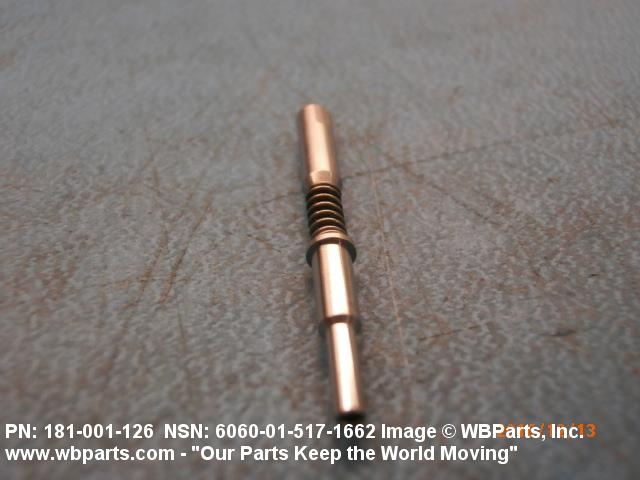

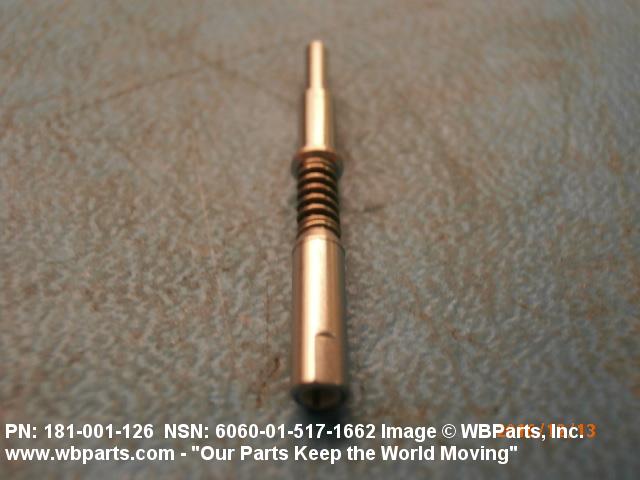

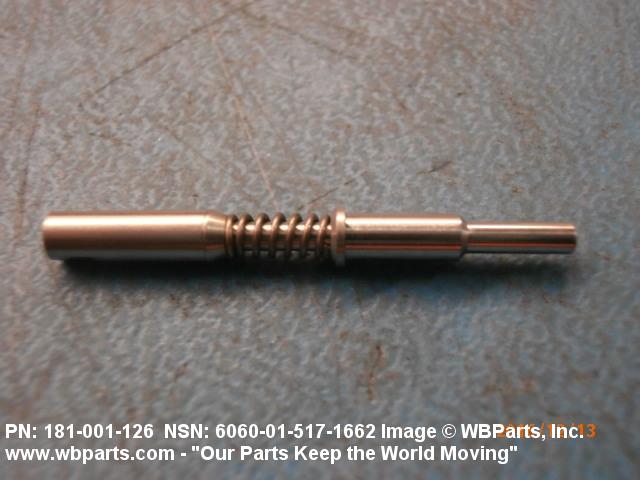

Drawings & Photos | NSN 6060-01-517-1662
Demand History | NSN 6060-01-517-1662
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 181-001-126 | 2023-09-269 | 62 | DIBBS |
| 181-001-126 | 2023-05-138 | 36 | DIBBS |
| 181-001-126 | 2023-03-89 | 285 | DIBBS |
| 181-001-126 | 2022-04-104 | 175 | DIBBS |
| 181-001-126 | 2022-04-93 | 175 | DIBBS |
| 181-001-126 | 2022-02-39 | 82 | DIBBS |
| 181-001-126 | 2022-01-25 | 82 | DIBBS |
| 181-001-126 | 2021-01-25 | 201 | DIBBS |
| 181001126 | 2020-09-254 | 1 | Italy |
| 181-001-126 | 2019-10-276 | 204 | DIBBS |
| 6060-01-517-1662 | 2018-02-46 | 317 | DIBBS |
| 6060-01-517-1662 | 2017-08-236 | 176 | DIBBS |
| 181001126 | 2016-10-295 | 5 | United States |
| 6060-01-517-1662 | 2009-04-110 | 9 | DIBBS |
| 6060-01-517-1662 | 2009-04-110 | 9 | DIBBS |
| 6060-01-517-1662 | 2009-04-106 | 9 | DIBBS |
| 6060-01-517-1662 | 2008-05-142 | 646 | DIBBS |
| 6060-01-517-1662 | 2007-08-228 | 919 | DIBBS |
Cross Reference | NSN 6060-01-517-1662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 181-001-126 | 06324 | GLENAIR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6060-01-517-1662
Related Products | NSN 6060-01-517-1662
Technical Data | NSN 6060-01-517-1662
| Characteristic | Specifications |
|---|---|

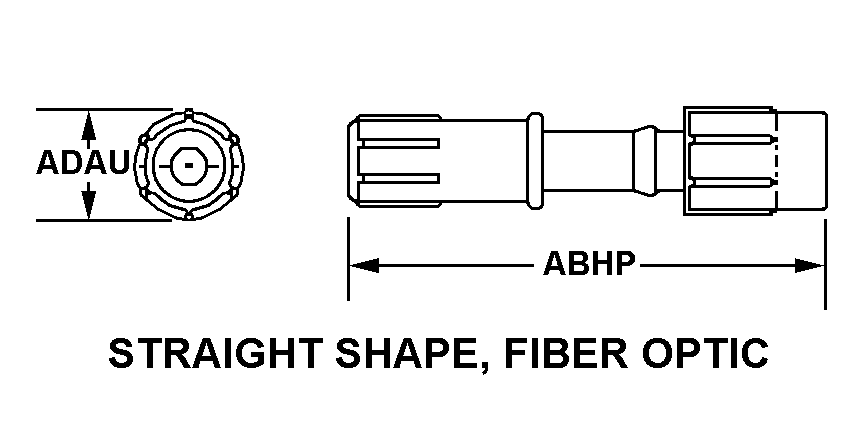

| BODY STYLE | 66A STRAIGHT SHAPE, FIBER OPTIC |

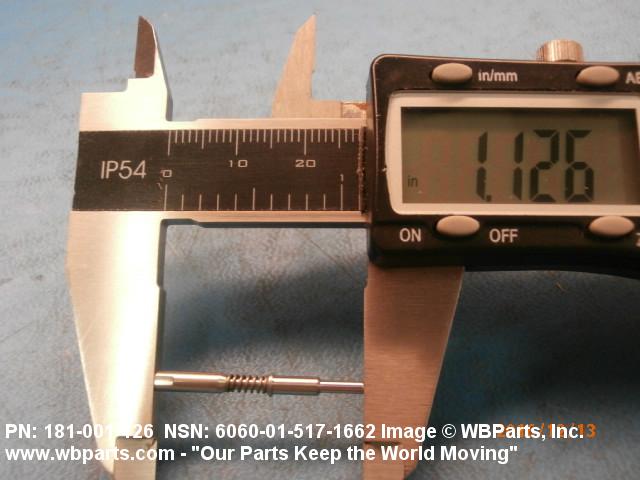

| OVERALL LENGTH | 1.132 INCHES NOMINAL |

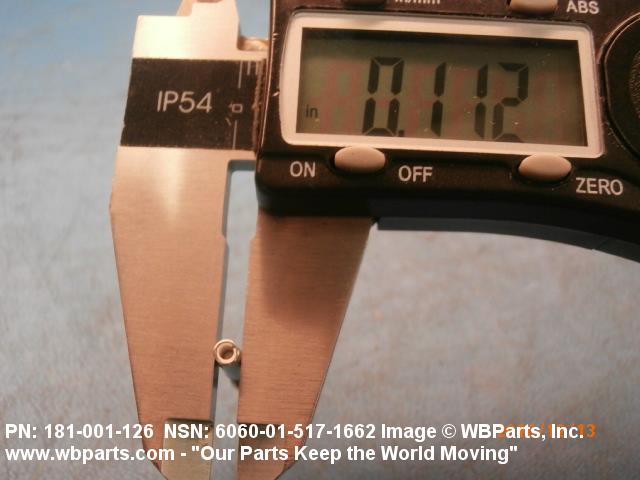

| BODY HEIGHT | 0.115 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.080 INCHES NOMINAL |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | PASSIVATE |
| MATING END QUANTITY | 1 |

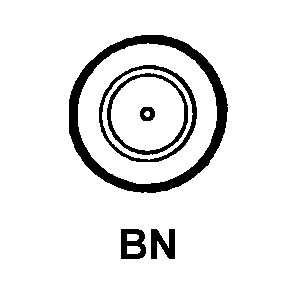

| CONTACT POSITION ARRANGEMENT STYLE | ABBH BN SINGLE MATING END |
| TERMINAL LOCATION | FRONT SINGLE MATING END SINGLE CONTACT GROUPING |
| OPTICAL FIBER DIAMETER ACCOMMODATED | 126.0 MICROMETERS NOMINAL SINGLE MATING END SINGLE CONTACT GROUPING |
| OPTICAL FIBER ATTACHMENT METHOD | FRICTION SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 6060-01-517-1662
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | QS | Naval Electronics Systems Center Portsmouth, VA 23705-0055 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6060-01-517-1662
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
