NSN 6060-01-478-9985 5036382, 503638-2, 01-478-9985
Product Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-478-9985 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Part Alternates: 5036382, 503638-2, 6060-01-478-9985, 01-478-9985, 6060014789985, 014789985
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 05 OCT 2000 | 01-478-9985 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |
Drawings & Photos | NSN 6060-01-478-9985
Demand History | NSN 6060-01-478-9985
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6060-01-478-9985 | 2017-10-284 | 4 | DIBBS |
| 6060-01-478-9985 | 2017-09-247 | 1 | DIBBS |
| 6060-01-478-9985 | 2016-08-239 | 4 | DIBBS |
Cross Reference | NSN 6060-01-478-9985
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 503638-2 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6060-01-478-9985
Technical Data | NSN 6060-01-478-9985
| Characteristic | Specifications |
|---|---|

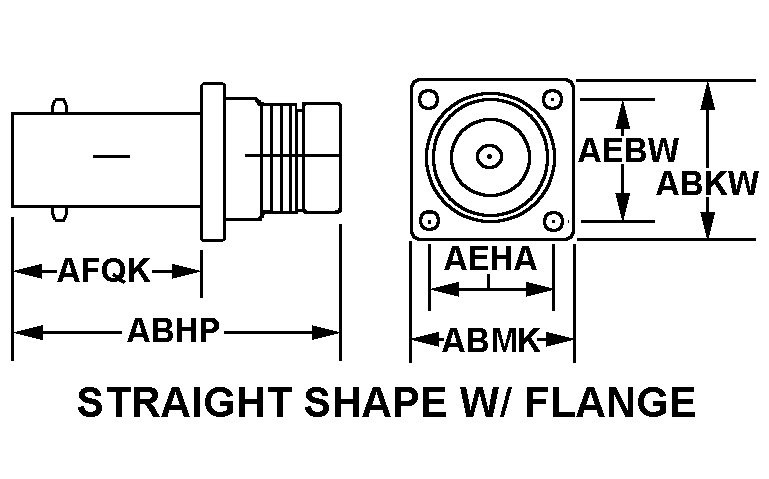

| BODY STYLE | 9N STRAIGHT SHAPE W/FLANGE |
| OVERALL LENGTH | 28.7 MILLIMETERS MINIMUM AND 29.2 MILLIMETERS MAXIMUM |
| OVERALL HEIGHT | 15.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 15.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 9.4 MILLIMETERS MINIMUM AND 9.6 MILLIMETERS MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 9.4 MILLIMETERS MINIMUM AND 9.6 MILLIMETERS MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 12.9 MILLIMETERS MINIMUM AND 13.1 MILLIMETERS MAXIMUM |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABDB NONSTD SINGLE MATING END |
| INSERT MATERIAL | CERAMIC SINGLE MATING END |
| SPECIAL FEATURES | MATL, BOD,ZINC DIECAST; DUST COVER, VINYL AND THERMOPLASTIC RUBBER; DWG NAME, ASSEMBLY,COUPLING BUSHING, 2.5MM BAYONET TO AMP SC;CONNECTOR TYPE, SIMPLEX; ADAPTER TYPE, SC TO ST-STYLE |
Restrictions/Controls & Freight Information | NSN 6060-01-478-9985
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057770 | CABLE LIGHTGUIDE/WAVE GLASS FIBRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6060-01-478-9985
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
