NSN 5999-01-240-4376 ST0150Z325, 01-240-4376, 012404376
Product Details | DELAY LINE
5999-01-240-4376 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: ST0150Z325, 5999-01-240-4376, 01-240-4376, 5999012404376, 012404376
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 1986 | 01-240-4376 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-01-240-4376
Cross Reference | NSN 5999-01-240-4376
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST0150Z325 | 19615 | ALLEN AVIONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-240-4376
Technical Data | NSN 5999-01-240-4376
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | TAPPED |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 150.000 NANOSECONDS NOMINAL SINGLE SECTION |
| SEGMENT QUANTITY PER SECTION | 10 SINGLE SECTION |
| SEGMENT DELAY TIME | 15.000 NANOSECONDS NOMINAL SINGLE SECTION ALL SEGMENTS |
| OPERATING TEMP RANGE | -55.0 TO 105.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 325.000 OHMS |
| OUTPUT IMPEDANCE RATING | 325.000 OHMS |
| ATTENUATION IN DECIBELS | 4.000 |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | 20.0 NANOSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | 17500.0 KILOHERTZ MINIMUM |
| BODY DIAMETER | 1.600 INCHES NOMINAL |
| BODY DEPTH | 0.438 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 12 PIN |
| MOUNTING FACILITY | PIN |
| MOUNTING FACILITY QUANTITY | 12 |

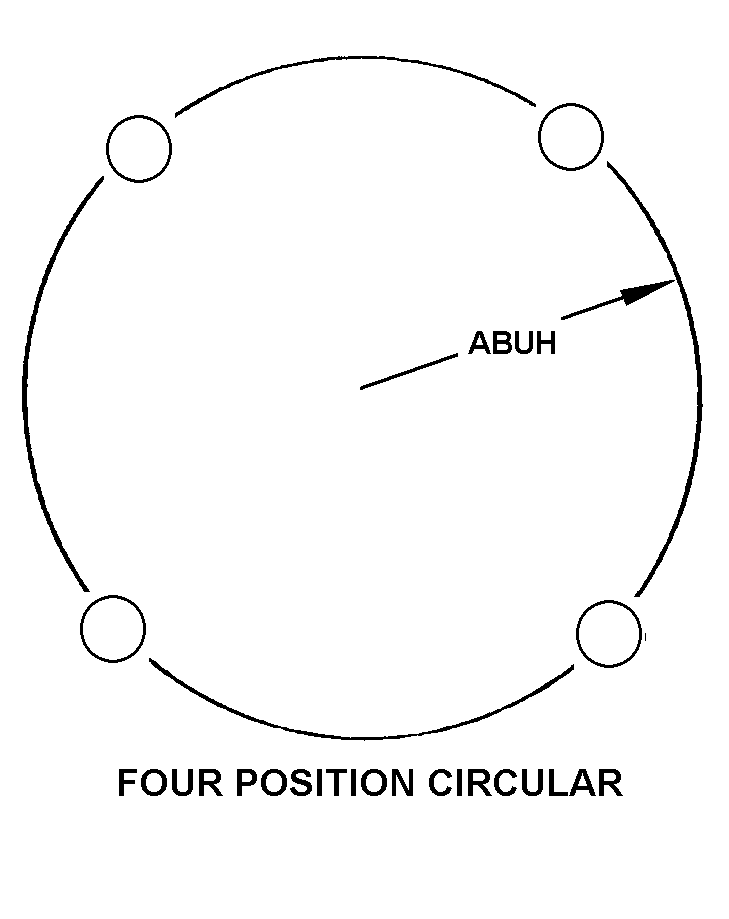

| MOUNTING PROVISION ARRANGEMENT STYLE | 3 FOUR POSITION CIRCULAR |
| MOUNTING HOLE CIRCLE RADIUS | 0.600 INCHES NOMINAL |
| SPECIAL FEATURES | BODY SHAPE IS ROUND |
| III INCLOSURE TYPE | ENCASED |
Restrictions/Controls & Freight Information | NSN 5999-01-240-4376
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
