Product Details | DELAY LINE
5999-01-014-4972 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 0401106501, 0401-1065-01, 0444020075, 0444-0200-75, 1345280001, 134528-0001, 1345281, 134528-1, 18A12, 5999-01-014-4972, 01-014-4972, 5999010144972, 010144972
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 DEC 1975 | 01-014-4972 | 06373 ( DELAY LINE ) |

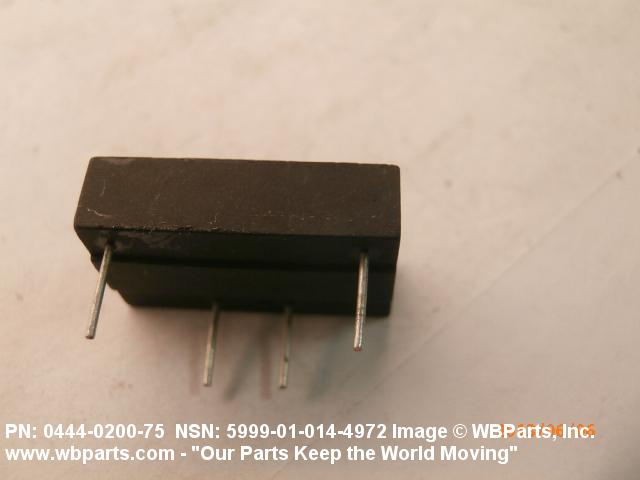

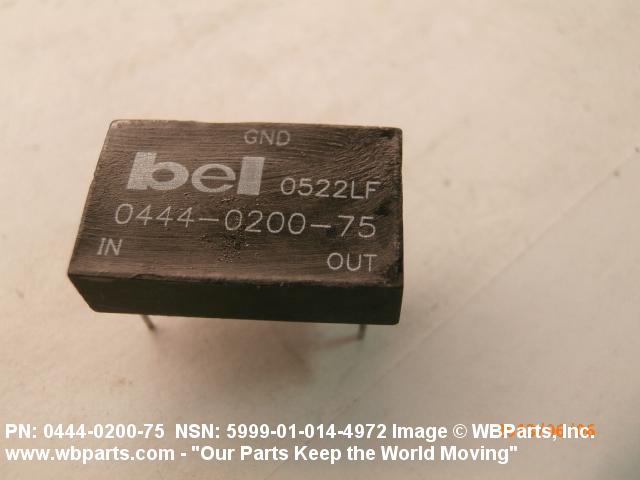

Drawings & Photos | NSN 5999-01-014-4972
Demand History | NSN 5999-01-014-4972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1345281 | 2024-07-185 | 100 | Pakistan |
| 0444020075 | 2023-10-297 | 50 | Pakistan |
| 0444020075 | 2023-07-199 | 100 | Pakistan |
| 5999-01-014-4972 | 2018-09-246 | 24 | AE |
| 0401106501 | 2013-05-142 | 5 | United States |
| 0401106501 | 2013-04-108 | 5 | Pakistan |
| 5999-01-014-4972 | 2010-07-196 | 22 | DIBBS |
| 5999-01-014-4972 | 2010-05-127 | 50 | US |
| 5999-01-014-4972 | 2010-02-49 | 50 | US |
Cross Reference | NSN 5999-01-014-4972
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-014-4972
Related Products | NSN 5999-01-014-4972
Technical Data | NSN 5999-01-014-4972

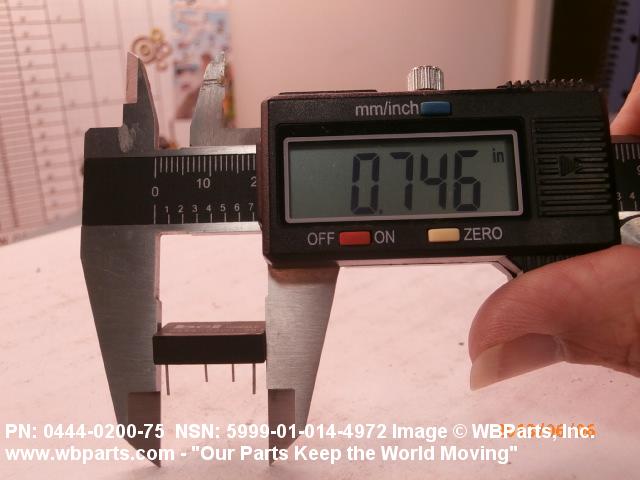

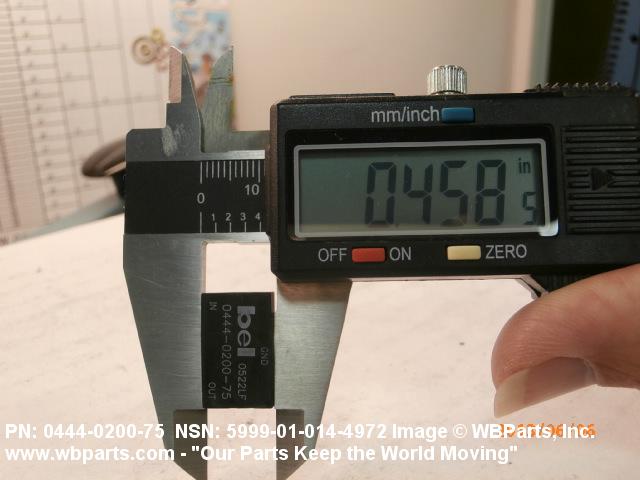

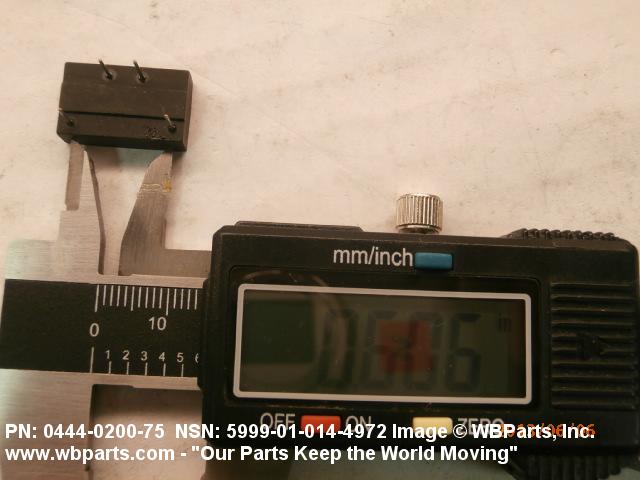

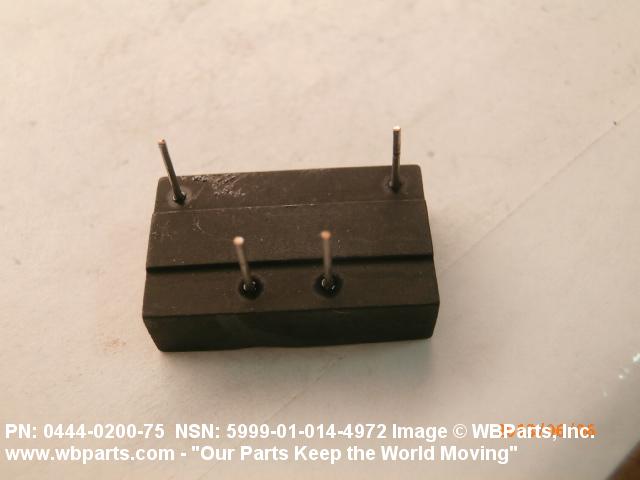

| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 200.000 NANOSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | NOT RATED |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 75.000 OHMS |
| OUTPUT IMPEDANCE RATING | 75.000 OHMS |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | 50.0 NANOSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |
| BODY STYLE | 1 RECTANGULAR |
| BODY LENGTH | 0.760 INCHES NOMINAL |
| BODY WIDTH | 0.460 INCHES NOMINAL |
| BODY DEPTH | 0.300 INCHES NOMINAL |
| MATERIAL AND LOCATION | PLASTIC BODY |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| MOUNTING FACILITY | TERMINAL |
| MOUNTING FACILITY QUANTITY | 4 |

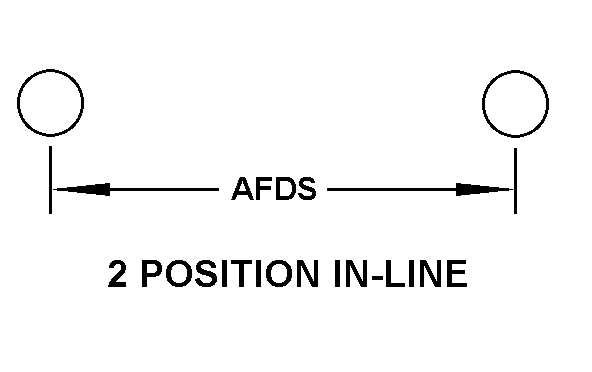

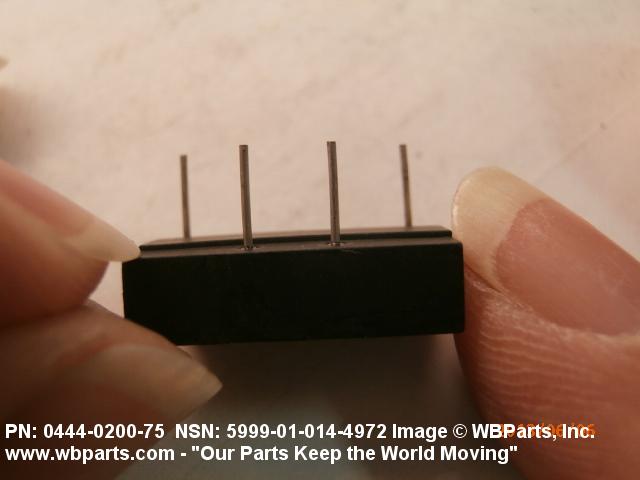

| MOUNTING PROVISION ARRANGEMENT STYLE | 6 2 POSITION IN-LINE |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.600 INCHES NOMINAL |
