Product Details | DELAY LINE
5999-01-079-0531 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 7586712G0001, 7586712G1, 5999-01-079-0531, 01-079-0531, 5999010790531, 010790531
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUN 1979 | 01-079-0531 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-01-079-0531
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-079-0531
Related Products | NSN 5999-01-079-0531
Technical Data | NSN 5999-01-079-0531
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 94.000 NANOSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | NOT RATED |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 50.000 OHMS |
| OUTPUT IMPEDANCE RATING | 50.000 OHMS |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

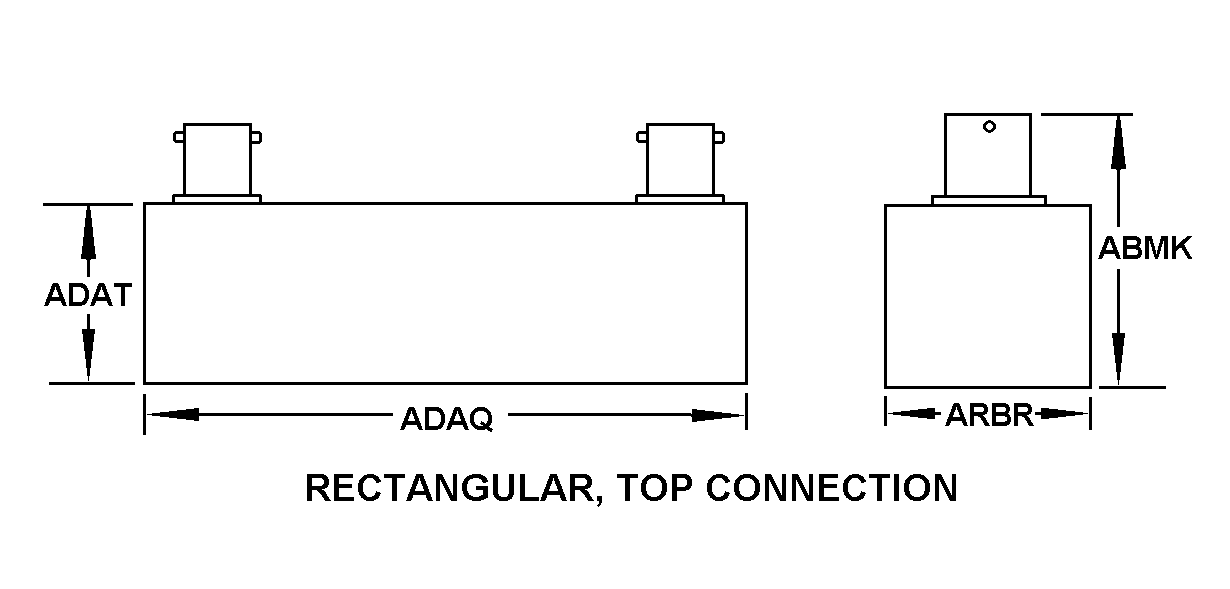

| BODY STYLE | 8 RECTANGULAR, TOP CONNECTION |
| OVERALL WIDTH | 3.150 INCHES NOMINAL |
| BODY LENGTH | 3.200 INCHES NOMINAL |
| BODY WIDTH | 2.400 INCHES NOMINAL |
| BODY DEPTH | 3.200 INCHES NOMINAL |
| MATERIAL AND LOCATION | ALUMINUM OVERALL |
| SURFACE TREATMENT AND LOCATION | PAINT OVERALL |
| TERMINAL TYPE AND QUANTITY | 2 COAXIAL RECEPTACLE |
| MOUNTING FACILITY | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| III FSC APPLICATION DATA | RACK,ELECTRICAL,RADAR SET,AIRBORNE |
| MANUFACTURERS CODE | 99971 |
| DESIGN CONTROL REFERENCE | 7586712G0001 |
