Product Details | DELAY LINE
5999-01-047-4907 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: AV397, 2837258, 5999-01-047-4907, 01-047-4907, 5999010474907, 010474907
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 SEP 1977 | 01-047-4907 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-01-047-4907
Demand History | NSN 5999-01-047-4907
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-047-4907 | 2016-04-101 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-047-4907
Related Products | NSN 5999-01-047-4907
Technical Data | NSN 5999-01-047-4907
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | TAPPED |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 0.025 MICROSECONDS MINIMUM SINGLE SECTION AND 2.075 MICROSECONDS MAXIMUM SINGLE SECTION |
| SEGMENT QUANTITY PER SECTION | 7 SINGLE SECTION |
| SEGMENT DELAY TIME | 1.000 MICROSECONDS NOMINAL SINGLE SECTION 1ST SEGMENT 0.500 MICROSECONDS NOMINAL SINGLE SECTION 2ND SEGMENT 0.200 MICROSECONDS NOMINAL SINGLE SECTION 3RD SEGMENT 0.200 MICROSECONDS NOMINAL SINGLE SECTION 4TH SEGMENT 0.100 MICROSECONDS NOMINAL SINGLE SECTION 5TH SEGMENT 0.050 MICROSECONDS NOMINAL SINGLE SECTION 6TH SEGMENT 0.025 MICROSECONDS NOMINAL SINGLE SECTION 7TH SEGMENT |
| OPERATING TEMP RANGE | 0.0 TO 70.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 75.000 OHMS |
| OUTPUT IMPEDANCE RATING | NOT RATED |
| ATTENUATION IN DECIBELS | 1.500 |
| VOLTAGE RATING | 300.000 VOLTS NOMINAL |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

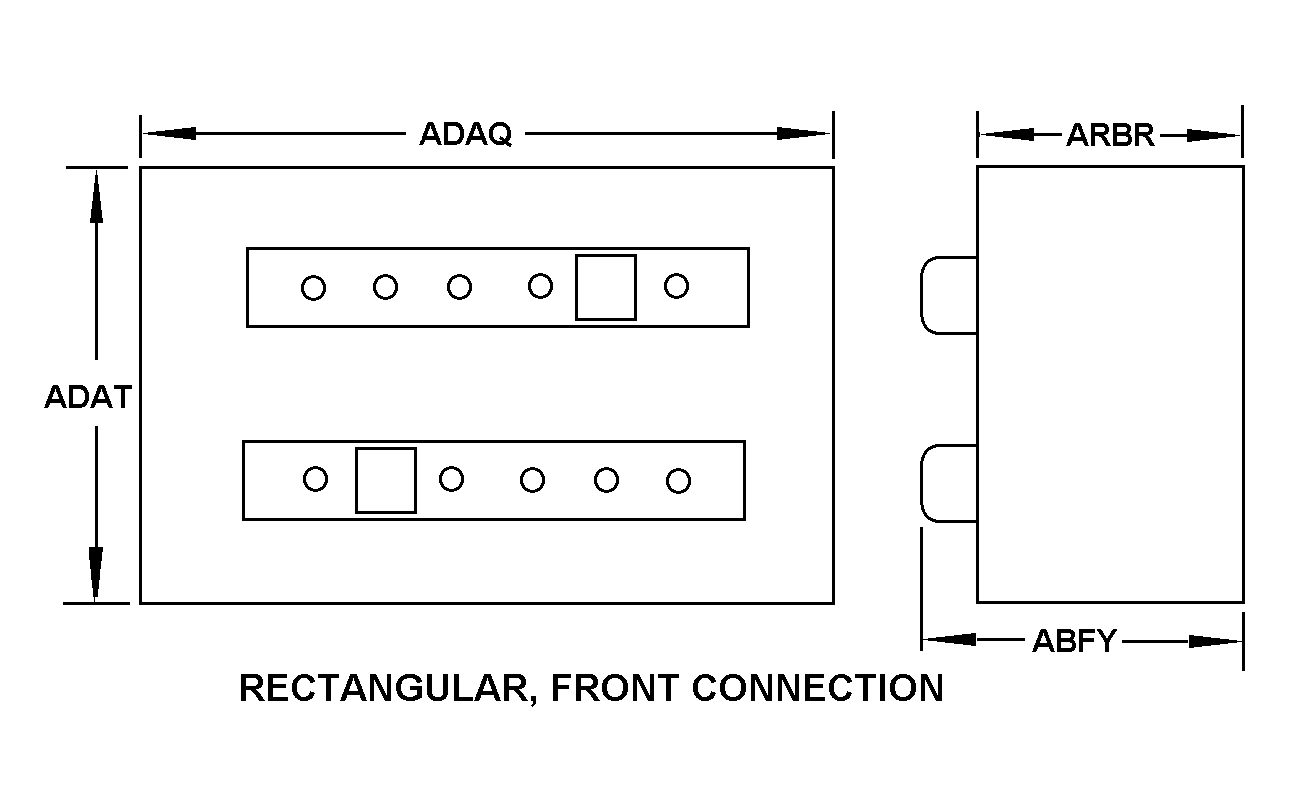

| BODY STYLE | 2 RECTANGULAR, FRONT CONNECTION |
| OVERALL DEPTH | 6.000 INCHES NOMINAL |
| BODY LENGTH | 2.500 INCHES NOMINAL |
| BODY WIDTH | 2.000 INCHES NOMINAL |
| BODY DEPTH | 5.500 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL CASE |
| TERMINAL TYPE AND QUANTITY | 16 SOLDER STUD |
| MOUNTING FACILITY | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 4 |
| STUD LENGTH | 0.500 INCHES NOMINAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNF |
| THREAD CLASS | 2A |
| THREAD PITCH DIAMETERS | 0.1697 TO 0.1736 INCHES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 2 FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.000 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2837258 |
