Product Details | DELAY LINE
5999-00-726-0098 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: C854234, 5999-00-726-0098, 00-726-0098, 5999007260098, 007260098
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-726-0098 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-726-0098
Cross Reference | NSN 5999-00-726-0098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C854234 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-726-0098
Related Products | NSN 5999-00-726-0098
Technical Data | NSN 5999-00-726-0098
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | LUMPED CONSTANT |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 49.600 MICROSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | NOT RATED |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 450.000 OHMS |
| OUTPUT IMPEDANCE RATING | NOT RATED |
| ATTENUATION IN DECIBELS | 10.500 |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | 1.3 MICROSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

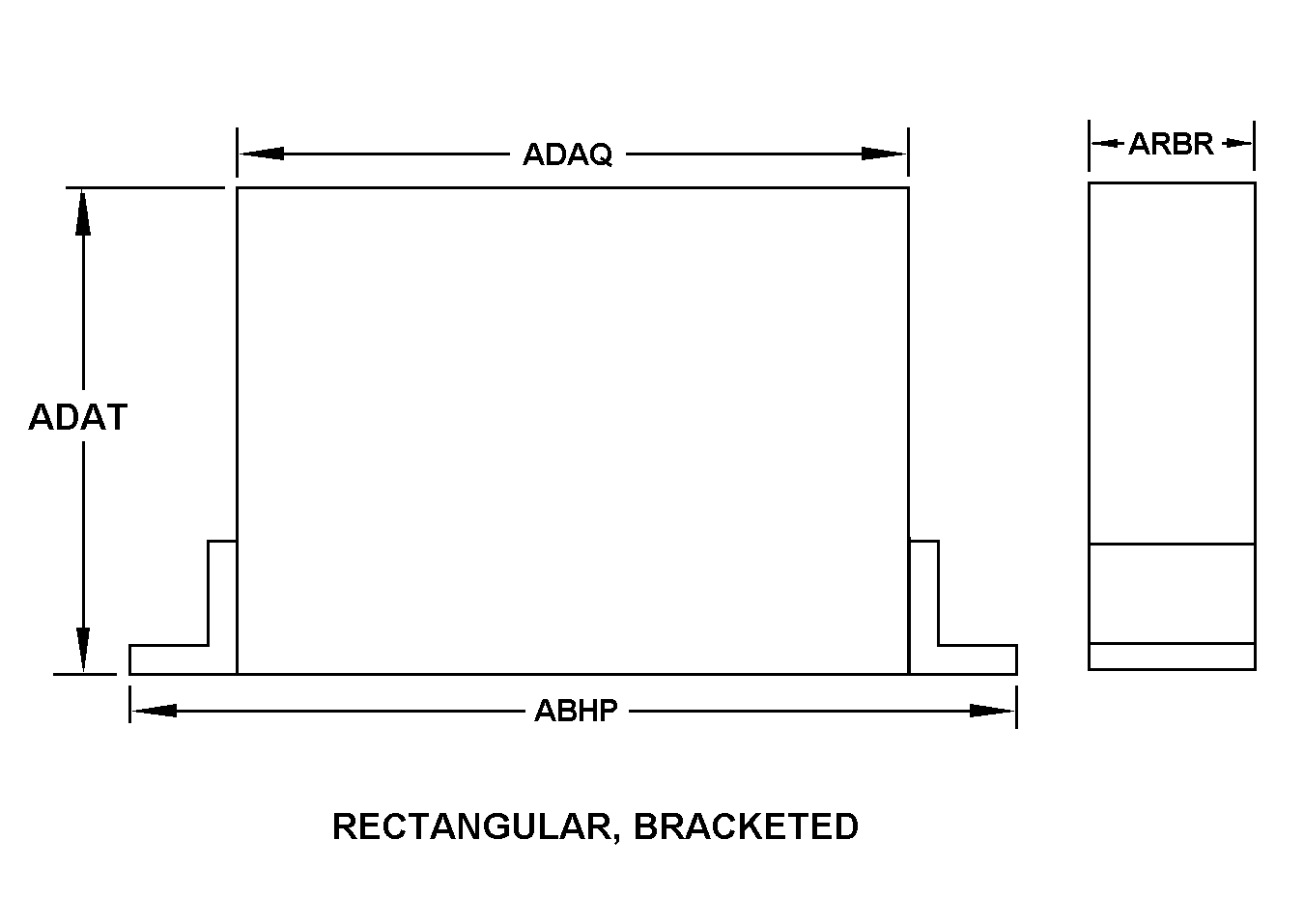

| BODY STYLE | 3 RECTANGULAR, BRACKETED |
