NSN 5990-01-543-6301 CM41093011, 01-543-6301, 015436301
Product Details | TRANSMITTER SYNCHRO
5990-01-543-6301 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CM41093011, 5990-01-543-6301, 01-543-6301, 5990015436301, 015436301
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 SEP 2006 | 01-543-6301 | 02073 ( SYNCHRO, TRANSMITTER ) |

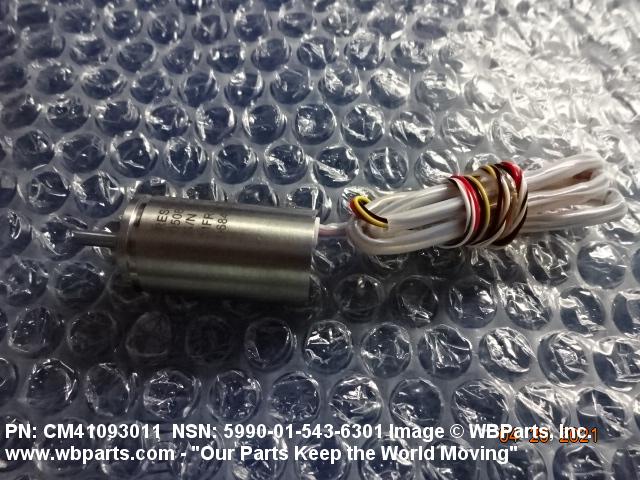

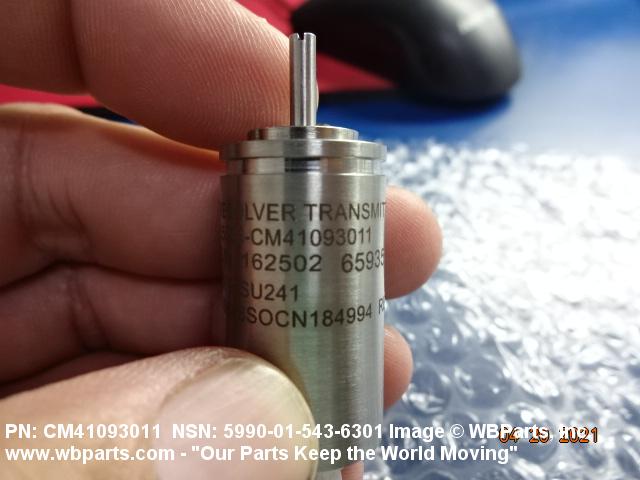

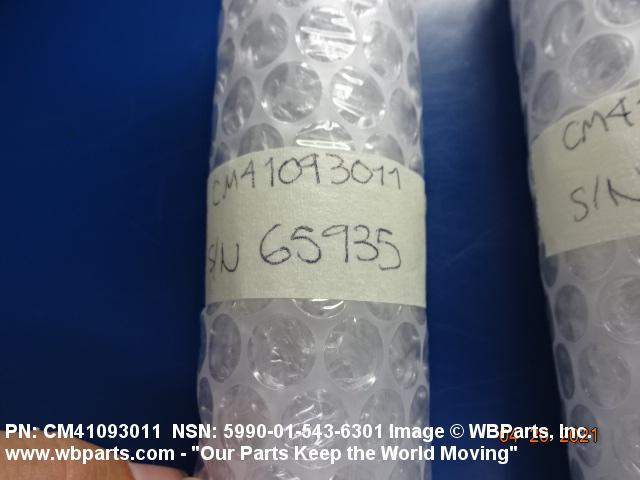

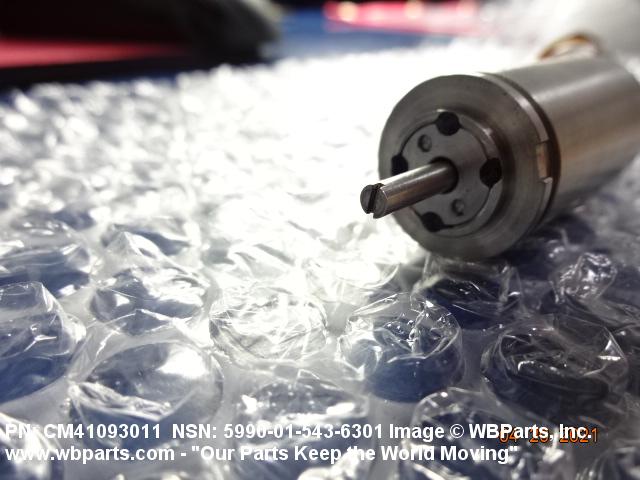

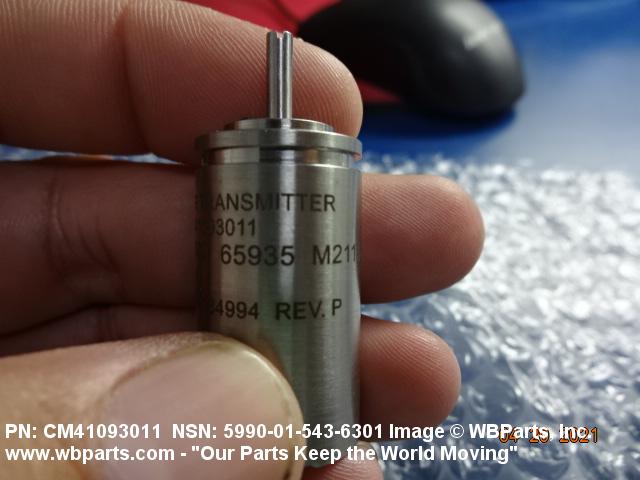

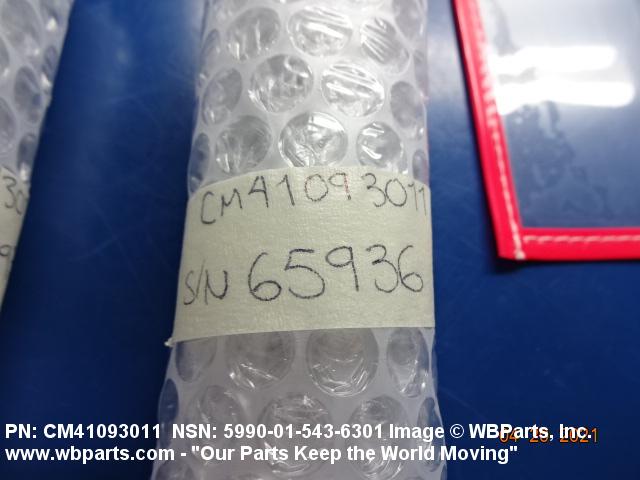

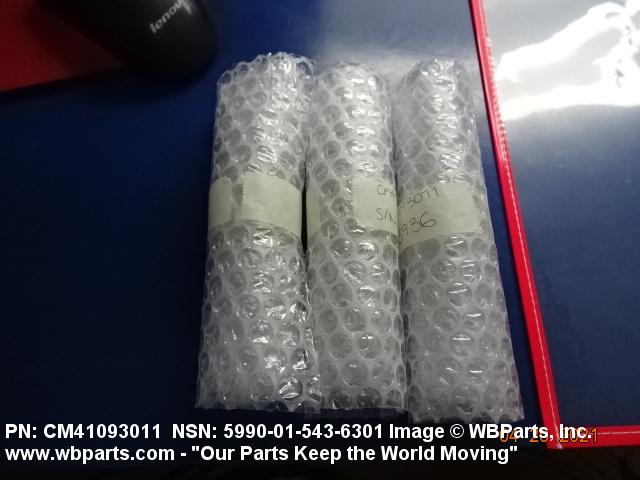

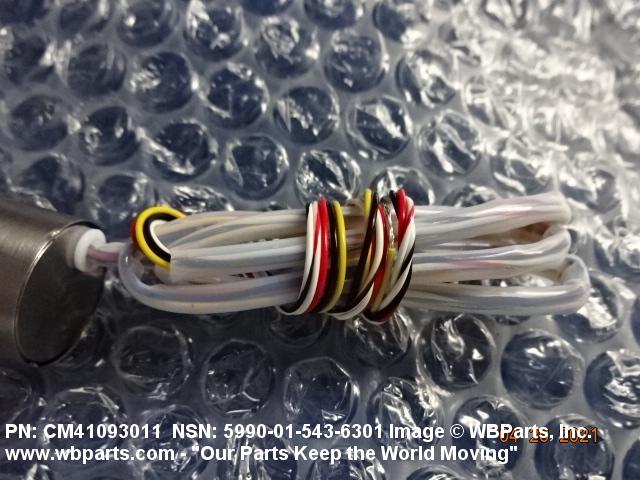

Drawings & Photos | NSN 5990-01-543-6301
Demand History | NSN 5990-01-543-6301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-01-543-6301 | 2024-07-192 | 1 | China |
| 5990-01-543-6301 | 2024-04-107 | 5 | SG |
| 5990-01-543-6301 | 2024-02-57 | 5 | DE |
| 5990-01-543-6301 | 2024-02-57 | 5 | DE |
| 5990-01-543-6301 | 2023-08-233 | 10 | Hong Kong |
| 5990-01-543-6301 | 2022-11-314 | 10 | Ukraine |
| 5990-01-543-6301 | 2022-09-261 | 10 | EE |
| 5990-01-543-6301 | 2022-09-249 | 10 | Poland |
| CM41093011 | 2022-08-237 | 4 | Hong Kong |
| 5990-01-543-6301 | 2022-08-237 | 4 | Hong Kong |
| 5990-01-543-6301 | 2022-08-229 | 4 | Hong Kong |
| CM41093011 | 2022-08-217 | 12 | China |
| 5990-01-543-6301 | 2022-06-171 | 7 | Hong Kong |
| 5990-01-543-6301 | 2021-01-19 | 3 | United States |
| 5990-01-543-6301 | 2020-12-337 | 3 | United States |
| 5990-01-543-6301 | 2015-07-182 | 1 | United States |
| 5990-01-543-6301 | 2013-09-247 | 1 | United States |
| CM41093011 | 2009-08-223 | 1 | US |
| CM41093011 | 2009-08-223 | 1 | US |
Cross Reference | NSN 5990-01-543-6301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CM41093011 | 05088 | KEARFOTT CORPORATION DIV A SUBSIDIARY OF ASTRONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-01-543-6301
Technical Data | NSN 5990-01-543-6301
| Characteristic | Specifications |
|---|---|
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 7.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 7.0 MILLIAMPERES NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 6.200 INPUT TO OUTPUT NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ENVELOPE DRAWING SYNCHRO RESOLVER CONTROL TRANSMITTER, BRUSHLESS |
Restrictions/Controls & Freight Information | NSN 5990-01-543-6301
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
