NSN 5990-00-677-6504 MILS2070865, MILS20708-65, 31TX6B
Product Details | TRANSMITTER SYNCHRO
5990-00-677-6504 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: MILS2070865, MILS20708-65, 31TX6B, 5990-00-677-6504, 00-677-6504, 5990006776504, 006776504
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-677-6504 | 02073 ( SYNCHRO, TRANSMITTER ) |

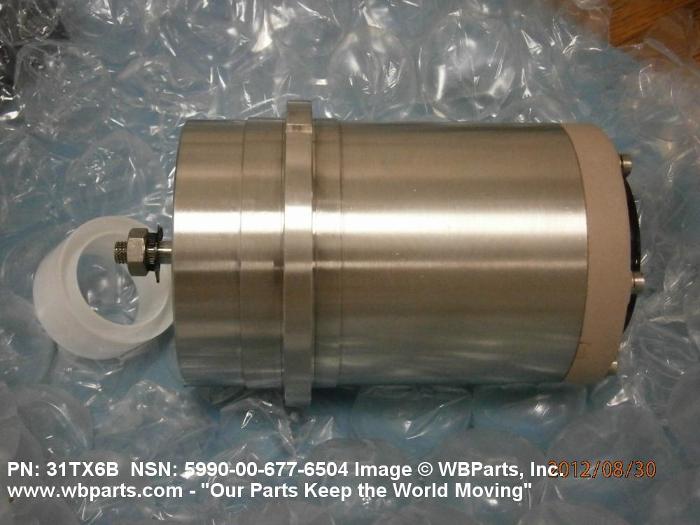

Drawings & Photos | NSN 5990-00-677-6504
Demand History | NSN 5990-00-677-6504
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-677-6504 | 2012-08-226 | 3 | United States |
| 5990-00-677-6504 | 2010-02-40 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-00-677-6504
Technical Data | NSN 5990-00-677-6504
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 31 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 462.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 6.6 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
| TORQUE GRADIENT PER ANGULAR DEG | 0.400 INCH-OUNCES NOMINAL |
| FLANGE DIAMETER | 3.1000 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 4.4000 INCHES NOMINAL |

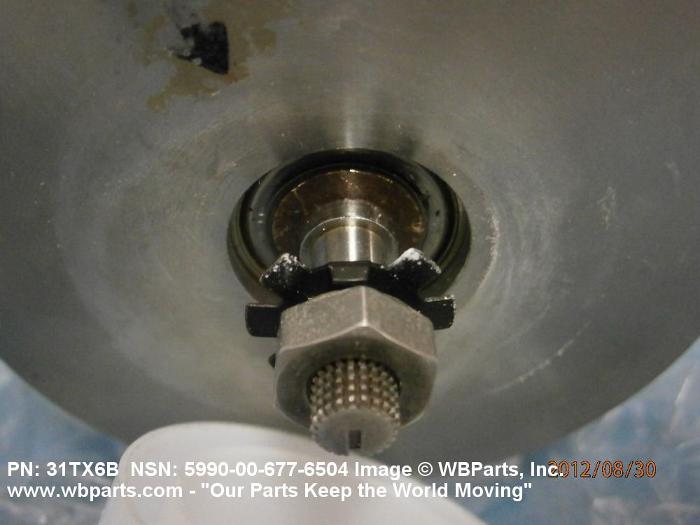

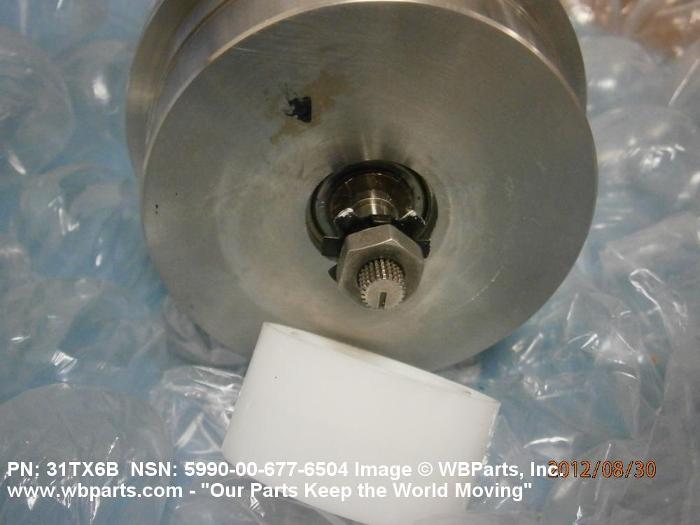

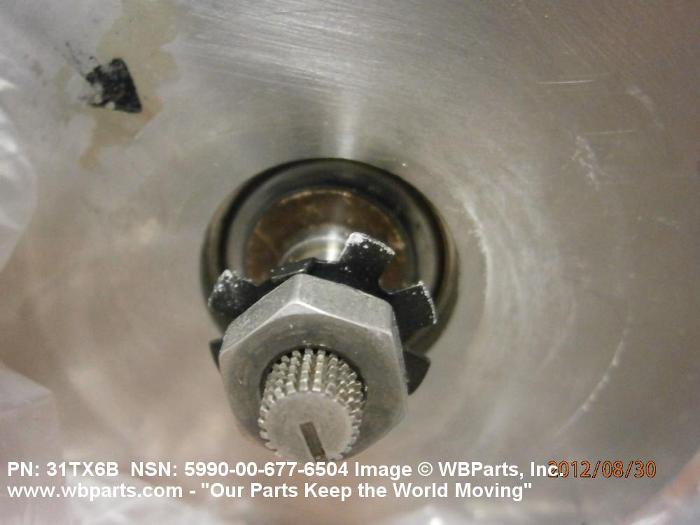

| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.2405 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.7000 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.3100 INCHES NOMINAL SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 22 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 96 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |

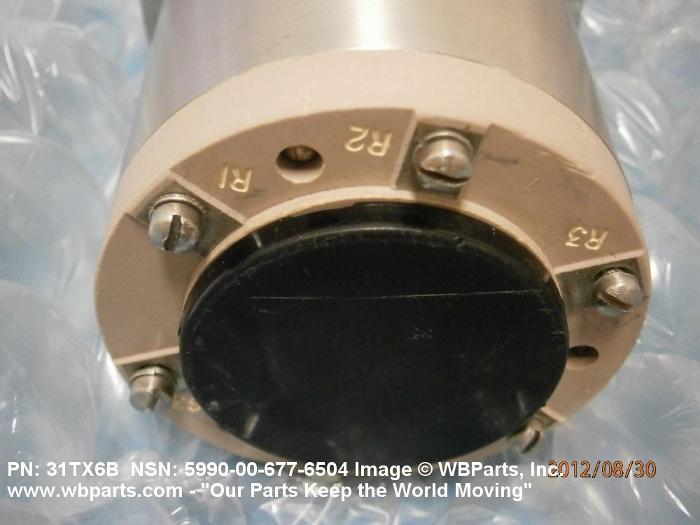

| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| NONDEFINITIVE SPEC/STD DATA | 31TX6B TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS20708-65 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 31TX6B |
Restrictions/Controls & Freight Information | NSN 5990-00-677-6504
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-677-6504
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
