NSN 5990-00-636-4151 SK137160, SK139518, TX376E4

Product Details | TRANSMITTER SYNCHRO

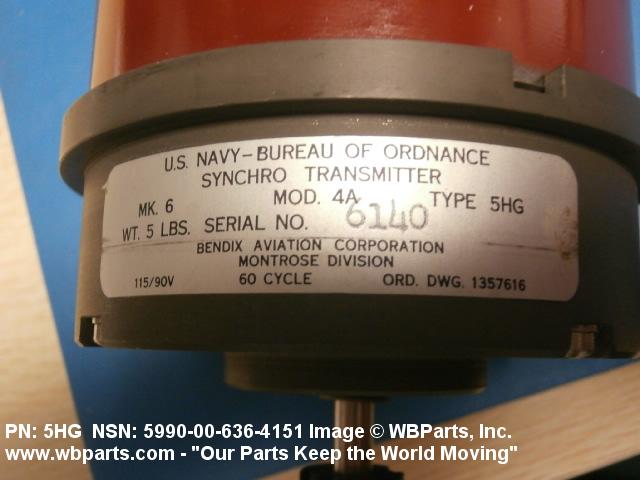

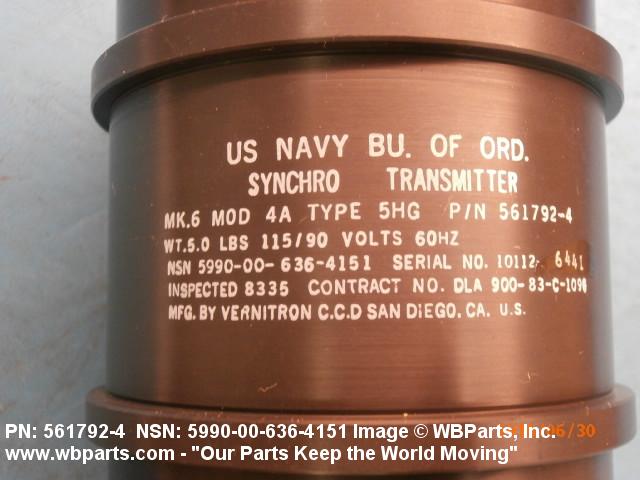

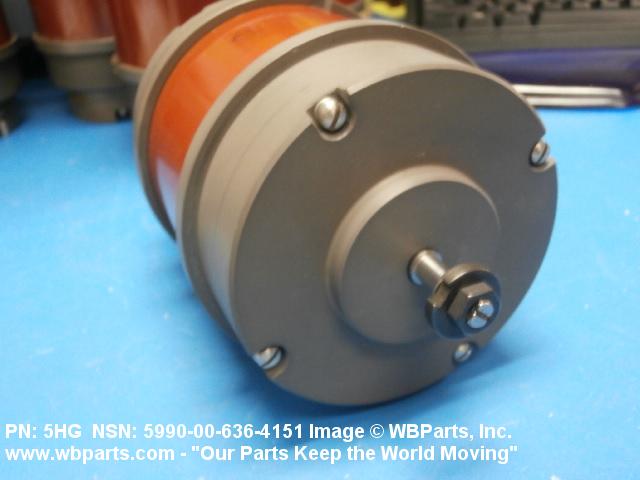

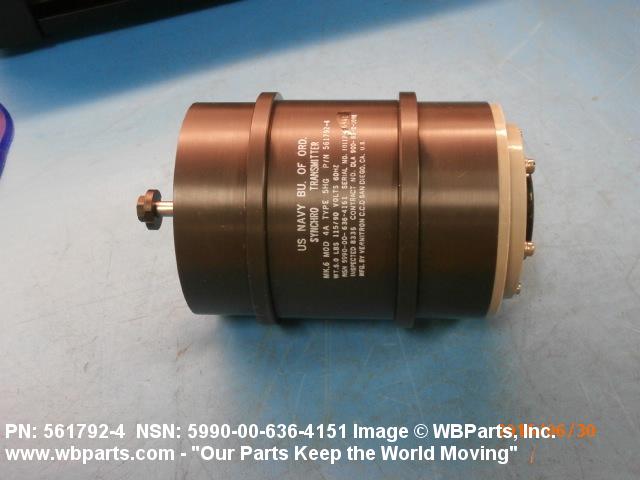

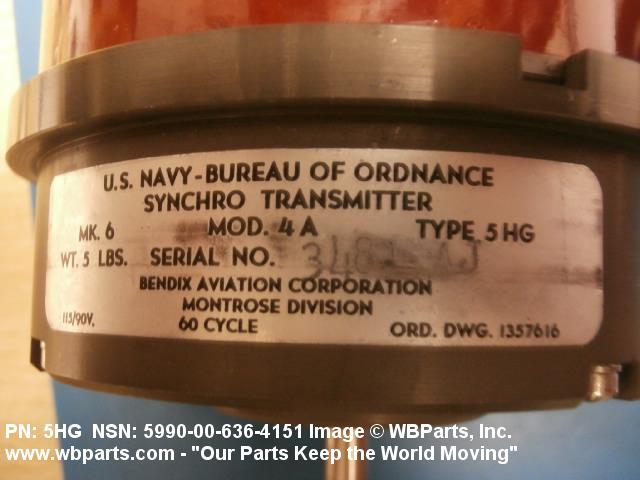

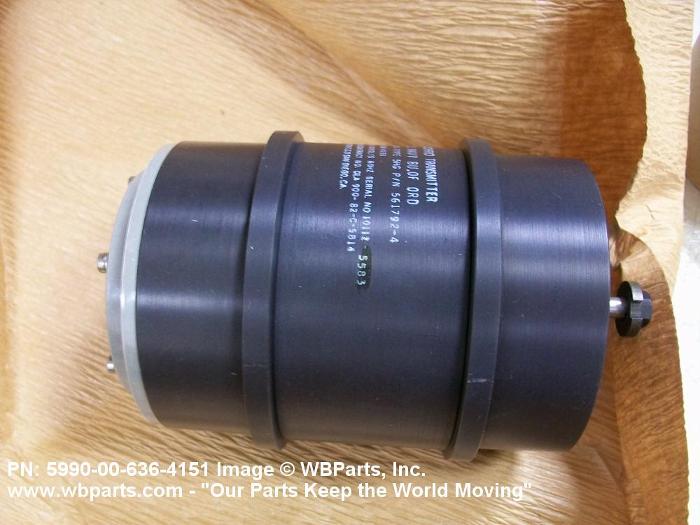

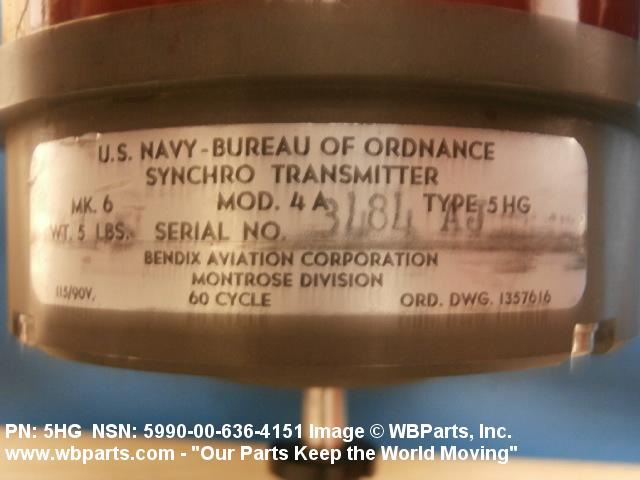

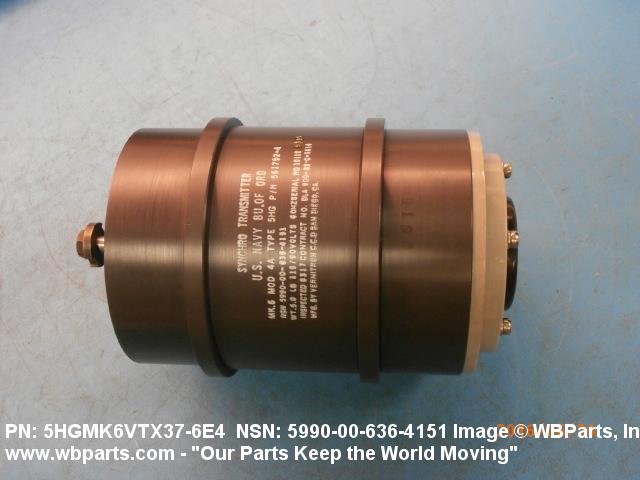

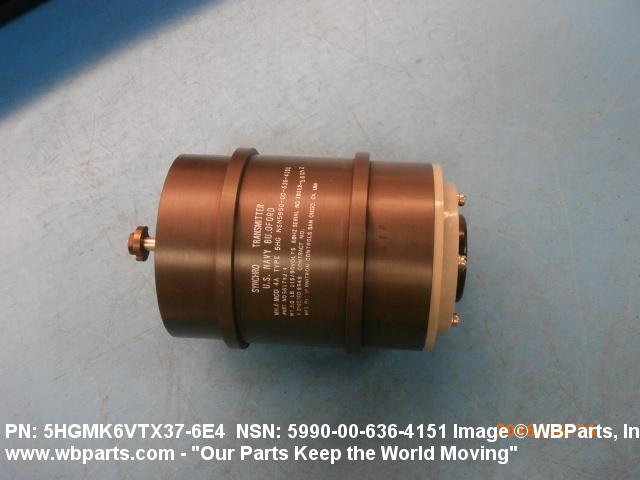

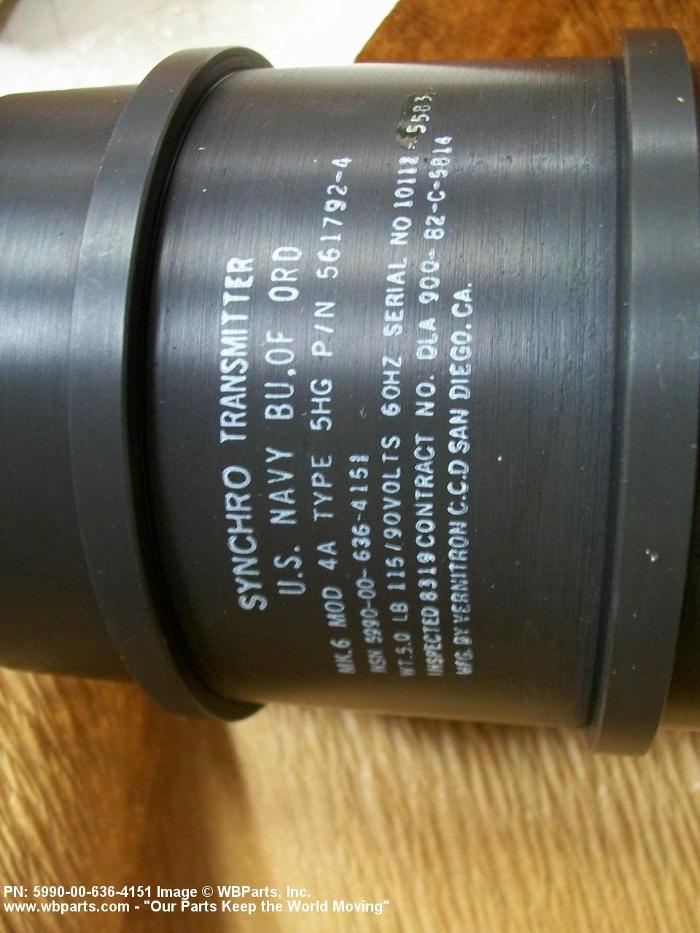

5990-00-636-4151 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.

Part Alternates: SK137160, SK139518, TX376E4, TX37-6E4, VTX376E4, VTX37-6E4, MILS2335, MIL-S-2335, 139D688, 173113, 212818, 213417, 23401A, 2340-1A, 35639500001, 3563950-0001, 494550-226, 524059, 5617924, 561792-4, 5HG, 5HGMK6, 7410366 P001, 7410366P001, 852485, 5990-00-636-4151, 00-636-4151, 5990006364151, 494550226, 006364151

Electrical and Electronic Equipment Components | Synchros and Resolvers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-636-4151	02073 ( SYNCHRO, TRANSMITTER )

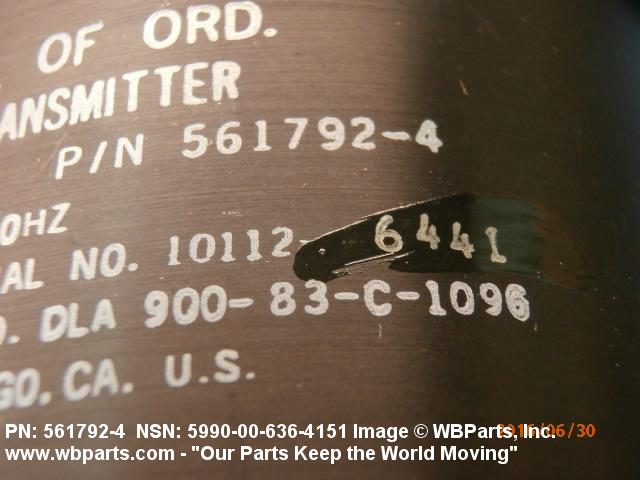

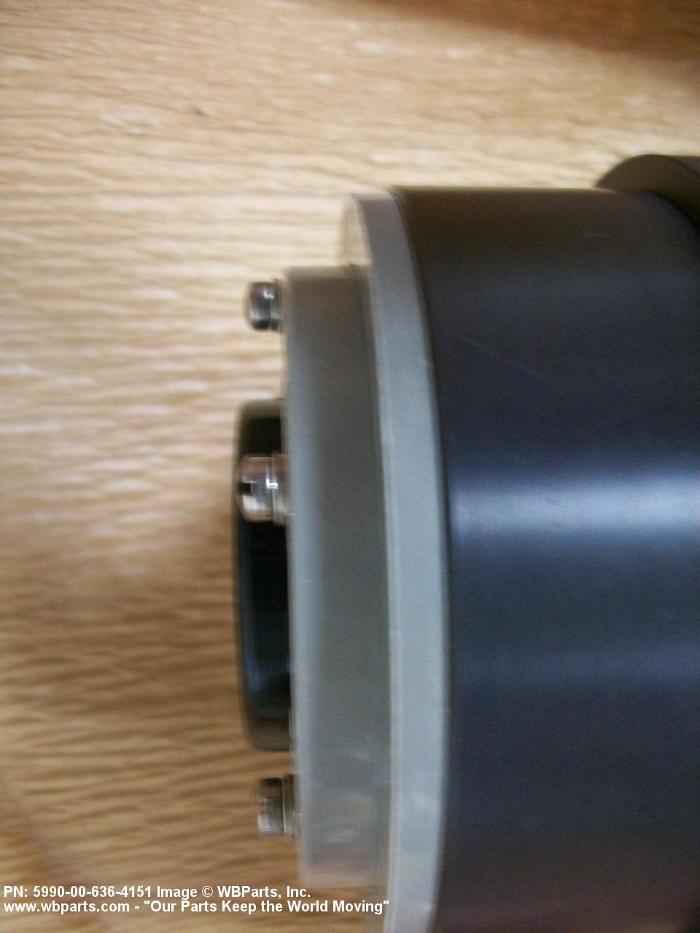

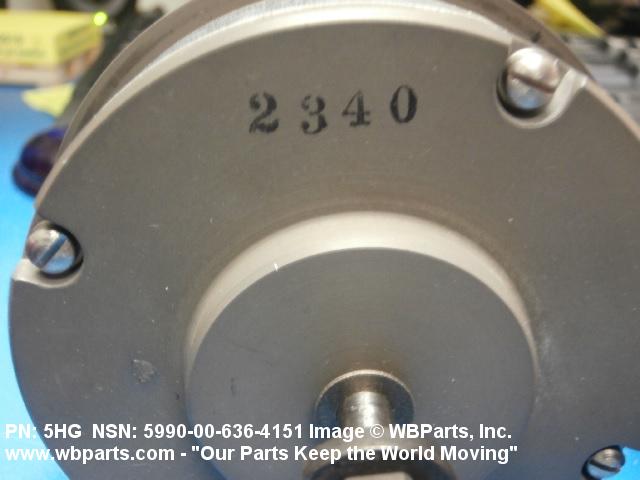

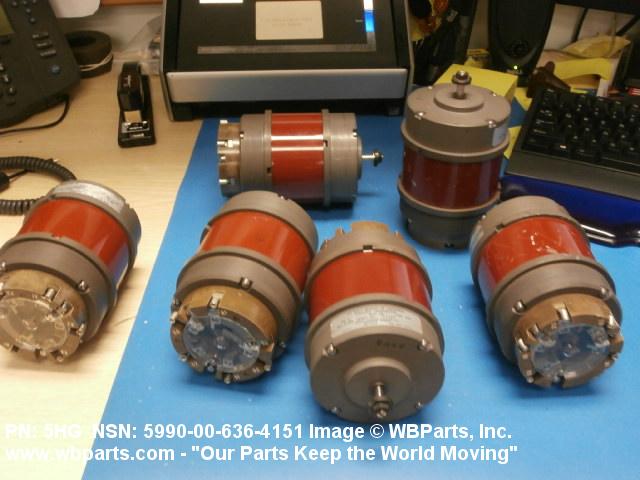

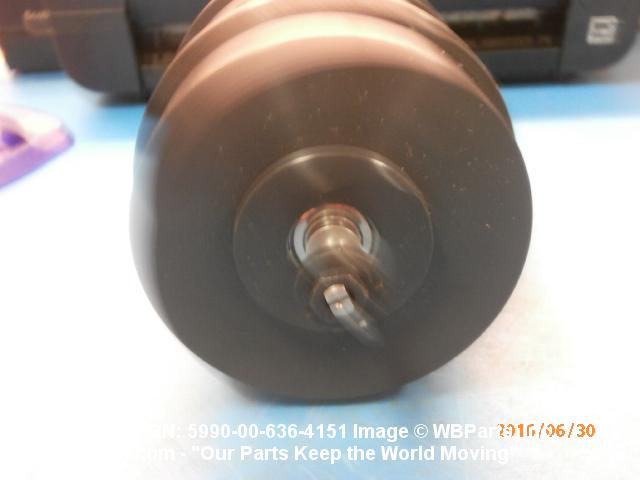

Drawings & Photos | NSN 5990-00-636-4151

Part Number	Request Date	QTY	Origin
TX37-6E4	2023-04-110	8	DIBBS
TX37-6E4	2022-12-356	7	DIBBS
5990-00-636-4151	2020-10-296	1	United States
TX37-6E4	2020-09-247	18	DIBBS
TX37-6E4	2020-04-104	14	DIBBS
TX37-6E4	2020-04-97	11	DIBBS
TX37-6E4	2020-03-86	11	DIBBS
TX37-6E4	2020-02-45	7	DIBBS
TX37-6E4	2020-02-34	7	DIBBS
5990-00-636-4151	2019-06-177	2	US
494550226	2019-06-169	14	US
5990-00-636-4151	2018-10-276	3	DIBBS
5990-00-636-4151	2018-06-171	2	US
5990-00-636-4151	2017-10-278	15	United States
5990-00-636-4151	2017-10-278	20	United States
5990-00-636-4151	2016-06-173	4	United States
5990-00-636-4151	2016-06-159	6	United States
5990-00-636-4151	2015-12-342	6	United States
494550226	2015-06-170	3	United States
5990-00-636-4151	2014-09-255	6	United States
5990-00-636-4151	2014-07-191	3	BG
5990-00-636-4151	2013-02-56	14	DIBBS
5990-00-636-4151	2012-12-348	6	DIBBS
5990-00-636-4151	2011-04-111	4	United Kingdom
5990-00-636-4151	2007-07-191	13	DIBBS
5990-00-636-4151	2007-07-184	8	DIBBS

Cross Reference | NSN 5990-00-636-4151

Part Number	Cage Code	Manufacturer
139D688	03538	LOCKHEED MARTIN CORPORATION DIV MST
173113	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
212818	53711	NAVAL SEA SYSTEMS COMMAND
213417	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2340-1A	02987	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX FLIGHT SYSTEMS
3563950-0001	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
494550-226	30086	SPD ELECTRICAL SYSTEMS, INC
524059	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
561792-4	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
561792-4	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.
5HG	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.
5HGMK6	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
5HGMK6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
7410366 P001	03538	LOCKHEED MARTIN CORPORATION DIV MST
852485	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
852485	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MIL-S-2335	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SK137160	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
SK139518	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
TX37-6E4	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.
VTX37-6E4	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5990-00-636-4151

Compare

Related Products | NSN 5990-00-636-4151

5990-00-636-4152, 5990-00-636-4218, 5990-00-642-9930, 5990-00-644-0071, 5990-00-644-0072

Technical Data | NSN 5990-00-636-4151

Characteristic	Specifications
BODY SIZE	5
ROTOR INPUT VOLTAGE RATING IN VOLTS	115.0 NOMINAL
ROTOR INPUT CURRENT RATING	600.0 MILLIAMPERES MAXIMUM
ROTOR INPUT ELECTRICAL POWER RATING	7.0 WATTS MAXIMUM
FREQUENCY IN HERTZ	60.0 NOMINAL
MAXIMUM TEMP RISE	50.0 DEG CELSIUS
TORQUE GRADIENT PER ANGULAR DEG	0.400 INCH-OUNCES MINIMUM
BODY STYLE	A6 STANDARD ROUND DOUBLE FLANGE B

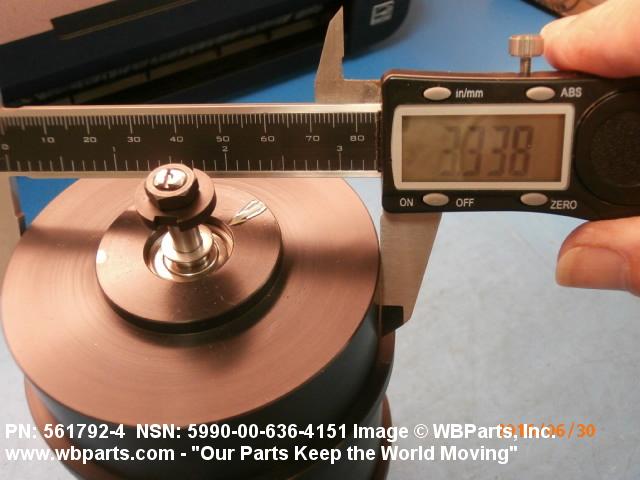

SHOULDER DIAMETER	3.3750 INCHES MAXIMUM

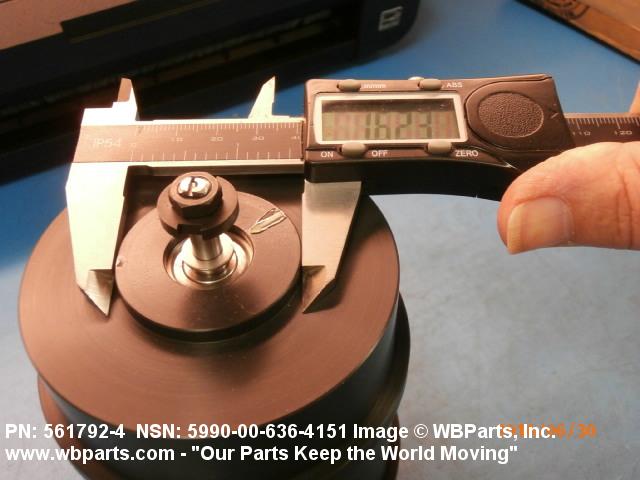

PILOT DIAMETER	1.6300 INCHES MAXIMUM

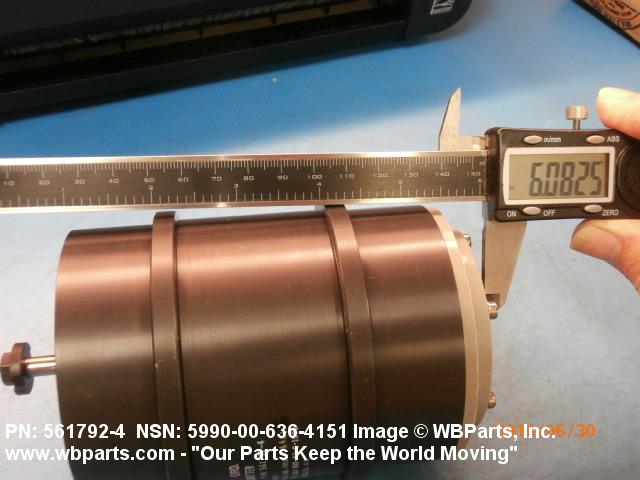

OVERALL LENGTH	6.3600 INCHES MAXIMUM

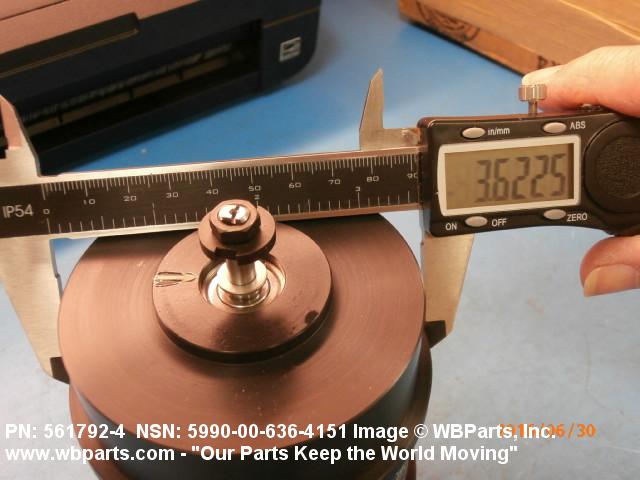

FLANGE DIAMETER	3.6230 INCHES MINIMUM AND 3.6250 INCHES MAXIMUM

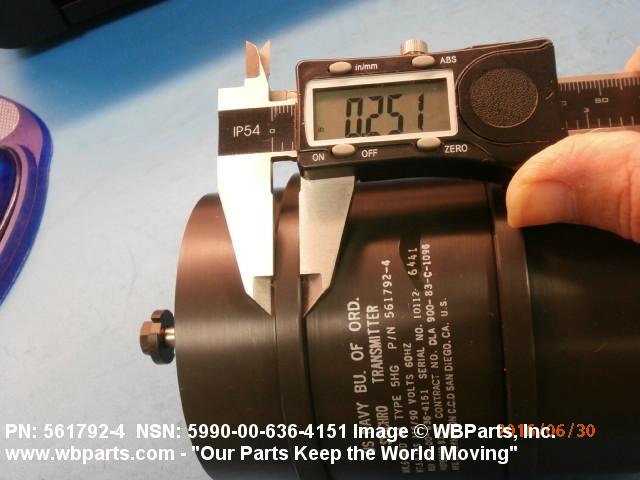

FLANGE THICKNESS	0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

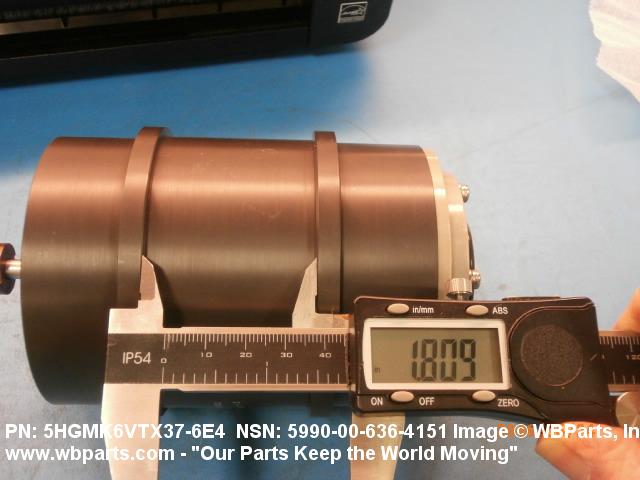

DISTANCE BETWEEN FLANGES	1.8070 INCHES MINIMUM AND 1.8170 INCHES MAXIMUM
PILOT LENGTH	0.1750 INCHES NOMINAL
SHOULDER LENGTH	1.2450 INCHES MINIMUM AND 1.2550 INCHES MAXIMUM

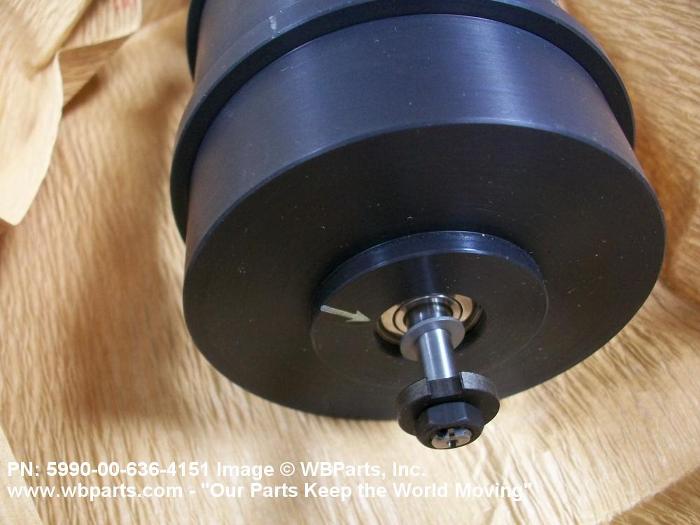

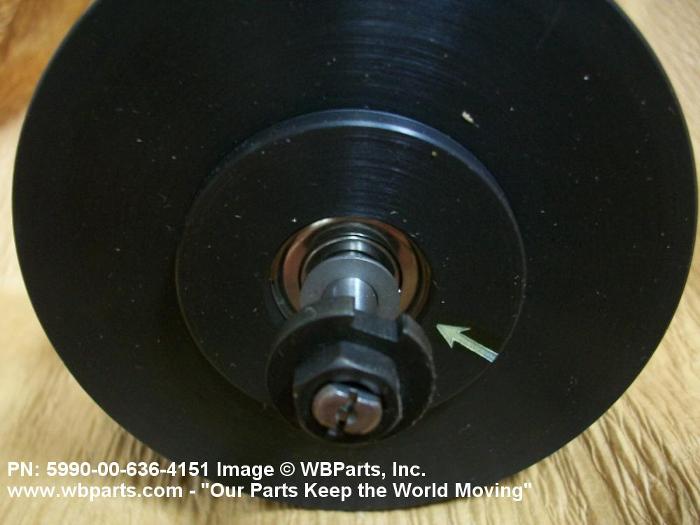

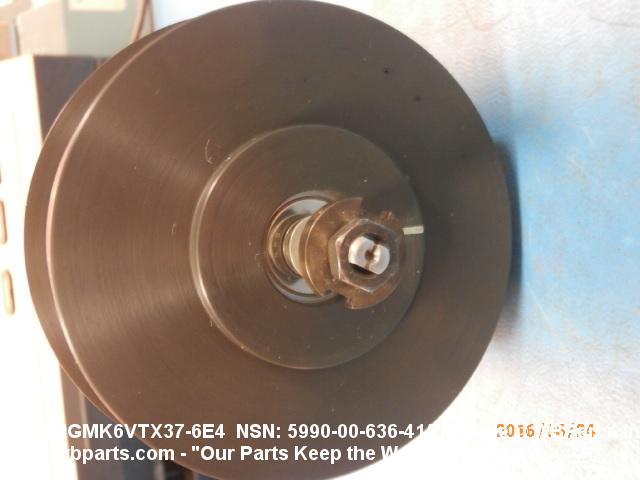

SHAFT TYPE	ROUND, THREADED SINGLE SHAFT
SHAFT DIAMETER	0.2498 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM SINGLE SHAFT

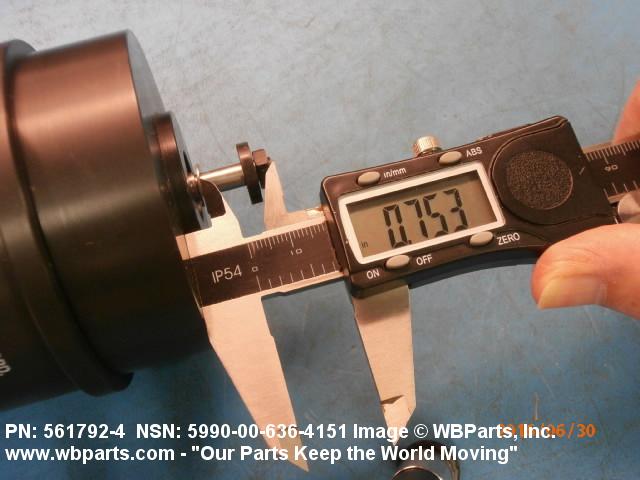

SHAFT LENGTH	0.7600 INCHES MINIMUM AND 0.7800 INCHES MAXIMUM SINGLE SHAFT
SHAFT THREAD LENGTH	0.1770 INCHES MINIMUM AND 0.1970 INCHES MAXIMUM SINGLE SHAFT
SHAFT THREAD SERIES DESIGNATOR	UNF SINGLE SHAFT
SHAFT NOMINAL THREAD SIZE	0.250 INCHES SINGLE SHAFT
SHAFT THREAD CLASS	2A SINGLE SHAFT
SHAFT THREAD DIRECTION	RIGHT-HAND SINGLE SHAFT

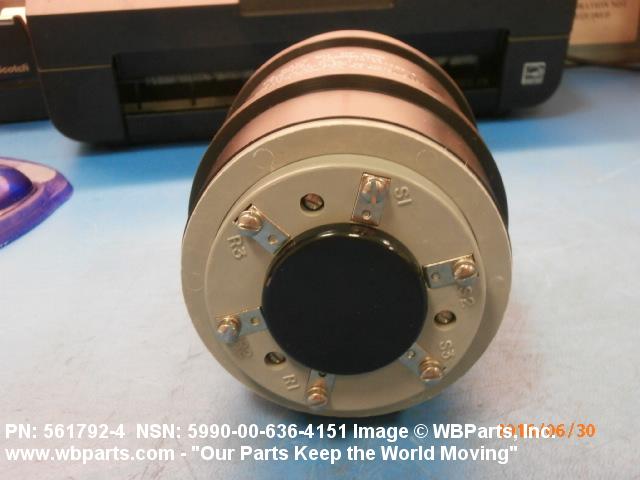

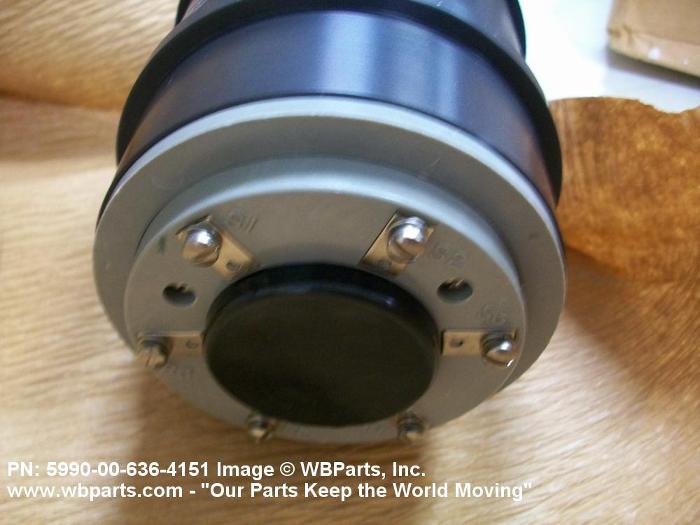

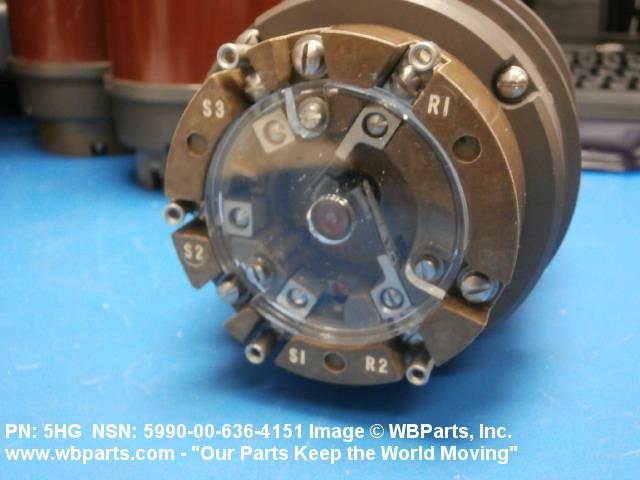

TERMINAL TYPE AND QUANTITY	5 SCREW
