NSN 5990-00-924-4165 M20708/2-001, M20708/2-01E, M207082001

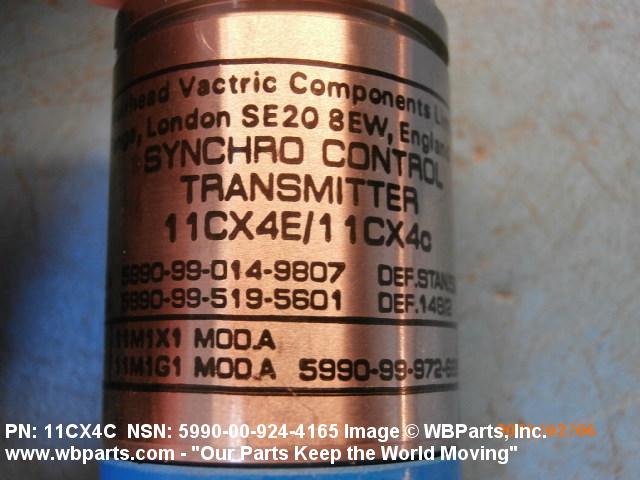

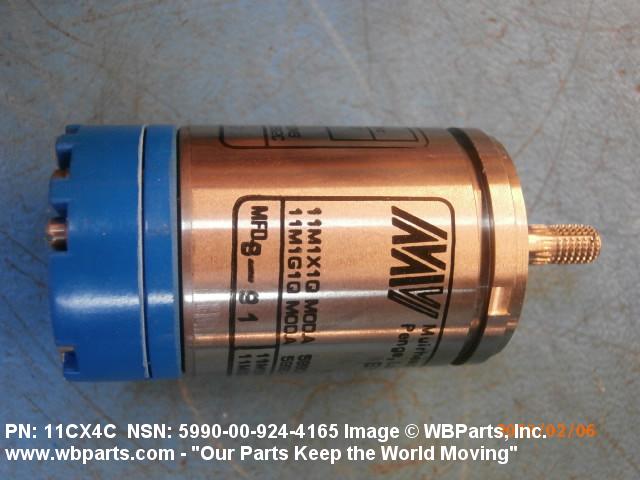

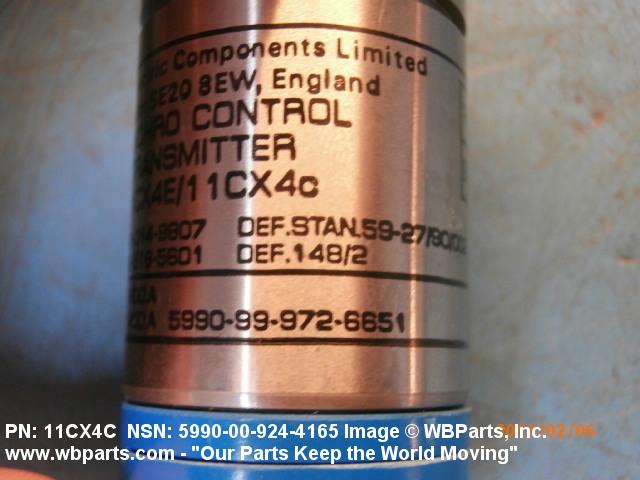

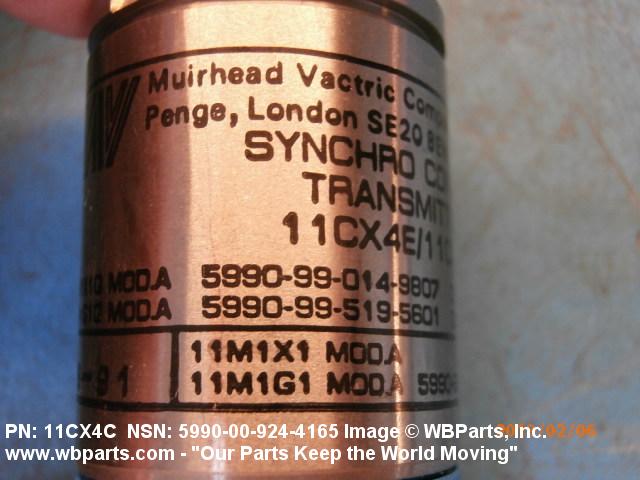

Product Details | TRANSMITTER SYNCHRO
5990-00-924-4165 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: M20708/2-001, M20708/2-01E, M207082001, M20708201E, M207082C001, AS 20708/2, AS20708, AS207082, MIL-S-20708/2, MILS207082, V23401E0001A102, V23401-E0001-A102, 618381, 618381-000, 11CX13461, 11CX1346-1, 11CX4C, 11CX4E, 11CX4E/2-001 , 11CX4E2001, 2625497, 26V11CX4E, 26V-11CX4E, 352250005264, 450900-1271-002, 45090012712, 450900-1271-2, 5990-00-924-4165, 00-924-4165, 5990009244165, 4509001271002, 069732101, 009244165, 618381000
Electrical and Electronic Equipment Components | Synchros and Resolvers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 20 JAN 1966 | 00-924-4165 | 02073 ( SYNCHRO, TRANSMITTER ) |
Demand History | NSN 5990-00-924-4165
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5990-00-924-4165 | 2024-10-290 | 21 | DIBBS |
11CX4E | 2024-08-225 | 150 | IN |
5990-00-924-4165 | 2024-03-67 | 1 | US |
5990-00-924-4165 | 2024-03-64 | 1 | US |
5990-00-924-4165 | 2024-01-04 | 5 | United States |
5990-00-924-4165 | 2023-11-318 | 110 | DIBBS |
5990-00-924-4165 | 2023-10-275 | 10 | Greece |
5990-00-924-4165 | 2023-09-264 | 10 | GR |
5990-00-924-4165 | 2023-09-264 | 1 | GR |
5990-00-924-4165 | 2023-09-264 | 10 | GR |
5990-00-924-4165 | 2023-09-263 | 10 | CS |
5990-00-924-4165 | 2023-09-263 | 10 | GR |
5990-00-924-4165 | 2023-09-256 | 50 | CA |
5990-00-924-4165 | 2023-09-254 | 4 | United States |
5990-00-924-4165 | 2023-08-238 | 50 | IN |
5990-00-924-4165 | 2023-07-209 | 1 | IN |
5990-00-924-4165 | 2023-06-173 | 6 | US |
5990-00-924-4165 | 2023-06-172 | 3 | Taiwan |
5990-00-924-4165 | 2023-05-136 | 20 | South Korea |
5990-00-924-4165 | 2023-05-121 | 3 | TW |
5990-00-924-4165 | 2023-04-108 | 3 | United States |
5990-00-924-4165 | 2023-04-108 | 1 | IN |
5990-00-924-4165 | 2023-04-108 | 1 | IN |
5990-00-924-4165 | 2023-04-106 | 15 | IN |
5990-00-924-4165 | 2023-04-106 | 15 | IN |
5990-00-924-4165 | 2023-04-99 | 96 | DIBBS |
5990-00-924-4165 | 2023-04-93 | 2 | GU |
5990-00-924-4165 | 2023-03-75 | 6 | DIBBS |
5990-00-924-4165 | 2023-02-44 | 1 | South Korea |
5990-00-924-4165 | 2023-02-44 | 1 | South Korea |
5990-00-924-4165 | 2023-02-44 | 1 | South Korea |
5990-00-924-4165 | 2023-02-32 | 1 | South Korea |
5990-00-924-4165 | 2023-01-26 | 4 | US |
5990-00-924-4165 | 2023-01-10 | 1 | South Korea |
5990-00-924-4165 | 2022-09-258 | 1 | South Korea |
5990-00-924-4165 | 2022-09-258 | 1 | South Korea |
5990-00-924-4165 | 2022-08-221 | 19 | DIBBS |
5990-00-924-4165 | 2022-08-215 | 35 | DIBBS |
5990-00-924-4165 | 2022-07-200 | 35 | DIBBS |
5990-00-924-4165 | 2022-07-195 | 1 | US |
5990-00-924-4165 | 2022-06-181 | 19 | DIBBS |
5990-00-924-4165 | 2022-03-68 | 3 | MY |
5990-00-924-4165 | 2022-03-68 | 3 | MY |
5990-00-924-4165 | 2022-02-53 | 14 | DIBBS |
5990-00-924-4165 | 2022-02-41 | 14 | DIBBS |
5990-00-924-4165 | 2021-12-350 | 8 | DIBBS |
5990-00-924-4165 | 2021-11-327 | 3 | IT |
5990-00-924-4165 | 2021-10-301 | 9 | DIBBS |
5990-00-924-4165 | 2021-10-290 | 9 | DIBBS |
5990-00-924-4165 | 2021-09-259 | 11 | DIBBS |
5990-00-924-4165 | 2021-08-240 | 1 | CL |
5990-00-924-4165 | 2021-08-231 | 11 | DIBBS |
5990-00-924-4165 | 2021-07-197 | 100 | US |
5990-00-924-4165 | 2021-04-98 | 1 | CA |
5990-00-924-4165 | 2021-03-63 | 2 | UK |
5990-00-924-4165 | 2020-08-230 | 8 | MY |
5990-00-924-4165 | 2020-02-60 | 3 | EC |
5990-00-924-4165 | 2020-01-15 | 1 | MY |
5990-00-924-4165 | 2019-04-112 | 1 | SE |
5990-00-924-4165 | 2019-01-04 | 2 | CL |
5990-00-924-4165 | 2019-01-04 | 2 | United States |
5990-00-924-4165 | 2017-11-306 | 39 | DIBBS |
11CX4C | 2017-10-281 | 6 | Malaysia |
5990-00-924-4165 | 2017-08-222 | 43 | DIBBS |
11CX4C | 2017-06-167 | 24 | US |
5990-00-924-4165 | 2017-04-108 | 52 | DIBBS |
M20708201E | 2016-11-307 | 7 | US |
5990-00-924-4165 | 2016-10-305 | 4 | United States |
5990-00-924-4165 | 2016-10-293 | 25 | DIBBS |
5990-00-924-4165 | 2016-09-251 | 40 | DIBBS |
5990-00-924-4165 | 2015-03-65 | 37 | DIBBS |
5990-00-924-4165 | 2014-11-330 | 28 | DIBBS |
5990-00-924-4165 | 2014-10-283 | 29 | DIBBS |
5990-00-924-4165 | 2014-05-150 | 4 | MY |
5990-00-924-4165 | 2013-11-310 | 31 | DIBBS |
5990-00-924-4165 | 2013-09-253 | 28 | DIBBS |
5990-00-924-4165 | 2013-08-225 | 19 | DIBBS |
5990-00-924-4165 | 2013-04-109 | 1 | GR |
5990-00-924-4165 | 2013-02-58 | 31 | DIBBS |
5990-00-924-4165 | 2013-02-35 | 37 | DIBBS |
5990-00-924-4165 | 2013-01-22 | 6 | Indonesia |
5990-00-924-4165 | 2012-11-309 | 23 | DIBBS |
5990-00-924-4165 | 2012-06-153 | 25 | DIBBS |
5990-00-924-4165 | 2012-02-55 | 32 | DIBBS |
5990-00-924-4165 | 2011-10-290 | 14 | DIBBS |
5990-00-924-4165 | 2011-09-263 | 32 | DIBBS |
11CX4E | 2011-09-258 | 10 | BG |
5990-00-924-4165 | 2011-09-258 | 10 | BG |
11CX4E | 2011-09-258 | 10 | BG |
5990-00-924-4165 | 2011-09-258 | 10 | BG |
5990-00-924-4165 | 2011-09-245 | 28 | DIBBS |
5990-00-924-4165 | 2011-08-223 | 42 | DIBBS |
5990-00-924-4165 | 2011-08-213 | 18 | DIBBS |
5990-00-924-4165 | 2011-01-05 | 100 | IN |
5990-00-924-4165 | 2011-01-05 | 100 | IN |
11CX4C | 2010-12-350 | 1 | IT |
11CX4C | 2010-12-347 | 100 | US |
11CX4E | 2010-12-347 | 100 | US |
5990-00-924-4165 | 2010-12-347 | 100 | US |
5990-00-924-4165 | 2010-10-301 | 3 | PE |
5990-00-924-4165 | 2010-10-291 | 5 | US |
352250005264 | 2010-07-195 | 2 | US |
5990-00-924-4165 | 2010-05-127 | 2 | Greece |
11CX13461 | 2009-12-336 | 4 | Portugal |
5990-00-924-4165 | 2009-12-336 | 4 | PT |
5990-00-924-4165 | 2009-11-321 | 1 | US |
5990-00-924-4165 | 2009-10-294 | 110 | DIBBS |
5990-00-924-4165 | 2009-08-226 | 70 | Turkey |
5990-00-924-4165 | 2009-05-150 | 41 | DIBBS |
5990-00-924-4165 | 2009-03-84 | 42 | DIBBS |
5990-00-924-4165 | 2008-12-340 | 11 | DIBBS |
5990-00-924-4165 | 2008-11-319 | 2 | PE |
5990-00-924-4165 | 2008-06-161 | 61 | DIBBS |
5990-00-924-4165 | 2008-05-122 | 45 | DIBBS |
11CX4E | 2007-10-296 | 4 | Chile |
5990-00-924-4165 | 2007-05-138 | 1 | Malaysia |
Cross Reference | NSN 5990-00-924-4165

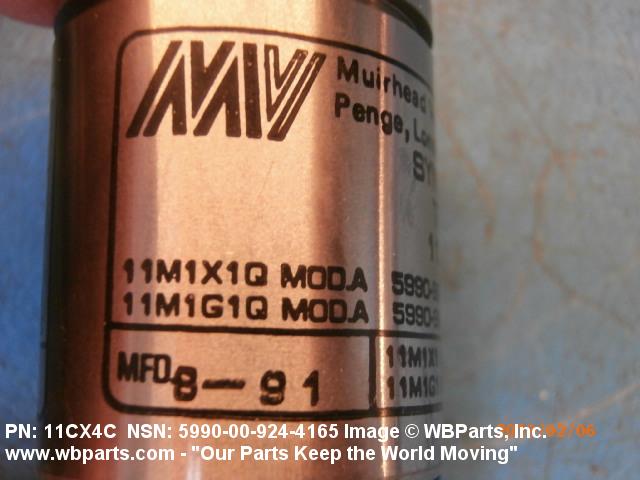

Part Number | Cage Code | Manufacturer |
---|---|---|
069732101 | D1876 | L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK |
11CX1346-1 | 14404 | AMETEK TECHNICAL & INDUSTRIAL PRODUCTS, INC. |
11CX4C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
11CX4E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
11CX4E/2-001 | B6577 | ELCOS BVBA |
2625497 | 53711 | NAVAL SEA SYSTEMS COMMAND |
26V-11CX4E | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
352250005264 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
450900-1271-002 | D4856 | NORTHROP GRUMMAN LITEF GMBH DBA LITEF |
450900-1271-2 | D4856 | NORTHROP GRUMMAN LITEF GMBH DBA LITEF |
618381 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
618381-000 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
AS 20708/2 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
AS20708 | 0VH01 | SAE CUSTOMER SERVICE DEPT 2045 |
M20708&2C001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M20708/2-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M20708/2-001 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
M20708/2-01E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MIL-S-20708/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
V23401-E0001-A102 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5990-00-924-4165
Technical Data | NSN 5990-00-924-4165
Characteristic | Specifications |
---|---|
BODY SIZE | 11 |

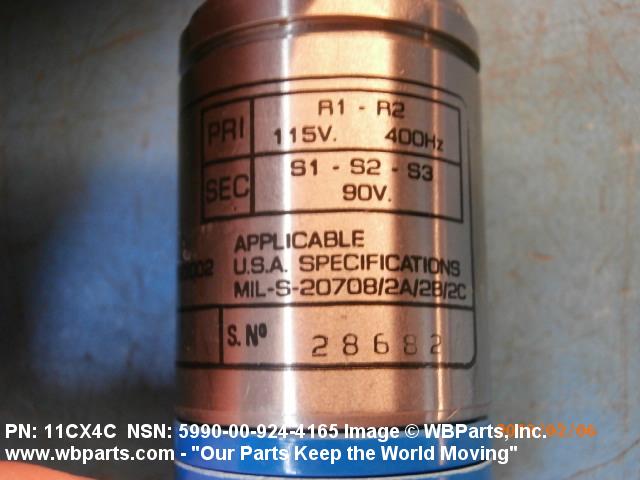

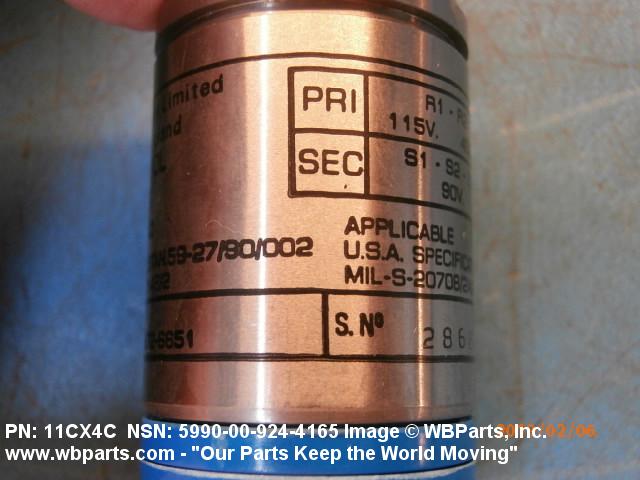

ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
ROTOR INPUT CURRENT RATING | 31.0 MILLIAMPERES MAXIMUM |
ROTOR INPUT ELECTRICAL POWER RATING | 490.0 MILLIWATTS NOMINAL |
FREQUENCY IN HERTZ | 400.0 NOMINAL |
ZRO IMPEDANCE MAGNITUDE IN OHMS | 3720.00 MINIMUM AND 4700.00 MAXIMUM |
ZRO IMPEDANCE ANGLE IN DEG | 80.00 MINIMUM AND 84.00 MAXIMUM |
ZSS IMPEDANCE MAGNITUDE IN OHMS | 410.00 MINIMUM AND 500.00 MAXIMUM |
ZSS IMPEDANCE ANGLE IN DEG | 17.00 MINIMUM AND 26.00 MAXIMUM |
TRANSFORMATION RATIO | 0.783 STATOR TO ROTOR NOMINAL |
PHASE SHIFT ANGLE IN DEG | 4.500 INPUT TO OUTPUT NOMINAL |
MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 45.00 OUTPUT |
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 75.00 |
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 0.07 INCH-OUNCES MAXIMUM |
BODY STYLE | A3 STANDARD ROUND C |

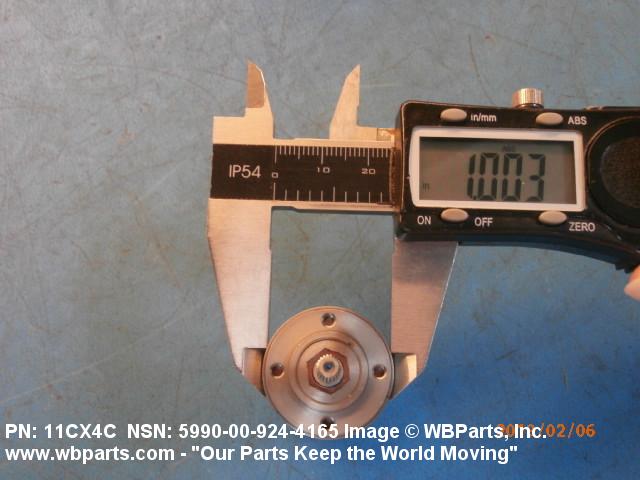

SHOULDER DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
PILOT DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |

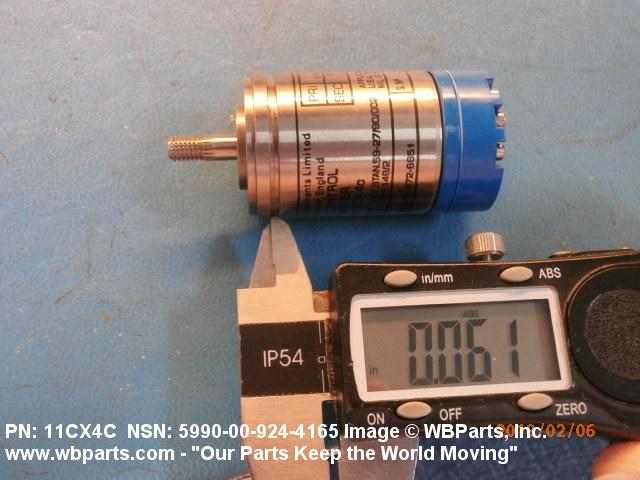

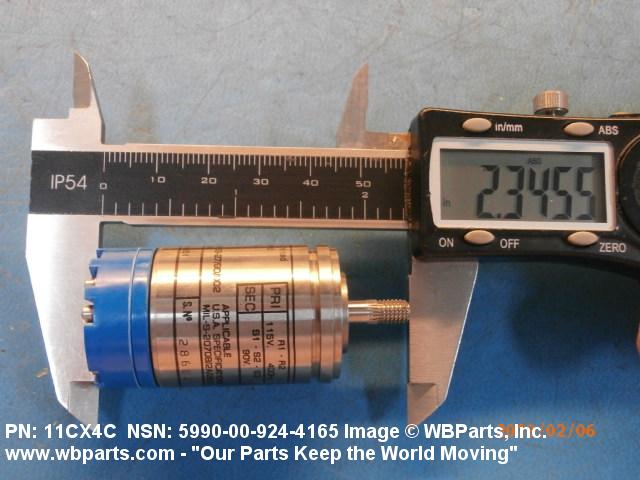

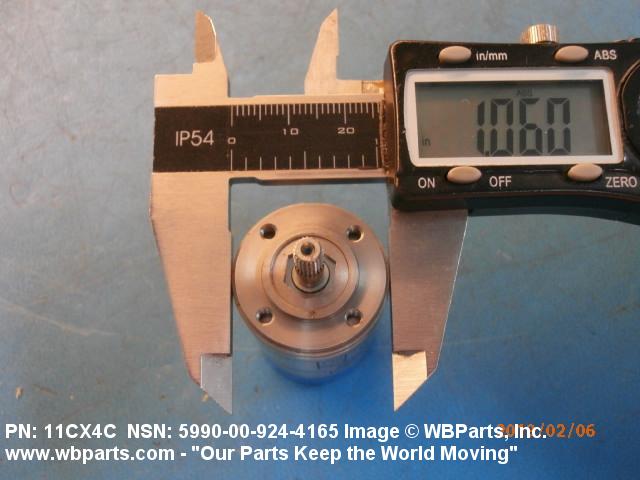

OVERALL LENGTH | 2.3560 INCHES NOMINAL |
FLANGE DIAMETER | 1.0570 INCHES MINIMUM AND 1.0620 INCHES MAXIMUM |
FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
UNDERCUT DIAMETER | 0.9750 INCHES NOMINAL |
UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
PILOT LENGTH | 0.0620 INCHES NOMINAL |
SHOULDER LENGTH | 0.0620 INCHES NOMINAL |
MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.7940 INCHES MAXIMUM |
ALIGNMENT HOLE DEPTH | 0.1250 INCHES MINIMUM |
ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.8120 INCHES NOMINAL |
ALIGNMENT HOLE QUANTITY | 4 |
SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
SHAFT DIAMETER | 0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT |

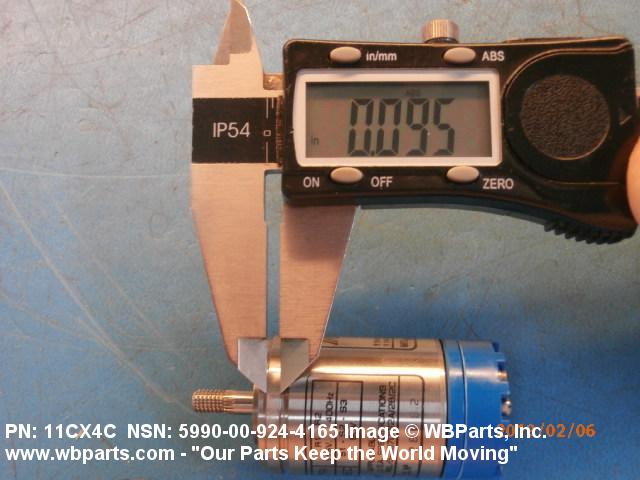

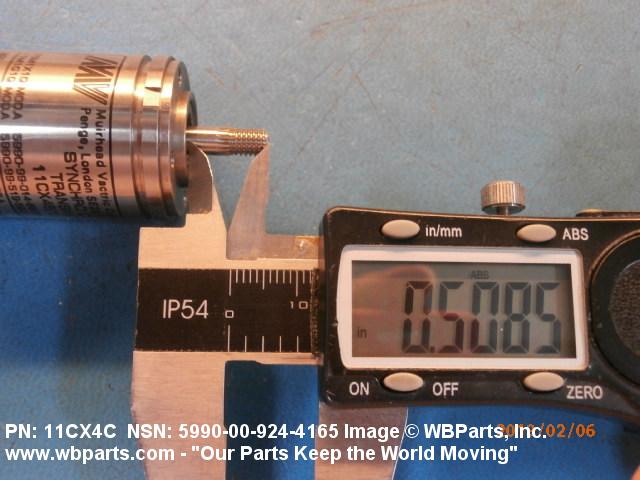

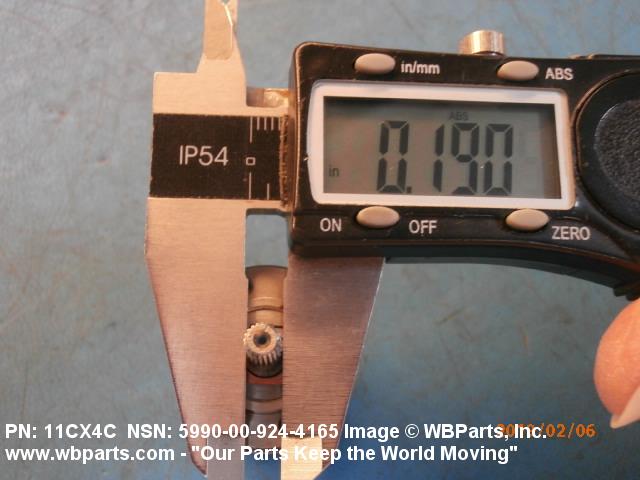

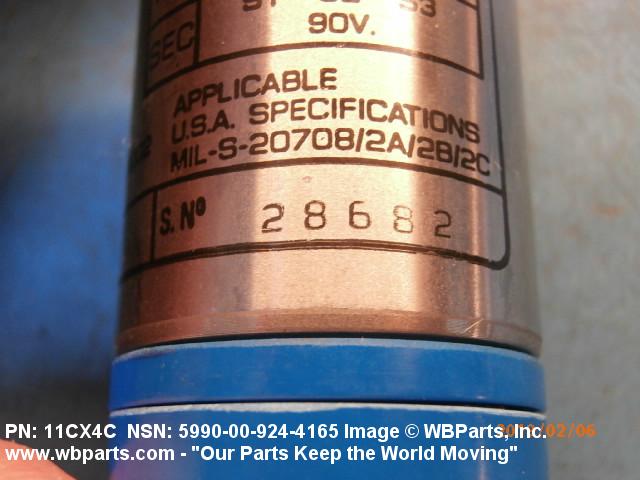

SHAFT LENGTH | 0.5620 INCHES NOMINAL SINGLE SHAFT |
SHAFT THREAD LENGTH | 0.1900 INCHES NOMINAL SINGLE SHAFT |
SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
SPLINE TOOTH DIAMETRAL PITCH | 120 SINGLE SHAFT |
SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
SHAFT NOMINAL THREAD SIZE | 0.190 INCHES SINGLE SHAFT |
SHAFT THREAD CLASS | 2A SINGLE SHAFT |
SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
TERMINAL TYPE AND QUANTITY | 5 SCREW |
TERMINAL LOCATION | REAR |
BODY MATERIAL | STEEL, CORROSION RESISTING |
TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/2 GOVERNMENT |
Restrictions/Controls & Freight Information | NSN 5990-00-924-4165
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 593 | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-924-4165
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Reparability | D | Field Level Reparables |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
