NSN 5990-00-924-4164 M20708/112-01C, M20708/2-01E, M20708/8-01C
Product Details | TRANSMITTER SYNCHRO
5990-00-924-4164 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: M20708/112-01C, M20708/2-01E, M20708/8-01C, M2070811201C, M20708201E, M20708801C, AS20708/8 , AS207088, MIL-S-20708/8, MILS207088, 615558-000, 8190W10P001, 11CX4C, 1599017210L, 26V11CX4, 26V-11CX4, 26V11CX4A, 26V11CX4B, 26V11CX4C, 450900-9243-003, 45090092433, 450900-9243-3, 5990-00-924-4164, 00-924-4164, 5990009244164, 4509009243003, 009244164, 615558000
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JAN 1966 | 00-924-4164 | 02073 ( SYNCHRO, TRANSMITTER ) |

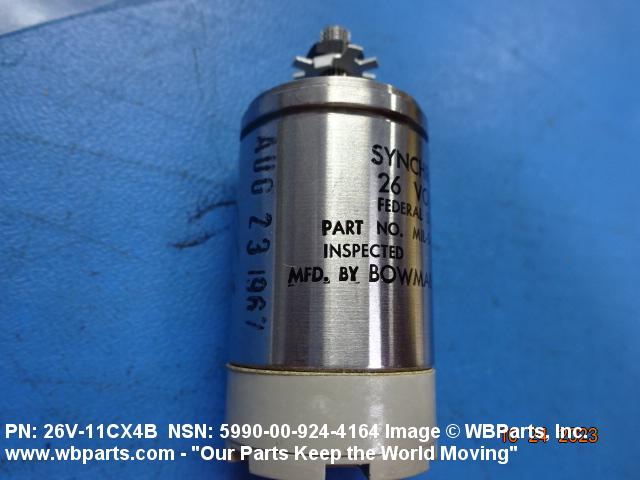

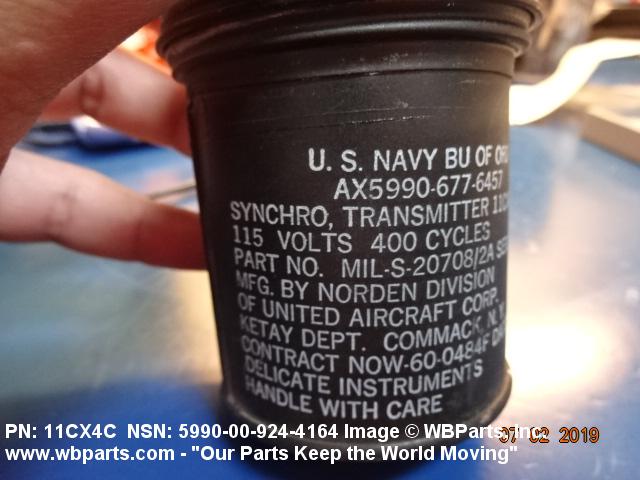

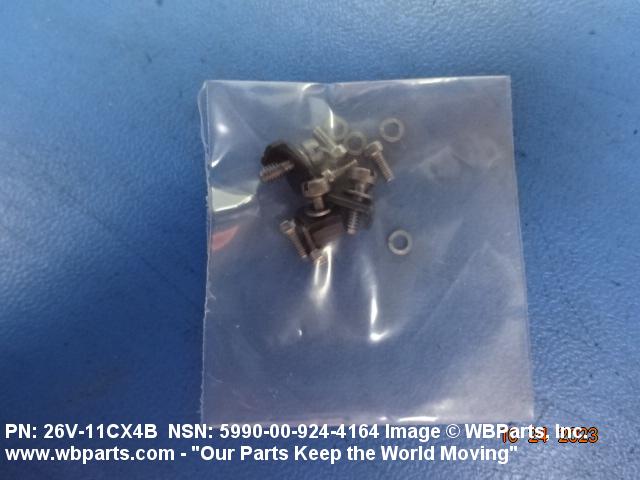

Drawings & Photos | NSN 5990-00-924-4164
Demand History | NSN 5990-00-924-4164
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-924-4164 | 2024-11-317 | 55 | DIBBS |
| 5990-00-924-4164 | 2024-10-302 | 137 | United States |
| 5990-00-924-4164 | 2024-10-298 | 55 | DIBBS |
| 5990-00-924-4164 | 2024-09-254 | 1 | TR |
| 5990-00-924-4164 | 2024-05-138 | 142 | DIBBS |
| 5990-00-924-4164 | 2024-03-78 | 329 | DIBBS |
| 5990-00-924-4164 | 2024-03-65 | 1 | AU |
| 5990-00-924-4164 | 2024-02-50 | 75 | DIBBS |
| 5990-00-924-4164 | 2024-02-38 | 33 | DIBBS |
| 5990-00-924-4164 | 2023-11-316 | 4 | DIBBS |
| 5990-00-924-4164 | 2023-10-285 | 2 | United States |
| 5990-00-924-4164 | 2023-09-272 | 1 | United States |
| 5990-00-924-4164 | 2023-09-271 | 2 | United States |
| 5990-00-924-4164 | 2023-03-68 | 6 | DIBBS |
| 5990-00-924-4164 | 2023-01-10 | 1 | South Korea |
| 5990-00-924-4164 | 2023-01-08 | 1 | South Korea |
| 5990-00-924-4164 | 2022-12-361 | 30 | DIBBS |
| 5990-00-924-4164 | 2019-10-287 | 2 | IN |
| 5990-00-924-4164 | 2019-04-110 | 1 | Bangladesh |
| 5990-00-924-4164 | 2018-03-66 | 5 | US |
| 11CX4C | 2017-10-281 | 6 | Malaysia |
| 11CX4C | 2017-06-167 | 24 | US |
| M20708201E | 2016-11-307 | 7 | US |
| 5990-00-924-4164 | 2015-01-02 | 52 | DIBBS |
| 5990-00-924-4164 | 2014-10-283 | 44 | DIBBS |
| M20708801C | 2014-07-203 | 1 | United States |
| 5990-00-924-4164 | 2013-07-185 | 34 | DIBBS |
| 5990-00-924-4164 | 2013-06-161 | 27 | DIBBS |
| 5990-00-924-4164 | 2012-11-334 | 24 | DIBBS |
| 5990-00-924-4164 | 2012-11-310 | 14 | DIBBS |
| 5990-00-924-4164 | 2012-10-284 | 19 | DIBBS |
| 11CX4C | 2010-12-350 | 1 | IT |
| 11CX4C | 2010-12-347 | 100 | US |
| 5990-00-924-4164 | 2008-05-122 | 25 | DIBBS |
| 5990-00-924-4164 | 2007-10-278 | 18 | DIBBS |
| 5990-00-924-4164 | 2007-08-234 | 20 | DIBBS |
| 5990-00-924-4164 | 2007-04-93 | 24 | DIBBS |
| 5990-00-924-4164 | 2007-02-42 | 21 | DIBBS |
Cross Reference | NSN 5990-00-924-4164
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11CX4C | 25565 | BOWMAR CANADA LTD |
| 26V-11CX4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 26V11CX4A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 26V11CX4B | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 26V11CX4B | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| 26V11CX4C | 09301 | KEARFOTT CORP SOMA FORWARDING DIV |
| 450900-9243-003 | D4856 | NORTHROP GRUMMAN LITEF GMBH DBA LITEF |
| 450900-9243-3 | D4856 | NORTHROP GRUMMAN LITEF GMBH DBA LITEF |
| 615558-000 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8190W10P001 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| AS20708/8 | 05AY8 | SAE INC |
| AS20708/8 | 0VH01 | SAE CUSTOMER SERVICE DEPT 2045 |
| AS20708/8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M20708/112-01C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/2-01E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/8-01C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M20708/8-01C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-20708/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-924-4164
Related Products | NSN 5990-00-924-4164
Technical Data | NSN 5990-00-924-4164
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 11 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 130.0 MILLIAMPERES MAXIMUM |
| ROTOR INPUT ELECTRICAL POWER RATING | 340.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO IMPEDANCE MAGNITUDE IN OHMS | 200.00 MINIMUM AND 300.00 MAXIMUM |
| ZRO IMPEDANCE ANGLE IN DEG | 80.50 MINIMUM AND 84.00 MAXIMUM |
| ZSS IMPEDANCE MAGNITUDE IN OHMS | 6.00 MINIMUM AND 12.00 MAXIMUM |
| ZSS IMPEDANCE ANGLE IN DEG | 18.00 MINIMUM AND 30.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.454 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 4.000 INPUT TO OUTPUT MAXIMUM |
| MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 12.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 19.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 0.070 INCH-OUNCES MAXIMUM |
| BODY STYLE | A3 STANDARD ROUND C |
| SHOULDER DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| PILOT DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| OVERALL LENGTH | 2.3560 INCHES NOMINAL |
| FLANGE DIAMETER | 1.0570 INCHES MINIMUM AND 1.0620 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.9750 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0620 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.3560 INCHES NOMINAL |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES MINIMUM |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.8120 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.5620 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.1900 INCHES NOMINAL SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 120 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.190 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/8 GOVERNMENT SPECIFICATION |
