NSN 5990-01-304-5680 HGH8A7, HGH-8-A-7, 01-304-5680
Product Details | TRANSMITTER SYNCHRO
5990-01-304-5680 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: HGH8A7, HGH-8-A-7, 5990-01-304-5680, 01-304-5680, 5990013045680, 013045680
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUL 1989 | 01-304-5680 | 02073 ( SYNCHRO, TRANSMITTER ) |

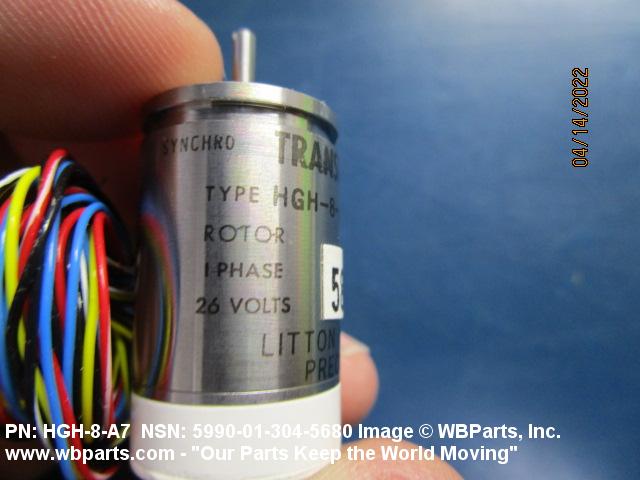

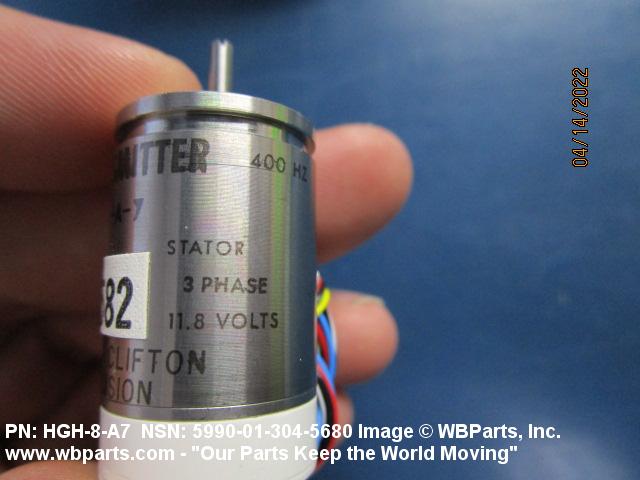

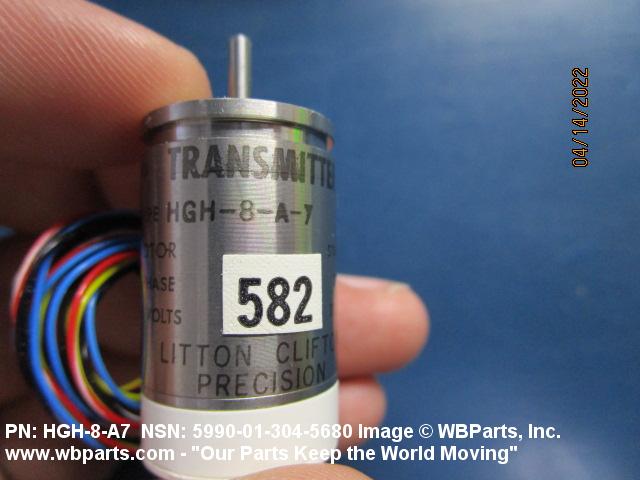

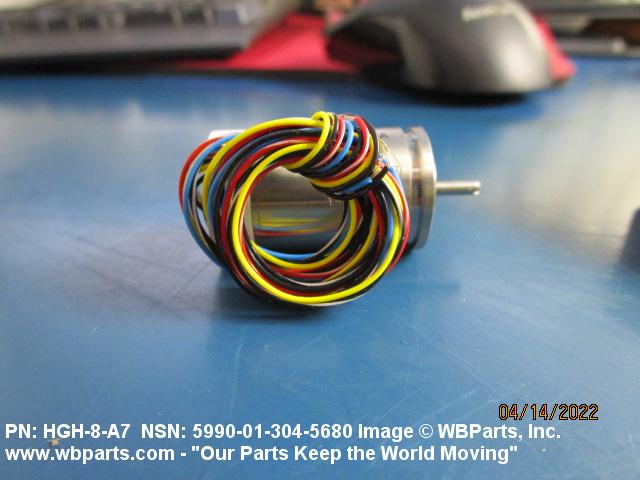

Drawings & Photos | NSN 5990-01-304-5680
Demand History | NSN 5990-01-304-5680
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HGH-8-A-7 | 2024-07-184 | 12 | DIBBS |
| HGH8A7 | 2024-05-134 | 1 | US |
| HGH-8-A-7 | 2023-01-17 | 25 | DIBBS |
| HGH-8-A-7 | 2023-01-09 | 25 | DIBBS |
| HGH-8-A-7 | 2022-09-262 | 3 | DIBBS |
| 5990-01-304-5680 | 2022-03-87 | 2 | United States |
| HGH-8-A-7 | 2019-03-77 | 2 | DIBBS |
| 5990-01-304-5680 | 2018-09-261 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-01-304-5680
Related Products | NSN 5990-01-304-5680
Technical Data | NSN 5990-01-304-5680
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 100.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 540.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 54.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 260.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 11.30 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 45.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 88.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 22.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 37.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 12.00 NOMINAL |
| TRANSFORMATION RATIO | 0.454 STATOR TO ROTOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 8.500 OUTPUT TO INPUT NOMINAL |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 30.00 OUTPUT |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.00 CENTIMETER-GRAMS MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.00 CENTIMETER-GRAMS MAXIMUM |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

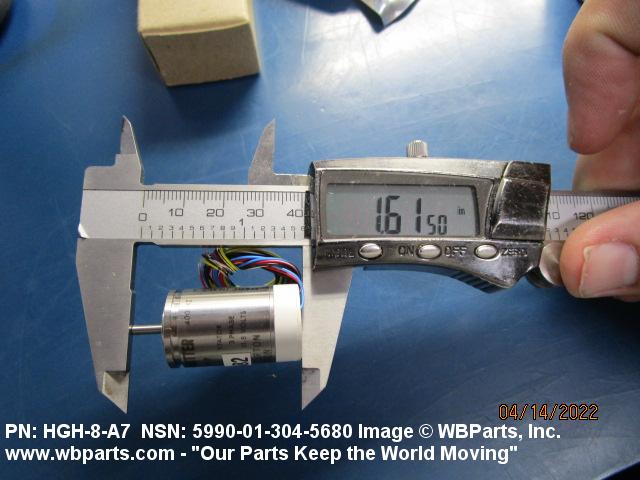

| OVERALL LENGTH | 1.6360 INCHES MAXIMUM |

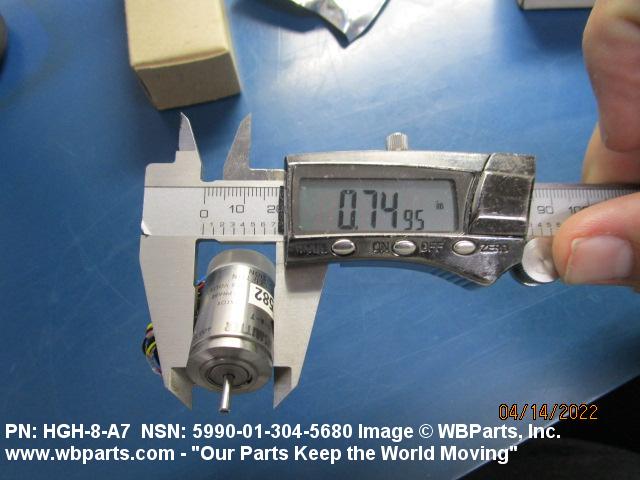

| FLANGE DIAMETER | 0.7490 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.6680 INCHES MINIMUM AND 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM |
| PILOT LENGTH | 0.0380 INCHES MINIMUM AND 0.0480 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |

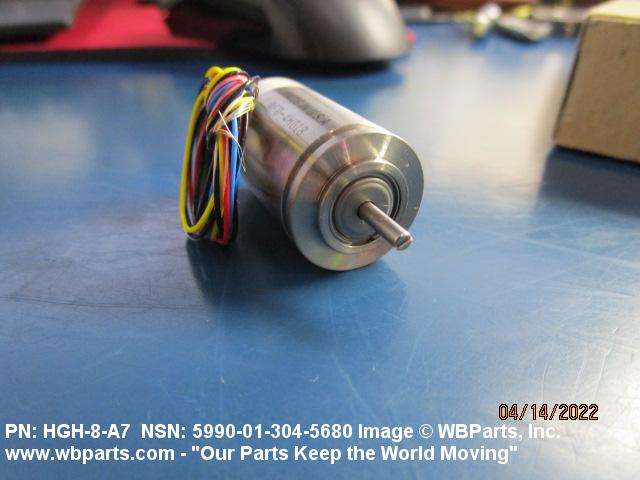

| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |

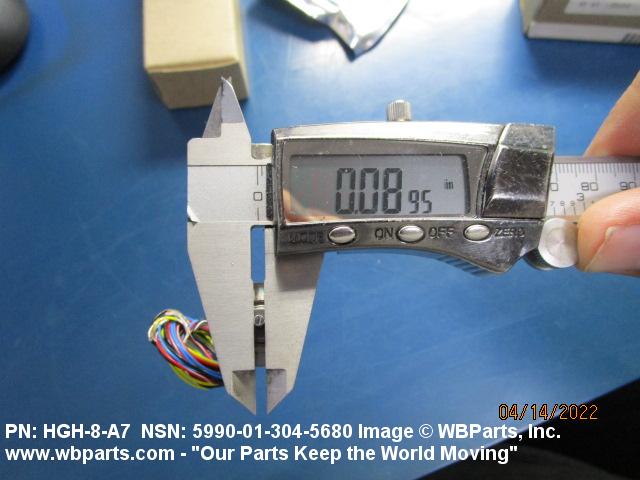

| SHAFT DIAMETER | 0.0895 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3170 INCHES MINIMUM AND 0.3470 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |

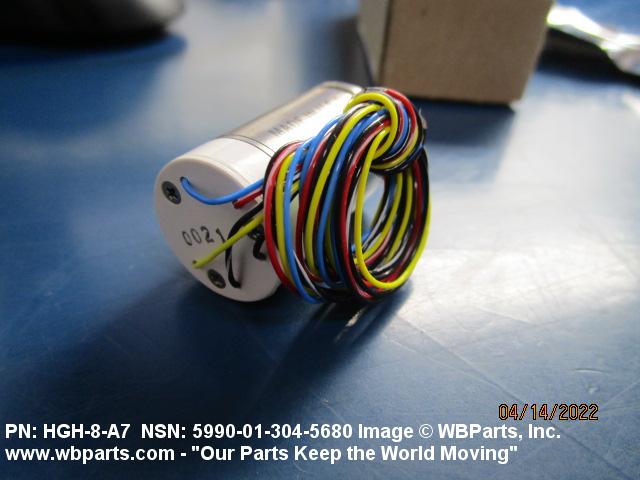

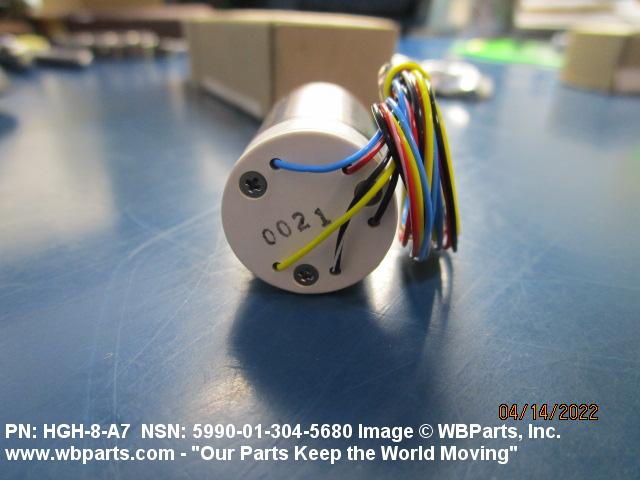

| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0005 INCHES |
| III SHAFT END PLAY | 0.0003 INCHES MINIMUM AND 0.0008 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5990-01-304-5680
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-01-304-5680
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
