Product Details | TRANSMITTER SYNCHRO

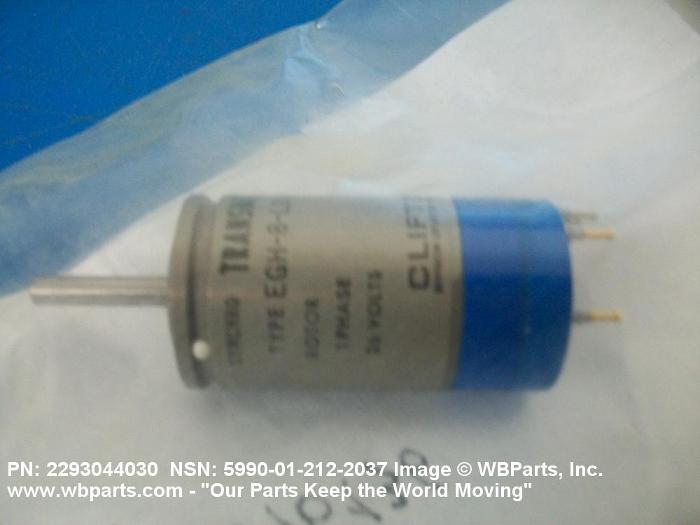

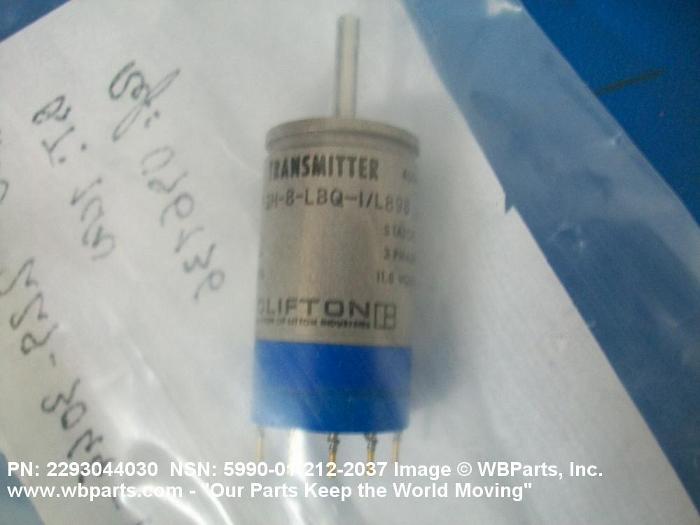

5990-01-212-2037 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CM91014040, EGH-8-LBQ-1/L898, EGH8LBQ1L898, ZU3, 2293044030, 229-3044-030, 8TX302B62, 5990-01-212-2037, 01-212-2037, 5990012122037, 012122037
Electrical and Electronic Equipment Components | Synchros and Resolvers
