NSN 5990-00-929-0500 M20708/28-01D, M20708/28D-001, M2070821D001
Product Details | TRANSMITTER SYNCHRO
5990-00-929-0500 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: M20708/28-01D, M20708/28D-001, M2070821D001, M20708-21D001, M207082801D, M2070828D001, N14503, AS20708/28, AS2070828, VBE41510, VBE415-10, VCX184N1, VCX18-4N1, MIL-S-20708/28, MILS2070828, 450900-2994-002, 45090029942, 450900-2994-2, 59 000-014, 59000014, 1136443, 1792351, 18CX1253, 18CX46, 18CX4B, 18CX4D, 2.012948, 2012948, 352250005254, 5990-00-929-0500, 00-929-0500, 5990009290500, 4509002994002, 009290500
Electrical and Electronic Equipment Components | Synchros and Resolvers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 02 SEP 1966 | 00-929-0500 | 02073 ( SYNCHRO, TRANSMITTER ) |
Demand History | NSN 5990-00-929-0500
Part Number | Request Date | QTY | Origin |
---|---|---|---|
1 | 2024-09-267 | 1 | us |
5990-00-929-0500 | 2024-08-238 | 1 | United States |
1 | 2024-07-212 | 1 | US |
5990-00-929-0500 | 2024-07-192 | 40 | KR |
5990-00-929-0500 | 2024-03-71 | 50 | DIBBS |
5990-00-929-0500 | 2024-02-60 | 50 | DIBBS |
5990-00-929-0500 | 2023-11-320 | 91 | DIBBS |
1 | 2023-11-319 | 1 | US |
1 | 2023-11-311 | 1 | United States |
1 | 2023-05-137 | 1 | US |
5990-00-929-0500 | 2021-07-209 | 1 | us |
5990-00-929-0500 | 2021-07-201 | 10 | US |
1 | 2020-11-325 | 1 | US |
5990-00-929-0500 | 2020-07-185 | 1 | DIBBS-RFPs |
5990-00-929-0500 | 2019-09-260 | 55 | DIBBS |
5990-00-929-0500 | 2019-06-154 | 79 | DIBBS |
1 | 2019-05-141 | 1 | US |
5990-00-929-0500 | 2019-05-140 | 79 | DIBBS |
1 | 2019-04-99 | 4 | |
5990-00-929-0500 | 2019-02-52 | 2 | Taiwan |
18CX4D | 2018-06-155 | 1 | South Korea |
5990-00-929-0500 | 2017-08-236 | 73 | DIBBS |
5990-00-929-0500 | 2017-06-180 | 75 | DIBBS |
5990-00-929-0500 | 2017-06-159 | 72 | DIBBS |
5990-00-929-0500 | 2017-04-92 | 73 | DIBBS |
5990-00-929-0500 | 2017-02-46 | 75 | DIBBS |
5990-00-929-0500 | 2017-01-18 | 75 | DIBBS |
1 | 2016-10-301 | 1 | |
1 | 2016-07-209 | 22 | us |
1 | 2016-07-209 | 12 | us |
5990-00-929-0500 | 2016-06-164 | 33 | DIBBS |
5990-00-929-0500 | 2016-06-159 | 67 | DIBBS |
5990-00-929-0500 | 2016-06-153 | 30 | DIBBS |
5990-00-929-0500 | 2016-05-145 | 65 | DIBBS |
5990-00-929-0500 | 2016-04-96 | 43 | DIBBS |
5990-00-929-0500 | 2016-03-82 | 18 | DIBBS |
5990-00-929-0500 | 2016-03-76 | 14 | DIBBS |
5990-00-929-0500 | 2015-05-131 | 43 | DIBBS |
5990-00-929-0500 | 2015-02-50 | 50 | DIBBS |
5990-00-929-0500 | 2015-02-49 | 46 | DIBBS |
5990-00-929-0500 | 2015-02-43 | 40 | DIBBS |
5990-00-929-0500 | 2014-10-283 | 119 | DIBBS |
5990-00-929-0500 | 2014-08-227 | 17 | DIBBS |
5990-00-929-0500 | 2014-06-176 | 10 | DIBBS |
5990-00-929-0500 | 2014-06-169 | 15 | DIBBS |
1 | 2014-05-136 | 1 | US |
5990-00-929-0500 | 2014-05-133 | 18 | DIBBS |
5990-00-929-0500 | 2013-11-310 | 32 | DIBBS |
18CX4D | 2013-09-252 | 8 | South Korea |
5990-00-929-0500 | 2013-09-248 | 8 | South Korea |
5990-00-929-0500 | 2013-08-240 | 1 | DIBBS |
18CX4D | 2013-08-234 | 1 | US |
5990-00-929-0500 | 2013-05-139 | 1 | PE |
18CX4D | 2012-11-310 | 3 | BG |
5990-00-929-0500 | 2012-11-310 | 3 | BG |
18CX46 | 2012-11-310 | 1 | MY |
18CX46 | 2012-11-310 | 1 | MY |
5990-00-929-0500 | 2012-08-240 | 90 | DIBBS |
5990-00-929-0500 | 2012-07-193 | 28 | DIBBS |
18CX4D | 2012-02-53 | 1 | IN |
5990-00-929-0500 | 2011-12-361 | 1 | United States |
5990-00-929-0500 | 2011-10-291 | 31 | DIBBS |
5990-00-929-0500 | 2011-09-258 | 95 | DIBBS |
5990-00-929-0500 | 2011-09-253 | 110 | DIBBS |
5990-00-929-0500 | 2011-08-220 | 95 | DIBBS |
5990-00-929-0500 | 2011-07-199 | 37 | DIBBS |
1 | 2011-06-160 | 1 | PH |
5990-00-929-0500 | 2011-06-159 | 39 | DIBBS |
5990-00-929-0500 | 2011-05-132 | 1 | EC |
5990-00-929-0500 | 2011-03-76 | 2 | Malaysia |
5990-00-929-0500 | 2010-04-96 | 40 | DIBBS |
18CX4B | 2010-03-77 | 2 | Indonesia |
5990-00-929-0500 | 2009-12-343 | 2 | US |
5990-00-929-0500 | 2009-07-201 | 59 | DIBBS |
5990-00-929-0500 | 2009-05-151 | 31 | DIBBS |
5990-00-929-0500 | 2008-12-354 | 69 | DIBBS |
5990-00-929-0500 | 2008-11-322 | 21 | DIBBS |
5990-00-929-0500 | 2008-10-288 | 35 | DIBBS |
5990-00-929-0500 | 2007-09-268 | 23 | DIBBS |
5990-00-929-0500 | 2007-09-248 | 31 | DIBBS |
5990-00-929-0500 | 2007-05-138 | 1 | Malaysia |
5990-00-929-0500 | 2007-05-125 | 32 | DIBBS |
5990-00-929-0500 | 2007-03-67 | 25 | DIBBS |
5990-00-929-0500 | 2007-02-41 | 31 | DIBBS |
Cross Reference | NSN 5990-00-929-0500
Part Number | Cage Code | Manufacturer |
---|---|---|
1,792351 | D2865 | RAYTHEON ANSCHUETZ GMBH DBA RAYTHEON ELECTRICS GMBH |
1136443 | 82205 | BELFORT INSTRUMENT COMPANY |
18CX1253 | 14404 | AMETEK TECHNICAL & INDUSTRIAL PRODUCTS, INC. |
18CX46 | 54497 | MARTIN MARIETTA TECHNOLOGIES INC SUB OF MARTIN MARIETTA CORP |
18CX4B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
18CX4D | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
18CX4D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
2.012948 | D2865 | RAYTHEON ANSCHUETZ GMBH DBA RAYTHEON ELECTRICS GMBH |
352250005254 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
450900-2994-002 | D4856 | NORTHROP GRUMMAN LITEF GMBH DBA LITEF |
450900-2994-2 | D4856 | NORTHROP GRUMMAN LITEF GMBH DBA LITEF |
59 000-014 | D9853 | ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH |
AS20708/28 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
M20708-21D001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M20708/28-01D | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
M20708/28-01D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M20708/28D-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MIL-S-20708/28 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
N14503 | 81574 | TCE CANADA LTD |
VBE415-10 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
VCX18-4N1 | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5990-00-929-0500
Technical Data | NSN 5990-00-929-0500
Characteristic | Specifications |
---|---|
BODY SIZE | 18 |
ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
ROTOR INPUT CURRENT RATING | 110.0 MILLIAMPERES MAXIMUM |
ROTOR INPUT ELECTRICAL POWER RATING | 900.0 MILLIWATTS NOMINAL |
FREQUENCY IN HERTZ | 400.0 NOMINAL |
ZRO IMPEDANCE MAGNITUDE IN OHMS | 1045.00 MINIMUM AND 1400.00 MAXIMUM |
ZRO IMPEDANCE ANGLE IN DEG | 84.00 MINIMUM AND 87.50 MAXIMUM |
ZSS IMPEDANCE MAGNITUDE IN OHMS | 40.00 MINIMUM AND 57.00 MAXIMUM |
ZSS IMPEDANCE ANGLE IN DEG | 34.00 MINIMUM AND 48.00 MAXIMUM |
TRANSFORMATION RATIO | 0.785 ROTOR TO STATOR NOMINAL |
PHASE SHIFT ANGLE IN DEG | 1.500 INPUT TO OUTPUT NOMINAL |
MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 40.00 OUTPUT |
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 60.00 |
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
TORQUE GRADIENT PER ANGULAR DEG | 0.100 INCH-OUNCES MAXIMUM |
BODY STYLE | A3 STANDARD ROUND C |
SHOULDER DIAMETER | 1.5615 INCHES MINIMUM AND 1.5620 INCHES MAXIMUM |
PILOT DIAMETER | 0.0375 INCHES NOMINAL |

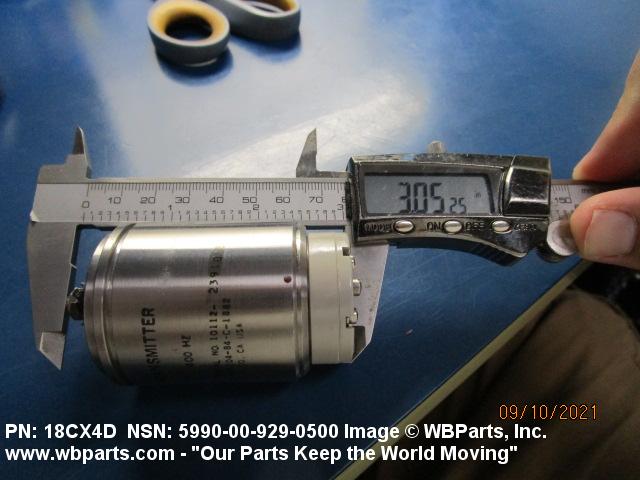

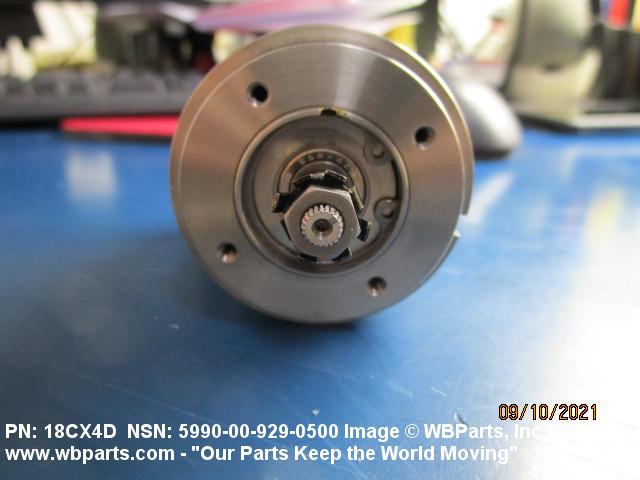

OVERALL LENGTH | 3.0600 INCHES NOMINAL |
FLANGE DIAMETER | 1.7450 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
UNDERCUT DIAMETER | 1.6250 INCHES NOMINAL |
UNDERCUT WIDTH | 0.0780 INCHES NOMINAL |
PILOT LENGTH | 0.0400 INCHES NOMINAL |
SHOULDER LENGTH | 0.1320 INCHES NOMINAL |
MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.5200 INCHES NOMINAL |
ALIGNMENT HOLE DEPTH | 0.1250 INCHES MINIMUM |
ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.2500 INCHES NOMINAL |
ALIGNMENT HOLE QUANTITY | 4 |
SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |

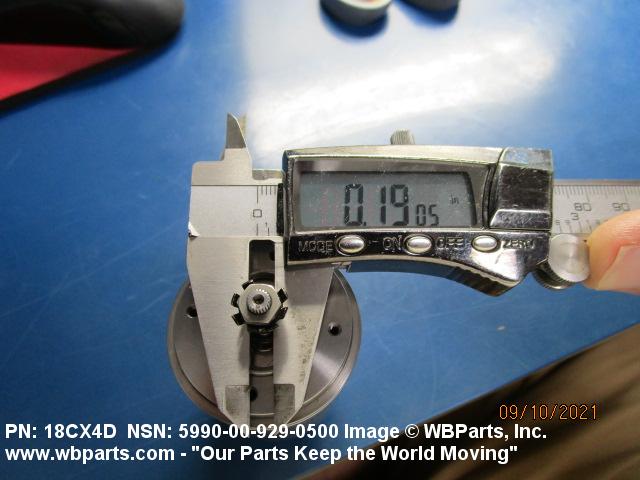

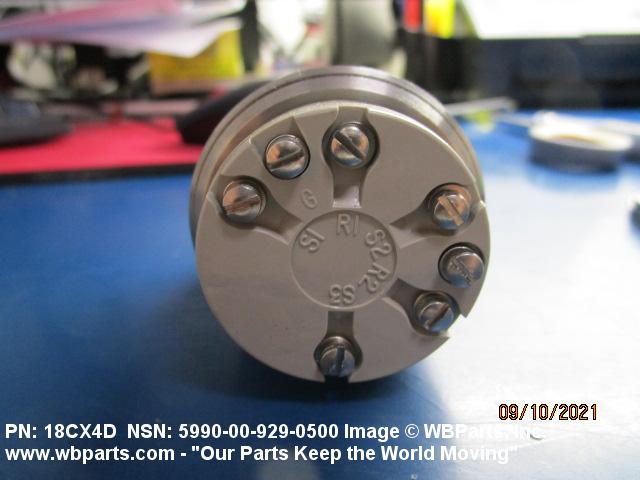

SHAFT DIAMETER | 0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT |
SHAFT LENGTH | 0.5400 INCHES NOMINAL SINGLE SHAFT |
SHAFT THREAD LENGTH | 0.2000 INCHES NOMINAL SINGLE SHAFT |
SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
SPLINE TOOTH DIAMETRAL PITCH | 121 SINGLE SHAFT |
SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
SHAFT NOMINAL THREAD SIZE | 0.190 INCHES SINGLE SHAFT |
SHAFT THREAD CLASS | 2A SINGLE SHAFT |
SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
TERMINAL TYPE AND QUANTITY | 5 SCREW |
TERMINAL LOCATION | REAR |
BODY MATERIAL | STEEL, CORROSION RESISTING |
SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/28 GOVERNMENT SPECIFICATION |
