NSN 5990-00-852-2363 M20708/52-001, M20708/52-01D, M20708/52C-001
Product Details | TRANSMITTER SYNCHRO
5990-00-852-2363 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: M20708/52-001, M20708/52-01D, M20708/52C-001, M2070852001, M207085201D, M2070852C001, AS20708/52, AS2070852, AY240BA 9 A1, AY240BA9A1, MIL-S-20708/52, MILS2070852, VCX23/36-6B, VCX23366B, 23CX6, 23CX6D, 397-001-024, 5990-00-852-2363, 00-852-2363, 5990008522363, 008522363, 397001024
Electrical and Electronic Equipment Components | Synchros and Resolvers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 25 NOV 1966 | 00-852-2363 | 02073 ( SYNCHRO, TRANSMITTER ) |
Demand History | NSN 5990-00-852-2363
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5990-00-852-2363 | 2023-04-109 | 2 | US |
5990-00-852-2363 | 2022-12-335 | 4 | DIBBS |
5990-00-852-2363 | 2022-08-223 | 3 | DIBBS |
5990-00-852-2363 | 2022-06-180 | 1 | US |
23CX6D | 2022-06-157 | 1 | US |
5990-00-852-2363 | 2022-02-32 | 5 | DIBBS |
5990-00-852-2363 | 2021-09-272 | 5 | US |
5990-00-852-2363 | 2021-08-230 | 2 | DIBBS |
5990-00-852-2363 | 2021-08-224 | 10 | DIBBS |
5990-00-852-2363 | 2021-07-201 | 1 | DIBBS |
5990-00-852-2363 | 2021-07-192 | 1 | DIBBS |
23CX6 | 2021-07-182 | 2 | US |
5990-00-852-2363 | 2021-06-158 | 1 | DIBBS |
5990-00-852-2363 | 2020-11-327 | 2 | DIBBS |
5990-00-852-2363 | 2020-08-229 | 2 | DIBBS |
5990-00-852-2363 | 2020-07-211 | 2 | DIBBS |
5990-00-852-2363 | 2020-04-114 | 1 | DIBBS |
5990-00-852-2363 | 2020-01-23 | 5 | US |
23CX6D | 2020-01-02 | 5 | US |
5990-00-852-2363 | 2019-09-269 | 2 | DIBBS |
5990-00-852-2363 | 2014-03-66 | 5 | US |
23CX6D | 2014-03-64 | 4 | US |
5990-00-852-2363 | 2013-01-22 | 5 | DIBBS |
5990-00-852-2363 | 2012-11-310 | 3 | DIBBS |
5990-00-852-2363 | 2012-08-215 | 2 | DIBBS |
5990-00-852-2363 | 2012-03-83 | 1 | US |
5990-00-852-2363 | 2012-03-75 | 1 | DIBBS |
5990-00-852-2363 | 2011-10-276 | 10 | DIBBS |
5990-00-852-2363 | 2011-08-216 | 1 | United States |
23CX6D | 2011-03-83 | 4 | US |
5990-00-852-2363 | 2011-01-19 | 2 | US |
5990-00-852-2363 | 2010-08-242 | 4 | DIBBS |
23CX6D | 2010-08-214 | 1 | US |
5990-00-852-2363 | 2010-07-194 | 2 | US |
5990-00-852-2363 | 2009-09-247 | 7 | DIBBS |
5990-00-852-2363 | 2009-01-06 | 2 | DIBBS |
5990-00-852-2363 | 2008-11-324 | 5 | DIBBS |
5990-00-852-2363 | 2008-09-259 | 3 | DIBBS |
5990-00-852-2363 | 2008-06-182 | 8 | DIBBS |
5990-00-852-2363 | 2008-05-144 | 7 | DIBBS |
5990-00-852-2363 | 2008-05-122 | 8 | DIBBS |
5990-00-852-2363 | 2008-01-31 | 4 | DIBBS |
5990-00-852-2363 | 2007-04-109 | 4 | DIBBS |
Cross Reference | NSN 5990-00-852-2363
Part Number | Cage Code | Manufacturer |
---|---|---|
23CX6 | 08842 | ABACUS ELECTRONICS CORP |
23CX6D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
397-001-024 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
AS20708/52 | 0VH01 | SAE CUSTOMER SERVICE DEPT 2045 |
AY240BA 9 A1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
M20708/52-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M20708/52-01D | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
M20708/52-01D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M20708/52C-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MIL-S-20708/52 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
VCX23/36-6B | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-852-2363
Related Products | NSN 5990-00-852-2363
Technical Data | NSN 5990-00-852-2363
Characteristic | Specifications |
---|---|
BODY SIZE | 23 |
ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
ROTOR INPUT CURRENT RATING | 80.0 MILLIAMPERES MAXIMUM |
ROTOR INPUT ELECTRICAL POWER RATING | 1.4 WATTS NOMINAL |
FREQUENCY IN HERTZ | 60.0 NOMINAL |
ZRO IMPEDANCE MAGNITUDE IN OHMS | 1450.00 MINIMUM AND 1700.00 MAXIMUM |
ZRO IMPEDANCE ANGLE IN DEG | 79.00 MINIMUM AND 83.00 MAXIMUM |
ZSS IMPEDANCE MAGNITUDE IN OHMS | 155.00 MINIMUM AND 310.00 MAXIMUM |
ZSS IMPEDANCE ANGLE IN DEG | 10.00 MINIMUM AND 15.00 MAXIMUM |
TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
PHASE SHIFT ANGLE IN DEG | 6.500 INPUT TO OUTPUT NOMINAL |
MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 30.00 OUTPUT |
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 60.00 |
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
TORQUE GRADIENT PER ANGULAR DEG | 0.200 INCH-OUNCES MAXIMUM |
BODY STYLE | A4 STANDARD ROUND D |
SHOULDER DIAMETER | 1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM |
PILOT DIAMETER | 0.5950 INCHES NOMINAL |
SECOND SHOULDER DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
SECOND SHOULDER LENGTH | 0.1700 INCHES NOMINAL |
OVERALL LENGTH | 4.2990 INCHES NOMINAL |
FLANGE DIAMETER | 2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
FLANGE THICKNESS | 0.2500 INCHES NOMINAL |
BODY DIAMETER | 1.9900 INCHES MAXIMUM |
PILOT LENGTH | 0.0430 INCHES NOMINAL |
SHOULDER LENGTH | 0.1500 INCHES NOMINAL |
AFT OF FIRST FLANGE DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.5800 INCHES NOMINAL |

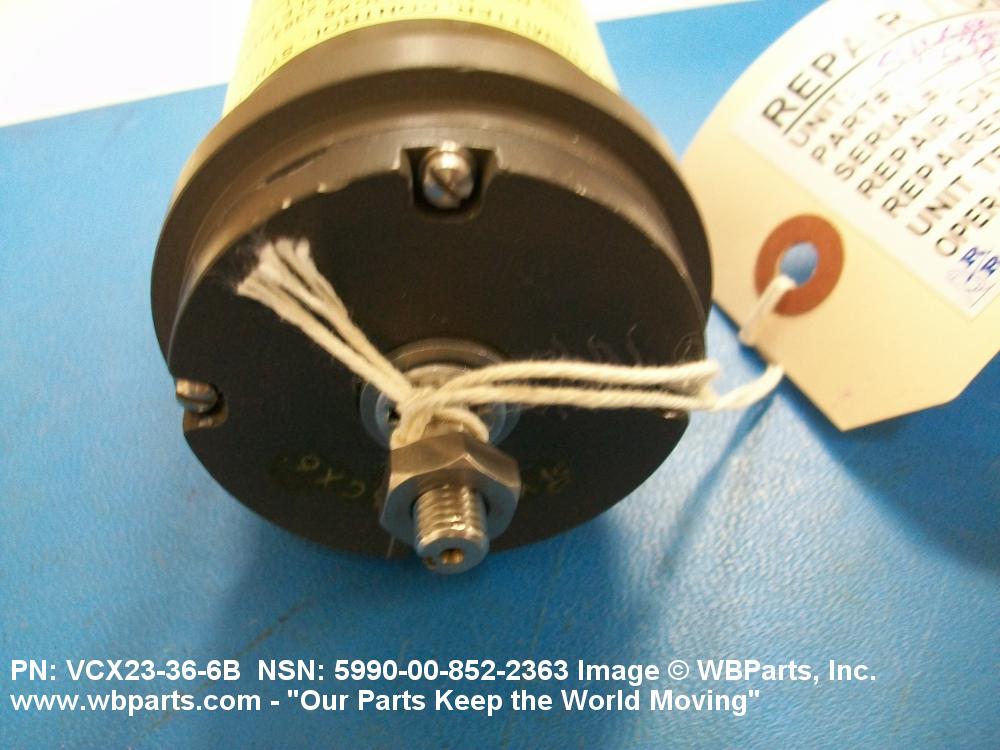

SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
SHAFT DIAMETER | 0.2403 INCHES MINIMUM AND 0.2405 INCHES MAXIMUM SINGLE SHAFT |
SHAFT LENGTH | 0.7190 INCHES NOMINAL SINGLE SHAFT |
SHAFT THREAD LENGTH | 0.2900 INCHES NOMINAL SINGLE SHAFT |
SPLINE TOOTH QUANTITY | 22 SINGLE SHAFT |
SPLINE TOOTH DIAMETRAL PITCH | 96 SINGLE SHAFT |
SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
SHAFT THREAD CLASS | 2A SINGLE SHAFT |
SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |

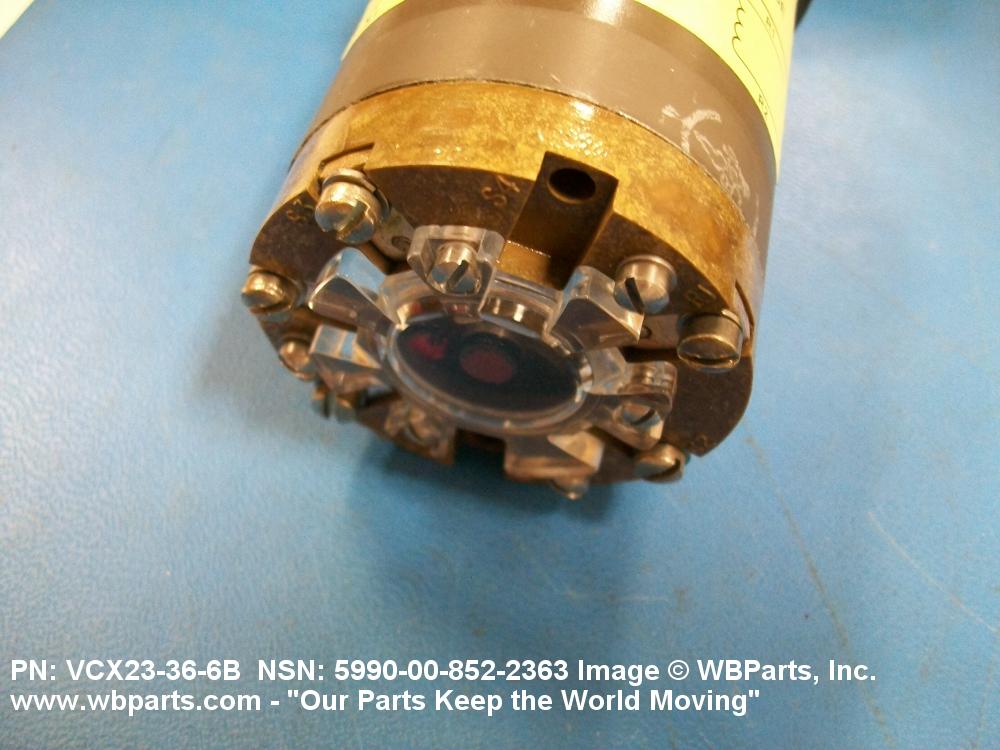

TERMINAL TYPE AND QUANTITY | 5 SCREW |
TERMINAL LOCATION | REAR |
BODY MATERIAL | STEEL, CORROSION RESISTING |
SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/52 GOVERNMENT SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5990-00-852-2363
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 593 | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-852-2363
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
