NSN 5990-00-724-8812 CR40919010, TGH-11-G-4/B788, TGH11G4B788
Product Details | TRANSMITTER SYNCHRO
5990-00-724-8812 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CR40919010, TGH-11-G-4/B788, TGH11G4B788, 8050001724, 5990-00-724-8812, 00-724-8812, 5990007248812, 007248812
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 FEB 1968 | 00-724-8812 | 02073 ( SYNCHRO, TRANSMITTER ) |

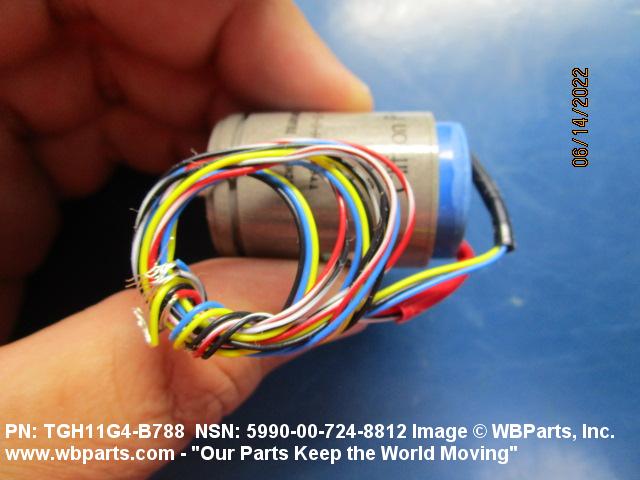

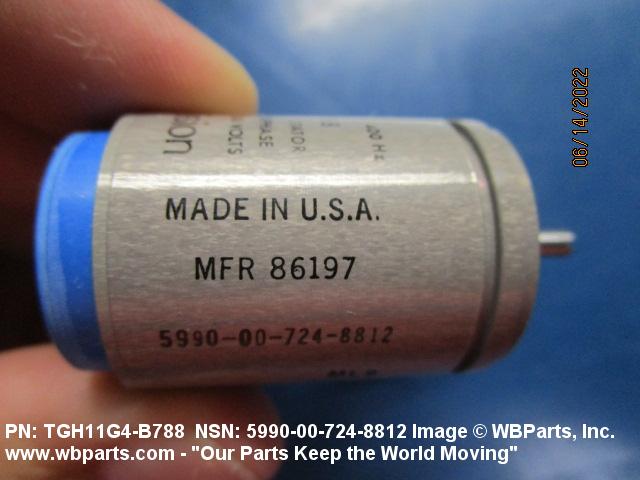

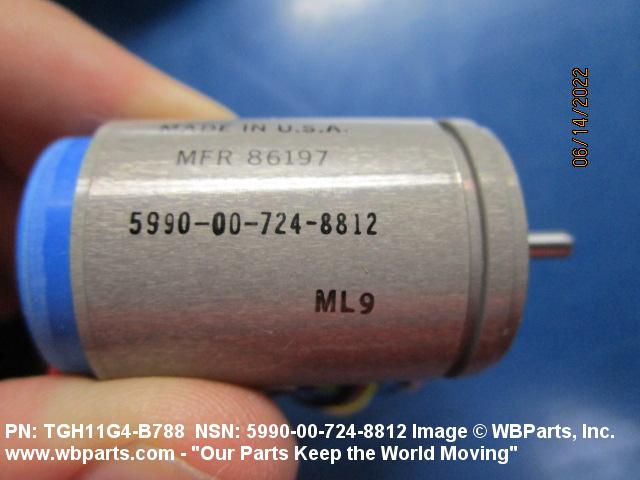

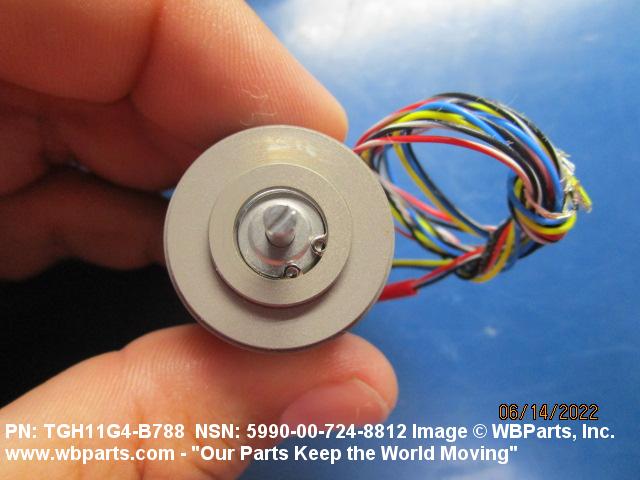

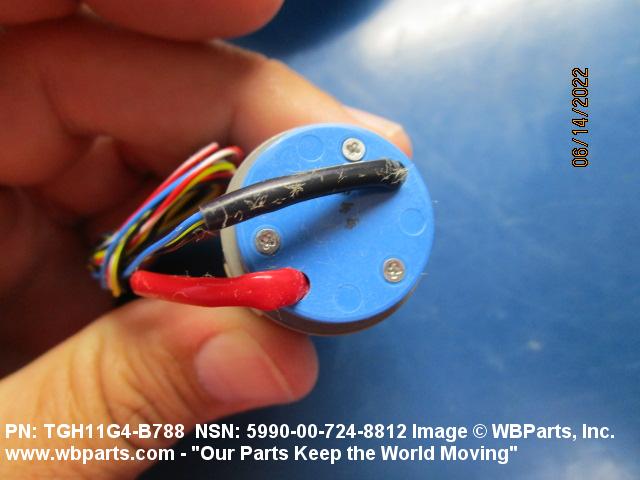

Drawings & Photos | NSN 5990-00-724-8812
Demand History | NSN 5990-00-724-8812
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-724-8812 | 2022-05-147 | 2 | Greece |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-724-8812
Related Products | NSN 5990-00-724-8812
Technical Data | NSN 5990-00-724-8812
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 11 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 300.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 1.0 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 12.40 MINIMUM AND 18.60 MAXIMUM |
| PLUS J ZRO REACTANCE IN OHMS | 84.80 MINIMUM AND 127.20 MAXIMUM |
| ZSO RESISTANCE IN OHMS | 2.64 MINIMUM AND 3.96 MAXIMUM |
| PLUS J ZSO REACTANCE IN OHMS | 14.24 MINIMUM AND 21.36 MAXIMUM |
| ZRS RESISTANCE IN OHMS | 16.80 MINIMUM AND 25.20 MAXIMUM |
| PLUS J ZRS REACTANCE IN OHMS | 7.44 MINIMUM AND 11.16 MAXIMUM |
| PHASE SHIFT ANGLE IN DEG | 2.000 INPUT TO OUTPUT MINIMUM AND 6.000 INPUT TO OUTPUT MAXIMUM |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 15.0 CENTIMETER-GRAMS MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 7.0 CENTIMETER-GRAMS MAXIMUM |
| BODY STYLE | A3 STANDARD ROUND C |
| SHOULDER DIAMETER | 0.9995 INCHES MINIMUM AND 1.0005 INCHES MAXIMUM |
| PILOT DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| OVERALL LENGTH | 2.0938 INCHES NOMINAL |
| FLANGE DIAMETER | 1.0570 INCHES MINIMUM AND 1.0650 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0900 INCHES MINIMUM AND 0.0960 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.9700 INCHES MINIMUM AND 0.9800 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0500 INCHES MINIMUM |
| PILOT LENGTH | 0.0590 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.0590 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.6562 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1195 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.4219 INCHES MINIMUM AND 0.4531 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0220 INCHES MINIMUM AND 0.0420 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | SIDE |
| BODY MATERIAL | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5990-00-724-8812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | ZK | United Kingdom ZL ZM |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-724-8812
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
