NSN 5990-00-688-5023 CGH8A7, CGH-8-A-7, CGH8A7/F223
Product Details | TRANSMITTER SYNCHRO

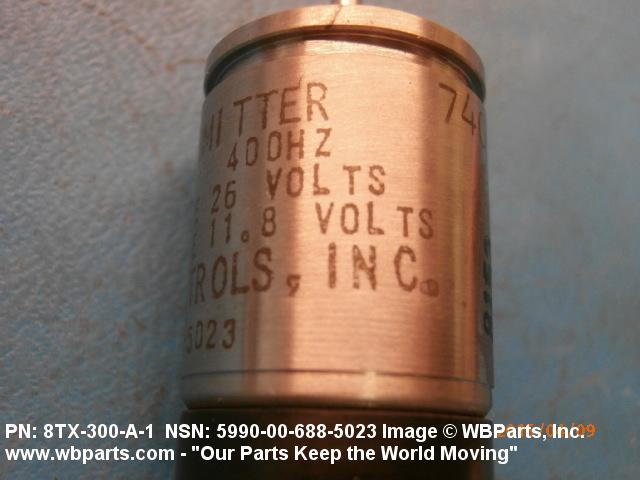

5990-00-688-5023 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CGH8A7, CGH-8-A-7, CGH8A7/F223, CGH8A7F223, 1180000005, 11-800-00-005, 172821, 17282-1, 8TX300A1, 8TX-300-A-1, 5990-00-688-5023, 00-688-5023, 5990006885023, 006885023
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-688-5023 | 02073 ( SYNCHRO, TRANSMITTER ) |

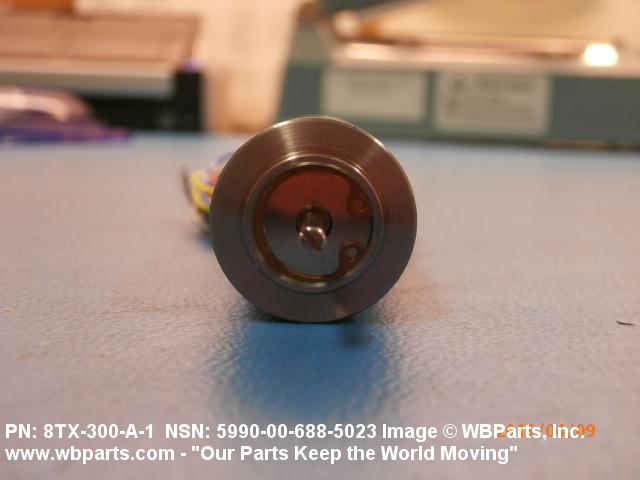

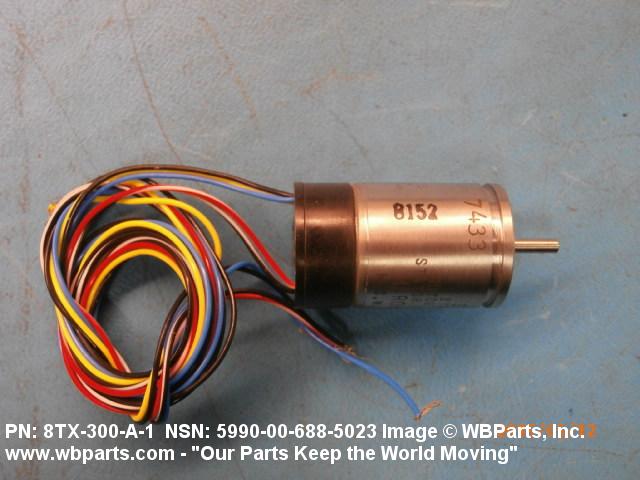

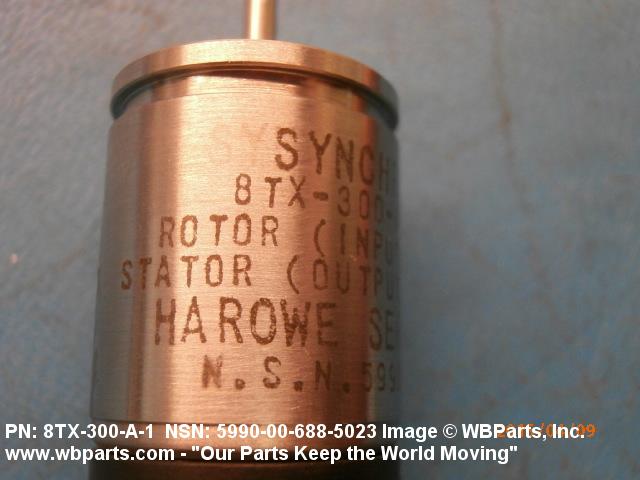

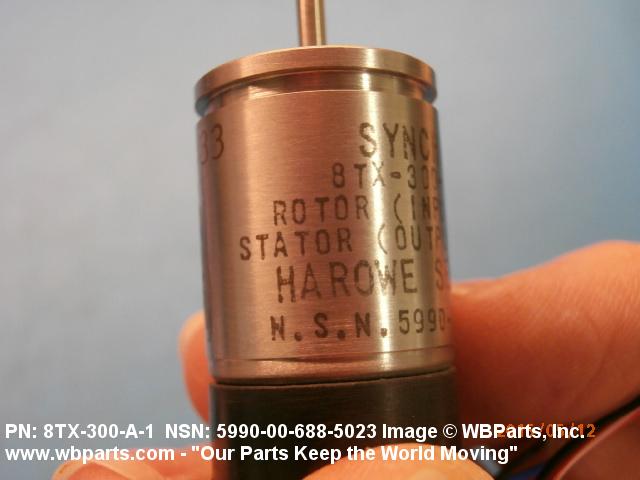

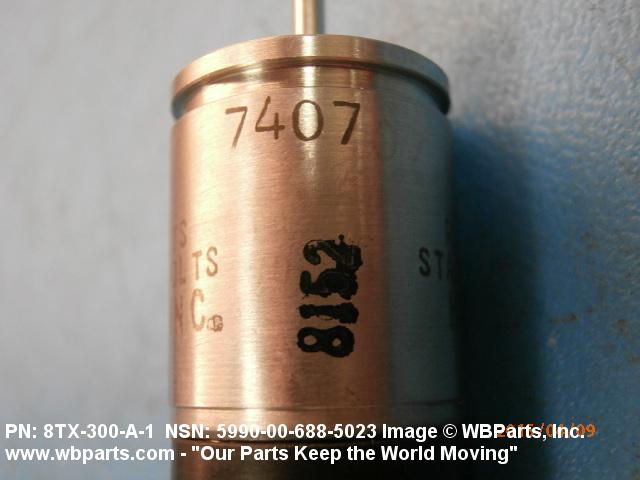

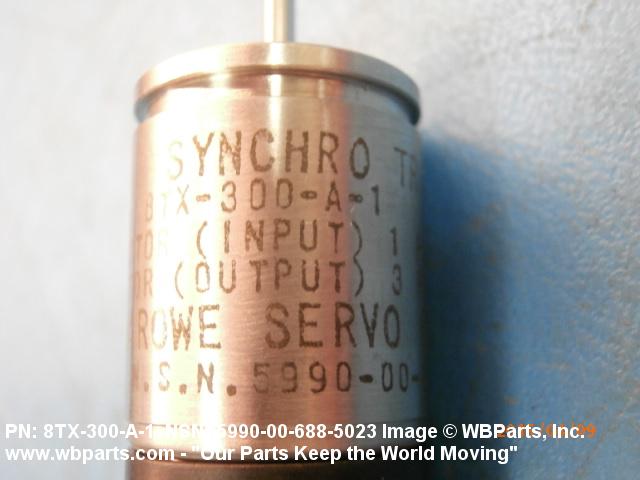

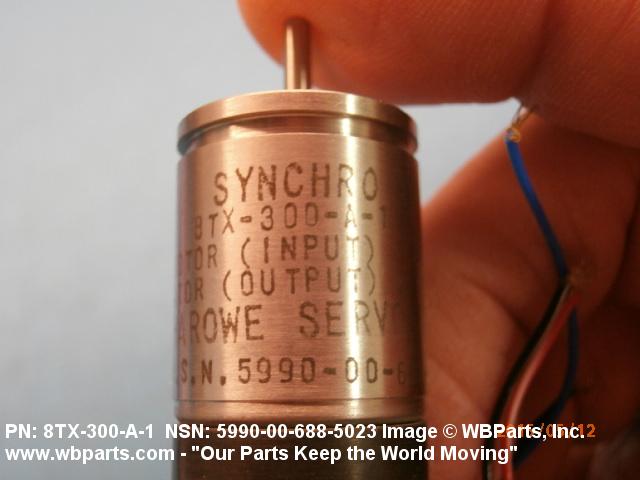

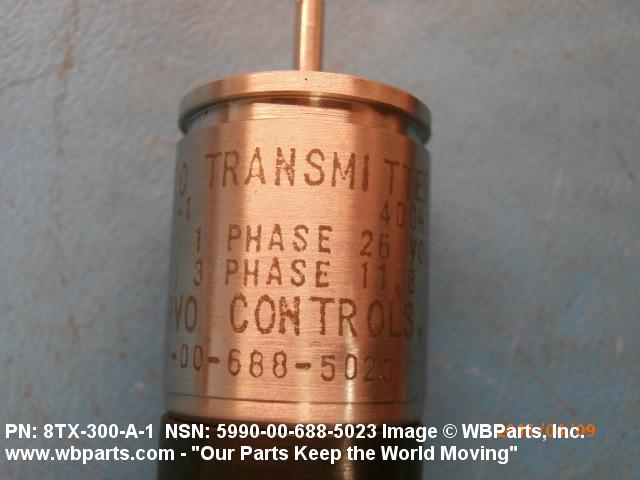

Drawings & Photos | NSN 5990-00-688-5023
Demand History | NSN 5990-00-688-5023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-688-5023 | 2024-06-26 | 25 | United States |
| 5990-00-688-5023 | 2024-06-21 | 6 | United States |
| 5990-00-688-5023 | 2024-05-09 | 2 | United States |
| 5990-00-688-5023 | 2023-06-26 | 2 | United States |
| 5990-00-688-5023 | 2022-01-10 | 1 | United States |
| CGH8A7 | 2020-06-17 | 1 | United States |
| 5990-00-688-5023 | 2019-07-10 | 1 | United States |
| 5990-00-688-5023 | 2019-07-08 | 1 | United States |
| 5990-00-688-5023 | 2019-01-21 | 1 | United States |
| 5990-00-688-5023 | 2019-01-21 | 4 | Taiwan |
| 5990-00-688-5023 | 2018-11-28 | 4 | Taiwan |
| 5990-00-688-5023 | 2018-11-08 | 4 | Taiwan |
| 5990-00-688-5023 | 2018-08-09 | 3 | United States |
| 5990-00-688-5023 | 2018-05-08 | 1 | US |
| 5990-00-688-5023 | 2018-02-28 | 1 | United States |
| 5990-00-688-5023 | 2017-12-07 | 2 | United States |
| CGH8A7 | 2017-08-17 | 2 | United States |
| 5990-00-688-5023 | 2017-08-16 | 1 | United States |
| 5990-00-688-5023 | 2016-07-14 | 2 | United States |
| CGH8A7 | 2016-03-03 | 1 | US |
| 5990-00-688-5023 | 2015-05-08 | 1 | United States |
| 5990-00-688-5023 | 2015-03-31 | 1 | United States |
| 5990-00-688-5023 | 2015-03-31 | 1 | United States |
Cross Reference | NSN 5990-00-688-5023
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-800-00-005 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 17282-1 | 89944 | KOLLSMAN, INC. |
| 8TX-300-A-1 | 06989 | API HAROWE INC DBA API MOTION DIV API |
| CGH-8-A-7 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| CGH8A7/F223 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-688-5023
Related Products | NSN 5990-00-688-5023
Technical Data | NSN 5990-00-688-5023

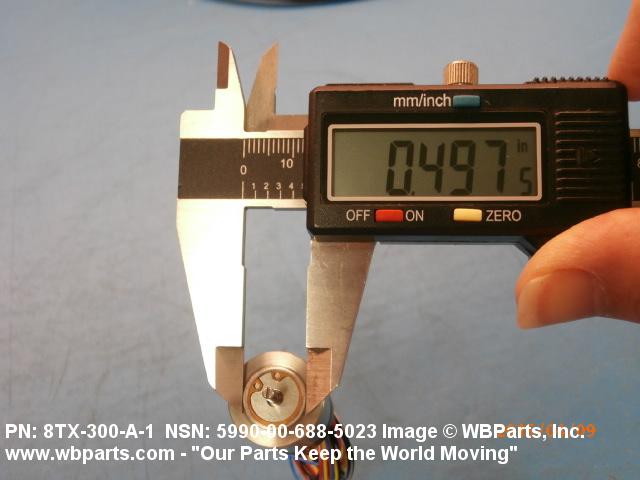

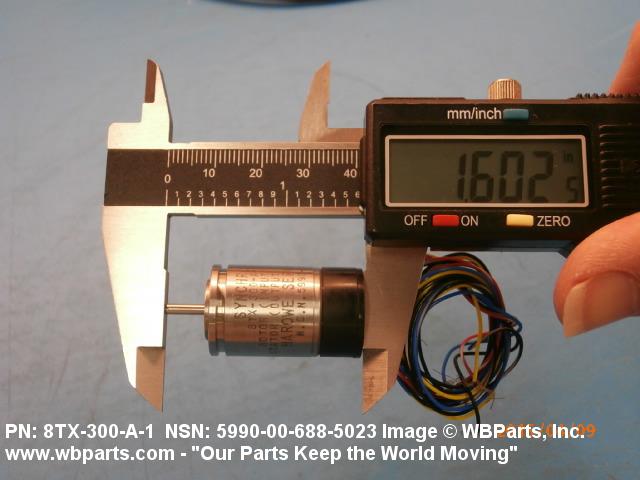

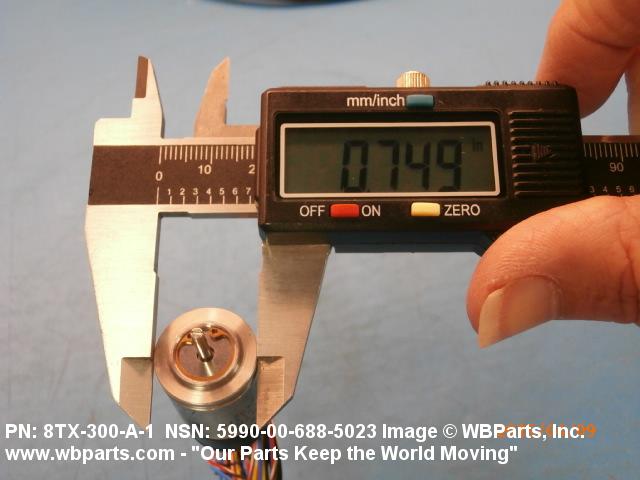

| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 100.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 540.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 54.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 260.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 12.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 45.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 80.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 20.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 37.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 12.00 NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 8.500 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 30.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 6.0 CENTIMETER-GRAMS MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 3.0 CENTIMETER-GRAMS MAXIMUM |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6160 INCHES NOMINAL |
| FLANGE DIAMETER | 0.7490 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |

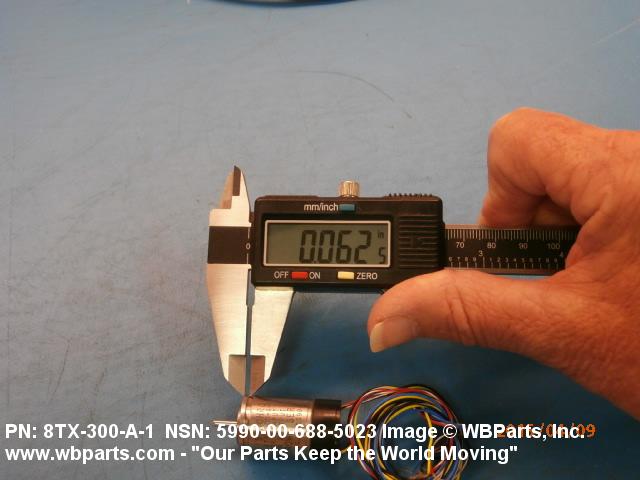

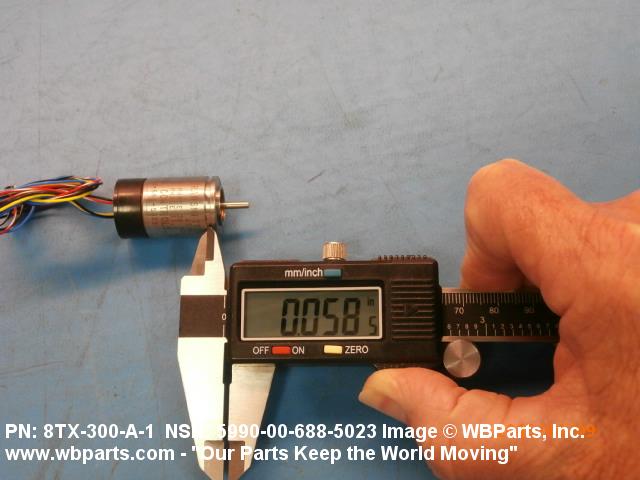

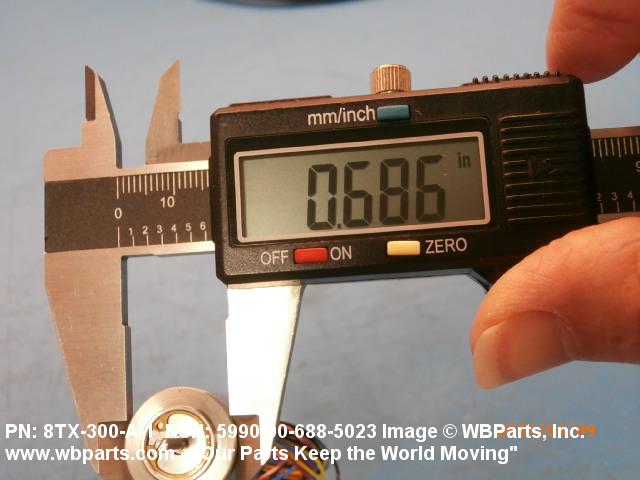

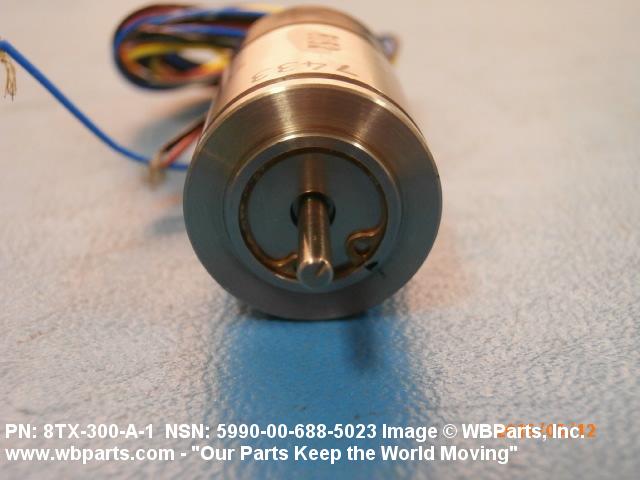

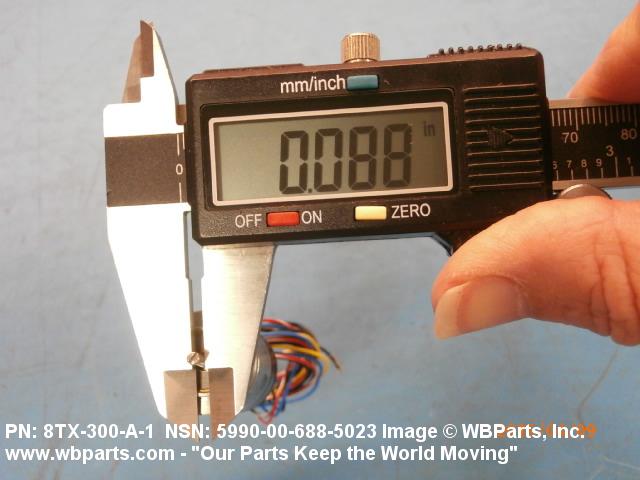

| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6880 INCHES MINIMUM AND 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0895 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3750 INCHES MINIMUM SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |

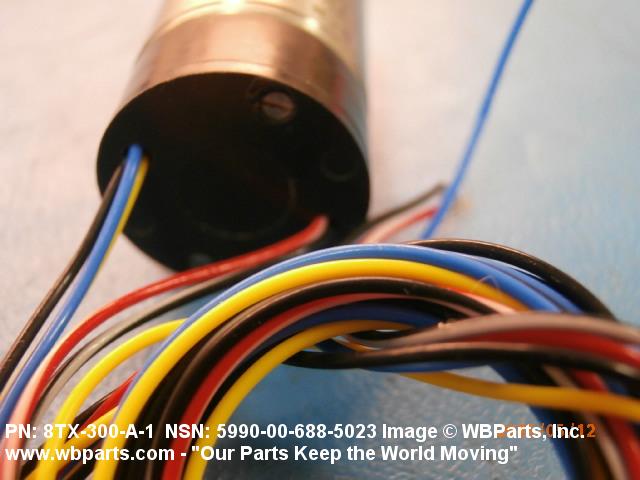

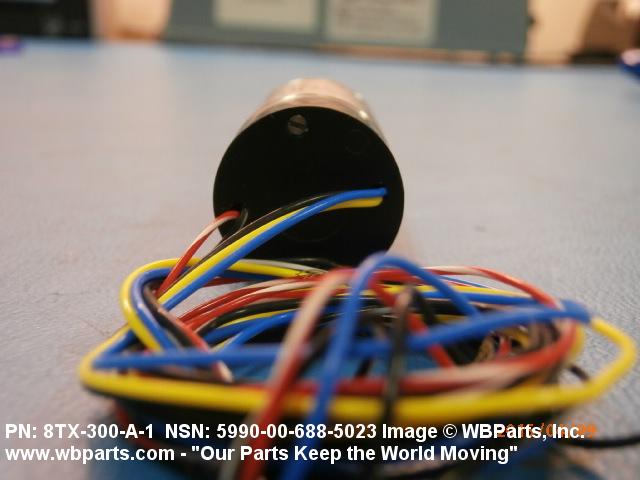

| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0005 INCHES |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 4.0 OUNCES |
| III SHAFT END PLAY | 0.0003 INCHES MINIMUM AND 0.0008 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 8.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0010 INCHES |
| III UNPACKAGED UNIT WEIGHT | 1.300 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
