NSN 5990-00-677-6495 MILS2070852, MILS20708-52, 23CX6C
Product Details | TRANSMITTER SYNCHRO
5990-00-677-6495 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: MILS2070852, MILS20708-52, 23CX6C, 4186800016, 4186800-016, 5990-00-677-6495, 00-677-6495, 5990006776495, 006776495
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-677-6495 | 02073 ( SYNCHRO, TRANSMITTER ) |

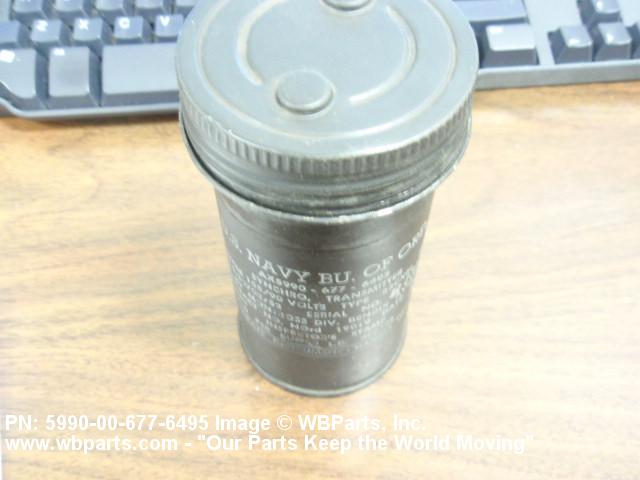

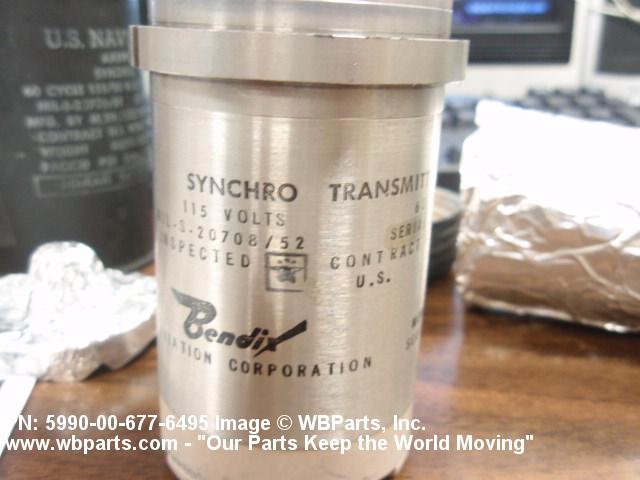

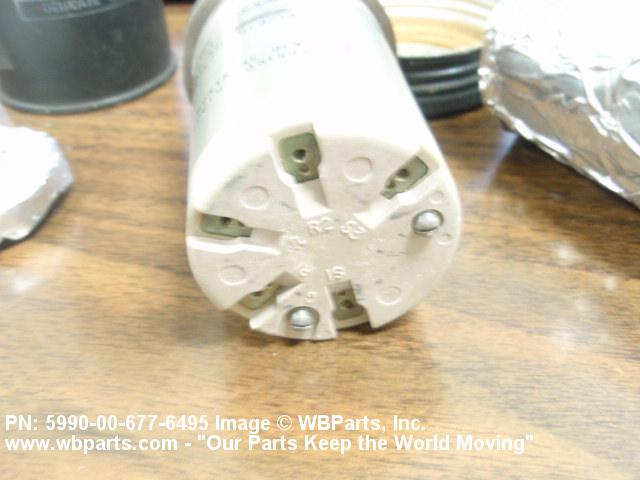

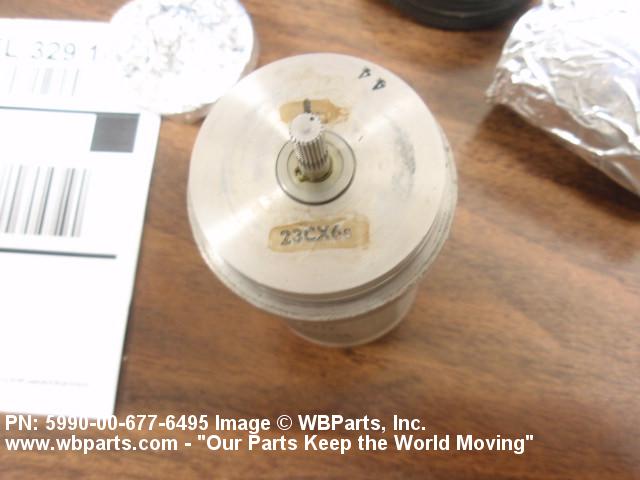

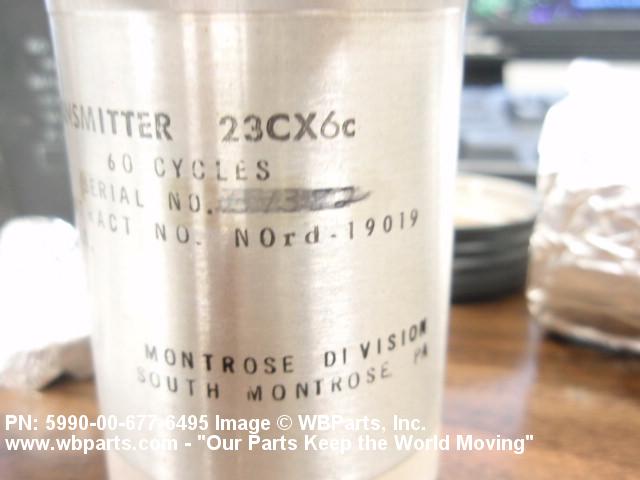

Drawings & Photos | NSN 5990-00-677-6495
Demand History | NSN 5990-00-677-6495
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23CX6C | 2010-10-285 | 2 | United Kingdom |
| 23CX6C | 2009-10-301 | 2 | BG |
| 5990-00-677-6495 | 2007-02-39 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-677-6495
Related Products | NSN 5990-00-677-6495
Technical Data | NSN 5990-00-677-6495
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 22 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 82.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 1.6 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 1419.00 MINIMUM AND 1690.00 MAXIMUM |
| PLUS J ZRS REACTANCE IN OHMS | 1419.00 MINIMUM AND 1690.00 MAXIMUM |
| PLUS J ZSS REACTANCE IN OHMS | 26.90 MINIMUM AND 80.15 MAXIMUM |
| ZRO IMPEDANCE MAGNITUDE IN OHMS | 1450.00 MINIMUM AND 1700.00 MAXIMUM |
| ZRO IMPEDANCE ANGLE IN DEG | 79.00 MINIMUM AND 83.00 MAXIMUM |
| ZSS IMPEDANCE MAGNITUDE IN OHMS | 155.00 MINIMUM AND 310.00 MAXIMUM |
| ZSS IMPEDANCE ANGLE IN DEG | 10.00 MINIMUM AND 15.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 6.500 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 30.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 60.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 0.20 INCH-OUNCES MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 0.20 INCH-OUNCES MAXIMUM |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9900 INCHES NOMINAL |
| PILOT DIAMETER | 0.5950 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 1.9995 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.1700 INCHES NOMINAL |
| OVERALL LENGTH | 4.2560 INCHES NOMINAL |
| FLANGE DIAMETER | 2.2500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.2500 INCHES NOMINAL |
| BODY DIAMETER | 1.9900 INCHES NOMINAL |
| PILOT LENGTH | 0.0530 INCHES NOMINAL |
| SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 1.9995 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.6230 INCHES NOMINAL |
| ALIGNMENT HOLE DEPTH | ANY ACCEPTABLE |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.4370 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.2405 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.6760 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.2910 INCHES MINIMUM SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 22 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 96 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
Restrictions/Controls & Freight Information | NSN 5990-00-677-6495
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-677-6495
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
