NSN 5990-00-675-4569 SGC29D1, SGC-29-D-1, 9001333
Product Details | TRANSMITTER SYNCHRO
5990-00-675-4569 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: SGC29D1, SGC-29-D-1, 9001333, 900133-3, 9001334, 900133-4, 5990-00-675-4569, 00-675-4569, 5990006754569, 006754569
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-675-4569 | 02073 ( SYNCHRO, TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-675-4569
Demand History | NSN 5990-00-675-4569
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-675-4569 | 2015-07-200 | 3 | BG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-00-675-4569
Technical Data | NSN 5990-00-675-4569
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 28 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 21.5 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 5.1 WATTS MAXIMUM |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 5500.00 NOMINAL |
| ZSO IMPEDANCE ANGLE IN DEG | 80.00 NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 24.000 INPUT TO OUTPUT MAXIMUM |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 100.00 INPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 150.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -5.0 TO 5.0 |

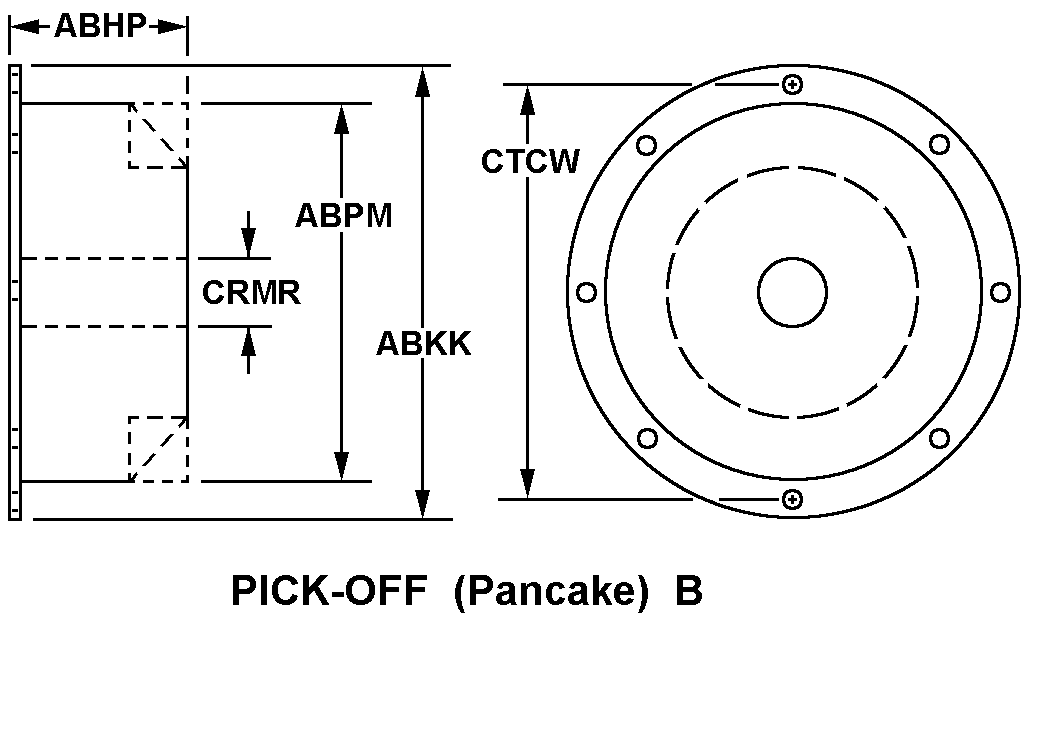

| BODY STYLE | A14 PICK-OFF B |
| OVERALL LENGTH | 0.8750 INCHES NOMINAL |
| FLANGE DIAMETER | 2.6250 INCHES NOMINAL |
| BODY DIAMETER | 1.0300 INCHES MINIMUM |
| BODY THRU-HOLE DIAMETER | 0.9370 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 2.3860 INCHES NOMINAL |
| SECURING HOLE QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | SIDE |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SCHEMATIC DIAGRAM DESIGNATOR | E1 ONE Y-ROTOR, ONE STATOR |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
