NSN 5990-00-644-0088 SK139480, MILS2335, MIL-S-2335
Product Details | DIFFERENTIAL TRANSMITTER SYNCHRO
5990-00-644-0088 A synchro, the rotor of which is mechanically positioned for modifying electrical angular information, received from a transmitter synchro and transmitting to receiver synchro or control transformer synchro electrical information corresponding to the sum or difference of the electrical input angle and its rotor position angle. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: SK139480, MILS2335, MIL-S-2335, 7HDGMK11, 213398PC1, 561794PC4, 5990-00-644-0088, 00-644-0088, 5990006440088, 006440088
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-644-0088 | 02071 ( SYNCHRO, DIFFERENTIAL TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-644-0088
Cross Reference | NSN 5990-00-644-0088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213398PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 561794PC4 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 7HDGMK11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-2335 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SK139480 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-644-0088
Related Products | NSN 5990-00-644-0088
Technical Data | NSN 5990-00-644-0088
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 58 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 3.5 AMPERES MAXIMUM |
| STATOR INPUT ELECTRICAL POWER RATING | 30.0 WATTS MAXIMUM |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 400.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 660.00 NOMINAL |
| TRANSFORMATION RATIO | 0.990 ROTOR TO STATOR NOMINAL |
| MAXIMUM TEMP RISE | 50.0 DEG CELSIUS |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -18.0 TO 18.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 4.000 INCH-OUNCES MINIMUM |

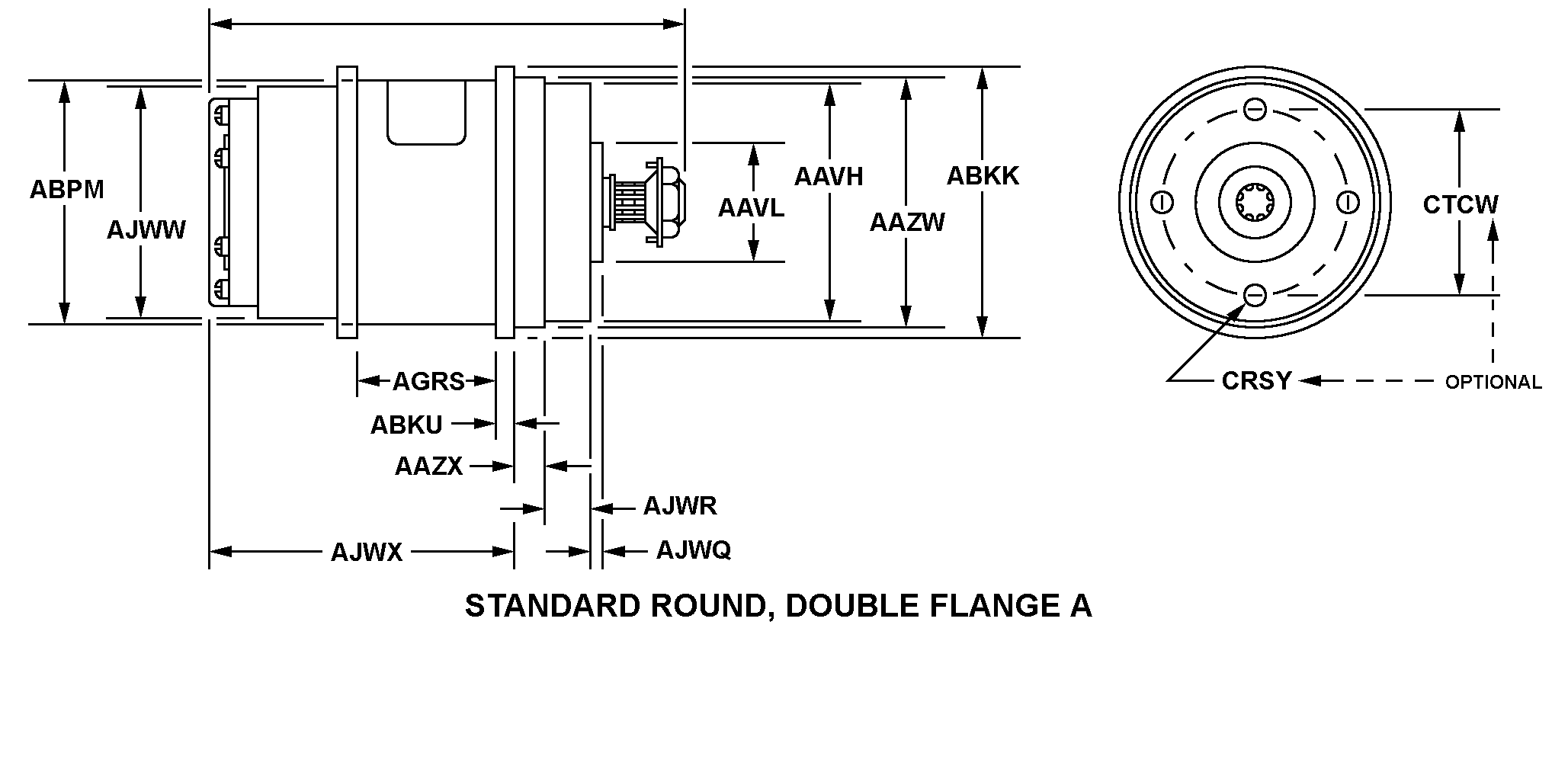

| BODY STYLE | A5 STANDARD ROUND DOUBLE FLANGE A |
| SHOULDER DIAMETER | 4.8740 INCHES MAXIMUM |
| PILOT DIAMETER | 1.7500 INCHES MAXIMUM |
| SECOND SHOULDER DIAMETER | 5.5000 INCHES MAXIMUM |
| SECOND SHOULDER LENGTH | 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 9.2100 INCHES MAXIMUM |
| FLANGE DIAMETER | 5.7480 INCHES MINIMUM AND 5.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| BODY DIAMETER | 5.3750 INCHES MAXIMUM |
| DISTANCE BETWEEN FLANGES | 3.2500 INCHES NOMINAL |
| PILOT LENGTH | 0.2500 INCHES NOMINAL |
| SHOULDER LENGTH | 1.0600 INCHES NOMINAL |
| AFT OF SECOND FLANGE DIAMETER | 4.8750 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 6.6180 INCHES NOMINAL |
| SHAFT TYPE | ROUND, TAPERED, THREADED, UNDERCUT SINGLE SHAFT |
| SHAFT DIAMETER | 0.3500 INCHES MINIMUM AND 0.3505 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 1.0320 INCHES NOMINAL SINGLE SHAFT |
| SHAFT UNDERCUT WIDTH | 0.0600 INCHES NOMINAL SINGLE SHAFT |
| SHAFT TAPERED END MINOR DIAMETER | 0.2500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT TAPER ANGLE IN DEG | 3.5 SINGLE SHAFT |
| SHAFT TIP LENGTH | 0.2200 INCHES NOMINAL SINGLE SHAFT |
| SHAFT TAPER LENGTH | 0.3750 INCHES NOMINAL SINGLE SHAFT |
| SHAFT UNDERCUT DIAMETER | 0.0600 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ALUMINUM |
| SPECIAL FEATURES | SHAFT KEYED WITH NO. 00 WOODRUFF KEYWHITNEY NO. 207 |
| TEST DATA DOCUMENT | 81349-MIL-S-2335 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-2335 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT | MIL-S-2335 |
Restrictions/Controls & Freight Information | NSN 5990-00-644-0088
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-644-0088
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
