NSN 5990-00-644-0090 MS1HDGMK13, SK139537, SK273120
Product Details | DIFFERENTIAL TRANSMITTER SYNCHRO
5990-00-644-0090 A synchro, the rotor of which is mechanically positioned for modifying electrical angular information, received from a transmitter synchro and transmitting to receiver synchro or control transformer synchro electrical information corresponding to the sum or difference of the electrical input angle and its rotor position angle. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: MS1HDGMK13, SK139537, SK273120, VTDX22396A, VTDX22-39-6A, MILS2335, 950509, 950512, 951184, 1HDG, 1HDGMK13, 213422PC1, 2136834G001, 2136834G1, 5617905, 561790-5, 561790PC5, 5990-00-644-0090, 00-644-0090, 5990006440090, 006440090
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-644-0090 | 02071 ( SYNCHRO, DIFFERENTIAL TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-644-0090
Demand History | NSN 5990-00-644-0090
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-644-0090 | 2015-07-204 | 2 | DIBBS |
Cross Reference | NSN 5990-00-644-0090
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1HDG | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 1HDGMK13 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 213422PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2136834G001 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 2136834G1 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 561790-5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 561790PC5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 950509 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 950512 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 951184 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MILS2335 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS1HDGMK13 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SK139537 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| SK273120 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| VTDX22-39-6A | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-644-0090
Related Products | NSN 5990-00-644-0090
Technical Data | NSN 5990-00-644-0090
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 300.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 8.0 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TRANSFORMATION RATIO | 0.774 ROTOR TO STATOR NOMINAL |
| MAXIMUM TEMP RISE | 50.0 DEG CELSIUS |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -18.0 TO 18.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 0.035 INCH-OUNCES MINIMUM |

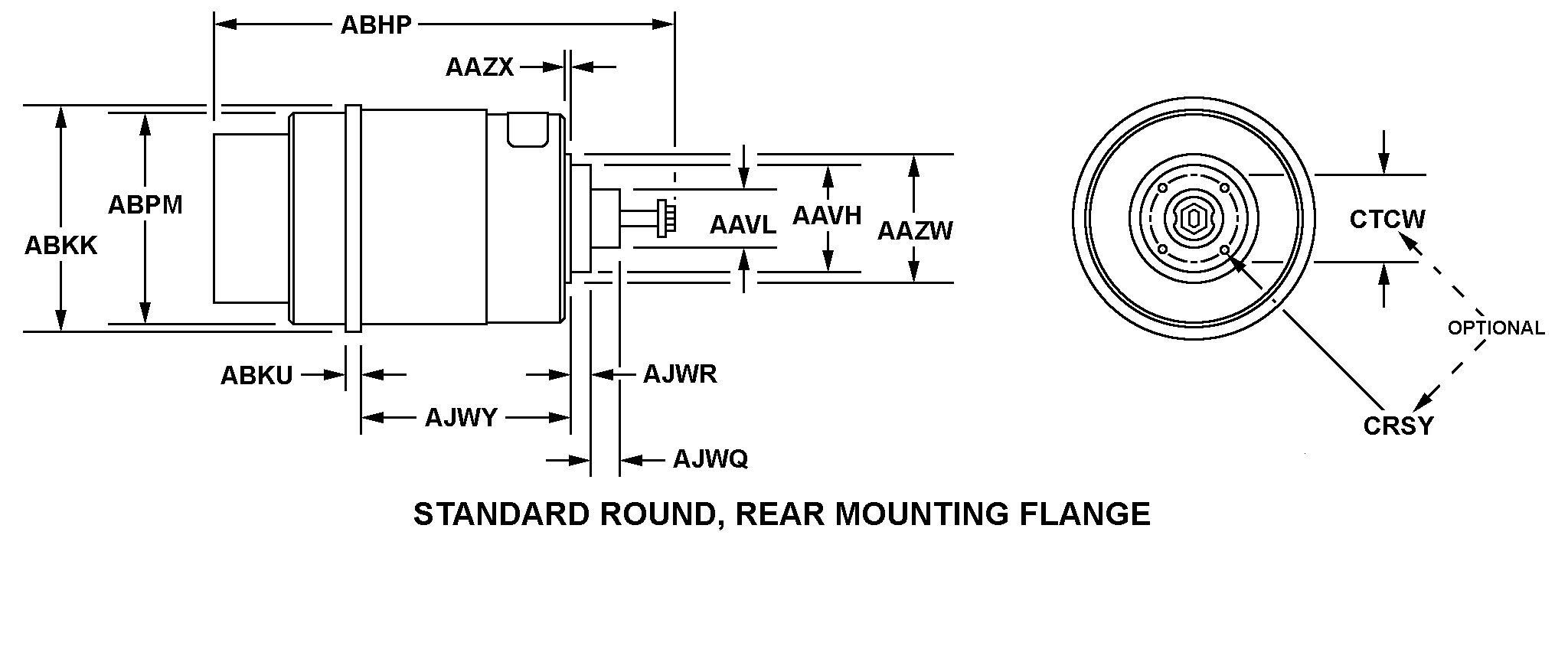

| BODY STYLE | A8 STANDARD ROUND, REAR MOUNTING FLANGE |
| SHOULDER DIAMETER | 1.2500 INCHES NOMINAL |
| PILOT DIAMETER | 1.0625 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 1.9500 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.0250 INCHES NOMINAL |
| OVERALL LENGTH | 4.2000 INCHES MAXIMUM |
| FLANGE DIAMETER | 2.2480 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.2500 INCHES NOMINAL |
| BODY DIAMETER | 2.2300 INCHES NOMINAL |
| PILOT LENGTH | 0.1250 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0550 INCHES NOMINAL |
| SECOND SHOULDER FACE TO REAR FLANGE DISTANCE | 0.0450 INCHES NOMINAL |
| ALIGNMENT HOLE DEPTH | 0.1560 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.8440 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 3 |
| SHAFT TYPE | ROUND, TAPERED, THREADED, UNDERCUT SINGLE SHAFT |
| SHAFT DIAMETER | 0.1820 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.3850 INCHES NOMINAL SINGLE SHAFT |
| SHAFT UNDERCUT WIDTH | 0.0150 INCHES NOMINAL SINGLE SHAFT |
| SHAFT TAPERED END MINOR DIAMETER | 0.0200 INCHES NOMINAL SINGLE SHAFT |
| SHAFT TAPER ANGLE IN DEG | 0.021 SINGLE SHAFT |
| SHAFT TIP LENGTH | 0.1500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT TAPER LENGTH | 0.1840 INCHES NOMINAL SINGLE SHAFT |
| SHAFT UNDERCUT DIAMETER | 0.0100 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.112 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ALUMINUM |
| TEST DATA DOCUMENT | 81349-MIL-S-22335 SPECIFICATION |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS2335 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 1HDGMK13 |
Restrictions/Controls & Freight Information | NSN 5990-00-644-0090
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-644-0090
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
