NSN 5990-00-977-8096 M20708/80-001, M20708/80-01C, M2070880001
Product Details | DIFFERENTIAL TRANSMITTER SYNCHRO
5990-00-977-8096 A synchro, the rotor of which is mechanically positioned for modifying electrical angular information, received from a transmitter synchro and transmitting to receiver synchro or control transformer synchro electrical information corresponding to the sum or difference of the electrical input angle and its rotor position angle. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: M20708/80-001, M20708/80-01C, M2070880001, M207088001C, M2070880D001, M20708-80D001, AS20708/80, AS2070880, MIL-S-20708/80, MILS2070880, 126V08CDX4C, 26V08CDX4C, 26V-08CDX4C/80-01C, 26V08CDX4C8001C, 5990-00-977-8096, 00-977-8096, 5990009778096, 009778096
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1970 | 00-977-8096 | 02071 ( SYNCHRO, DIFFERENTIAL TRANSMITTER ) |

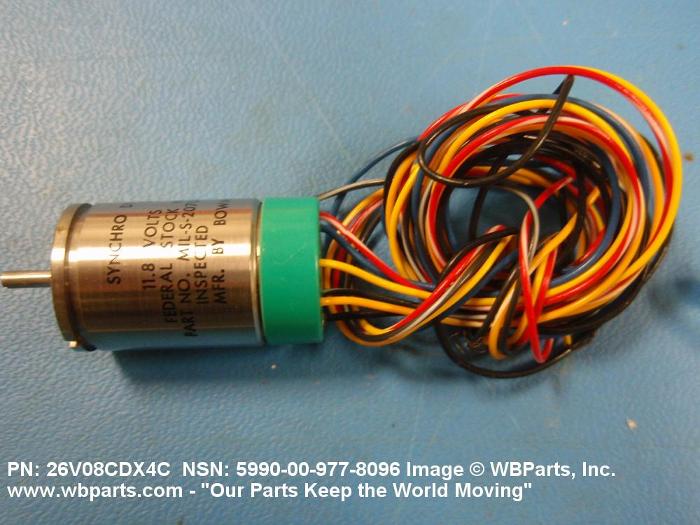

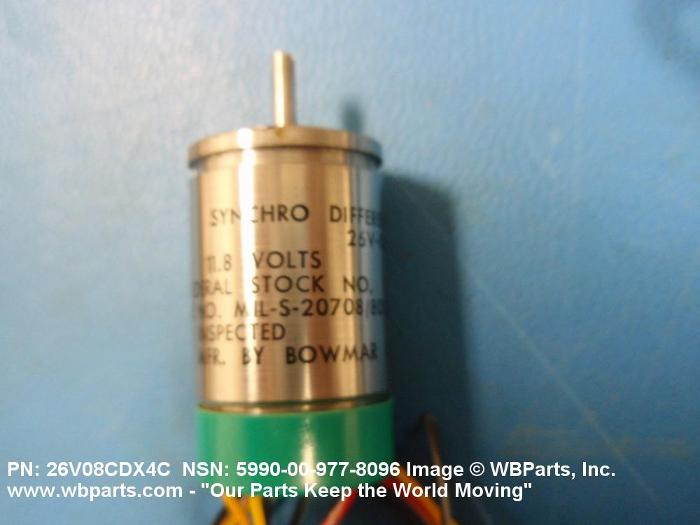

Drawings & Photos | NSN 5990-00-977-8096
Demand History | NSN 5990-00-977-8096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-977-8096 | 2017-07-193 | 18 | DIBBS |
| 5990-00-977-8096 | 2015-12-337 | 1 | United Kingdom |
| 5990-00-977-8096 | 2013-06-176 | 10 | DIBBS |
| 5990-00-977-8096 | 2011-06-173 | 5 | United States |
| 5990-00-977-8096 | 2009-10-275 | 21 | DIBBS |
| 5990-00-977-8096 | 2009-09-251 | 9 | DIBBS |
| 5990-00-977-8096 | 2009-04-110 | 12 | DIBBS |
| 5990-00-977-8096 | 2009-03-83 | 10 | DIBBS |
| 5990-00-977-8096 | 2008-10-301 | 9 | DIBBS |
| 5990-00-977-8096 | 2008-07-192 | 4 | United States |
| 5990-00-977-8096 | 2008-04-119 | 9 | DIBBS |
| 5990-00-977-8096 | 2008-02-46 | 2 | DIBBS |
| 5990-00-977-8096 | 2007-06-170 | 9 | DIBBS |
Cross Reference | NSN 5990-00-977-8096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 126V08CDX4C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 26V-08CDX4C/80-01C | 4H618 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 26V-08CDX4C/80-01C | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 26V08CDX4C | 51761 | CDA INTERCORP LLC |
| AS20708/80 | 0VH01 | SAE CUSTOMER SERVICE DEPT 2045 |
| M20708-80D001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/80-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/80-01C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-20708/80 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-977-8096
Related Products | NSN 5990-00-977-8096
Technical Data | NSN 5990-00-977-8096
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | 108.0 MILLIAMPERES MAXIMUM |
| STATOR INPUT ELECTRICAL POWER RATING | 240.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 95.00 MINIMUM AND 120.00 MAXIMUM |
| ZSO IMPEDANCE ANGLE IN DEG | 74.00 MINIMUM AND 79.00 MAXIMUM |
| ZRS IMPEDANCE MAGNITUDE IN OHMS | 35.00 MINIMUM AND 48.00 MAXIMUM |
| ZRS IMPEDANCE ANGLE IN DEG | 15.00 MINIMUM AND 20.00 MAXIMUM |
| TRANSFORMATION RATIO | 1.154 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 9.500 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 20.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 30.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 0.04 INCH-OUNCES MAXIMUM |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6150 INCHES NOMINAL |
| FLANGE DIAMETER | 0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6870 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2400 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0898 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3750 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/80 GOVERNMENT SPECIFICATION |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III END ITEM IDENTIFICATION | AIRCRAFT, STARLIFTER C-141 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M20708/80-01C |
Restrictions/Controls & Freight Information | NSN 5990-00-977-8096
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-977-8096
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
