NSN 5990-00-636-4119 AY240AA 1 A1, AY240AA1A1, F7676906
Product Details | TRANSMITTER SYNCHRO
5990-00-636-4119 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: AY240AA 1 A1, AY240AA1A1, F7676906, MIL-S-20708/94, MILS2070894, VCX23/36-4A, VCX23364A, 23CX4, 5990-00-636-4119, 00-636-4119, 5990006364119, 006364119
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-4119 | 02073 ( SYNCHRO, TRANSMITTER ) |

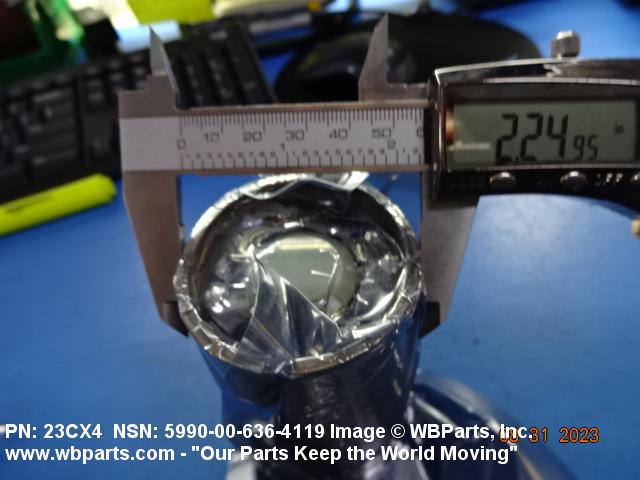

Drawings & Photos | NSN 5990-00-636-4119
Demand History | NSN 5990-00-636-4119
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-636-4119 | 2024-03-88 | 2 | United States |
| 5990-00-636-4119 | 2023-08-234 | 4 | United States |
| 5990-00-636-4119 | 2023-06-159 | 4 | United States |
| 5990-00-636-4119 | 2021-09-248 | 2 | MY |
| MILS2070894 | 2020-08-218 | 8 | US |
| 5990-00-636-4119 | 2013-09-252 | 4 | DIBBS |
| 5990-00-636-4119 | 2012-09-248 | 2 | DIBBS |
| 5990-00-636-4119 | 2012-06-164 | 2 | DIBBS |
| 5990-00-636-4119 | 2012-03-90 | 3 | DIBBS |
| 5990-00-636-4119 | 2011-09-266 | 2 | DIBBS |
| 5990-00-636-4119 | 2011-04-100 | 2 | DIBBS |
| 5990-00-636-4119 | 2010-09-258 | 2 | US |
| 5990-00-636-4119 | 2010-07-183 | 5 | DIBBS |
| 5990-00-636-4119 | 2010-05-140 | 3 | DIBBS |
| 5990-00-636-4119 | 2010-05-123 | 3 | DIBBS |
Cross Reference | NSN 5990-00-636-4119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23CX4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| AY240AA 1 A1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| F7676906 | 19200 | US ARMY ARDEC RDECOM |
| MIL-S-20708/94 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| VCX23/36-4A | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-636-4119
Related Products | NSN 5990-00-636-4119
Technical Data | NSN 5990-00-636-4119
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 264.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 3.0 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9900 INCHES NOMINAL |
| PILOT DIAMETER | 0.5950 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 1.9920 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| OVERALL LENGTH | 4.2790 INCHES NOMINAL |
| FLANGE DIAMETER | 2.2500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.4200 INCHES NOMINAL |
| BODY DIAMETER | 2.2500 INCHES NOMINAL |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0170 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 1.9995 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.1600 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.2405 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.6560 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0620 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/94B GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 23CX4 TYPE |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-20708/94 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 23CX4 |
Restrictions/Controls & Freight Information | NSN 5990-00-636-4119
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-636-4119
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
