Product Details | TRANSMITTER SYNCHRO
5990-00-519-3421 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: MS510801, MS51080-1, B201F8212778, D10930, MILS12472TYPE23TX6A, VBM281, VBM2-81, 23TC6A, 23TX6A, 5M736098012, 5M7360-980-12, 76-01471-00, 8212778, 5990-00-519-3421, 00-519-3421, 5990005193421, 005193421, 760147100
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-519-3421 | 02073 ( SYNCHRO, TRANSMITTER ) |

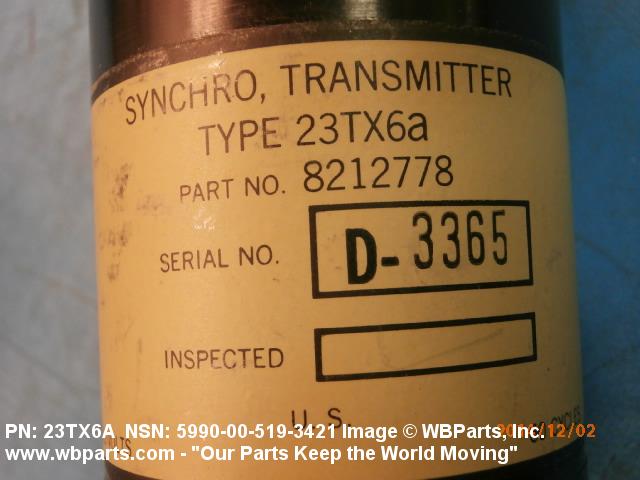

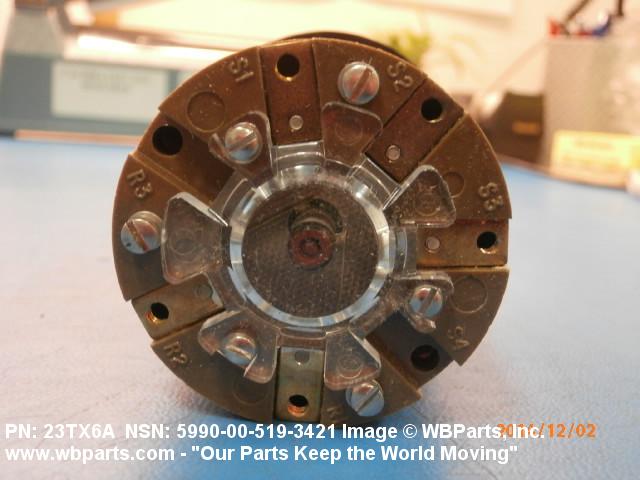

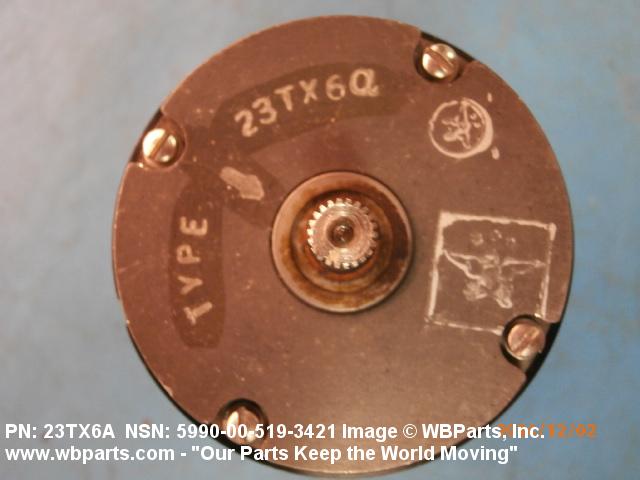

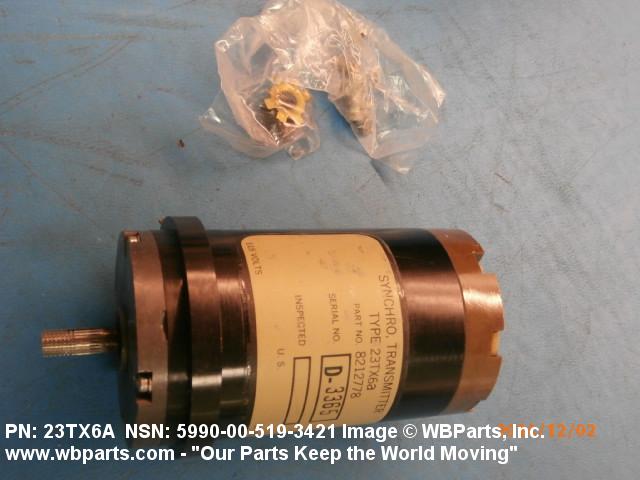

Drawings & Photos | NSN 5990-00-519-3421
Demand History | NSN 5990-00-519-3421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23TX6A | 2019-01-09 | 2 | us |
| 23TX6A | 2014-11-318 | 4 | United States |
| 23TX6A | 2013-07-184 | 4 | United States |
| 23TX6A | 2013-06-179 | 4 | United States |
| 5990-00-519-3421 | 2011-02-49 | 1 | US |
| 23TX6A | 2010-11-333 | 4 | United States |
| 5990-00-519-3421 | 2010-03-82 | 4 | US |
Cross Reference | NSN 5990-00-519-3421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23TC6A | S3012 | CONSILIUM MARINE & SAFETY AB,NAVIGATION |
| 23TX6A | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 23TX6A | K0624 | MUIRHEAD AEROSPACE LTD DBA MUIRHEAD AVIONICS |
| 23TX6A | S3012 | CONSILIUM MARINE & SAFETY AB,NAVIGATION |
| 5M7360-980-12 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 76-01471-00 | S3012 | CONSILIUM MARINE & SAFETY AB,NAVIGATION |
| 8212778 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| B201F8212778 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| D10930 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| MILS12472TYPE23TX6A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51080-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VBM2-81 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-519-3421
Related Products | NSN 5990-00-519-3421
Technical Data | NSN 5990-00-519-3421
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 210.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 5.0 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 132.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 494.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 98.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 311.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 249.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 79.00 NOMINAL |
| ZSO-90 RESISTANCE IN OHMS | 94.00 NOMINAL |
| PLUS J ZSO-90 REACTANCE IN OHMS | 113.00 NOMINAL |
| TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
| MAXIMUM TEMP RISE | 65.0 DEG CELSIUS |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -8.0 TO 8.0 |

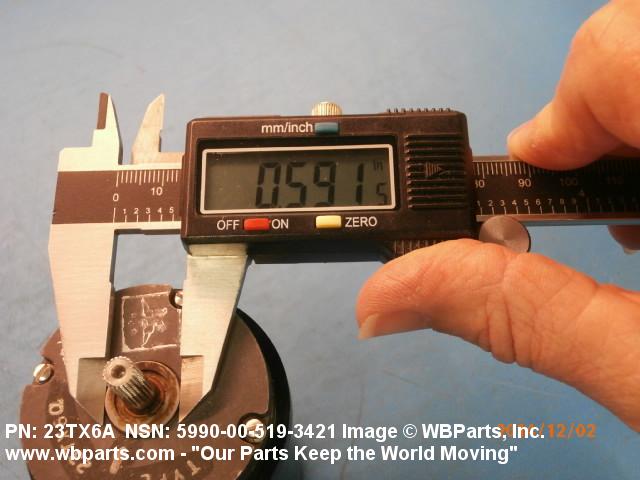

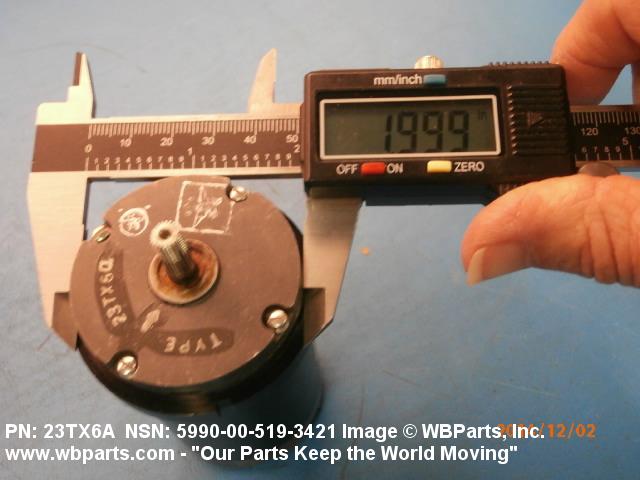

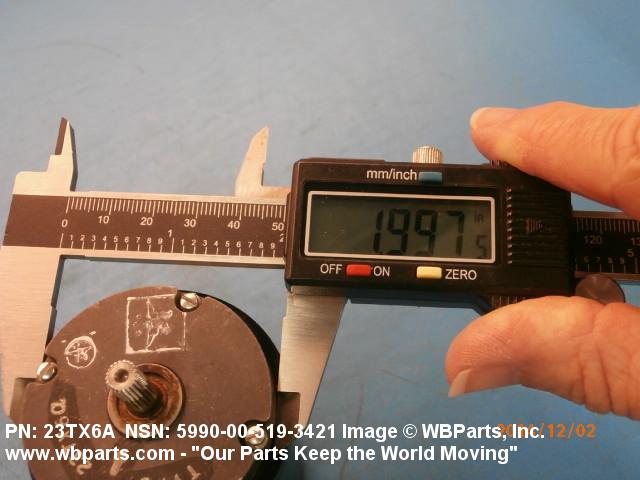

| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 0.50 INCH-OUNCES MAXIMUM |
| TORQUE GRADIENT PER ANGULAR DEG | 0.130 INCH-OUNCES NOMINAL |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9980 INCHES MINIMUM AND 1.9990 INCHES MAXIMUM |
| PILOT DIAMETER | 0.5900 INCHES MINIMUM AND 0.6000 INCHES MAXIMUM |
| SECOND SHOULDER DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |

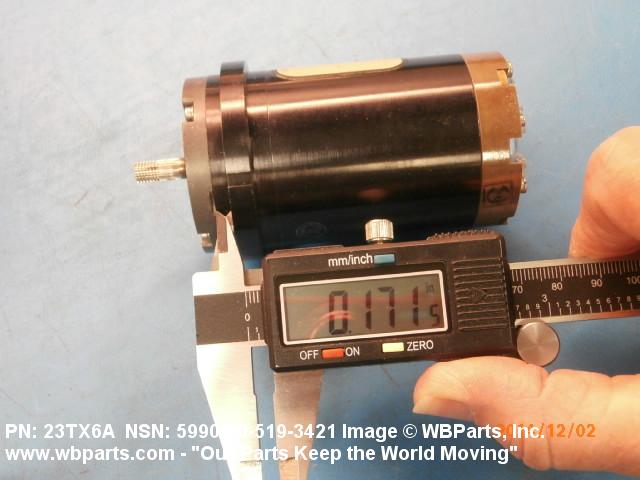

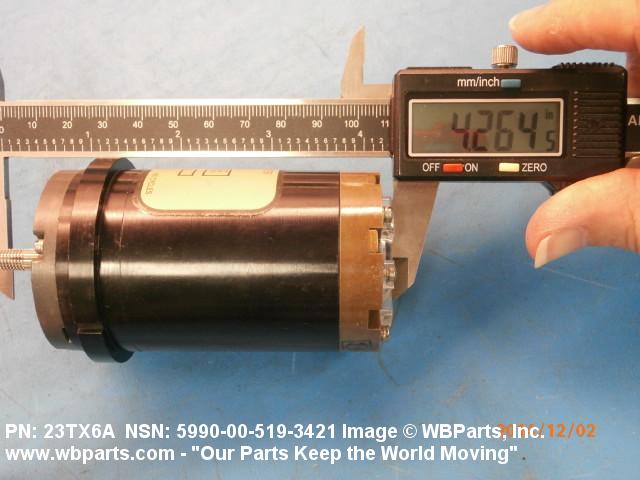

| SECOND SHOULDER LENGTH | 0.1720 INCHES NOMINAL |
| OVERALL LENGTH | 4.2430 INCHES MINIMUM AND 4.2940 INCHES MAXIMUM |

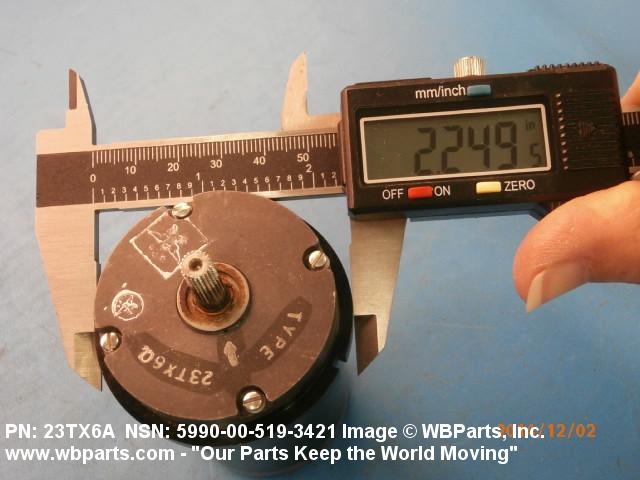

| FLANGE DIAMETER | 2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
