NSN 5990-00-371-6590 SGH-18-N-9/P020, SGH18N9P020, 578R782G02
Product Details | TRANSMITTER SYNCHRO
5990-00-371-6590 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: SGH-18-N-9/P020, SGH18N9P020, 578R782G02, 5990-00-371-6590, 00-371-6590, 5990003716590, 003716590
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAR 1974 | 00-371-6590 | 02073 ( SYNCHRO, TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-371-6590
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-371-6590
Related Products | NSN 5990-00-371-6590
Technical Data | NSN 5990-00-371-6590
| Characteristic | Specifications |
|---|---|
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 13.2 MILLIAMPERES MAXIMUM |
| ROTOR INPUT ELECTRICAL POWER RATING | 1.10 WATTS MAXIMUM |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 55.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 215.00 NOMINAL |
| TRANSFORMATION RATIO | 0.454 STATOR TO ROTOR NOMINAL |

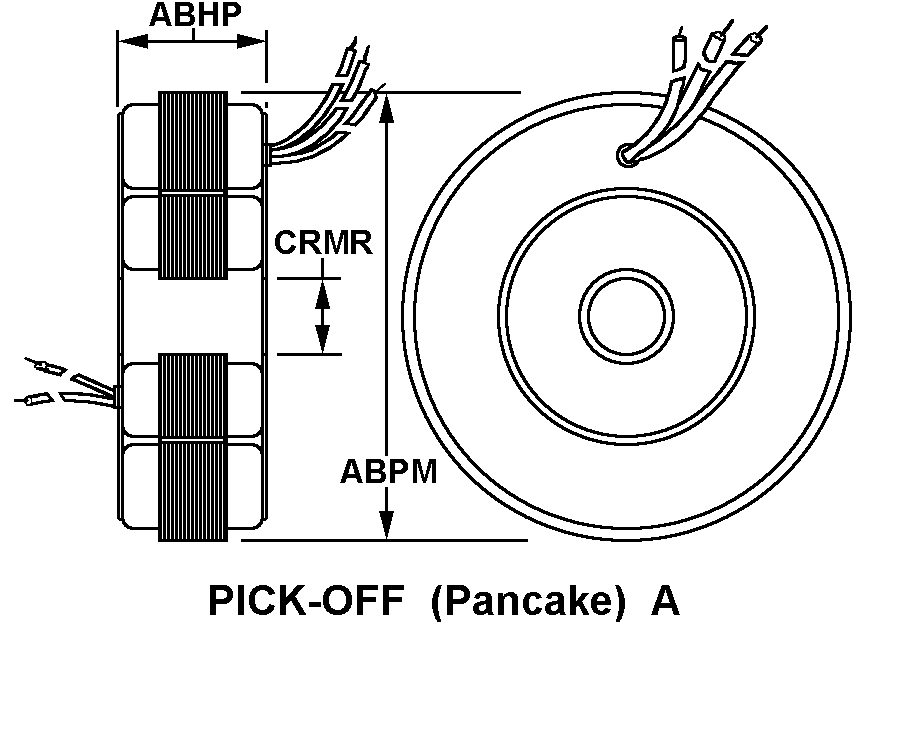

| BODY STYLE | A13 PICK-OFF A |
| OVERALL LENGTH | 0.5570 INCHES MAXIMUM |
| BODY DIAMETER | 1.7495 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
| BODY THRU-HOLE DIAMETER | 0.2500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III FRAGILITY FACTOR | MODERATELY DELICATE |
