NSN 5990-00-268-9089 SK136357, SK137179, SK137519
Product Details | TRANSMITTER SYNCHRO

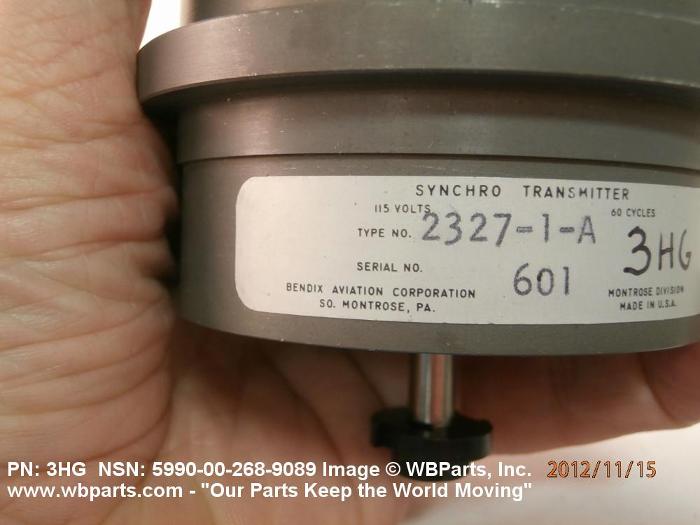

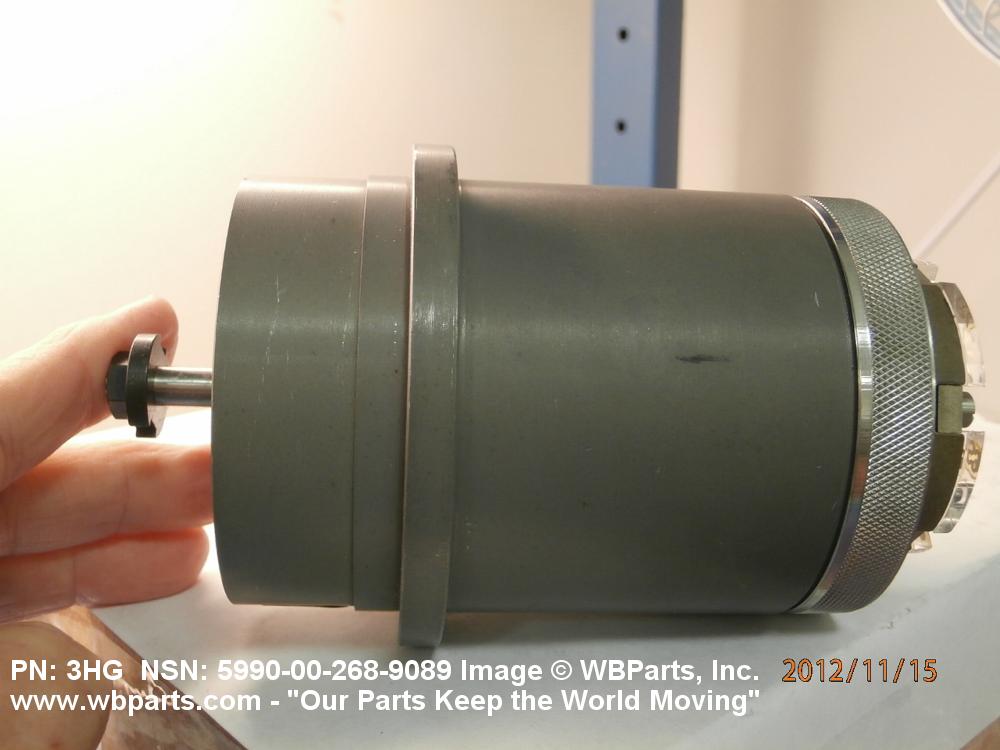

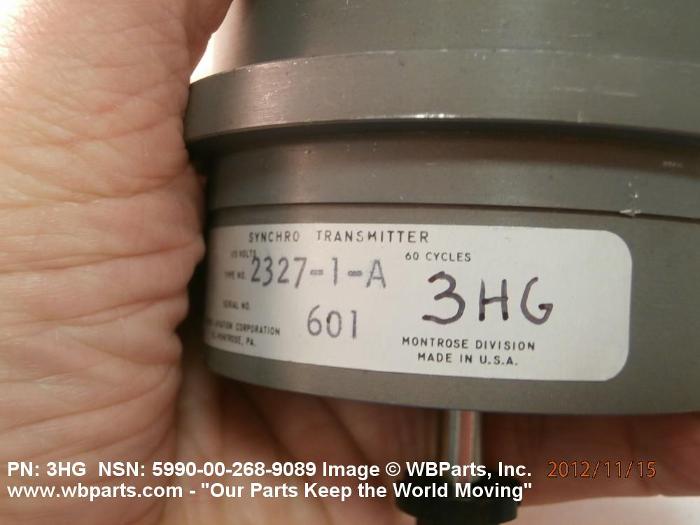

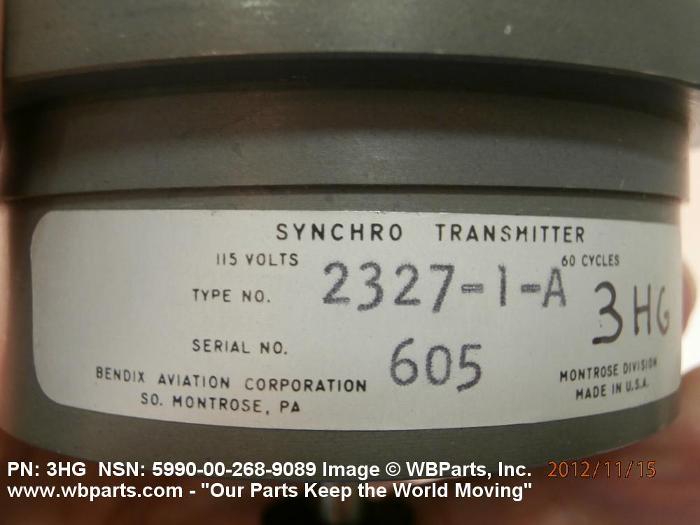

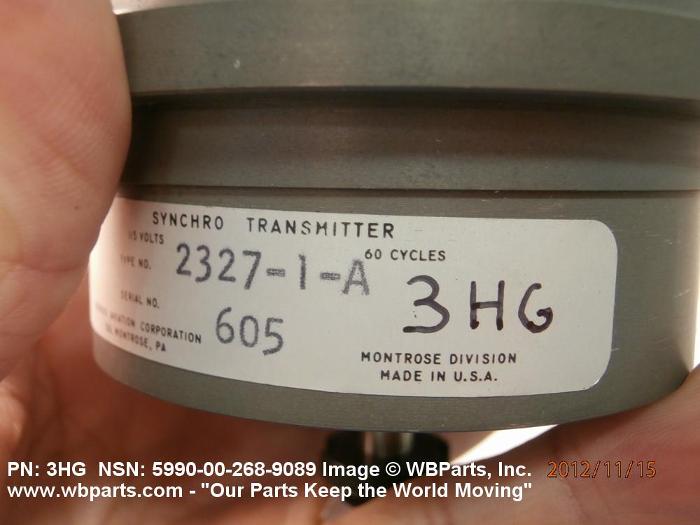

5990-00-268-9089 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: SK136357, SK137179, SK137519, MILS2335, 792147, 951189, 1301655-28, 1357608, 173138, 3HG, 479863, 561791PC3, 5990-00-268-9089, 00-268-9089, 5990002689089, 130165528, 002689089
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-268-9089 | 02073 ( SYNCHRO, TRANSMITTER ) |

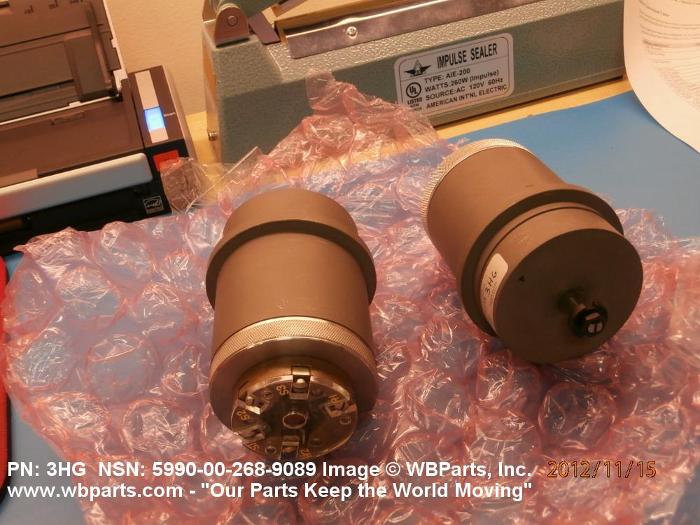

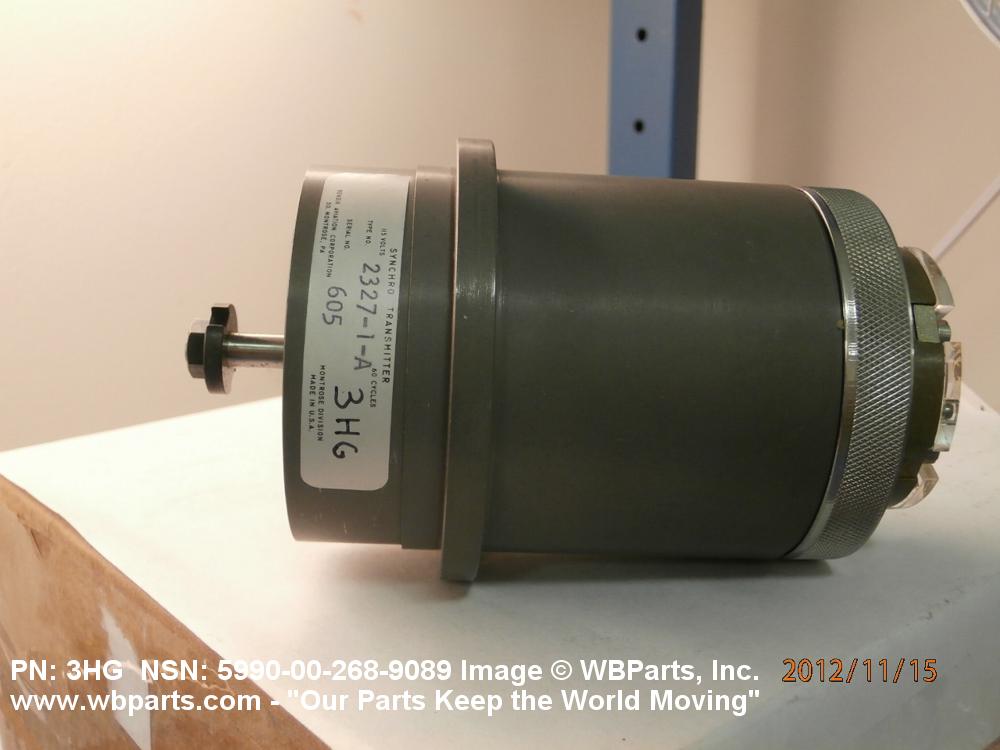

Drawings & Photos | NSN 5990-00-268-9089
Demand History | NSN 5990-00-268-9089
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-268-9089 | 2023-09-249 | 2 | DIBBS |
| 5990-00-268-9089 | 2023-06-164 | 5 | US |
| 5990-00-268-9089 | 2022-05-150 | 1 | DIBBS |
| 5990-00-268-9089 | 2020-03-63 | 2 | Taiwan |
| 5990-00-268-9089 | 2015-05-130 | 1 | DIBBS |
| 5990-00-268-9089 | 2014-10-301 | 1 | DIBBS |
| 5990-00-268-9089 | 2013-05-150 | 2 | Taiwan |
| 5990-00-268-9089 | 2012-11-314 | 2 | United States |
| 5990-00-268-9089 | 2012-08-244 | 7 | DIBBS |
| 5990-00-268-9089 | 2012-07-195 | 2 | DIBBS |
| 5990-00-268-9089 | 2009-08-217 | 1 | DIBBS |
| 5990-00-268-9089 | 2009-08-217 | 3 | DIBBS |
Cross Reference | NSN 5990-00-268-9089
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1301655-28 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 1357608 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 173138 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 3HG | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 479863 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 561791PC3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 792147 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 951189 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MILS2335 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SK136357 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| SK137179 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| SK137519 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-268-9089
Related Products | NSN 5990-00-268-9089
Technical Data | NSN 5990-00-268-9089

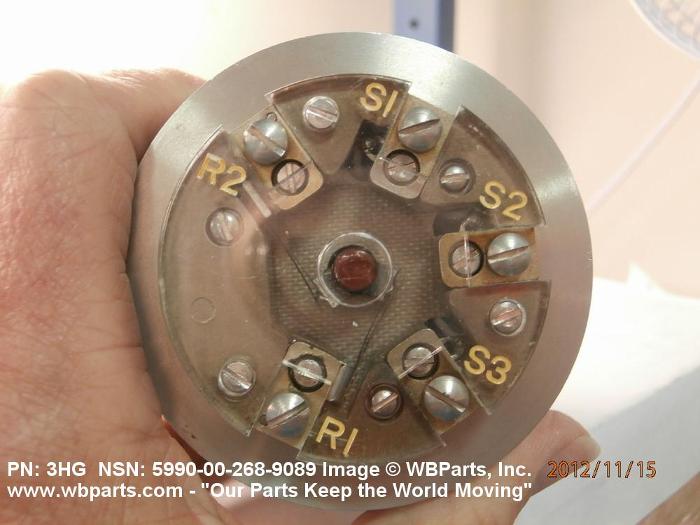

| Characteristic | Specifications |
|---|---|
| BODY SIZE | 31 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 400.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 5.5 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TORQUE GRADIENT PER ANGULAR DEG | 0.250 INCH-OUNCES NOMINAL |
| OVERALL LENGTH | 5.2000 INCHES NOMINAL |
| FLANGE DIAMETER | 3.1000 INCHES NOMINAL |
| SHAFT DIAMETER | 0.2500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.8000 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.1870 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |

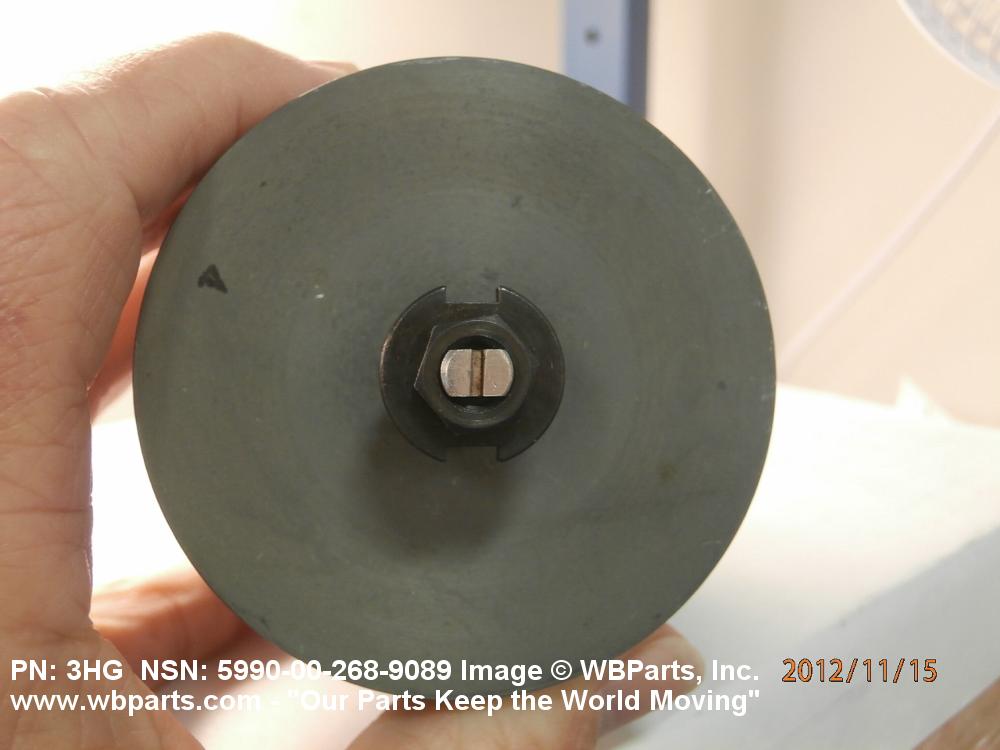

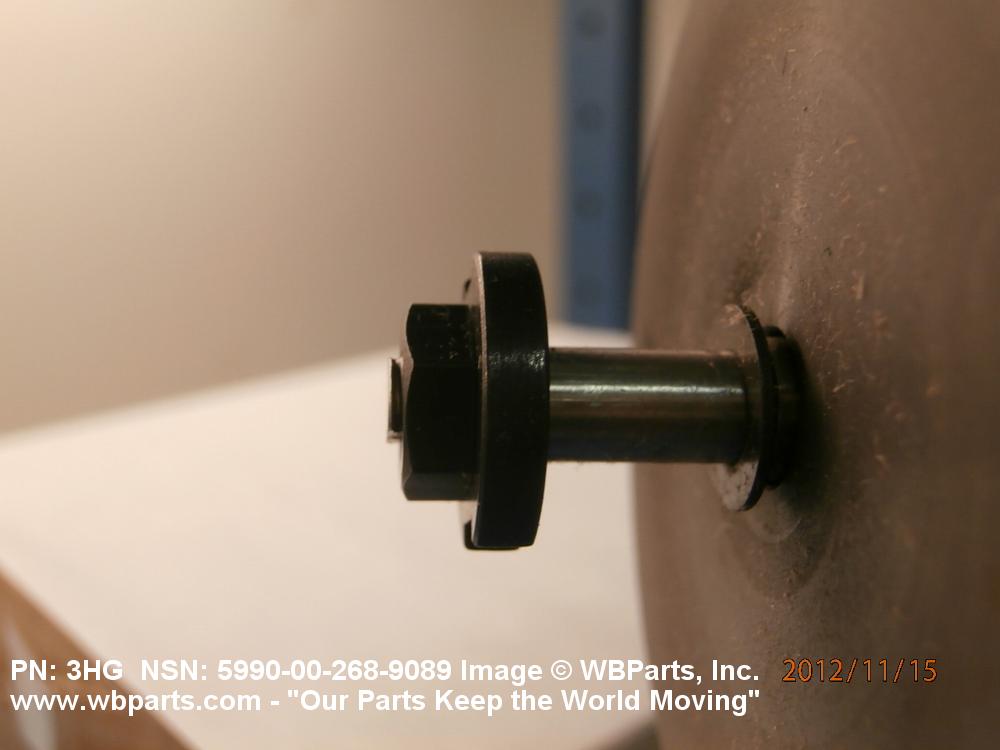

| SPECIAL FEATURES | SHAFT HAS DOUBLE FLATTED AND SLOTTED END |
