Product Details | WAVEGUIDE FLANGE
5985-01-294-3712 A waveguide fitting with a projecting rim, edge or ridge whose inside dimensions are designed to be affixed to a waveguide for the purpose of joining with another electrical fitting.
Part Alternates: 5543711, 5985-01-294-3712, 01-294-3712, 5985012943712, 012943712
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 1989 | 01-294-3712 | 00102 ( FLANGE, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-294-3712
Demand History | NSN 5985-01-294-3712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-294-3712 | 2017-10-295 | 72 | DIBBS |
| 5985-01-294-3712 | 2017-04-106 | 60 | DIBBS |
| 5985-01-294-3712 | 2009-01-27 | 18 | DIBBS |
| 5985-01-294-3712 | 2009-01-08 | 14 | DIBBS |
| 5985-01-294-3712 | 2008-12-338 | 5 | DIBBS |
| 5985-01-294-3712 | 2008-11-333 | 3 | DIBBS |
| 5985-01-294-3712 | 2008-10-304 | 12 | DIBBS |
| 5985-01-294-3712 | 2008-06-182 | 4 | DIBBS |
| 5985-01-294-3712 | 2007-10-298 | 47 | DIBBS |
Cross Reference | NSN 5985-01-294-3712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5543711 | 15090 | RAYTHEON COMPANY DBA RAYTHEON |
| 5543711 | 20723 | VALCORE MANUFACTURING LLC DBA USE CAGE CODE 04YE2 FOR |
| 5543711 | 3J545 | J.C.M.ENGINEERING CORP. DIV JCM ENGINEERING CORPORATION |
| 5543711 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5543711 | 5Z167 | ASTRO MICROWAVE INC |
| 5543711 | 65201 | CENTER TOOL CO. DBA CENTER TOOL & MACHINE CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-294-3712
Related Products | NSN 5985-01-294-3712
Technical Data | NSN 5985-01-294-3712
| Characteristic | Specifications |
|---|---|
| MATERIAL | METAL SINGLE FLANGE |
| SURFACE TREATMENT | CHROMATE AND PASSIVATE SINGLE FLANGE ALL SURFACES |

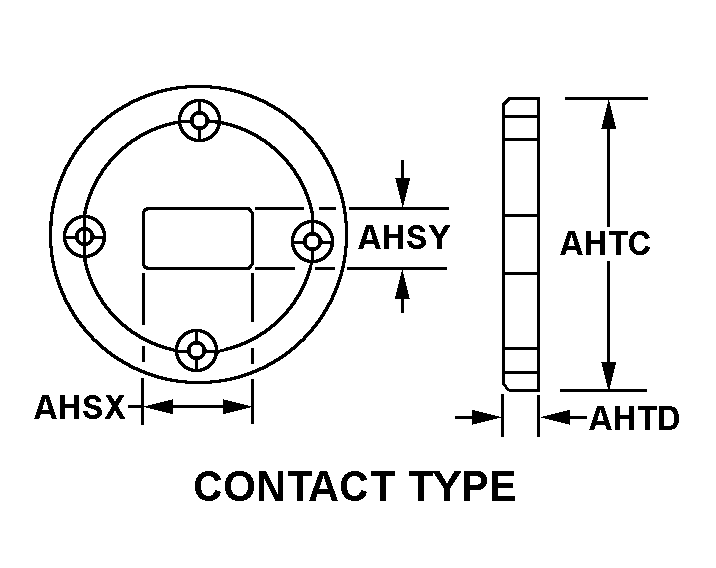

| FLANGE STYLE | C10 CONTACT TYPE SINGLE FLANGE |
| FLANGE INSIDE WIDTH | 0.620 INCHES MINIMUM AND 0.624 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE INSIDE HEIGHT | 0.309 INCHES MINIMUM AND 0.313 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE OUTSIDE DIAMETER | 1.390 INCHES MINIMUM AND 1.410 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE DEPTH | 0.230 INCHES MINIMUM AND 0.250 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE SINGLE FLANGE FIRST CONNECTION FACILITY 4 THREADED HOLE SINGLE FLANGE SECOND CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.092 INCHES MINIMUM AND 0.098 INCHES MAXIMUM SINGLE FLANGE FIRST CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE FLANGE SECOND CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.112 INCHES SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD CLASS | 2B SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD QUANTITY PER INCH | 40 SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND SINGLE FLANGE SECOND CONNECTION FACILITY |
| (NON-CORE DATA) FRAGILITY FACTOR | MODERATELY RUGGED |
| III FSC APPLICATION DATA | RADAR SYSTEMS |
