NSN 5985-00-642-7325 MS90063419, MS90063-419, M3922/53-005

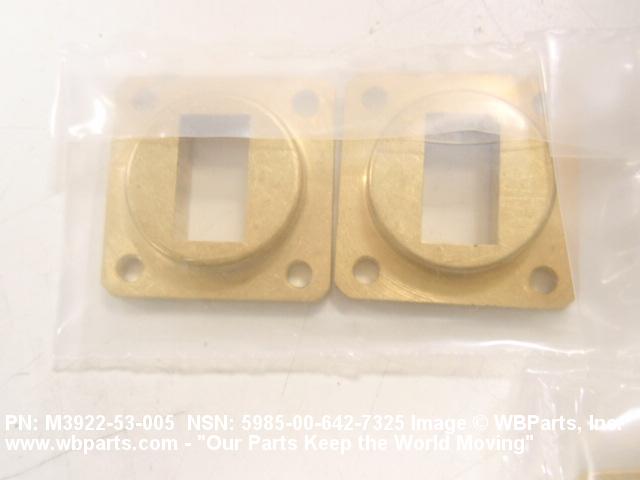

Product Details | WAVEGUIDE FLANGE
5985-00-642-7325 A waveguide fitting with a projecting rim, edge or ridge whose inside dimensions are designed to be affixed to a waveguide for the purpose of joining with another electrical fitting.
Part Alternates: MS90063419, MS90063-419, M3922/53-005, M392253005, AS2003ISSUEBGP2, UG-419/U, UG419U, MIL-F-3922/53, MILF392253, 5985-00-642-7325, 00-642-7325, 5985006427325, 006427325
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-642-7325 | 00102 ( FLANGE, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-642-7325
Demand History | NSN 5985-00-642-7325
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M392253005 | 2010-11-305 | 16 | United States |
Cross Reference | NSN 5985-00-642-7325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS2003ISSUEBGP2 | 80067 | ARMED SERVICES ELECTRO STANDARDS AGENCY |
| M3922/53-005 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-3922/53 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS90063-419 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| UG-419/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| UG419U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-642-7325
Related Products | NSN 5985-00-642-7325
Technical Data | NSN 5985-00-642-7325
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY SINGLE FLANGE |
| SURFACE TREATMENT | ANY ACCEPTABLE SINGLE FLANGE INSIDE SURFACES ANY ACCEPTABLE SINGLE FLANGE OUTSIDE SURFACES |
| FLANGE STYLE | C28 COVER TYPE SINGLE FLANGE |
| FLANGE INSIDE WIDTH | 0.705 INCHES NOMINAL SINGLE FLANGE |
| FLANGE INSIDE HEIGHT | 0.394 INCHES NOMINAL SINGLE FLANGE |
| FLANGE OUTSIDE WIDTH | 1.313 INCHES NOMINAL SINGLE FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.313 INCHES NOMINAL SINGLE FLANGE |
| FLANGE DEPTH | 0.313 INCHES NOMINAL SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE SINGLE FLANGE ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.144 INCHES NOMINAL SINGLE FLANGE ALL CONNECTION FACILITIES |
| (NON-CORE DATA) TEST DATA DOCUMENT | 81349-MIL-F-3922 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-3922/53 GOVERNMENT SPECIFICATION |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/53-005 SINGLE FLANGE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-3922/53 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3922/53-005 |
