NSN 5985-01-032-1673 M3922/52-019, M392252019, MIL-F-3922/52
Product Details | WAVEGUIDE FLANGE

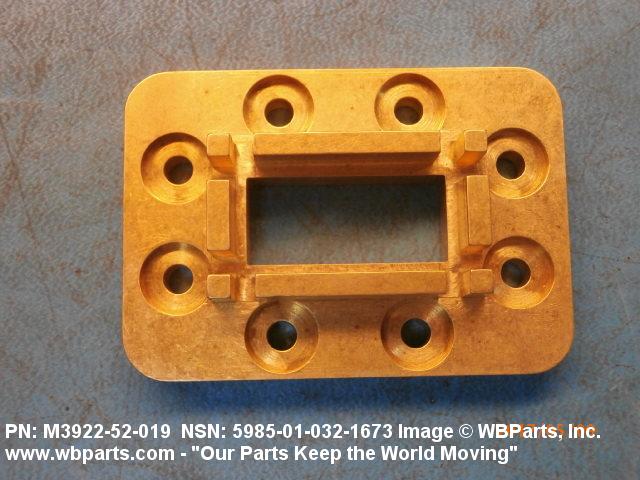

5985-01-032-1673 A waveguide fitting with a projecting rim, edge or ridge whose inside dimensions are designed to be affixed to a waveguide for the purpose of joining with another electrical fitting.
Part Alternates: M3922/52-019, M392252019, MIL-F-3922/52, MILF392252, UG-1734/U, UG1734U, 5985-01-032-1673, 01-032-1673, 5985010321673, 010321673
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 DEC 1976 | 01-032-1673 | 00102 ( FLANGE, WAVEGUIDE ) |

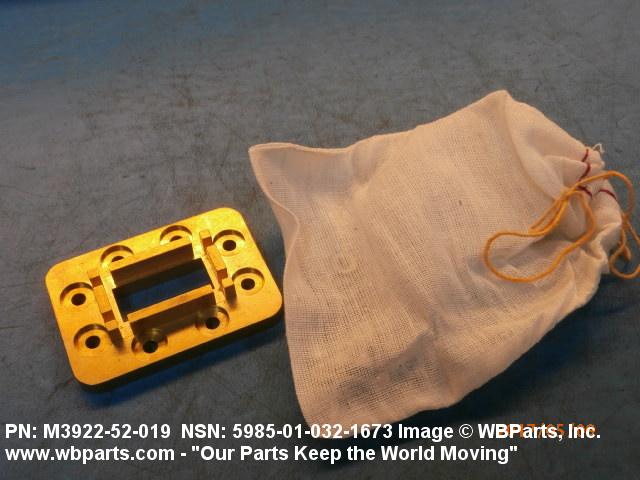

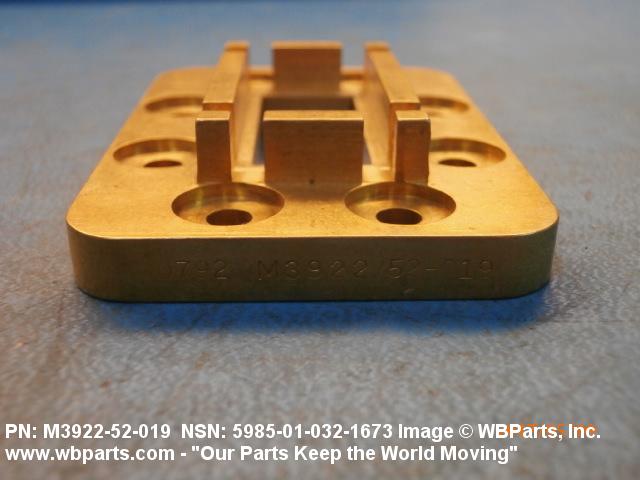

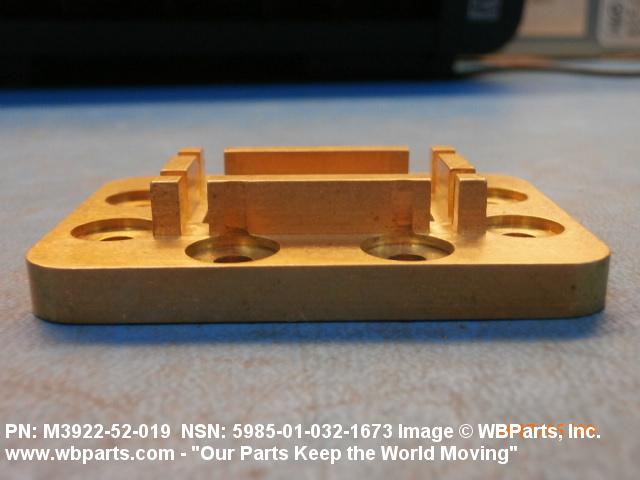

Drawings & Photos | NSN 5985-01-032-1673
Demand History | NSN 5985-01-032-1673
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-032-1673 | 2024-05-126 | 150 | DIBBS |
| 5985-01-032-1673 | 2024-05-122 | 150 | DIBBS |
| 5985-01-032-1673 | 2023-04-99 | 3 | DIBBS |
| 5985-01-032-1673 | 2017-04-117 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-032-1673
Related Products | NSN 5985-01-032-1673
Technical Data | NSN 5985-01-032-1673

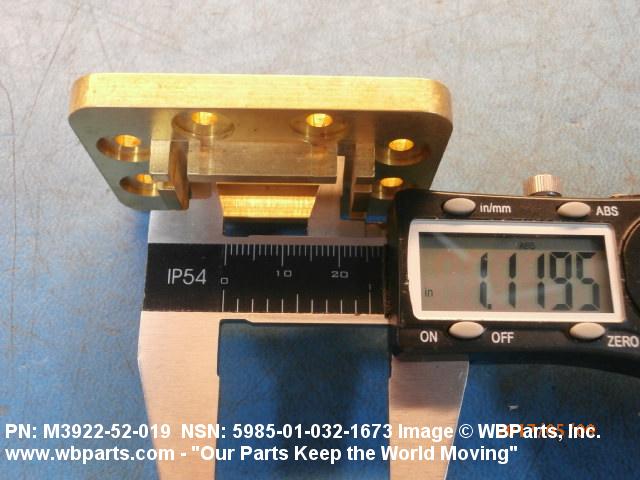

| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY SINGLE FLANGE |
| FLANGE STYLE | C8 CONTACT TYPE SINGLE FLANGE |
| FLANGE INSIDE WIDTH | 1.118 INCHES MINIMUM AND 1.126 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE INSIDE HEIGHT | 0.493 INCHES MINIMUM AND 0.501 INCHES MAXIMUM SINGLE FLANGE |

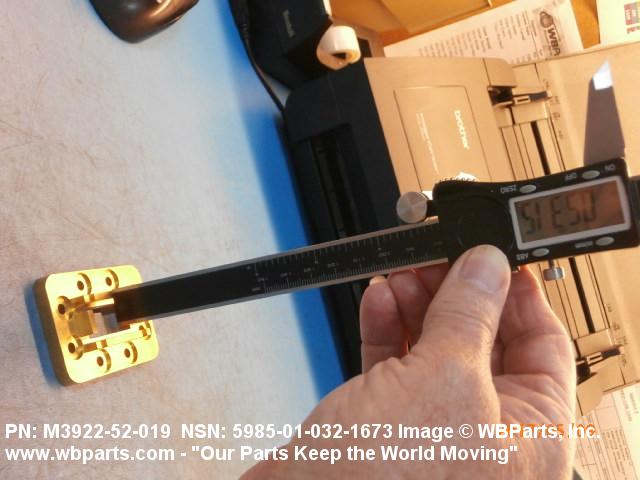

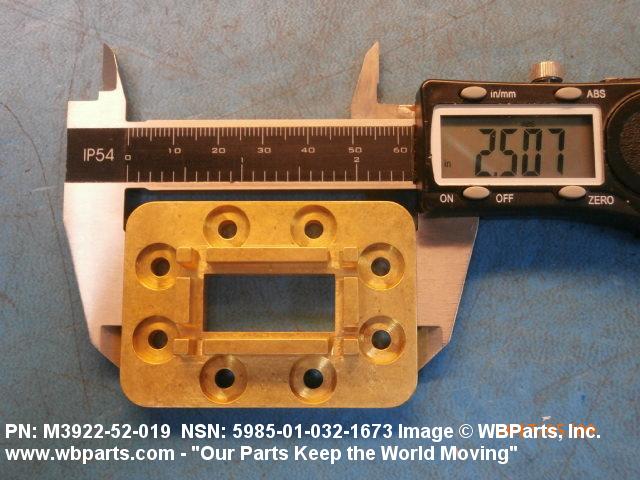

| FLANGE OUTSIDE WIDTH | 2.480 INCHES MINIMUM AND 2.520 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.730 INCHES MINIMUM AND 1.740 INCHES MAXIMUM SINGLE FLANGE |

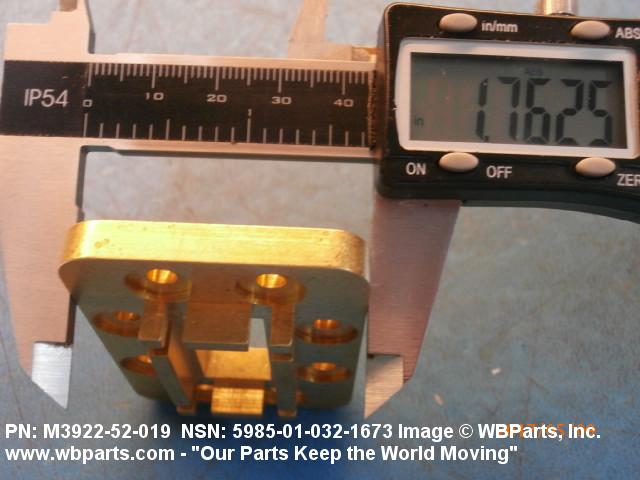

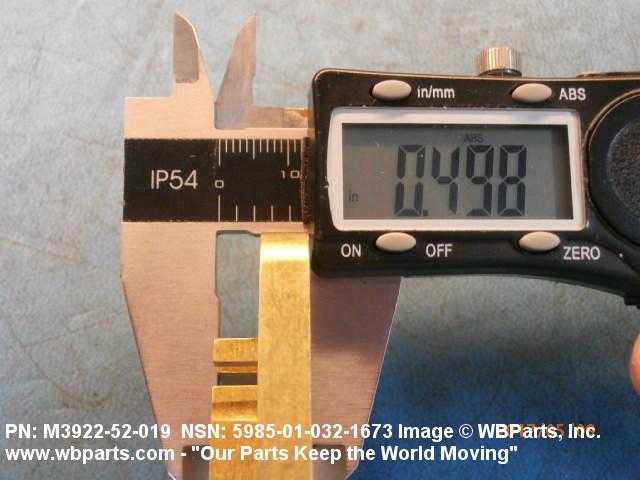

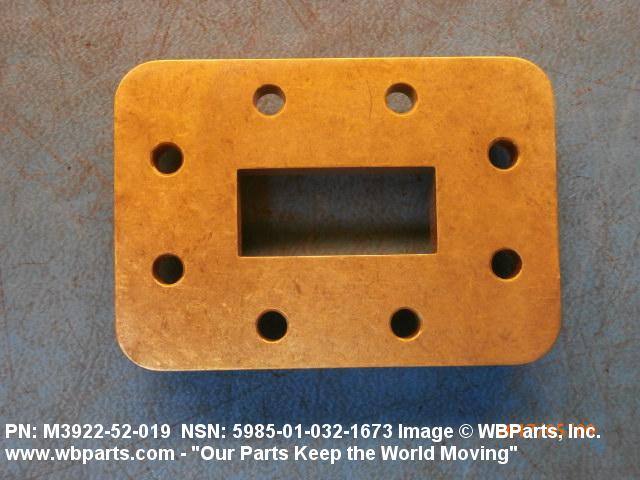

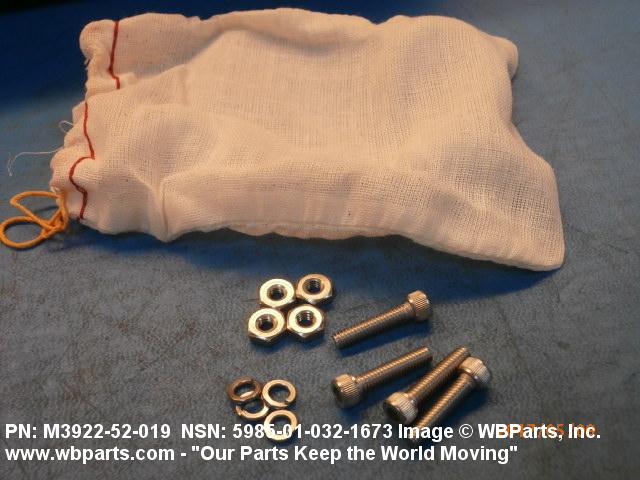

| FLANGE DEPTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 UNTHREADED HOLE SINGLE FLANGE ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES MINIMUM AND 0.171 INCHES MAXIMUM SINGLE FLANGE ALL CONNECTION FACILITIES |
| SPECIAL FEATURES | INCLUDES FOUR EA NO. 8 0.164-32 UNC-2A 0.750 IN. LG SCREW,NO. 8 0.164-32 UNC-2B NUT,0.164 X 0.040 IN. LOCKWASHER |
| (NON-CORE DATA) TEST DATA DOCUMENT | 81349-MIL-F-3922 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-3922/52 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-3922/52 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3922/52-019 |
