Product Details | WAVEGUIDE ADAPTER
5985-01-090-4183 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 1107BET, 5985-01-090-4183, 01-090-4183, 5985010904183, 010904183
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1980 | 01-090-4183 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-090-4183
Cross Reference | NSN 5985-01-090-4183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1107BET | 84147 | ANDREW LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-090-4183
Related Products | NSN 5985-01-090-4183
Technical Data | NSN 5985-01-090-4183
| Characteristic | Specifications |
|---|---|

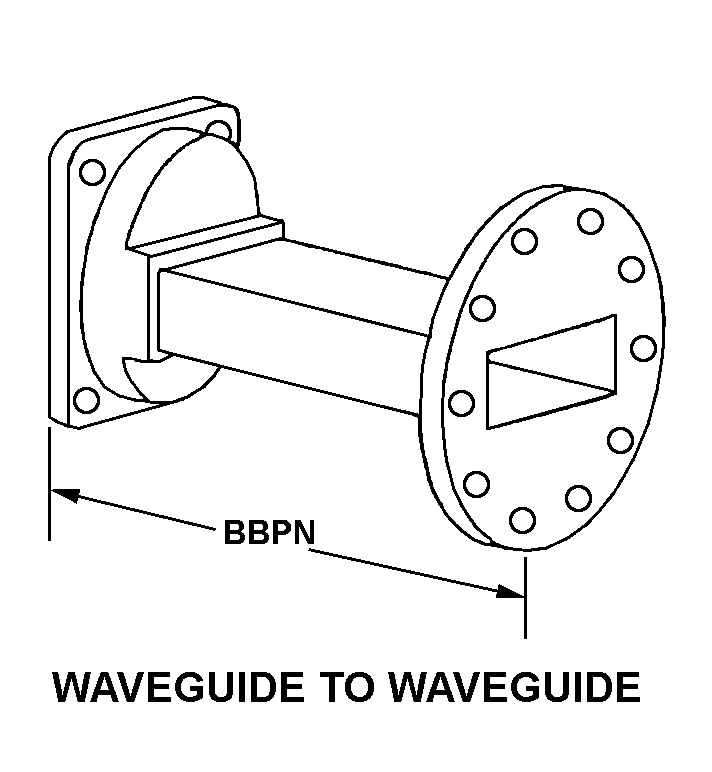

| STYLE DESIGNATOR | D2 WAVEGUIDE TO WAVEGUIDE |
| ADAPTER LENGTH | 3.820 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 2.090 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 1.590 INCHES NOMINAL |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | COPPER ALLOY SINGLE TUBING SEGMENT |
| FLANGE QUANTITY | 2 |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 UNTHREADED HOLE ALL FLANGES ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.170 INCHES NOMINAL ALL FLANGES ALL CONNECTION FACILITIES |
