NSN 5985-01-090-4196 CS18S16, 01-090-4196, 010904196
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-090-4196 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: CS18S16, 5985-01-090-4196, 01-090-4196, 5985010904196, 010904196
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1980 | 01-090-4196 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-090-4196
Cross Reference | NSN 5985-01-090-4196
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CS18S16 | 24022 | TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-090-4196
Technical Data | NSN 5985-01-090-4196
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY VOLTAGE STANDING WAVE RATIO 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY INSERTION LOSS REFERENCE 4.0 GIGAHERTZ MINIMUM AND 8.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY VOLTAGE STANDING WAVE RATIO 4.0 GIGAHERTZ MINIMUM AND 8.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY INSERTION LOSS REFERENCE 8.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM 3RD FREQUENCY VOLTAGE STANDING WAVE RATIO 8.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM 3RD FREQUENCY INSERTION LOSS REFERENCE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.26 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 24.0 MINIMUM AND 30.0 MAXIMUM |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 6 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 20.0 MILLISECONDS |

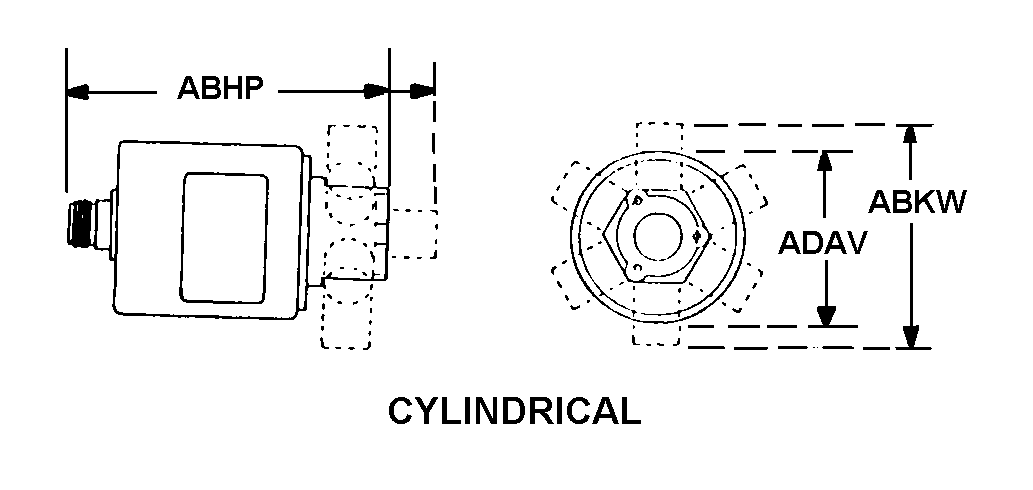

| BODY STYLE | 3B CYLINDRICAL |
| OVERALL LENGTH | 2.510 INCHES NOMINAL |
| OVERALL DIAMETER | 2.500 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -54.0 TO 85.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5985-01-090-4196
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-090-4196
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | HB | HARPOON: Anti-Ship Cruise Missile, Depot and Intermediate items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
