NSN 5985-01-090-3578 16VA027, 16VA0271, 16VA027-1
Product Details | WAVEGUIDE ADAPTER

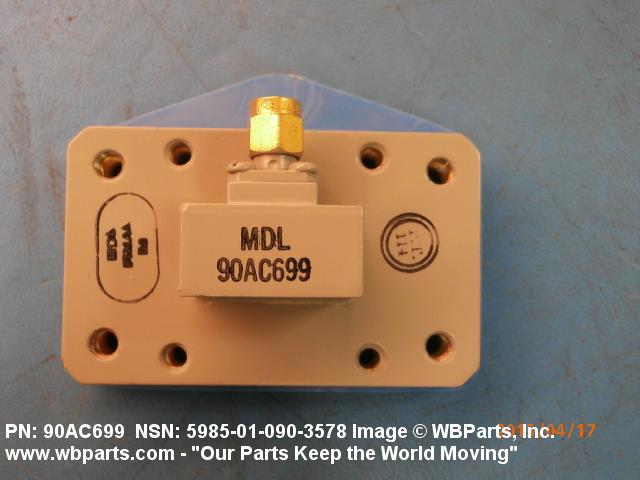

5985-01-090-3578 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 16VA027, 16VA0271, 16VA027-1, 61438, 90AC699, 5985-01-090-3578, 01-090-3578, 5985010903578, 010903578
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1980 | 01-090-3578 | 00186 ( ADAPTER, WAVEGUIDE ) |

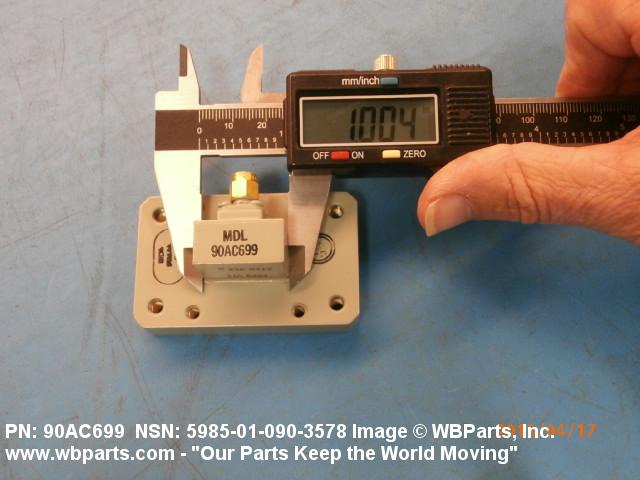

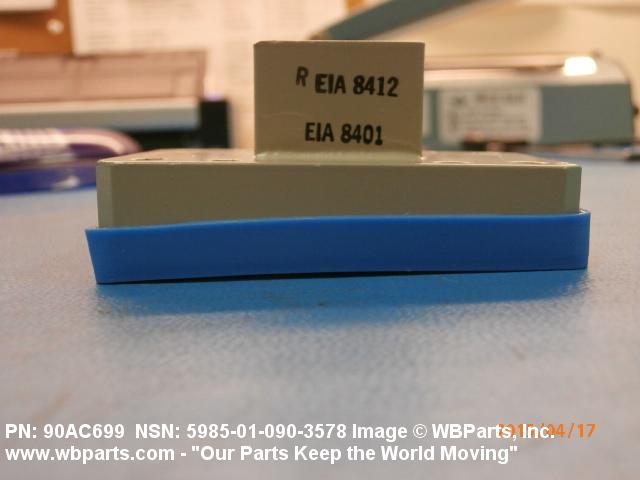

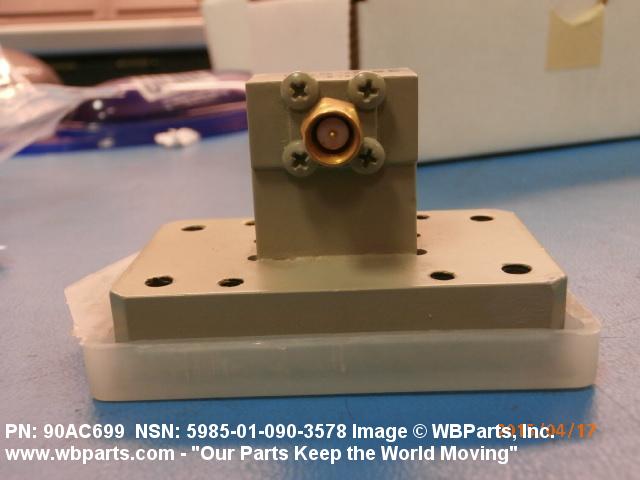

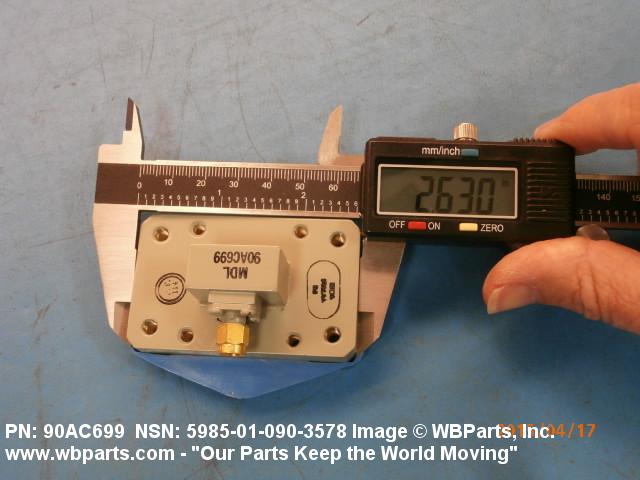

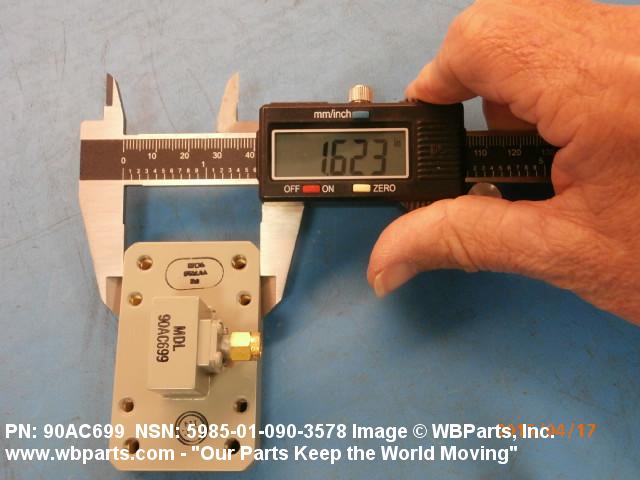

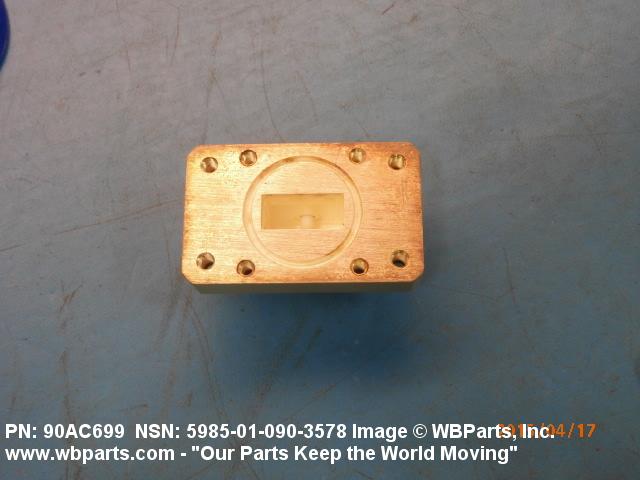

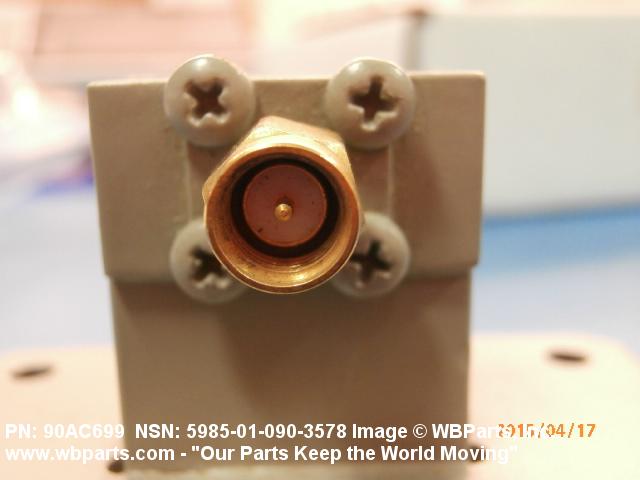

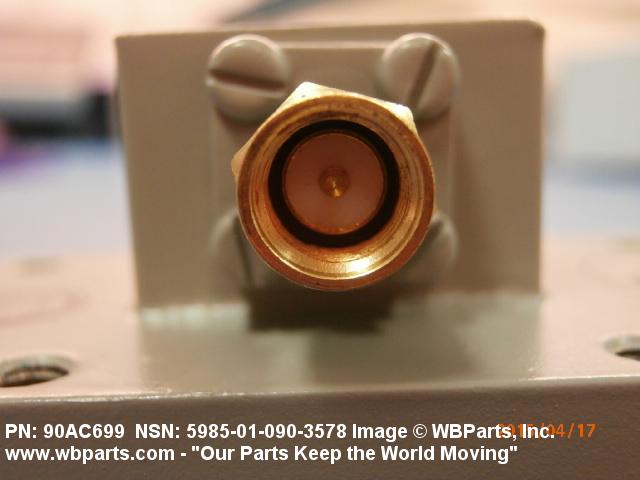

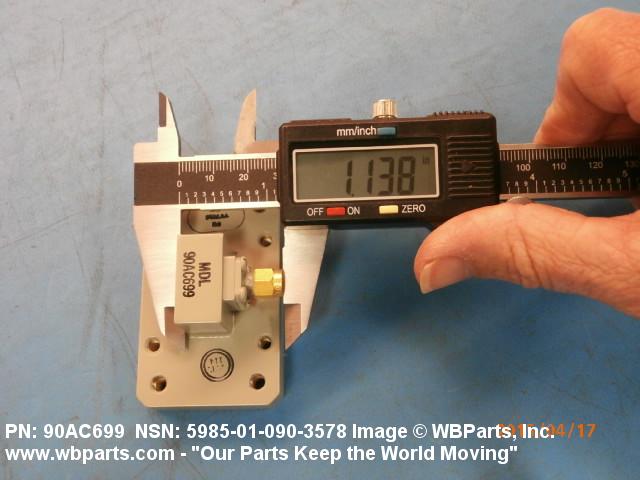

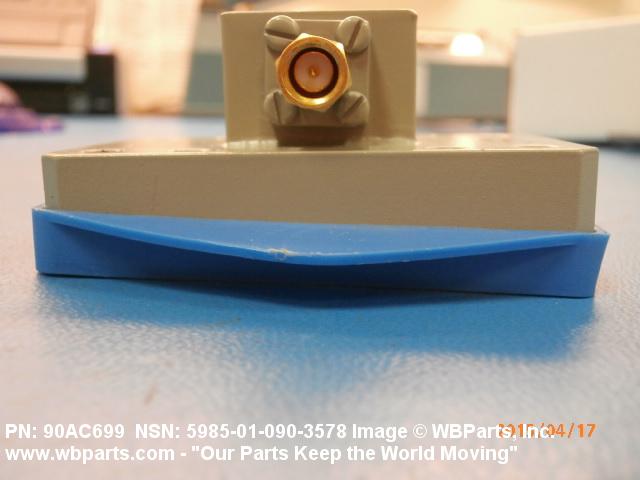

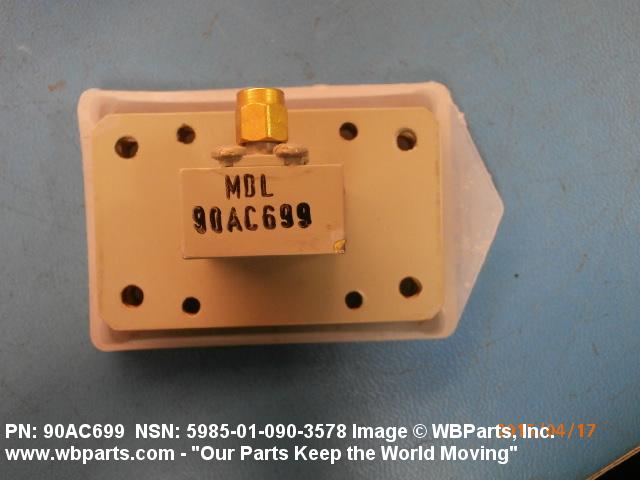

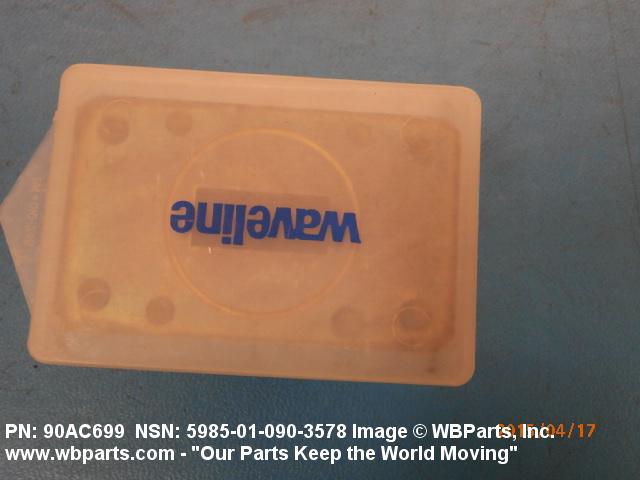

Drawings & Photos | NSN 5985-01-090-3578
Demand History | NSN 5985-01-090-3578
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 90AC699 | 2015-02-49 | 2 | United States |
| 5985-01-090-3578 | 2015-02-49 | 2 | United States |
Cross Reference | NSN 5985-01-090-3578
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-090-3578
Related Products | NSN 5985-01-090-3578
Technical Data | NSN 5985-01-090-3578
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D9 WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 1.750 INCHES MAXIMUM |
| ADAPTER HEIGHT | 1.590 INCHES MINIMUM AND 1.650 INCHES MAXIMUM |
| ADAPTER OVERALL HEIGHT | 1.590 INCHES MINIMUM AND 1.650 INCHES MAXIMUM |
| ADAPTER OVERALL WIDTH | 2.590 INCHES MINIMUM AND 2.650 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | COPPER ALLOY ALL TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | SILVER AND PAINT ALL TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE FIRST TUBING SEGMENT AND FLANGE OUTSIDE SURFACES MIL-E-105090 MIL SPEC 2ND TREATMENT RESPONSE SECOND TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 1 |
| FLANGE STYLE | C9 CONTACT TYPE SINGLE FLANGE |
| FLANGE OUTSIDE WIDTH | 2.590 INCHES MINIMUM AND 2.650 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.590 INCHES MINIMUM AND 1.650 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE DEPTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE SINGLE FLANGE FIRST CONNECTION FACILITY 4 THREADED HOLE SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNF SINGLE FLANGE FIRST CONNECTION FACILITY UNF SINGLE FLANGE SECOND CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.164 INCHES SINGLE FLANGE FIRST CONNECTION FACILITY 0.190 INCHES SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD CLASS | 3B SINGLE FLANGE FIRST CONNECTION FACILITY 3B SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE FLANGE FIRST CONNECTION FACILITY 32 SINGLE FLANGE SECOND CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND SINGLE FLANGE FIRST CONNECTION FACILITY RIGHT-HAND SINGLE FLANGE SECOND CONNECTION FACILITY |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | MALE |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| SPECIAL FEATURES | 8.20 TO 12.40 GHZ |
| III PRECIOUS MATERIAL | SILVER |
