NSN 5970-00-812-1356 M23053/2-111-0 , M23053/3-110-0, M23053/5-011-0

Product Details | ELECTRICAL INSULATION SLEEVING

5970-00-812-1356 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.

Part Alternates: M23053/2-111-0 , M23053/3-110-0, M23053/5-011-0, M23053/5-111-0, M23053/51110-30, M2305321110, M2305331100, M2305350110, M2305351110, M230535111030, MMS8090112, MMS809-0-1-1-2, A431799, A43179-9, AMSDTL23053, AMS-DTL-23053, AMS-DTL-23053/2 , AMS-DTL-23053/5, AMSDTL230532, AMSDTL230535, FIT105 1-1/2IN BLACK , FIT105112INBLACK, FIT221-1 1-2BLK, FIT221112BLK, FP301-1 1-1/2IN BLACK, FP3011112INBLACK, P0135 1-1/2IN BLACK, P0135112INBLACK, RNF-100 TYPE1 1-1/2IN BLACK, RNF100-1 1-2BLK, RNF-100-1-1/2-0, RNF-100-1-1/2-BK-SP, RNF1001120, RNF100112BKSP, RNF100112BLK, RNF100TYPE1112INBLACK, RT876150, RT-876-1-50, T235A28174, T235A281-74, MIL-DTL-23053/5, MILDTL230535, MIL-I-23053/2 , MIL-I-23053/5, MILI230532, MILI230535, MILI230535CLAS, MILI23053-5CLAS, 082201159023, 10087250, 1147AS3723, 1147AS372-3, 1147AS9826, 1147AS982-6, 13000511, 130-005-11, 27631BK0D750DIA, 276-31BK0D750DIA , 34463611, 344636-11, 417177-185 , 4503334413, 45-033344-13, 4800004019, 48-00004-019, 5343923-0001 PC, 53439230001PC, 53439230001PC2, 5343923-0001PC2, 5910011, 59100-11, 6SE0068210, 6SE00682-10, 6SE0068211, 6SE00682-11, 9175542, 5970-00-812-1356, 00-812-1356, 5970008121356 , 417177185, 008121356

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-812-1356	00867 ( INSULATION SLEEVING, ELECTRICAL )

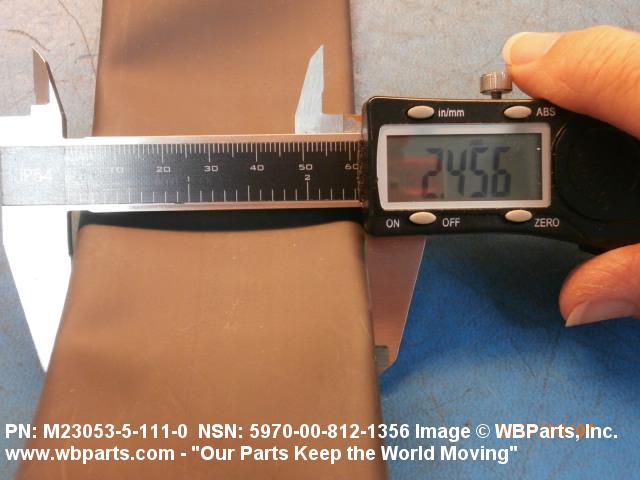

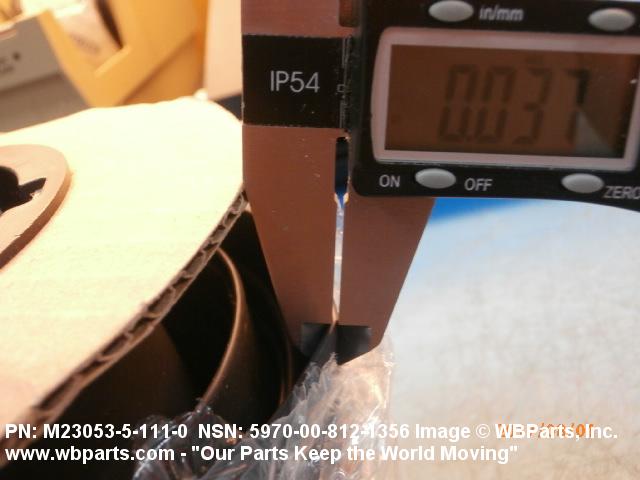

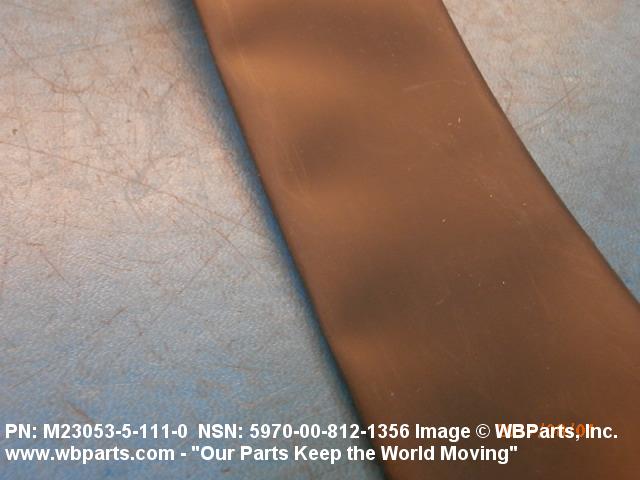

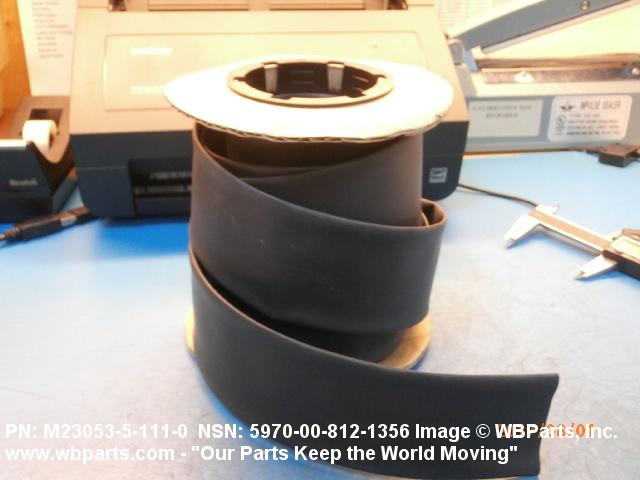

Drawings & Photos | NSN 5970-00-812-1356

Part Number	Request Date	QTY	Origin
5970-00-812-1356	2020-04-105	50	United States
MILI230535	2020-01-15	2	South Korea
5970-00-812-1356	2019-02-52	1	DIBBS-RFPs
MMS8090112	2018-11-311	1	United States
MMS8090112	2018-11-311	22	United States
M2305351110	2018-08-221	50	Thailand
M2305351110	2017-07-198	20	United States
5970-00-812-1356	2016-04-117	1000	DIBBS
M2305351110	2015-01-13	10	United States
5970-00-812-1356	2014-07-198	1	US
M2305351110	2013-09-253	3	United States
RNF100-1 1-2BLK	2013-06-169	400
MILI230535	2012-06-166	50	US
MILI230535	2012-01-18	1	India
MILI230532	2010-01-21	1	Taiwan
MILI230535	2009-08-239	1	US

Cross Reference | NSN 5970-00-812-1356

Part Number	Cage Code	Manufacturer
082201159023	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
1147AS372-3	30003	NAVAL AIR SYSTEMS COMMAND
1147AS982-6	30003	NAVAL AIR SYSTEMS COMMAND
130-005-11	97499	BELL HELICOPTER TEXTRON INC.
276-31BK0D750DIA	339B2	NASA/GEORGE C MARSHALL SPACE FLIGHT CENTER
344636-11	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
344636-11	49956	RAYTHEON COMPANY DBA RAYTHEON
417177-185	96214	RAYTHEON COMPANY DBA RAYTHEON
45-033344-13	15280	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION
48-00004-019	00724	RAYTHEON COMPANY DBA RAYTHEON
5343923-0001 PC	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
5343923-0001PC2	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
59100-11	09795	SAINT-GOBAIN PERFORMANCE PLASTICS CORPORATION
5970008121356	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6SE00682-10	28638	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 1.3.1 BLDG 562-1
6SE00682-11	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
9175542	18876	U S ARMY AVIATION AND MISSILE COMMAND
A43179-9	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
AMS-DTL-23053	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AMS-DTL-23053/2	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AMS-DTL-23053/5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AMS-DTL-23053/5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FIT105 1-1/2IN BLACK	92194	ALPHA WIRE CORPORATION
FIT221-1 1-2BLK	92194	ALPHA WIRE CORPORATION
FP301-1 1-1/2IN BLACK	20999	3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS
FP301-1 1-1/2IN BLACK	53387	3M COMPANY DIV ELECTRO AND COMMUNICATIONS
M23053/2-111-0	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M23053/2-111-0	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M23053/3-110-0	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M23053/5-011-0	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M23053/5-111-0	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M23053/5-111-0	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M23053/51110-30	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-DTL-23053/5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-23053/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-23053/5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILI23053-5CLAS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MMS809-0-1-1-2	76301	BOEING COMPANY, THE DBA BOEING
P0135 1-1/2IN BLACK	03890	MARKEL CORP.
RNF-100 TYPE1 1-1/2IN BLACK	06090	TYCO ELECTRONICS CORPORATION
RNF-100-1-1/2-0	06090	TYCO ELECTRONICS CORPORATION
RNF-100-1-1/2-BK-SP	06090	TYCO ELECTRONICS CORPORATION
RNF100-1 1-2BLK	06090	TYCO ELECTRONICS CORPORATION
RT-876-1-50	06090	TYCO ELECTRONICS CORPORATION
T235A281-74	78711	TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-00-812-1356

Compare

Related Products | NSN 5970-00-812-1356

5970-00-812-1357, 5970-00-812-1358, 5970-00-812-1360, 5970-00-812-1386, 5970-00-812-1559

Technical Data | NSN 5970-00-812-1356

Characteristic	Specifications
STYLE DESIGNATOR	A1 SHRINKABLE
OVERALL LENGTH	ANY ACCEPTABLE
EXPANDED INSIDE DIAMETER	1.500 INCHES MINIMUM
RECOVERED INSIDE DIAMETER	0.750 INCHES MAXIMUM
RECOVERED WALL THICKNESS	0.034 INCHES MINIMUM AND 0.046 INCHES MAXIMUM
MATERIAL	PLASTIC, POLYOLEFIN, MIL-I-23053/5, CLASS 1
COLOR	BLACK
FLEXIBILITY	FLEXIBLE
HEAT SHRINKAGE RATING IN PERCENT	50.0
TEMP RATING	-55.0 DEG CELSIUS AND 135.0 DEG CELSIUS
MINIMUM TENSILE STRENGTH	1500 POUNDS PER SQUARE INCH
DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS	500.0 VOLTS PER MIL /0.001 INCH/
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT AND CRACK RESISTANT
RELIABILITY INDICATOR	NOT ESTABLISHED

Restrictions/Controls & Freight Information | NSN 5970-00-812-1356

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	9	60 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103300	INSULATING MATERIAL NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-00-812-1356

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot
