NSN 5970-00-284-9698 B7444114C, B7444-1-1-4C, MILI7444
Product Details | ELECTRICAL INSULATION SLEEVING
5970-00-284-9698 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: B7444114C, B7444-1-1-4C, MILI7444, MIL-I-7444, 26710006P11, 267-10006P11, 8034658-17, 8196782, 819678-2, 5970-00-284-9698, 00-284-9698, 5970002849698, 002849698, 803465817
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-284-9698 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

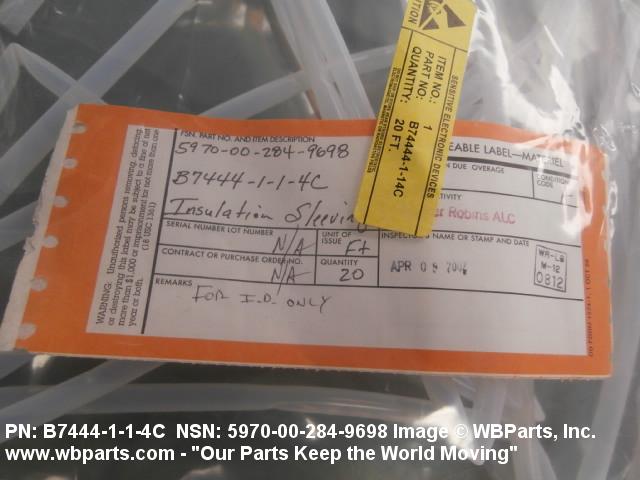

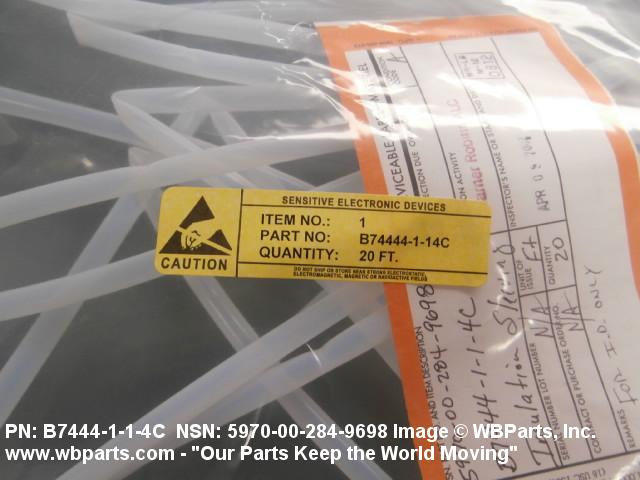

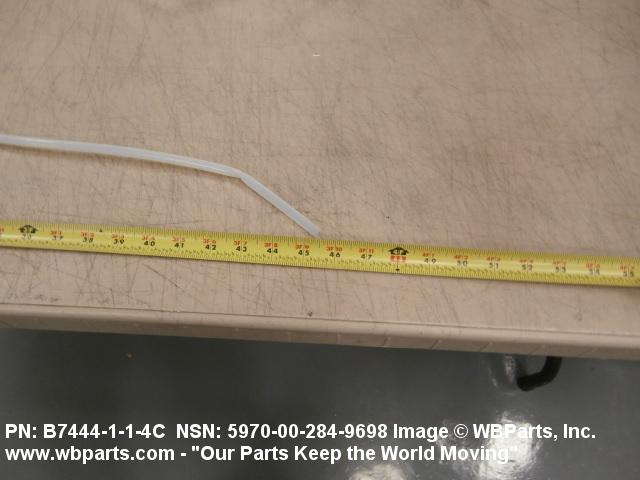

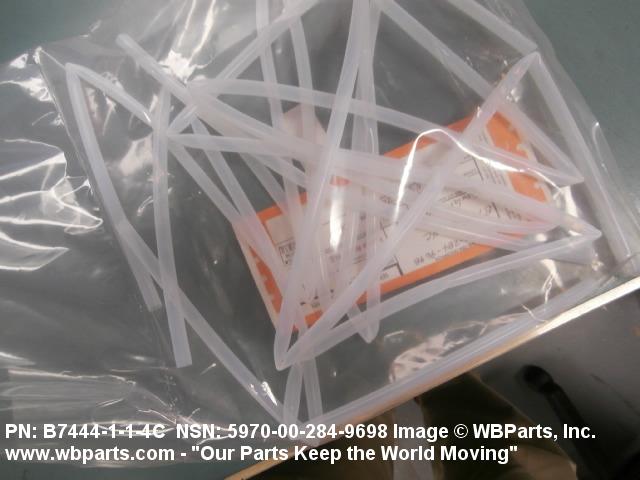

Drawings & Photos | NSN 5970-00-284-9698
Demand History | NSN 5970-00-284-9698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B7444114C | 2014-05-134 | 100 | United States |
| B7444114C | 2012-10-289 | 3300 | Italy |
Cross Reference | NSN 5970-00-284-9698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 267-10006P11 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 267-10006P11 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 8034658-17 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 819678-2 | 98571 | TELEDYNE TECHNOLOGIES INC DBA TELEDYNE CONTROLS |
| B7444-1-1-4C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-7444 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-284-9698
Technical Data | NSN 5970-00-284-9698
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 NONSHRINKABLE |
| WALL THICKNESS | 0.017 INCHES MINIMUM AND 0.023 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.204 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| OVERALL LENGTH | ANY ACCEPTABLE |
| MATERIAL | PLASTIC, VINYL, MIL-I-7444, TYPE 1, CLASS 1 |
| COLOR | CLEAR |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | -67.8 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1800 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | FLAME RESISTANT AND MILDEW RESISTANT AND OIL RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | B7444-1-1-4C |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-7444 |
Restrictions/Controls & Freight Information | NSN 5970-00-284-9698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-284-9698
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
