NSN 5970-00-812-1358 MMS80991500, MMS809-9-1-500, M23053/5-111-9

Product Details | ELECTRICAL INSULATION SLEEVING

5970-00-812-1358 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.

Part Alternates: MMS80991500, MMS809-9-1-500, M23053/5-111-9, M2305351119, AMS-DTL-23053/5, AMSDTL230535, BACT63A609, BACT63A60-9, ST-221-1 1/2IN WHITE, ST221112INWHITE, Y00037061, Y00037-061, MIL-I-23053/5, MIL-I-23053/5-111-9, MILI230535, MILI2305351119, P0135 1-1/2IN WHITE, P0135112INWHITE, PENNTUBE V FLEXIBLE 1-1/2IN WHT, PENNTUBEVFLEXIBLE112INWHT, R2479P11, RNF-100 1-1/2IN WHITE, RNF-100-1-1/2-WH-SP, RNF100112INWHITE, RNF100112W, RNF100-1-1-2W, RNF100112WHSP, RNF-100TYPE1 1-1/2IN WHITE, RNF100TYPE1112INWHITE, RT876-1 1-2WHITE, RT876112WHITE, FIT221-1 1/2WHITE, FIT221112WHITE, FP301-1 1-1/2IN WHITE, FP3011112INWHITE, 224845-911, 2296632P43, 267M0048P086, 34463511, 344635-11, 7230941P31, 7230941-P31, 065001756025, 065-001756-025, 1130389G52, 11699912162, 11699912-162, 11830621162, 11830621-162, 119A2290162, 119A2290-162, 1524001000, 152-4001-000, 446320-211, 4503334429, 45-033344-29, 4800004219, 48-00004-219, 5919911, 59199-11, 7956686-10, 9175379, 9175617, 940062, 94-0062, 5970-00-812-1358, 00-812-1358, 5970008121358, 224845911, 008121358, 795668610, 446320211

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-812-1358	00867 ( INSULATION SLEEVING, ELECTRICAL )

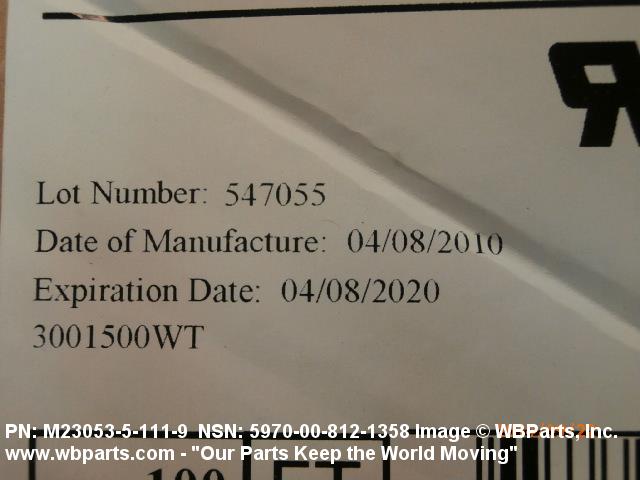

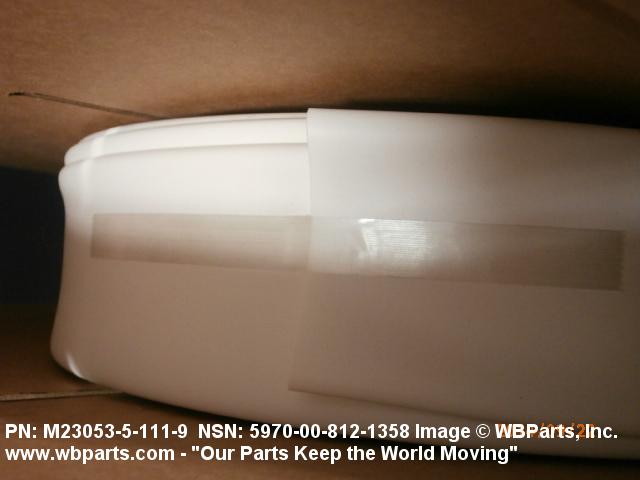

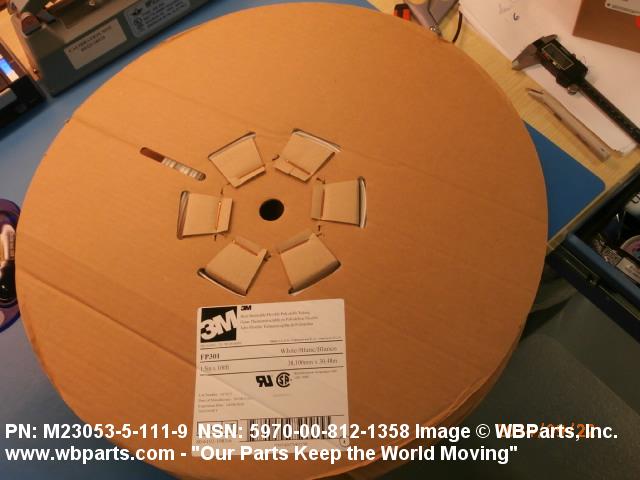

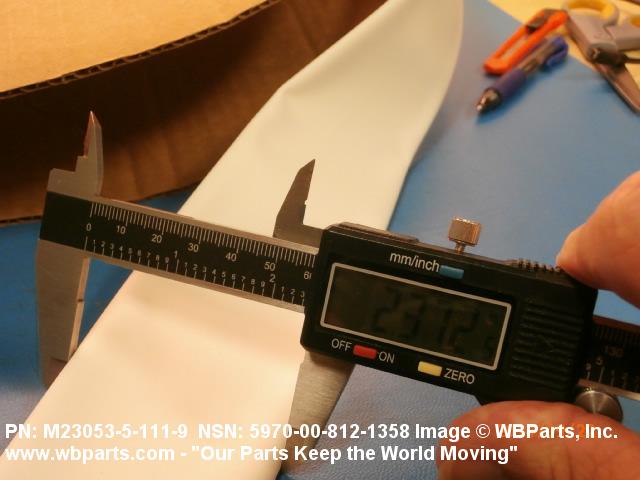

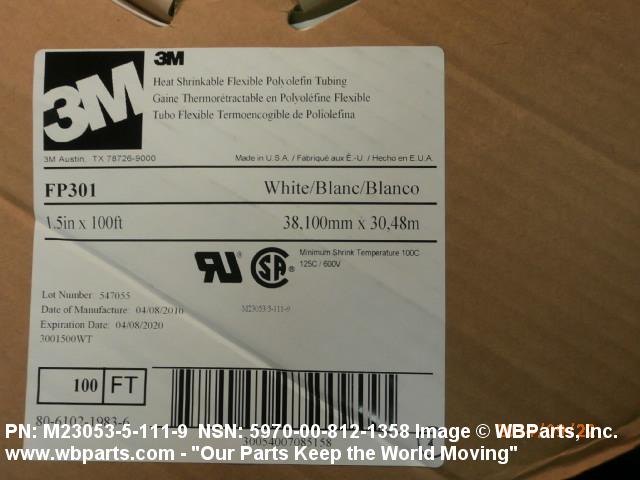

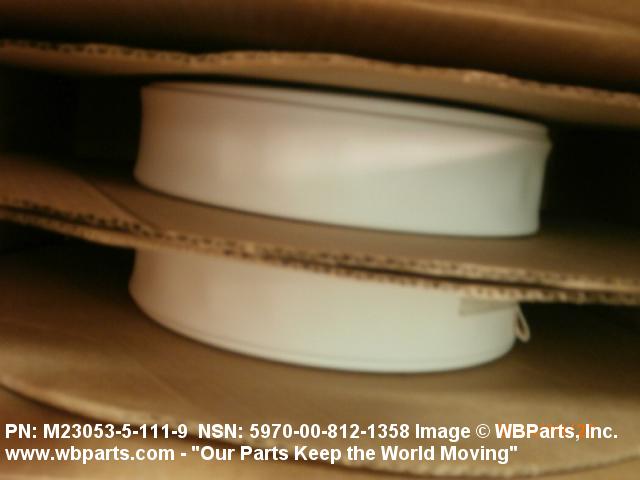

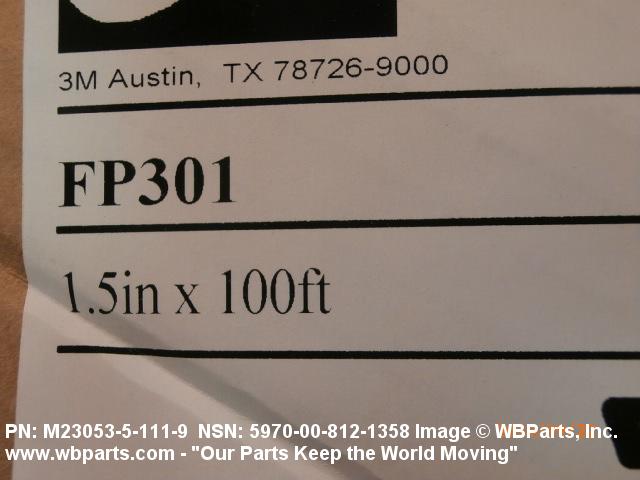

Drawings & Photos | NSN 5970-00-812-1358

Part Number	Request Date	QTY	Origin
RNF100112WHSP	2024-10-276	1508	United States
5970-00-812-1358	2021-04-98	110	DIBBS
5970-00-812-1358	2021-01-21	1	DIBBS-RFPs
5970-00-812-1358	2020-02-36	10	Saudi Arabia
MILI230535	2020-01-15	2	South Korea
5970-00-812-1358	2017-06-173	28	US
5970-00-812-1358	2016-02-33	1	DIBBS-RFPs
5970-00-812-1358	2015-12-336	1	DIBBS-RFPs
5970-00-812-1358	2015-03-60	5684	DIBBS
5970-00-812-1358	2014-09-251	450	United States
5970-00-812-1358	2014-07-198	12	DIBBS
5970-00-812-1358	2014-07-190	12	DIBBS
5970-00-812-1358	2014-03-78	10	US
MILI230535	2012-06-166	50	US
M23053/5-111-9	2012-01-30	10	United States
M23053/5-111-9	2012-01-30	35	United States
MILI230535	2012-01-18	1	India
5970-00-812-1358	2011-09-250	10650	DIBBS
5970-00-812-1358	2010-10-286	570	DIBBS
MILI230535	2009-08-239	1	US

Cross Reference | NSN 5970-00-812-1358

Part Number	Cage Code	Manufacturer
065-001756-025	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
1130389G52	31550	EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS
11699912-162	19204	ARMY UNITED STATES DEPARTMENT OF THE
11830621-162	19203	PICATINNY ARSENAL
119A2290-162	05606	GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)
152-4001-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
224845-911	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
2296632P43	53711	NAVAL SEA SYSTEMS COMMAND
267M0048P086	49956	RAYTHEON COMPANY DBA RAYTHEON
344635-11	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
344635-11	49956	RAYTHEON COMPANY DBA RAYTHEON
446320-211	37695	RAYTHEON COMPANY DBA RAYTHEON
45-033344-29	15280	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION
45-033344-29	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
48-00004-219	00724	RAYTHEON COMPANY DBA RAYTHEON
59199-11	09795	SAINT-GOBAIN PERFORMANCE PLASTICS CORPORATION
7230941-P31	03538	LOCKHEED MARTIN CORPORATION DIV MST
7956686-10	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
9175379	18876	U S ARMY AVIATION AND MISSILE COMMAND
9175617	18876	U S ARMY AVIATION AND MISSILE COMMAND
94-0062	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
AMS-DTL-23053/5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACT63A60-9	81205	THE BOEING COMPANY DBA BOEING
FIT221-1 1/2WHITE	92194	ALPHA WIRE CORPORATION
FP301-1 1-1/2IN WHITE	20999	3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS
FP301-1 1-1/2IN WHITE	53387	3M COMPANY DIV ELECTRO AND COMMUNICATIONS
M23053/5-111-9	00779	TYCO ELECTRONICS CORPORATION
M23053/5-111-9	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M23053/5-111-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-23053/5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-23053/5-111-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MMS809-9-1-500	76301	BOEING COMPANY, THE DBA BOEING
P0135 1-1/2IN WHITE	03890	MARKEL CORP.
PENNTUBE V FLEXIBLE 1-1/2IN WHT	09795	SAINT-GOBAIN PERFORMANCE PLASTICS CORPORATION
R2479P11	23991	LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION
RNF-100 1-1/2IN WHITE	06090	TYCO ELECTRONICS CORPORATION
RNF-100-1-1/2-WH-SP	06090	TYCO ELECTRONICS CORPORATION
RNF-100TYPE1 1-1/2IN WHITE	06090	TYCO ELECTRONICS CORPORATION
RNF100-1-1-2W	06090	TYCO ELECTRONICS CORPORATION
RT876-1 1-2WHITE	06090	TYCO ELECTRONICS CORPORATION
ST-221-1 1/2IN WHITE	56352	MANHATTAN/CDT COLE-FLEX
Y00037-061	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-00-812-1358

Compare

Related Products | NSN 5970-00-812-1358

5970-00-812-1360, 5970-00-812-1386, 5970-00-812-1559, 5970-00-812-1673, 5970-00-812-1680

Technical Data | NSN 5970-00-812-1358

Characteristic	Specifications
STYLE DESIGNATOR	A1 SHRINKABLE
OVERALL LENGTH	ANY ACCEPTABLE
EXPANDED INSIDE DIAMETER	1.500 INCHES MINIMUM
RECOVERED INSIDE DIAMETER	0.750 INCHES MAXIMUM
RECOVERED WALL THICKNESS	0.034 INCHES MINIMUM AND 0.046 INCHES MAXIMUM
MATERIAL	PLASTIC, POLYOLEFIN, MIL-I-23053/5, CLASS 1
COLOR	WHITE
FLEXIBILITY	FLEXIBLE
HEAT SHRINKAGE RATING IN PERCENT	50.0
TEMP RATING	-55.0 DEG CELSIUS AND 135.0 DEG CELSIUS
MINIMUM TENSILE STRENGTH	1500 POUNDS PER SQUARE INCH
DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS	500.0 VOLTS PER MIL /0.001 INCH/
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT
RELIABILITY INDICATOR	NOT ESTABLISHED
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M23053/5-111-9

Restrictions/Controls & Freight Information | NSN 5970-00-812-1358

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	9	60 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103300	INSULATING MATERIAL NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-00-812-1358

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	T2	AN/USM-410
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	9	60 months
Purchasing	QTY UOM	1 FT : Foot
