Product Details | FEEDTHRU INSULATOR
5970-00-795-5548 An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED.
Part Alternates: AX159, 00606296001464, 5970-00-795-5548, 00-795-5548, 5970007955548, 007955548
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-795-5548 | 18284 ( INSULATOR, FEEDTHRU ) |
Drawings & Photos | NSN 5970-00-795-5548
Demand History | NSN 5970-00-795-5548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-795-5548 | 2009-10-282 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-795-5548
Technical Data | NSN 5970-00-795-5548
| Characteristic | Specifications |
|---|---|

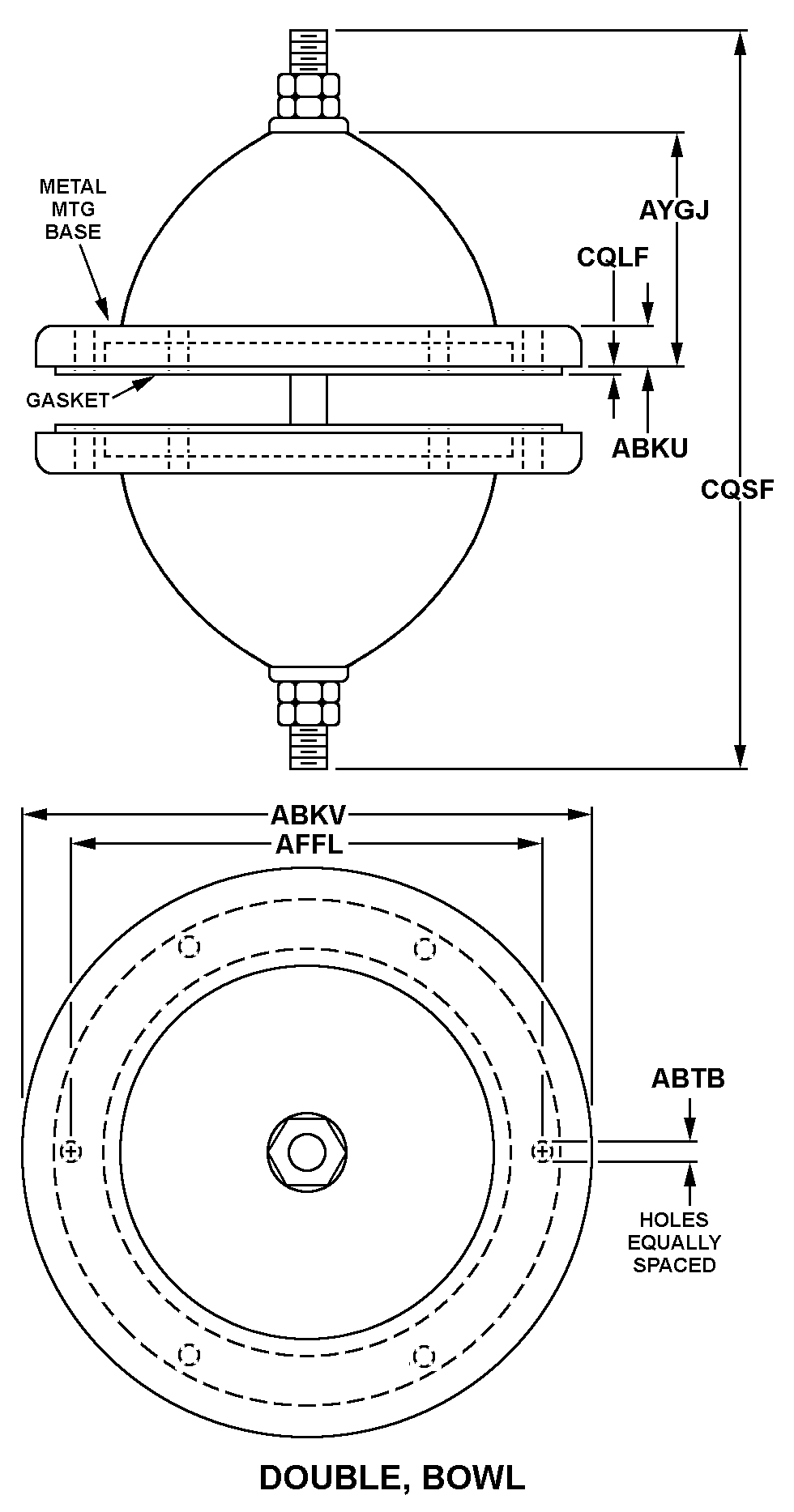

| STYLE DESIGNATOR | F9 DOUBLE, BOWL |
| FLANGE THICKNESS | ANY ACCEPTABLE |
| OUTSIDE DIAMETER | 5.375 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | ANY ACCEPTABLE |
| HEIGHT ABOVE MOUNTING SURFACE | 2.750 INCHES NOMINAL |
| GASKET THICKNESS | ANY ACCEPTABLE |
| CENTER STUD LENGTH | 13.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | CENTER STUD BRASS OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | CENTER STUD SILVER PLATED OVERALL GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | CENTER STUD UNF |
| SCREW THREAD DIAMETER AND LOCATION | 0.500 CENTER STUD INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 20 CENTER STUD |
| THREAD CLASS AND LOCATION | 2A CENTER STUD |
| THREAD LENGTH AND LOCATION | ANY ACCEPTABLE |
| ELECTRICAL TERMINATION QUANTITY | 2 |
| SPECIAL FEATURES | PRECIOUS METAL SILVER |
| MANUFACTURERS CODE | 82679 |
| DESIGN CONTROL REFERENCE | AX159 |
