NSN 5970-00-795-7577 SMC511402, SM-C-511402, 5448128002
Product Details | PLATE INSULATOR
5970-00-795-7577 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: SMC511402, SM-C-511402, 5448128002, 544-8128-002, 5970-00-795-7577, 00-795-7577, 5970007957577, 007957577
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-795-7577 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-795-7577
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-795-7577
Technical Data | NSN 5970-00-795-7577
| Characteristic | Specifications |
|---|---|

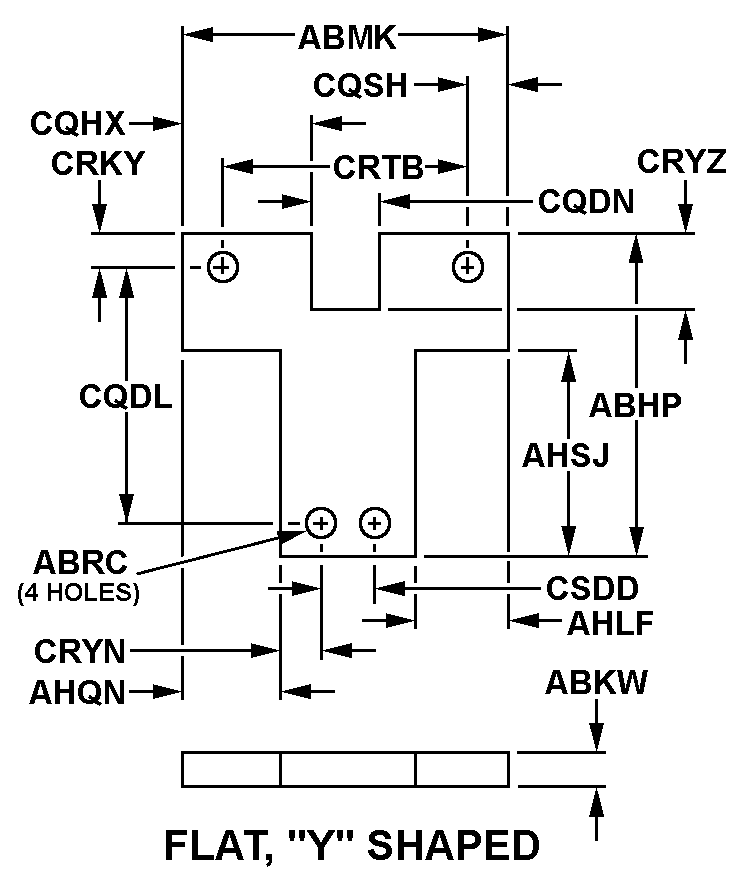

| STYLE DESIGNATOR | K64 FLAT, Y SHAPED |
| OVERALL LENGTH | 1.218 INCHES NOMINAL |
| OVERALL HEIGHT | 0.005 INCHES NOMINAL |
| OVERALL WIDTH | 1.312 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.076 INCHES NOMINAL |
| SECOND LEG WIDTH | 0.375 INCHES NOMINAL |
| FIRST LEG WIDTH | 0.375 INCHES NOMINAL |
| LEG LENGTH | 0.686 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.750 INCHES NOMINAL |
| FIRST SLOT WIDTH | 0.375 INCHES NOMINAL |
| FIRST CENTER DISTANCE | 0.469 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.468 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.240 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.875 INCHES NOMINAL |
| FIFTH HOLE SPACING | 0.188 INCHES NOMINAL |
| FIRST SLOT DEPTH | 0.370 INCHES NOMINAL |
| SIXTH HOLE SPACING | 0.562 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 544-8128-002 |
Restrictions/Controls & Freight Information | NSN 5970-00-795-7577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-795-7577
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
