NSN 5970-00-796-1264 SMB84480D, 00-796-1264, 007961264
Product Details | BUSHING INSULATOR
5970-00-796-1264 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: SMB84480D, 5970-00-796-1264, 00-796-1264, 5970007961264, 007961264
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-796-1264 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-796-1264
Demand History | NSN 5970-00-796-1264
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-796-1264 | 2015-07-189 | 596 | DIBBS |
Cross Reference | NSN 5970-00-796-1264
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMB84480D | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-796-1264
Related Products | NSN 5970-00-796-1264
Technical Data | NSN 5970-00-796-1264

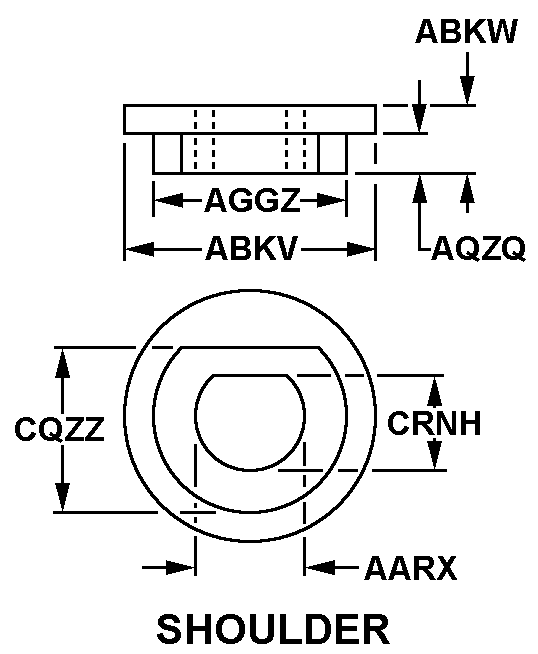

| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C56 SHOULDER |
| INSIDE DIAMETER | 0.380 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| OVERALL HEIGHT | 0.172 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.500 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| SHANK HEIGHT | 0.078 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE FLATTED PORTION TO OPPOSITE SURFACE | 0.469 INCHES NOMINAL |
| DISTANCE FROM INSIDE FLATTED PORTION TO OPPOSITE SURFACE | 0.348 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |
| MATERIAL AND LOCATION | OVERALL PLASTIC, DIALLYL PHTHALATE |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SMB84480D |
Restrictions/Controls & Freight Information | NSN 5970-00-796-1264
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
