NSN 5970-00-356-0609 PW427, PW42-7, 1076
Product Details | FEEDTHRU INSULATOR
5970-00-356-0609 An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED.
Part Alternates: PW427, PW42-7, 1076, 4125, 5970-00-356-0609, 00-356-0609, 5970003560609, 003560609
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-356-0609 | 18284 ( INSULATOR, FEEDTHRU ) |
Drawings & Photos | NSN 5970-00-356-0609
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-356-0609
Related Products | NSN 5970-00-356-0609
Technical Data | NSN 5970-00-356-0609
| Characteristic | Specifications |
|---|---|

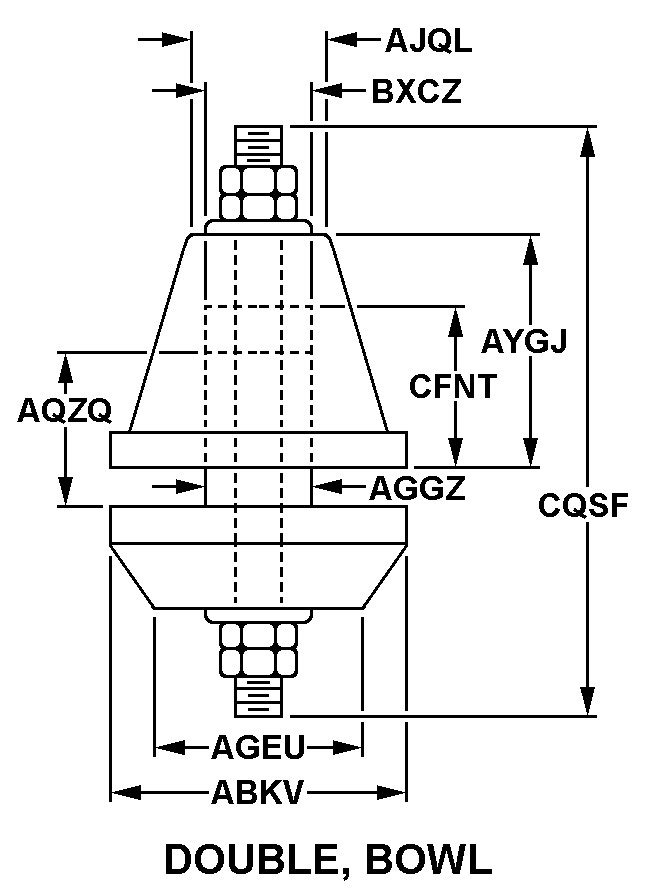

| STYLE DESIGNATOR | F18 DOUBLE, BOWL |
| OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| BASE DIAMETER | 0.500 INCHES NOMINAL |
| TOP DIAMETER | 0.500 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 1.250 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.250 INCHES NOMINAL |
| CENTER STUD LENGTH | 3.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | CENTER STUD UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.190 CENTER STUD INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 CENTER STUD |
| THREAD CLASS AND LOCATION | 2A CENTER STUD |
Restrictions/Controls & Freight Information | NSN 5970-00-356-0609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-356-0609
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
