Product Details | STRAIN INSULATOR
5970-00-356-0633 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Part Alternates: 125M1222, 125M1-2-2-2, 474, 5970-00-356-0633, 00-356-0633, 5970003560633, 003560633
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-356-0633 | 00226 ( INSULATOR, STRAIN ) |
Drawings & Photos | NSN 5970-00-356-0633
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-356-0633
Related Products | NSN 5970-00-356-0633
Technical Data | NSN 5970-00-356-0633
| Characteristic | Specifications |
|---|---|

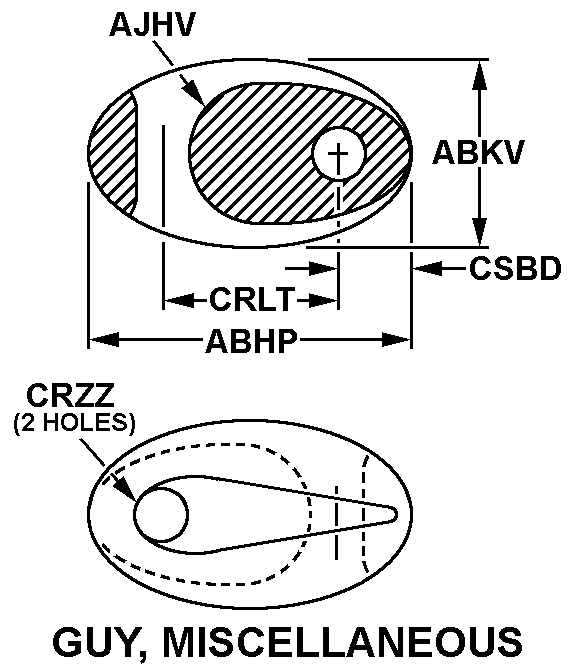

| STYLE DESIGNATOR | N18 GUY, MISCELLANEOUS |
| OVERALL LENGTH | 1.438 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| FIRST CORNER RADIUS | 0.156 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 0.625 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.250 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 0.406 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
