NSN 5950-00-985-3086 RS12105, 12103, 00-985-3086
Product Details | REACTOR
5950-00-985-3086 A coil or coils usually constructed with cores having low magnetic reluctance, whose primary purpose is to furnish an inductive impedance in power or audio frequency circuit ranging from zero to 20 kilohertz (kilocycles). Includes audio frequency and power filter chokes, audio reactors and swinging chokes. Does not include transformers or coils used above audio frequency range. Excludes SATURABLE REACTOR. For reactors with air cores, see COIL (as modified).
Part Alternates: RS12105, 12103, 5950-00-985-3086, 00-985-3086, 5950009853086, 009853086
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-985-3086 | 00724 ( REACTOR ) |

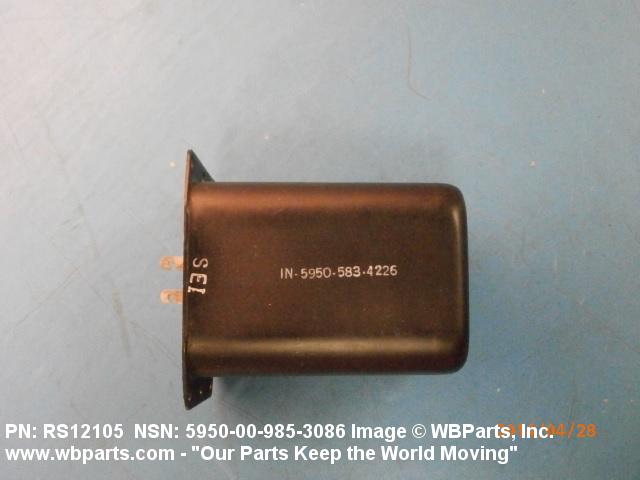

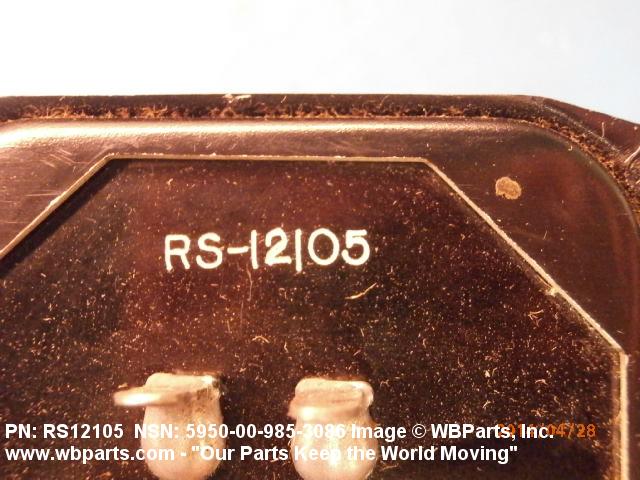

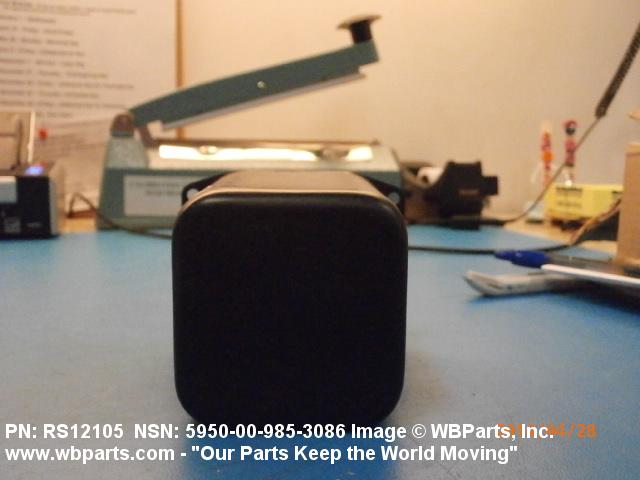

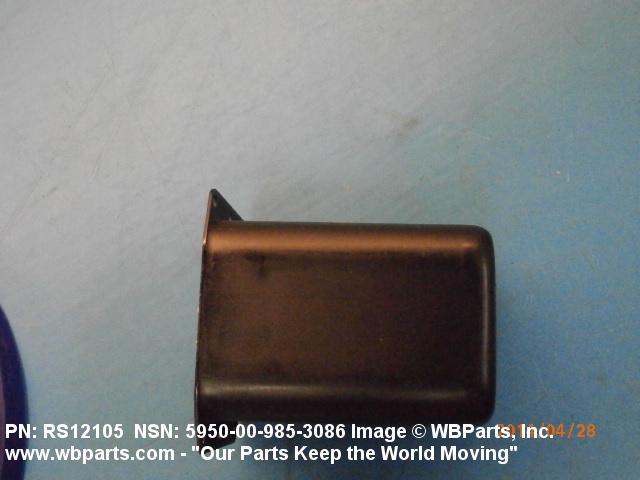

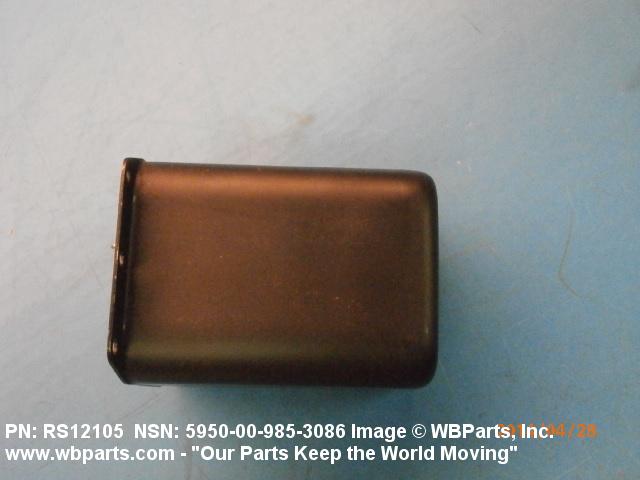

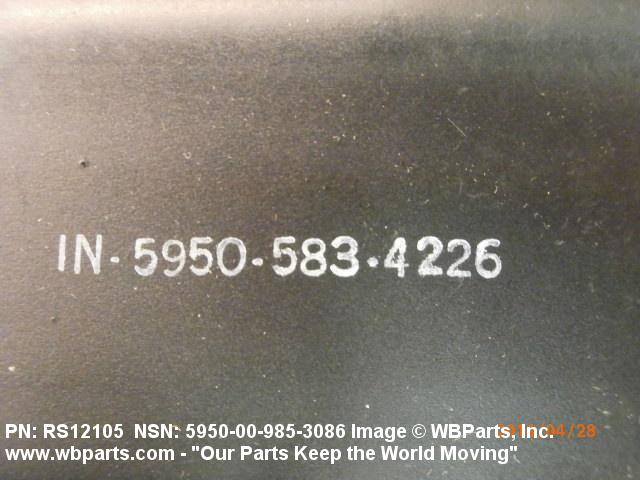

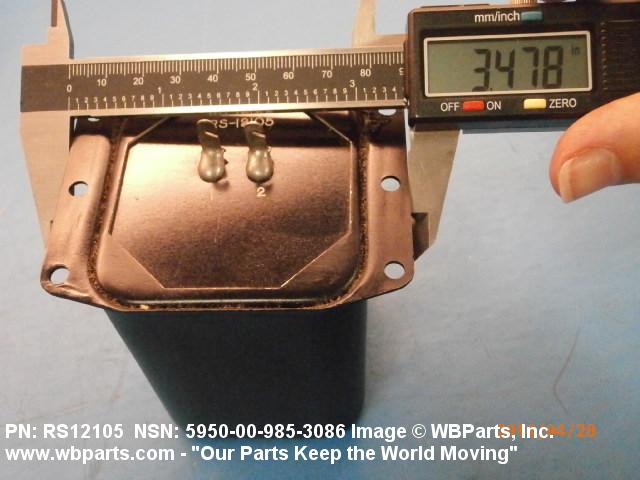

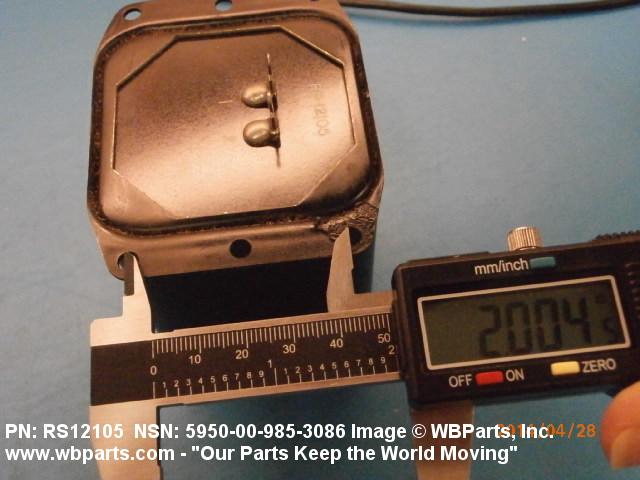

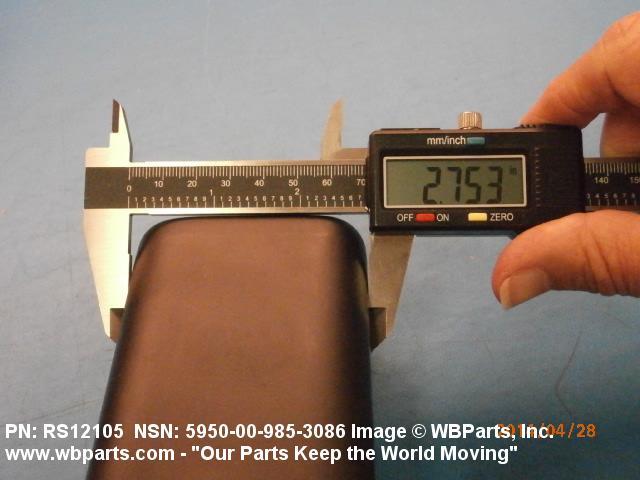

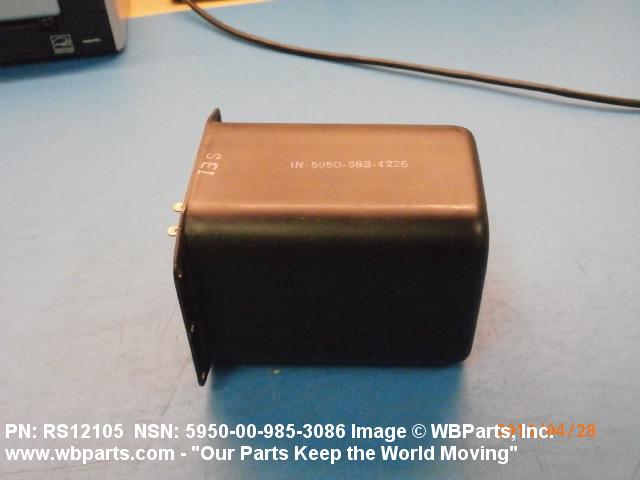

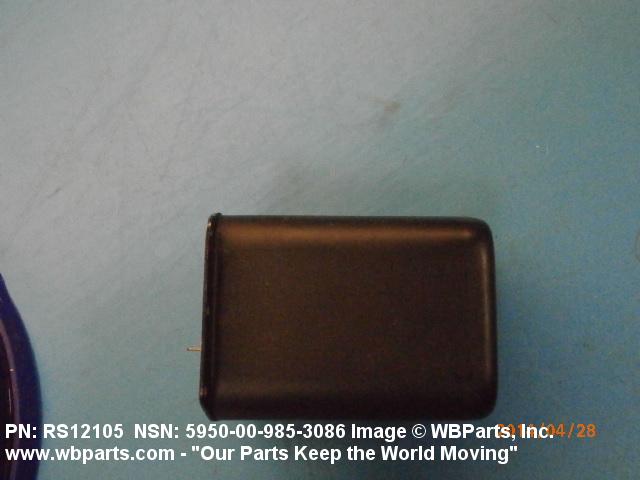

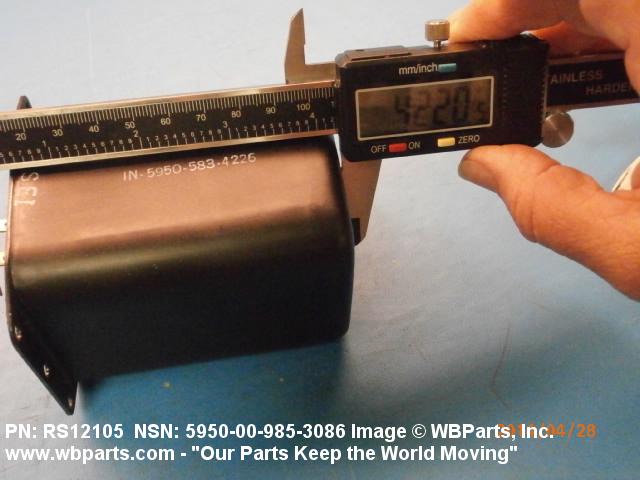

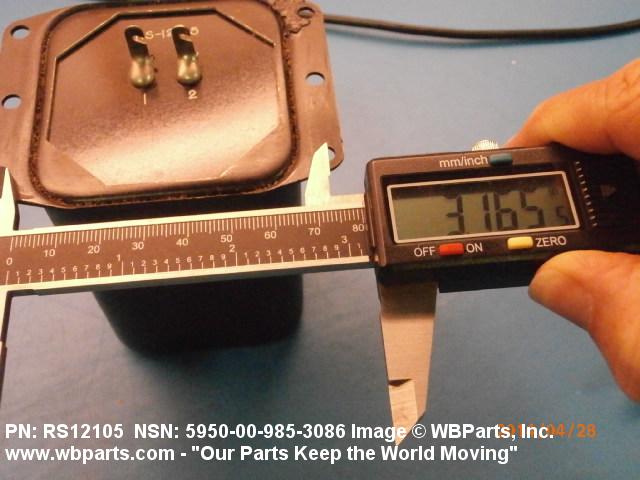

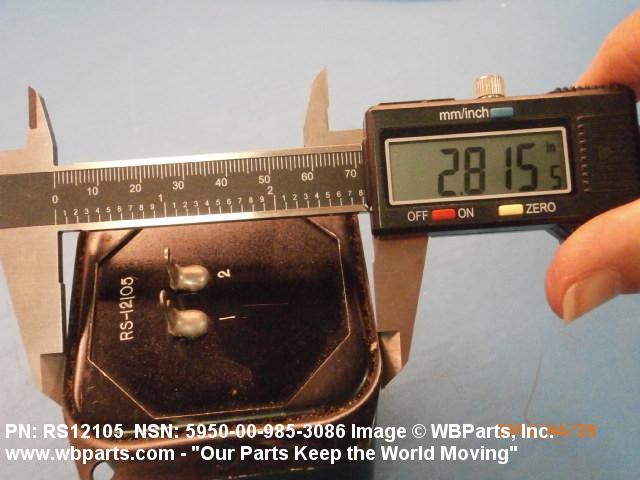

Drawings & Photos | NSN 5950-00-985-3086
Demand History | NSN 5950-00-985-3086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-00-985-3086 | 2017-01-18 | 5 | United Kingdom |
| 5950-00-985-3086 | 2016-01-20 | 4 | United Kingdom |
| 5950-00-985-3086 | 2014-12-343 | 4 | United Kingdom |
| 5950-00-985-3086 | 2014-05-142 | 1 | DIBBS |
| 5950-00-985-3086 | 2014-05-127 | 3 | United Kingdom |
| 5950-00-985-3086 | 2014-04-105 | 2 | United Kingdom |
| 5950-00-985-3086 | 2014-04-105 | 2 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-985-3086
Technical Data | NSN 5950-00-985-3086
| Characteristic | Specifications |
|---|---|

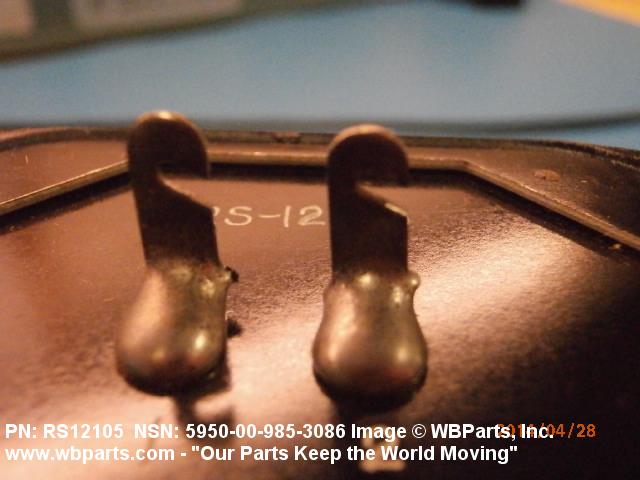

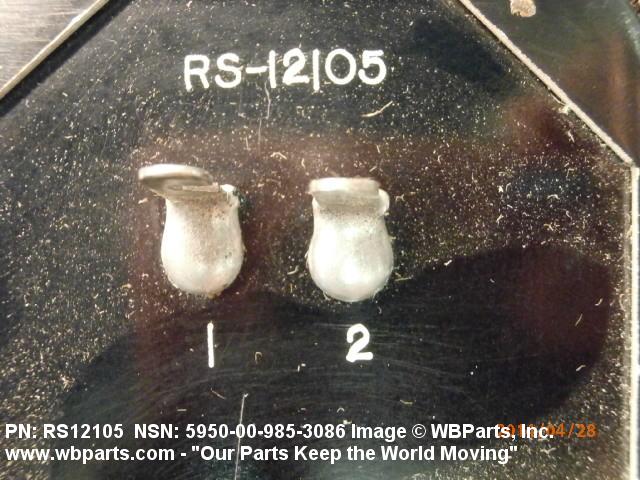

| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| RATING METHOD | ELECTRICAL SINGLE COMPONENT SINGLE WINDING |
| WINDING OPERATING CURRENT | 105.0 MILLIAMPERES DC MAXIMUM SINGLE COMPONENT SINGLE WINDING |
| DC RESISTANCE RATING IN OHMS | 240.000 SINGLE COMPONENT SINGLE WINDING |
| INDUCTANCE RATING | 12.00 HENRY NOMINAL SINGLE COMPONENT SINGLE WINDING |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING QUANTITY | 1 SINGLE COMPONENT |
| INDUCTANCE TYPE | FIXED |

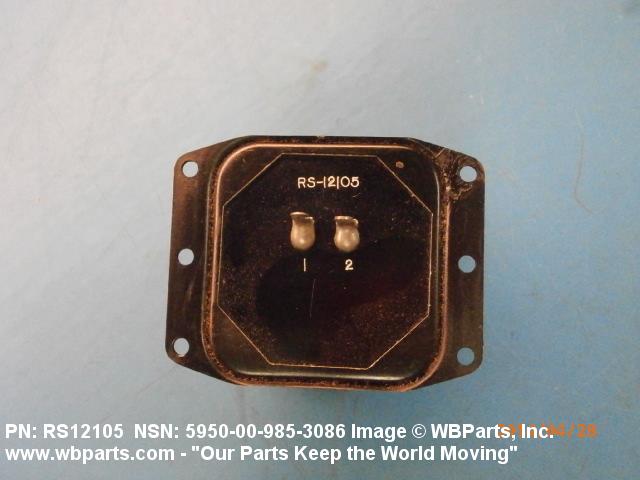

| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 6 SINGLE GROUP |

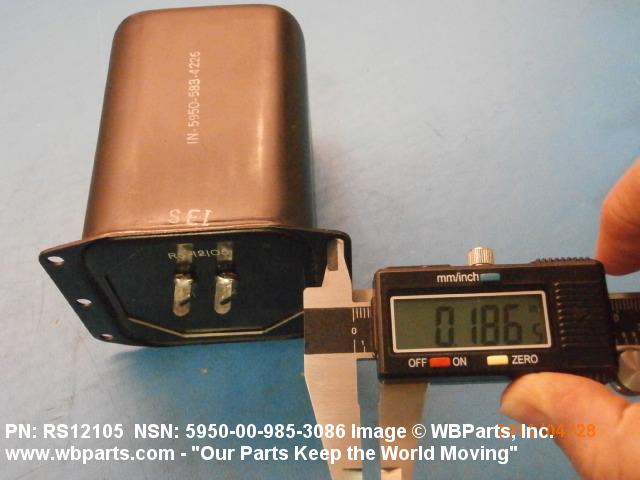

| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.125 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.000 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| BODY LENGTH | 2.906 INCHES MAXIMUM |
| BODY HEIGHT | 3.781 INCHES MAXIMUM |
| BODY WIDTH | 2.531 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.359 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM OPERATING TEMP | 55.0 DEG CELSIUS |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 3.000 POUNDS |
| MANUFACTURERS CODE | 83862 |
| DESIGN CONTROL REFERENCE | RS12105 |
Restrictions/Controls & Freight Information | NSN 5950-00-985-3086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063498 | VOICE COIL/DYNAMIC LOUDSPEAKER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-985-3086
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
