NSN 5950-00-882-9053 RYG101054232, RYG10105423-2 , TP2270
Product Details | REACTOR

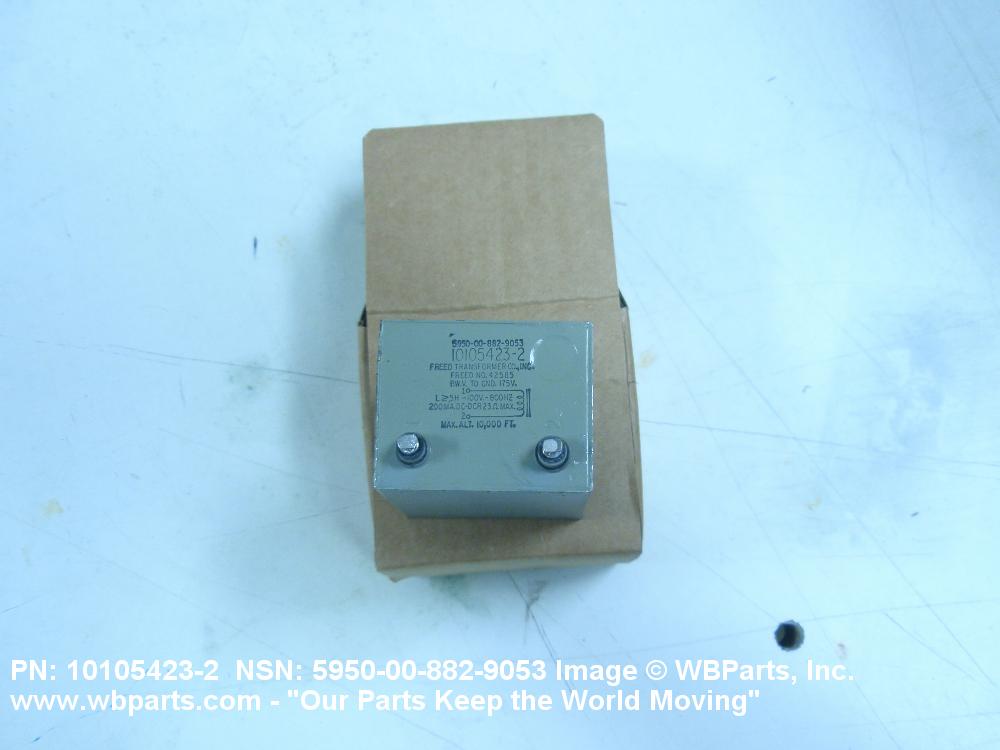

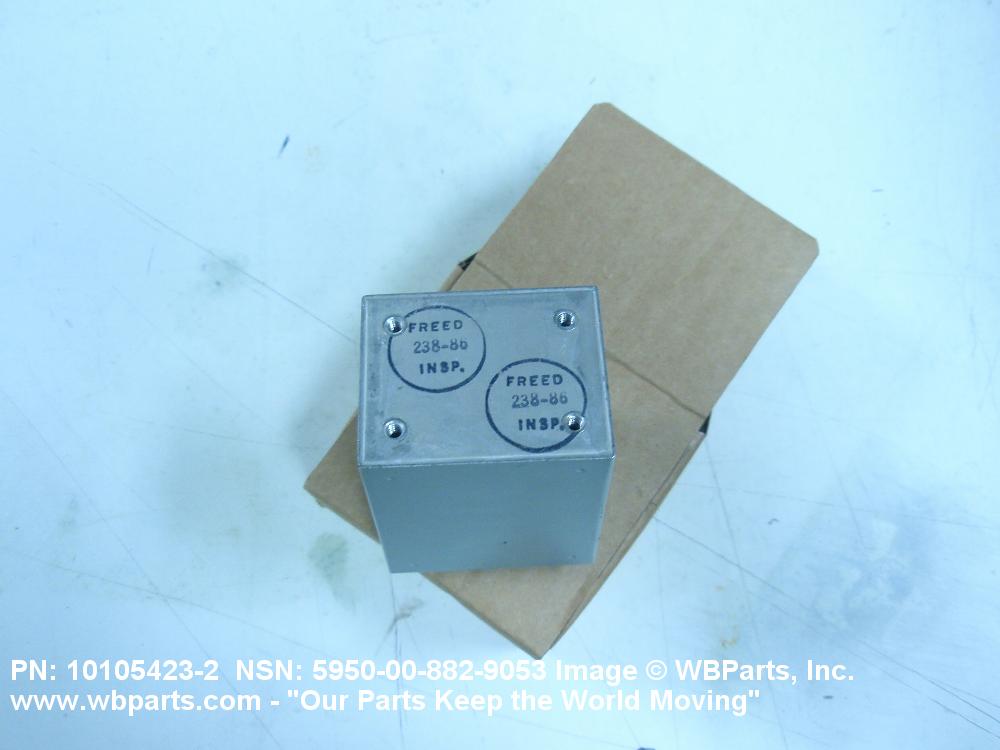

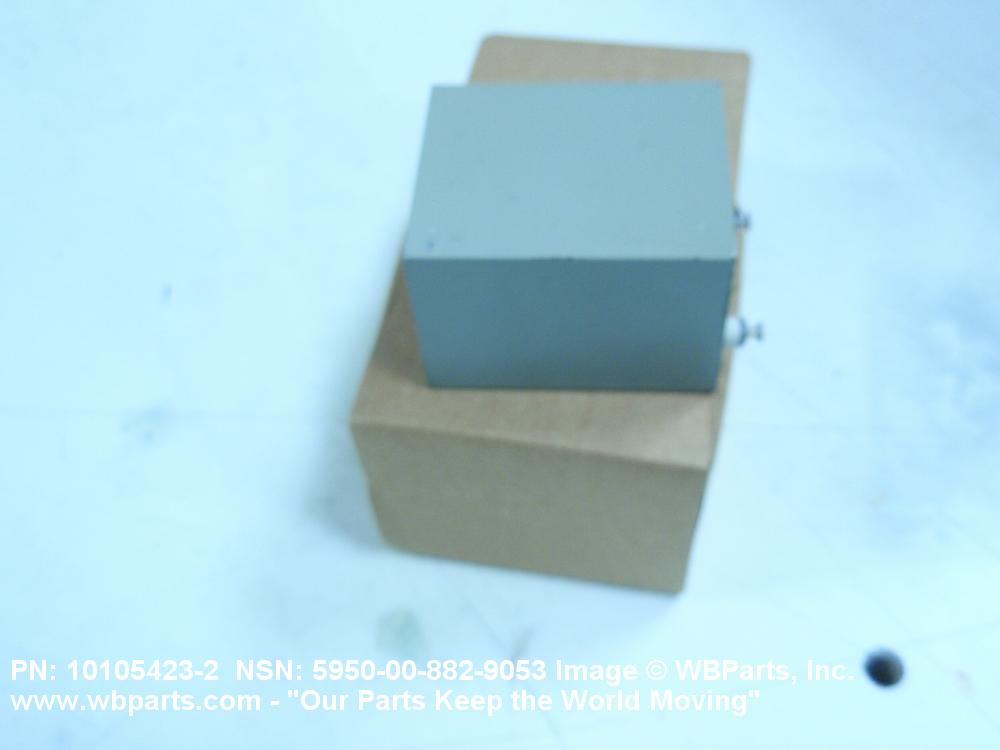

5950-00-882-9053 A coil or coils usually constructed with cores having low magnetic reluctance, whose primary purpose is to furnish an inductive impedance in power or audio frequency circuit ranging from zero to 20 kilohertz (kilocycles). Includes audio frequency and power filter chokes, audio reactors and swinging chokes. Does not include transformers or coils used above audio frequency range. Excludes SATURABLE REACTOR. For reactors with air cores, see COIL (as modified).
Part Alternates: RYG101054232, RYG10105423-2 , TP2270, 10105423-2, 354601, 5950-00-882-9053, 00-882-9053, 5950008829053, 101054232, 008829053
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-882-9053 | 00724 ( REACTOR ) |
Drawings & Photos | NSN 5950-00-882-9053
Demand History | NSN 5950-00-882-9053
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 354601 | 2024-12-345 | 5 | DIBBS |
| RYG10105423-2 | 2024-12-345 | 5 | DIBBS |
| TP2270 | 2024-12-345 | 5 | DIBBS |
| 354601 | 2022-07-191 | 2 | DIBBS |
| RYG10105423-2 | 2022-07-191 | 2 | DIBBS |
| TP2270 | 2022-07-191 | 2 | DIBBS |
| 354601 | 2019-05-143 | 6 | DIBBS |
| RYG10105423-2 | 2019-05-143 | 6 | DIBBS |
| TP2270 | 2019-05-143 | 6 | DIBBS |
| 101054232 | 2008-09-246 | 2 | France |
| 101054232 | 2008-06-172 | 2 | France |
Cross Reference | NSN 5950-00-882-9053
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-00-882-9053
Related Products | NSN 5950-00-882-9053
Technical Data | NSN 5950-00-882-9053
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 2 TURRET |
| RATING METHOD | ELECTRICAL SINGLE COMPONENT SINGLE WINDING |
| WINDING OPERATING CURRENT | 200.0 MILLIAMPERES DC MAXIMUM SINGLE COMPONENT SINGLE WINDING |
| DC RESISTANCE RATING IN OHMS | 23.000 SINGLE COMPONENT SINGLE WINDING |
| INDUCTANCE RATING | 500.00 MILLIHENRIES NOMINAL SINGLE COMPONENT SINGLE WINDING |
| FREQUENCY RATING | 800.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING QUANTITY | 1 SINGLE COMPONENT |
| INDUCTANCE TYPE | FIXED |
| MOUNTING METHOD | THREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| THREAD SERIES DESIGNATOR | UNC SINGLE GROUP |
| NOMINAL THREAD SIZE | 0.138 INCHES SINGLE GROUP |
| THREAD QUANTITY PER INCH | 32 SINGLE GROUP |
| (NON-CORE DATA) THREAD CLASS | 2B SINGLE GROUP |
| (NON-CORE DATA) THREAD DIRECTION | RIGHT-HAND SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.375 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.938 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| BODY LENGTH | 1.969 INCHES NOMINAL |
| BODY HEIGHT | 2.375 INCHES NOMINAL |
| BODY WIDTH | 1.595 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM OPERATING TEMP | 85.0 DEG CELSIUS |
