NSN 5945-01-380-3138 102HVX15, 102HVX-15, 01-380-3138
Product Details | REED RELAY

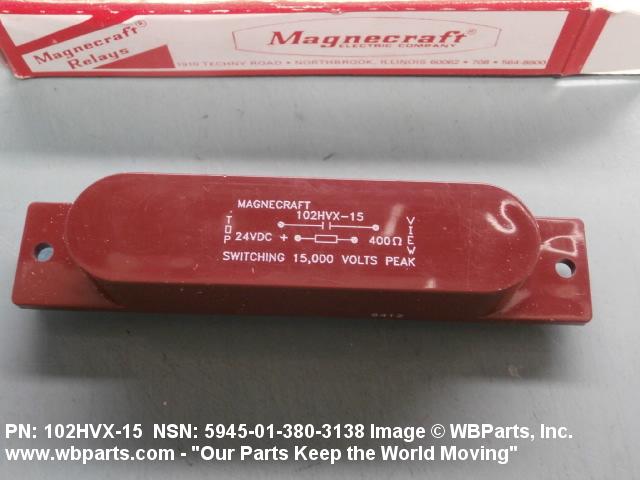

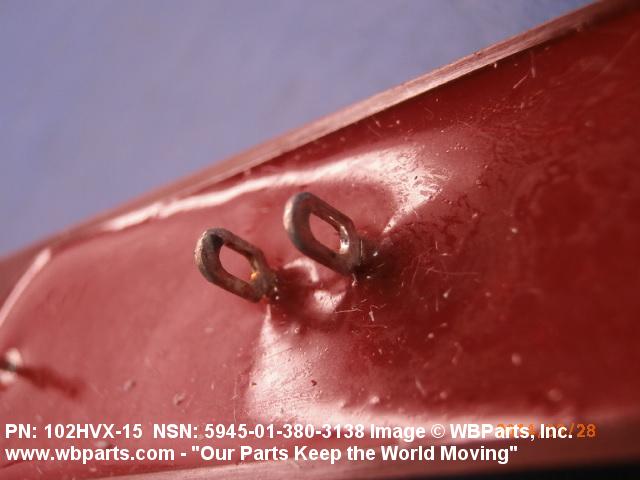

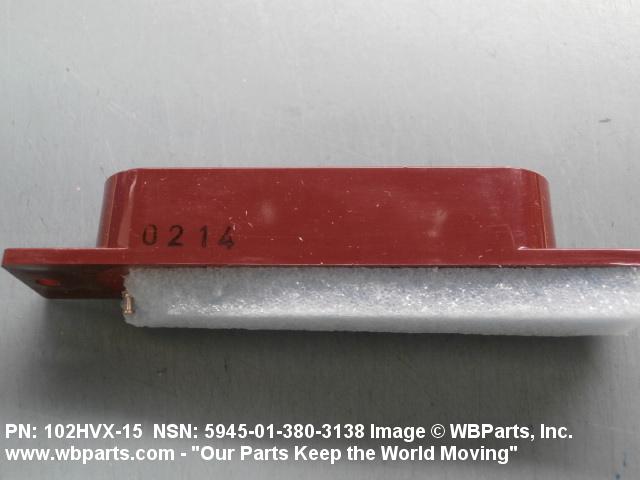

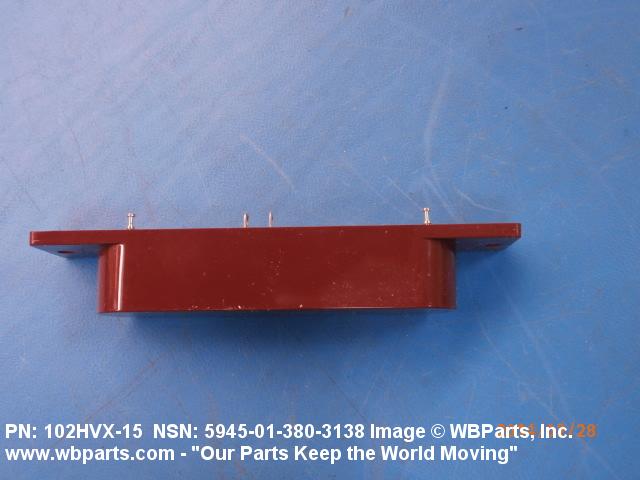

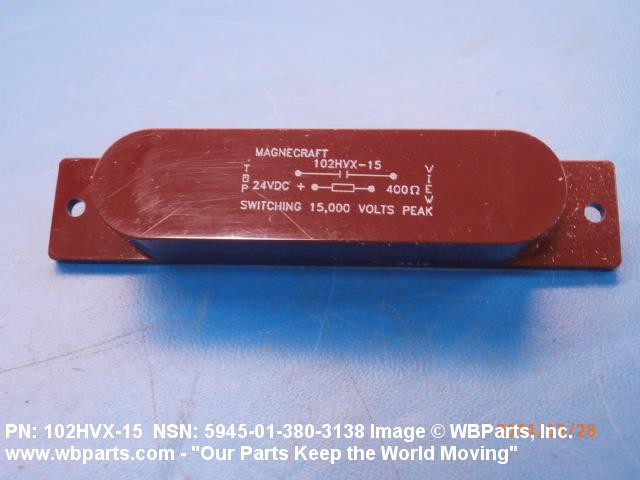

5945-01-380-3138 A relay consisting of an energizing coil and a metallic reed switch mechanism. The reeds serve as both core and contacts, which are not hinged or pivoted and which move by flexure when acted upon by a magnetic field induced by energization of the coil. It may also include a biasing magnet. The biasing magnet, either aids or opposes the movement of the reeds and the opening or closing of the contacts. For items in which actuation is dependent on the resonant frequency of the reeds see RELAY, RESONANT REED. Excludes RELAY, ELECTROMAGNETIC.
Part Alternates: 102HVX15, 102HVX-15, 5945-01-380-3138, 01-380-3138, 5945013803138, 013803138
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 SEP 1993 | 01-380-3138 | 30544 ( RELAY, REED ) |

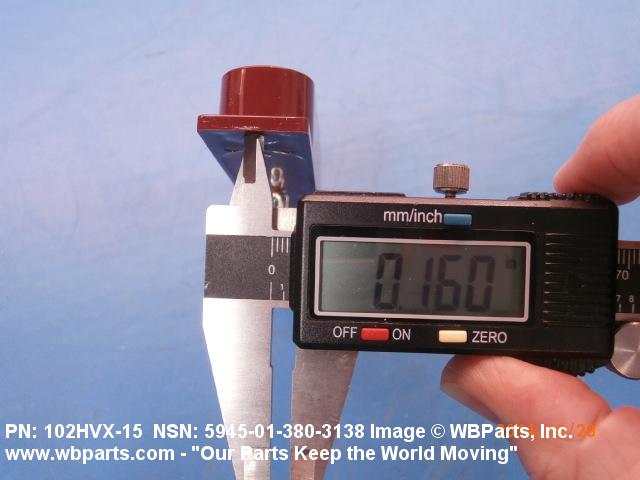

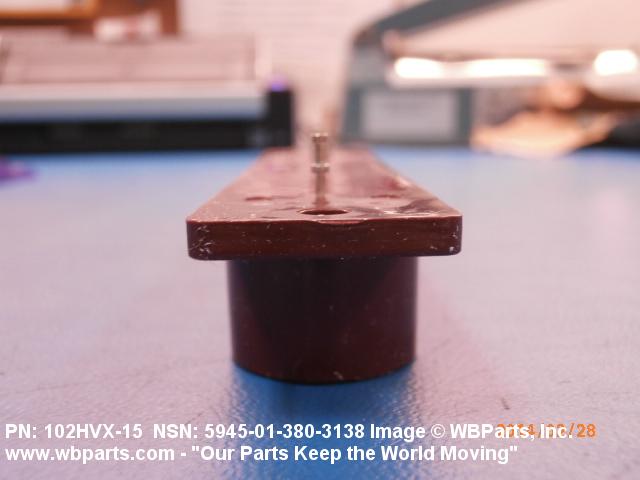

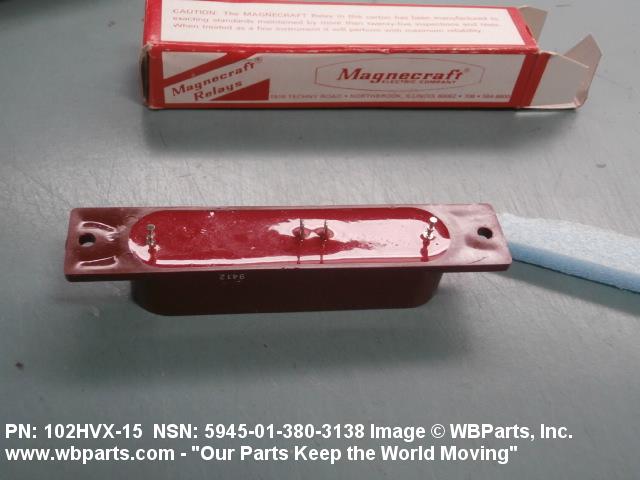

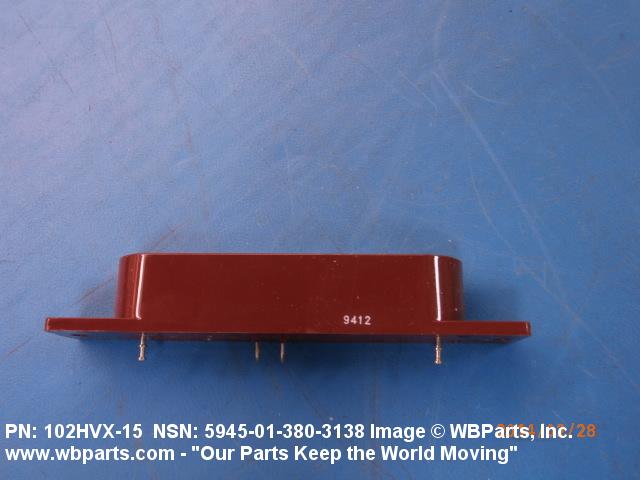

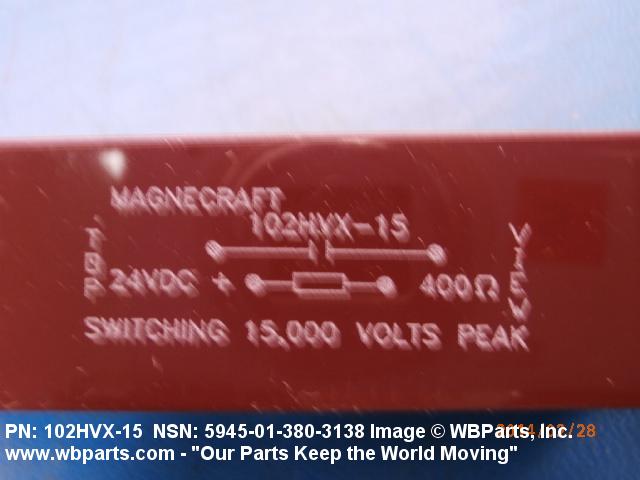

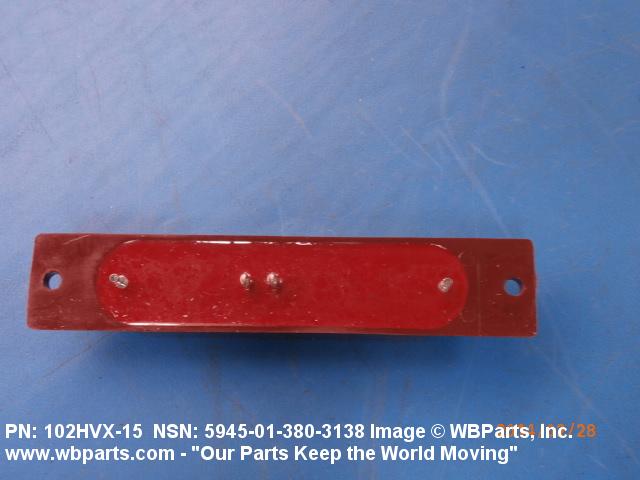

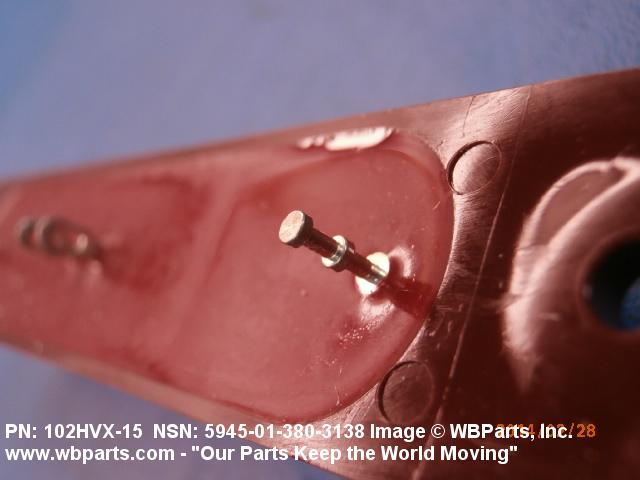

Drawings & Photos | NSN 5945-01-380-3138
Demand History | NSN 5945-01-380-3138
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 102HVX-15 | 2023-08-215 | 49 | DIBBS |
| 102HVX-15 | 2023-06-166 | 10 | DIBBS |
| 102HVX-15 | 2023-04-101 | 1 | DIBBS |
| 102HVX-15 | 2023-04-101 | 2 | DIBBS |
| 102HVX-15 | 2023-04-101 | 3 | DIBBS |
| 102HVX-15 | 2023-04-101 | 5 | DIBBS |
| 5945-01-380-3138 | 2014-02-49 | 6 | United States |
| 5945-01-380-3138 | 2013-10-302 | 15 | United States |
| 5945-01-380-3138 | 2013-10-302 | 15 | United States |
Cross Reference | NSN 5945-01-380-3138
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102HVX-15 | 94696 | SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-380-3138
Technical Data | NSN 5945-01-380-3138

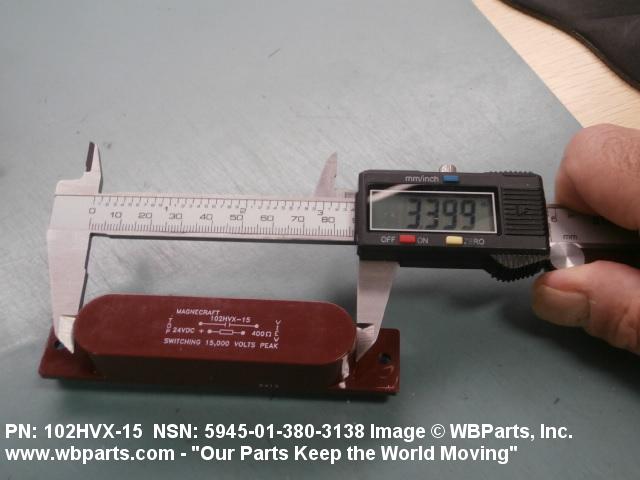

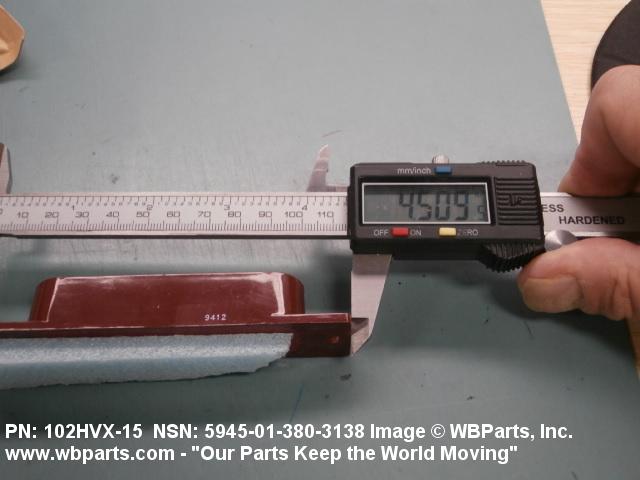

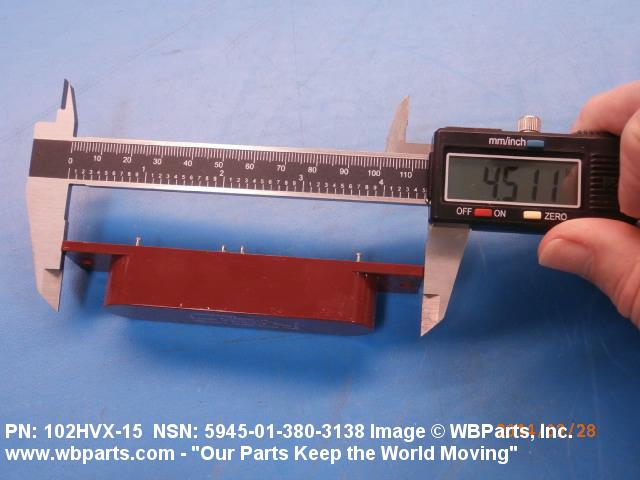

| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 4 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |

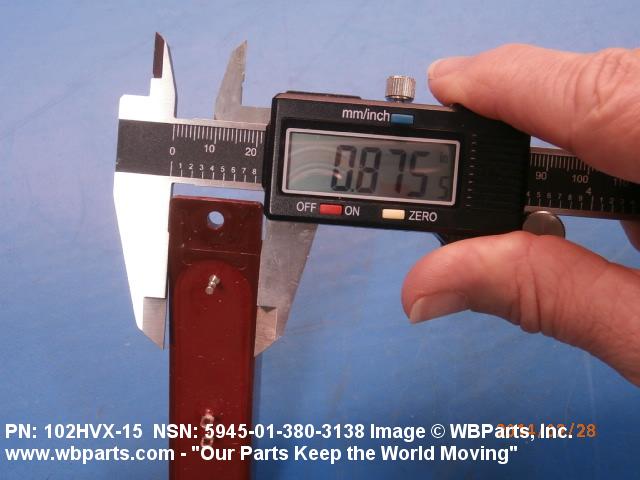

| OVERALL WIDTH | 0.875 INCHES NOMINAL |

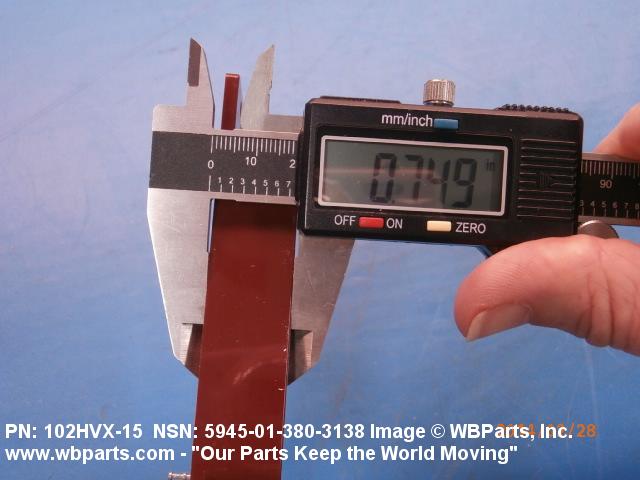

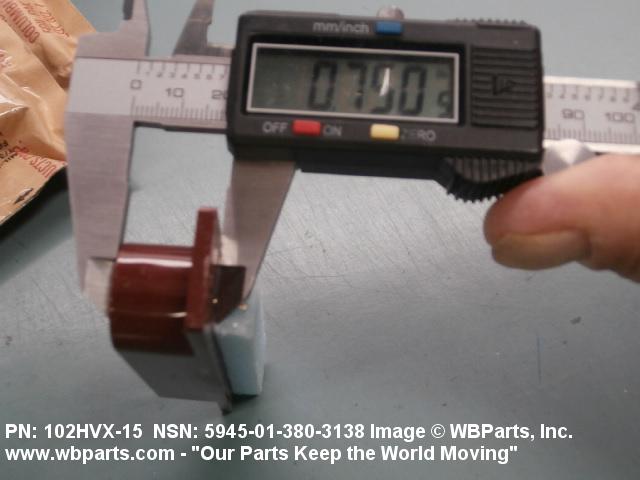

| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
