NSN 5945-01-270-6903 F8110202, F81-1020-2, R73261
Product Details | REED RELAY
5945-01-270-6903 A relay consisting of an energizing coil and a metallic reed switch mechanism. The reeds serve as both core and contacts, which are not hinged or pivoted and which move by flexure when acted upon by a magnetic field induced by energization of the coil. It may also include a biasing magnet. The biasing magnet, either aids or opposes the movement of the reeds and the opening or closing of the contacts. For items in which actuation is dependent on the resonant frequency of the reeds see RELAY, RESONANT REED. Excludes RELAY, ELECTROMAGNETIC.
Part Alternates: F8110202, F81-1020-2, R73261, R7326-1, 05YZ1A140BAB, 148-0114-00, 5945-01-270-6903, 01-270-6903, 5945012706903, 012706903, 148011400
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JAN 1988 | 01-270-6903 | 30544 ( RELAY, REED ) |

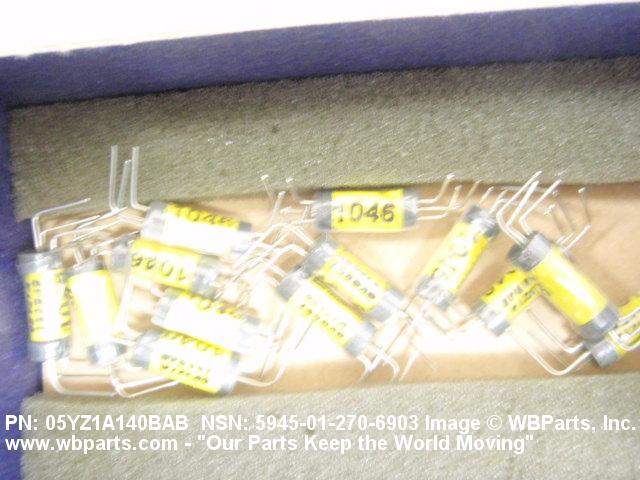

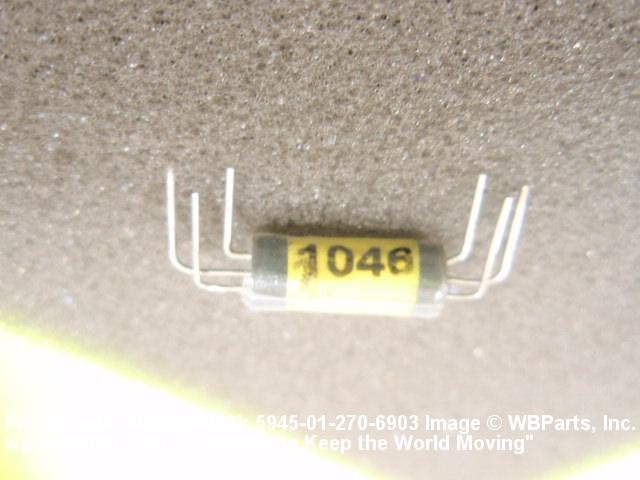

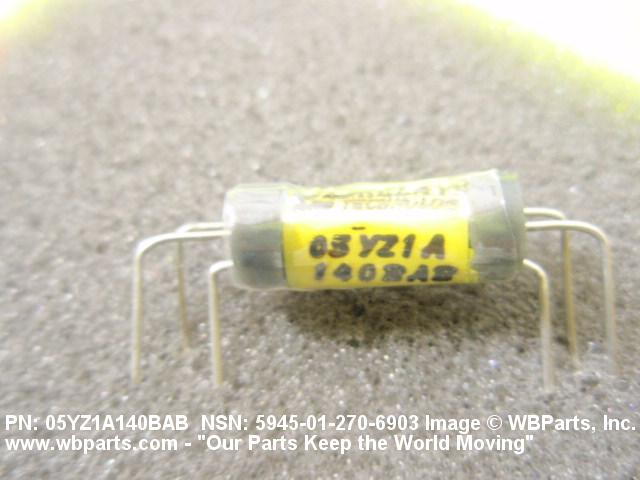

Drawings & Photos | NSN 5945-01-270-6903
Demand History | NSN 5945-01-270-6903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 05YZ1A140BAB | 2010-10-293 | 16 | United States |
| 148011400 | 2010-10-287 | 16 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-270-6903
Technical Data | NSN 5945-01-270-6903
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.0 MILLIAMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 140.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 5.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 2 PIN CONTACTS 4 PIN ENERGIZING ELEMENT AND GROUND |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| OVERALL LENGTH | 0.720 INCHES MAXIMUM |
| OVERALL WIDTH | 0.245 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.245 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ELECTROSTATIC SHIELD |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III END ITEM IDENTIFICATION | 6625012617882 TEST SET PROGRAMMABLE ANALOG PRINTED CIRCUIT BOARD |
| (NON-CORE DATA) END ITEM SOURCE | 80009 |
| III CUBIC MEASURE | 0.043 CUBIC INCHES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | PLASTIC |
Restrictions/Controls & Freight Information | NSN 5945-01-270-6903
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
