Product Details | ELECTROMAGNETIC RELAY

5945-01-380-3341 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: A575KXX, 70000031302, 7000-0031-302, 5945-01-380-3341, 01-380-3341, 5945013803341, 013803341

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG) NSN Assign. NIIN
59 17 SEP 1993 01-380-3341

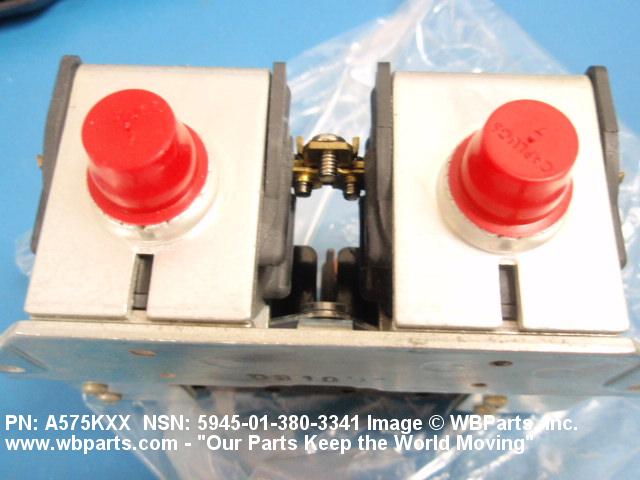

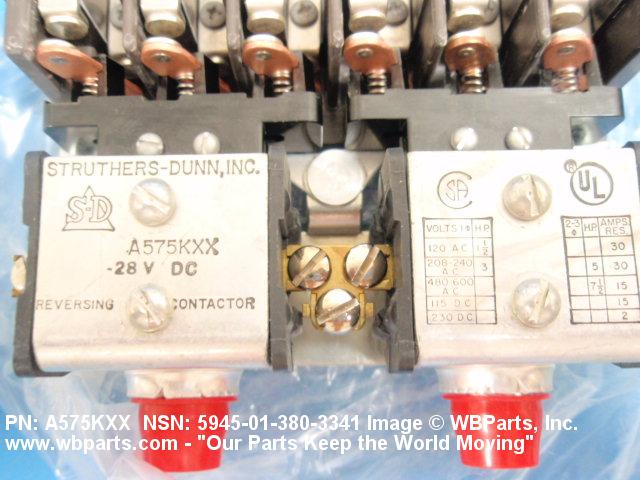

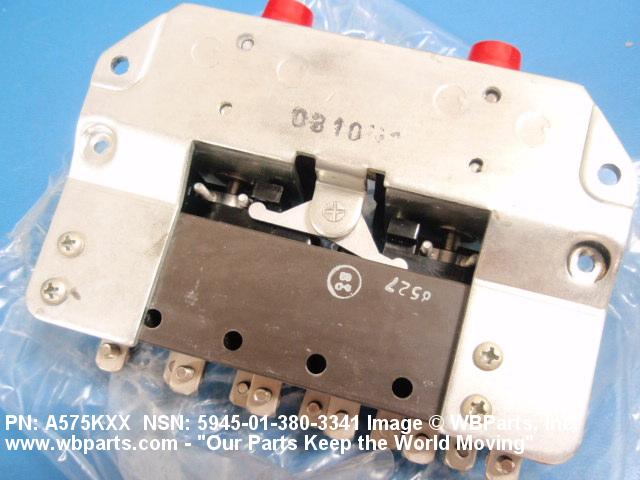

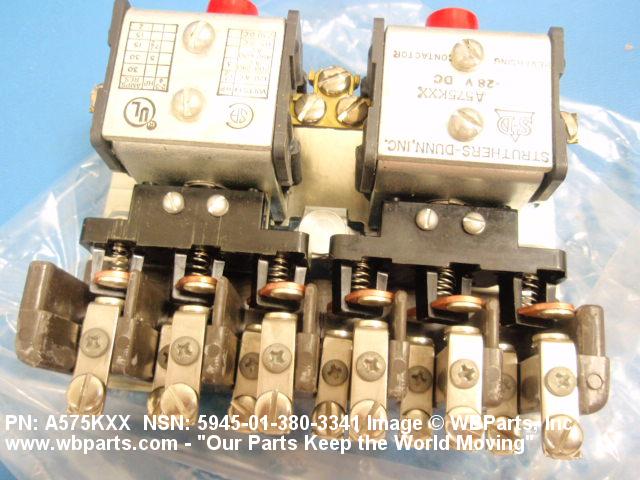

Drawings & Photos | NSN 5945-01-380-3341


Demand History | NSN 5945-01-380-3341

Part Number Request Date QTY Origin
5945-01-380-3341 2010-02-43 1 United States

Cross Reference | NSN 5945-01-380-3341

Part Number Cage Code Manufacturer
7000-0031-302 06032 ANTENNA PRODUCTS CORPORATION
A575KXX 78290 STRUTHERS-DUNN INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-380-3341

Technical Data | NSN 5945-01-380-3341

Characteristic Specifications
SPECIAL FEATURES 7.5 HP REVERSING;TWO SETS THREE-POLE, DOUBLE MAKE N.O. CONTACTS

Restrictions/Controls & Freight Information | NSN 5945-01-380-3341

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
